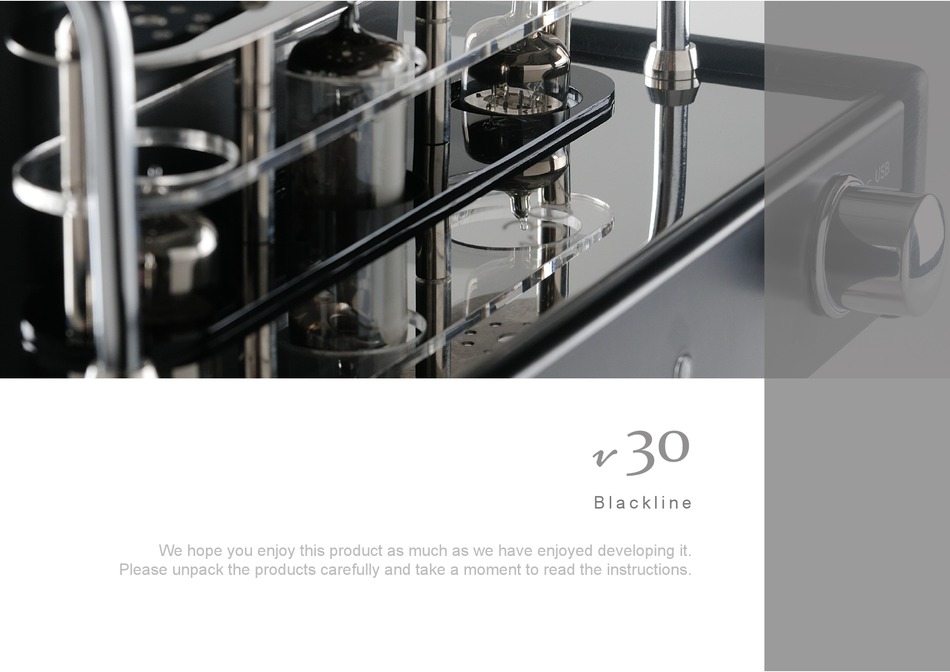

- Page 1 B l a c k l i n e We hope you enjoy this product as much as we have enjoyed developing it. Please unpack the products carefully and take a moment to read the instructions.
- Page 2 Contents • vacuum tube stereo amplifier • 1 x Line out RCA cable • 1 x Power Cord • 1 x Replacement audio valve • 1 x Dusting Brush • 1 x Line out USB cable MUTE BASS BASS Blackline •...
- Page 3 Please read the following precautions before attempting to operate the amplifier All safety and operating instructions should be read thoroughly before attempting to operate this equipment • Retain Instructions for future reference • Follow all instructions detailed in this manual •...
- Page 4 • Ensure that the unit is placed on a clean, dry and flat surface • Ensure that the unit is connected to the correct power before operation supply as indicated on the unit. • Do not drop unit, apply excessive force to the controls or place •...
- Page 5 • The should be serviced by an authorised service engineer in the event of any of the following circumstances 1. The power supply or cord sustains damage 2. The unit is struck by a falling object 3. The unit is exposed to rain or moisture. 4.
- Page 6 MUTE BASS BASS Blackline Power on/off Mute VOL+ treble treble + BASS BASS + Page | 6...
- Page 7 Connections SPEAKER LINE INPUT Cd.MP3.Mobilephone... Computer USB TV Line out cable- (RCA – mini jack) Page | 7...
- Page 8 Connections Amplifier Loudspeakers Before attempting to make any connections to or Connect the speakers to the using the supplied from the , firstly ensure that the amplifier and high quality speaker cables. all connecting devices are switched OFF. Please note that if the speaker cables are not When making connections to other devices from connected properly you may hear no sound, or if , take the time to ensure that they are...
-
Page 9: Maintenance
Maintenance • Switch off the amplifier when not in use • Allow unit to cool completely before cleaning • Clean using a soft cloth or the supplied dusting brush • Do not attempt to clean the products with chemical solvents as this may damage the finish of the In the unlikely event that either of the audio driver tubes (Left and Right) malfunctions, the replacement tube can be fitted by following these instructions. -
Page 10: Troubleshooting
Troubleshooting If your system fails to operate normally, please check the following points to determine if the fault can be corrected with one of the suggestions below. If you feel your system is still faulty after reading this, please contact your authorised dealer or Service centre or email support@blueaura.co.uk Page | 10... - Page 11 Power adaptor is not connected Make sure power adapter is firmly properly plugged in. Mains supply is off No Power Test with another appliance /different socket. If using Remote, battery Replace battery needs replacing Check volume control on front of v30 and volume control on remote control Volume control is turned down No sound from...
-
Page 12: Specifications And Features
Specifications & Features Amplifier Power Output 20w per channel Freq. Response. 20Hz – 20 KHz +/- 1.5dB Harmonic distortion 0.5% Signal to noise ratio 8 6dB Input Impedance 47K Ω Input Sensitivity 1.0V +/- 25% Output impedance 4 / 8 Ω Vacuum tube Type 6n1 x 2 6e2 x 1 Audio Inputs... - Page 13 Loudspeakers High Frequency Unit ¾” Soft Dome Low Frequency Unit 3.5” Paper cone Frequency Range 55 – 20000Hz Crossover Frequency 12dB/Octave @3.0KHz Max RMS Power 30 watts per channel Wall mountable Fully Shielded drive units Dimensions: H: 175mm W: 112mm D: 145mm Weight: 2.5Kg each E&OE Page | 13...
- Page 14 This entitles you to have the unit repaired free of charge, during the first two years after purchase, at any authorised Blue Aura distributor provided that it was originally purchased from an authorised Blue Aura dealer or distributor. The manufacturer can take no responsibility for defects arising from accident, misuse, abuse, wear and tear, neglect or through unauthorised adjustment and/or repair;...
- Page 15 This equipment should be packed in the original packing and returned to the dealer from whom it was purchased, or failing this, directly to the Blue Aura distributor in the country of residence. It should be sent carriage prepaid by a reputable carrier. No...
-
Page 16: Product Registration
Name Address line 1 Address line 2 Town Country Postcode/zip code Telephone Dealer details (if applicable) Dealer name Blue Aura PO Box 293 Address line 1 St Neots Address line 2 PE19 9EW Town County Postcode Country Page | 16...
