Summary of Contents for Blue Aura Blackline PH 1

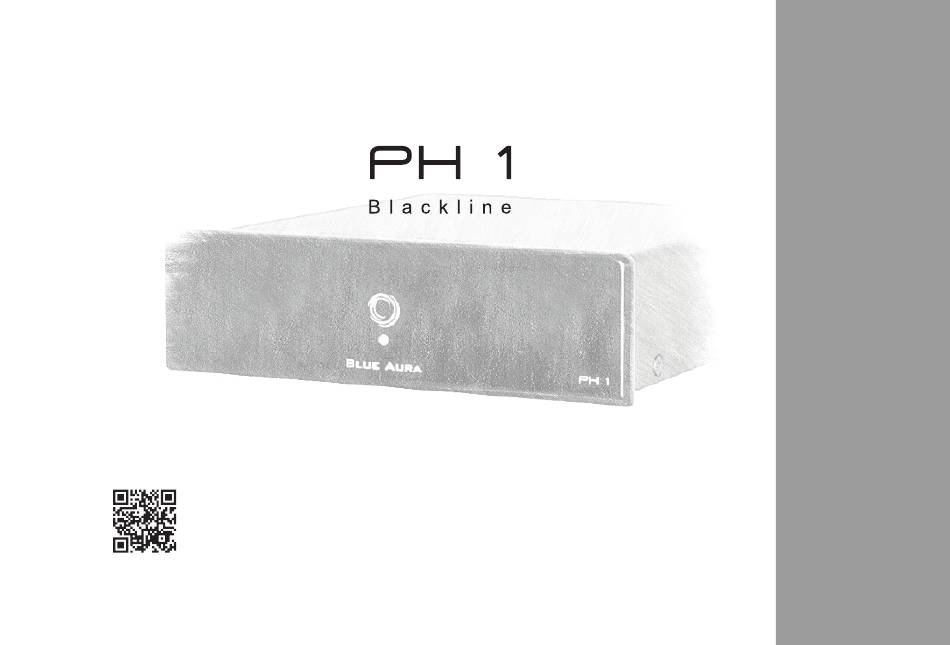

- Page 1 Please unpack the products carefully and take a moment to read the instructions. Please visit our website for more information...
- Page 2 Contents • Phono Pre-amplifier PH 1 • 1 x Power cable • 1 x Pre-Amplifier Please read the following precautions before attempting to operate the pre-amplifier PH 1 All safety and operating instructions should be read thoroughly before attempting to operate this equipment •...
- Page 3 • Ensure that the unit is placed on a clean, dry and flat surface • Allow unit to cool completely before cleaning. before operation • Do not attempt to clean the product with chemical • Do not drop the unit, apply excessive force to the controls or solvents as this may damage the finish of the PH 1 place heavy objects on top of the unit.
- Page 4 Front & Back Of PH 1 Page | 4...
- Page 5 Making Connection INPUT: CARTRIDGE TYPE: Using the stereo pair of RCA/Ground Phono cables that Refer to the instructions or specifications that came connect to your existing Turntable or Record Player, with your turntable or record player to determine which connect the white RCA plug into the white (L) input cartridge type your player uses.
-
Page 6: Troubleshooting
Troubleshooting If your system fails to operate normally, please check the following points to determine if the fault PH 1 can be corrected with one of the suggestions below. If you feel your system is still faulty after reading this, please contact your authorised dealer or Service centre or email support@blueaura.co.uk FAULT POSSIBLE CAUSE... -
Page 7: Specifications
Specifications Output Level 2.44V 659 mV Maximum Input 17.55 mV >7 mV Maximum Output 8.7V >8.52V Input Impedance 45~56K Ω 80~120 Ω Output Impedance 110 Ω 110 Ω Gain (1 KHz) 55 dB 58~62 dB Distortion (5mV Input) <0.02% <0.08% S/N (A Weighting) 82.8 dB >64 dB... - Page 8 This equipment should be packed in the original packing and returned to the dealer from whom it was purchased, or failing this, directly to the Blue Aura distributor in the country of residence. It should be sent carriage prepaid by a reputable carrier. No responsibility can be accepted for the unit whilst in transit to the dealer or distributor and customers are therefore advised to insure the unit against loss or damage whilst in transit.
