Summary of Contents for Comfort audio Comfort Digisystem DH-10

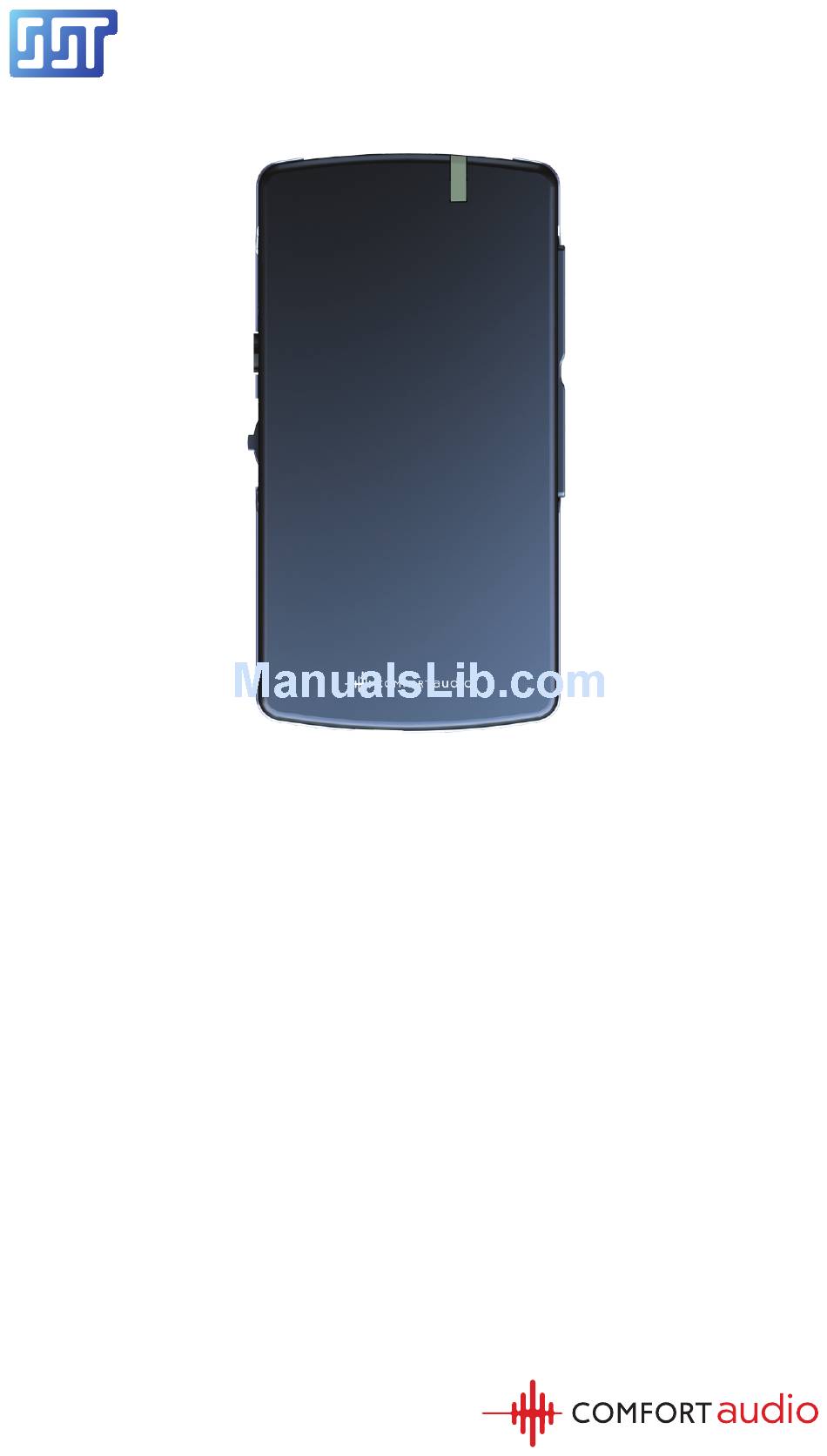

- Page 1 SecureStream Technology User Manual Handset DH-10 English Handset DH-10...
-
Page 2: Table Of Contents
User Manual Table of Contents Page Introduction to the Comfort Digisystem Functions of the Handset DH-10 Getting Started First Time Use Menu More Functions Radio Range and Channels Original Accessories Trouble Shooting Service and Warranty Technical Data Important Safety Instructions... -
Page 3: Introduction To The Comfort Digisystem
The products are easy to use, whether you use a hearing aid or not. Before using the product, please read this User Manual carefully. With the Handset DH-10 receiver, the signal is received digitally, resulting in an excellent clear sound. Comfort Digisystem is fitted with SecureStream... -
Page 4: Functions Of The Handset
Functions of the Handset DH-10 Socket for neckloop Function indicator Volume button + Volume button - Charging socket On / Off Menu control Pairing button Socket for headphones/earphones Display indicating Display indicating connected active neckloop headphones/earphones Handset DH-10... -
Page 5: Getting Started
Getting Started Charging The Handset DH-10 is chargeable. Charge the DH-10 at least two hours before you use it for the first time. An empty battery is fully charged within two hours. During charging, the function indicator shows red and a lightning bolt appears through the battery symbol in the display. -
Page 6: First Time Use
Press in the contacts to the end. Check that the neck loop is connected firmly. When putting on/taking off the receiver connected to the neck loop, be careful that the contacts do not break off. Handset DH-10... - Page 7 Adjust the volume with the volume buttons. If you listen with a neckloop and a hearing aid, set the hearing aid to the T or MT position. Other functions are explained later in this manual. With neckloop With neckloop and earplugs Handset DH-10...
-
Page 8: Menu
Three different selections can be made: Scroll up Press/select Scroll down To access the menu, press the menu control: Back Communication Channel Pairing Sound Balance Max volume Fix volume Settings PIN code Charge Language Name Button sound Key lock About Handset DH-10... - Page 9 Transmitting/receiving of pairing information along with a new code can be performed from any Comfort Digisystem unit with a display. To pair units without a display, see sec- Handset DH-10...
- Page 10 You can activate the Pairing function via the pairing Pairing button. One brief press of the button opens the menu. Two brief presses activate the Send info function. One long press activates the Receive info function. Handset DH-10...
-
Page 11: Handset Dh-
- Sound: Locks all functions in the “Sound” menu (can be combined with the “Pairing” menu item) - Pairing: Locks all pairing functions in the unit, as well as the pairing button - All menus: Locks all menus Handset DH-10... - Page 12 Here you can activate or deactivate the button sound. Key lock Here you can activate the key lock and thereby lock all buttons. Once the key lock has been activated, Unlock keys? appears in the display. Select Yes to unlock. About Here you find software information. Handset DH-10...
-
Page 13: More Functions
Once the unit has been set to receive pairing information, the indicator flashes green quickly. When receiving pairing information, the indicator shows green for three seconds. When sending pairing information, the indicator flashes red five times. If the radio signal is weak, the indicator flashes red. Handset DH-10... -
Page 14: Radio Range And Channels
A-F, which require a licence in most European countries: A 768 - 790 MHz B 854 - 863 MHz C 790 - 800 MHz D 800 - 820 MHz E 820 - 854 MHz F 865 - 872 MHz Handset DH-10... -
Page 15: Original Accessories
Charging stand Charging stand to connect to the charger supplied. Desk stand Desk stand for the Handset DH-10. Short neckloop A shorter neckloop for the Handset DH-10 is also avai- lable. Headphones/earplugs For other accessories, please visit our website, www.comfortaudio.com... -
Page 16: Trouble Shooting
The unit will not start during charging Disconnect the charger. Check the selection Auto power off under Charging in the menu. When using with a hearing aid, make sure that it works both in the T and the MT position. Handset DH-10... -
Page 17: Service And Warranty
Under normal use, battery lifetime is up to five years. Contact your point of purchase once it is time to change the battery. You are always welcome to contact us at Comfort Audio if you have any questions. Technical Data Type of receiver: SST –... -
Page 18: Important Safety Instructions
10) Only use attachments/accessories specified by Comfort Audio AB. 11) Unplug this apparatus during Iightning storms or when unused for long periods of time. 12) Refer all servicing to qualified service personnel. - Page 19 19) Never charge product in closed, unaired spaces such as handbags, cases or other closed storage bags. 20) Only use batteries and power supply specified by Comfort Audio AB. 21) You must not change the battery yourself; please contact your point of purchase.
- Page 20 Manufactured by: Comfort Audio AB Box154, SE-301 05 Halmstad, Sweden Tel. +46 (0)35 15 23 00 Fax +46 (0)35 15 23 23 info comfortaudio.com www.comfortaudio.com Handset DH-10...
