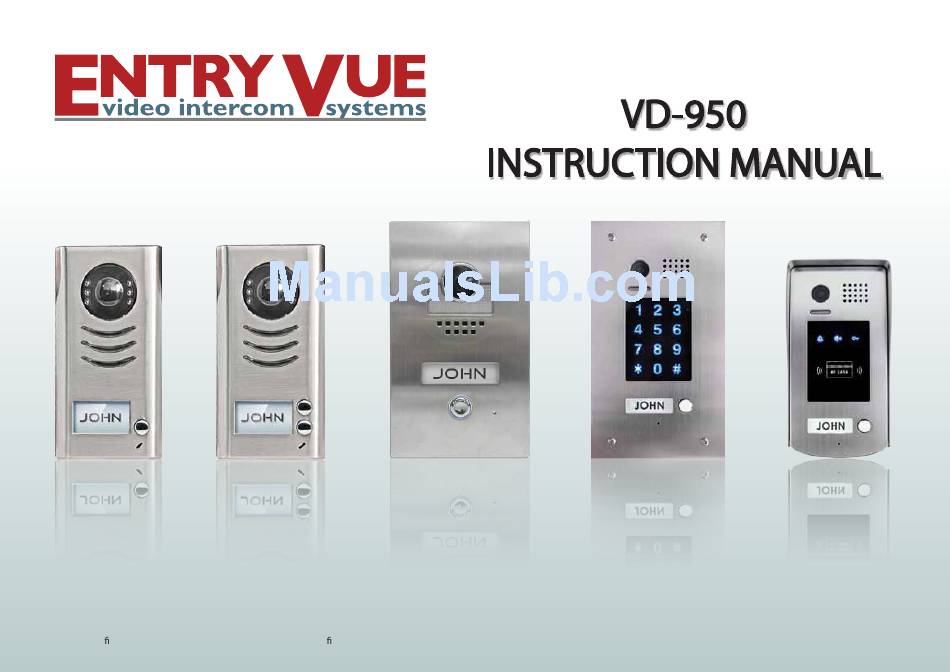

- Page 1 Door Station A Door Station B Door Station C Door Station F Door Station G The design and speci cations of this manual can be changed without noti cation to the user. All copyrights and interpretation rights are reserved to Evervue.
- Page 2 Basic instructions: 4.2. Connect the Red Wire of 1. Check the contents of your order. To be able to set up a system, the DPS Box to the Positive you must have at least the following: (24V) of the power supply, *One Door station usually the *One Monitor...
- Page 3 -The door lock is limited to 12V, 250mA On the monitor that you want to show video, press the “EntryVue ” Logo, -The Unlock Setting of monitor must be set to 0 (by default). then press the screen for 3 seconds, and then enter the code 8006#.
- Page 4 DIP SWITCHES SETTINGS OF DOOR STATION: VD-950 WIRING DIAGRAM FIRST DOOR STATION THIRD DOOR STATION AC Input SECOND DOOR STATION FOURTH DOOR STATION POWER SUPPLY PS-50/PS55 Dip switches 3 and 4 are inactive, so set them OFF. DIP SWITCHES SETTINGS OF MONITOR: There are 6 Dip Switches in total,and each monitor MUST be set with the correct code.
- Page 5 * When the registered code has been input on the keypad, the LED If you have Door Station B, the monitors connected to the indicator (Group 1: red, group 2: blue) lights up, the buzzer s ounds, second button must be set with the following Dip Switches: and the door strike/magnetic lock is unlocked.
- Page 7 1.1.4 Delete all user cards: Door Station G and H – Settings: 1. ID Card Registration: Introduction: MASTER MASTER CARD CARD DELETE 1.3 Authorize Master Cards: When registering new master cards, *Up to 1000 user cards can be registered to the door station. the old ones will be deactivated automatically.
