Entryvue 14215 User Manual

Video door phone system
Hide thumbs

Advertisement

Quick Links

Download this manual
The design and specifications can be changed without notice to users.
Copyright of this manual is reserved.

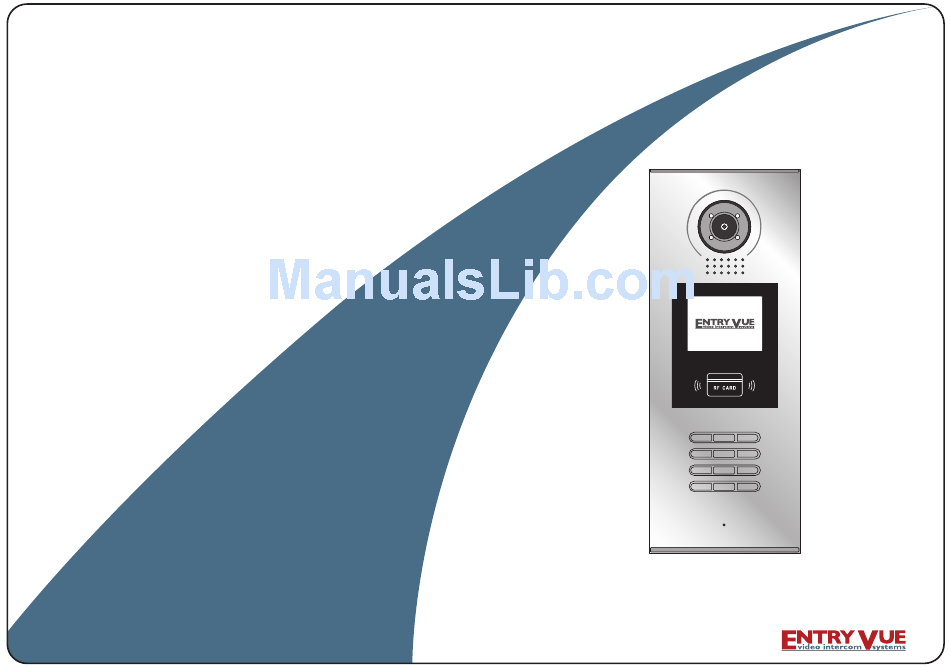

USER MANUAL (English)
VIDEO DOOR PHONE SYSTEM
Item No. : 14215
1
2
3
4
5
6
7
8
9
*
0
#
Version2.0.1.2.02.27

Advertisement

loading
Need help?

Need help?

Do you have a question about the 14215 and is the answer not in the manual?

Questions and answers

Related Manuals for Entryvue 14215

Summary of Contents for Entryvue 14215

  • Page 1 USER MANUAL (English) VIDEO DOOR PHONE SYSTEM Item No. : 14215 The design and specifications can be changed without notice to users. Version2.0.1.2.02.27 Copyright of this manual is reserved.

  • Page 2: Table Of Contents

    CONTENTS 1. Parts and Functions 1. Parts and Functions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Adjustable Camera Lens 2.

  • Page 3: Door Station Mounting

    3. Door Station Mounting 4. System Connection Basic IN-OUT Wiring: Camera angle CALL UNLOCK TALK/MON 3 4 5 6 IN-USE Code=32, DIP-6=on CALL UNLOCK TALK/MON Adjust the camera IN-USE 3 4 5 6 The view for angle and attach the Code=31, DIP-6=off...

  • Page 4: Door Lock Connections

    5. Door Lock Connections Multi Door Stations Wiring: 1. Internal Power Supply Mode Use the power of the system to supply for the electronic lock, so that the lock can be connected to the door station directly, without an additional power supply for the CALL CALL UNLOCK...

  • Page 5: Door Station Configurations

    6. Door Station Configurations 1. About room code(address): Room Code(also called room address) is a code assigned to each monitor, to identify 2. External Power Supply Mode different monitors; each monitor have a unique room code in one buidling.The room Code is stored in each Monitor’s inner EEPROM memory, and does not lose even the When the electronic lock is over 12 Vdc, additional power supply for the lock is needed.
  • Page 6 Basic Tools Detail : Table 2 (Installer Setup) : Item Description Factory Set Table 1 : If only one door station is installed in this building, set to 0 ; Item Submenu If multi door stations are installed, primary door ID Code [0] Single station must be set to 0, and other slave door...
  • Page 7 Table 2.1(Parameters): Table 3 (Setup) : Item Description Factory Set Item Description Factory Set To change language.the code format is 4 digits. Monitor Timing To show the monitor time, Range from 6s to 600s Language Please refer to part 5,section 10 (change door station language) for more detail informations.
  • Page 8 Table 4 (Card Manage): Item Description Factory Set 1 . I D C o d e . [ 1 ] > > D e b u g S t a t e < < 2 . U n l o c k T i m i n g [ 0 5 ] 3 .
  • Page 9 7. Change Installer Code(administrator password): 9. Change Unlcok Code: The Installer Code is the password to access the door station debug State. The default If door station runs as Debug State, you can press “1#” to activate Tools Menu, then Installer Code is '66666666'.
  • Page 10 Card information: 1 . A d d C a r d . . . 1 . A d d C a r d . . . 1 . A d d C a r d . . . 4 . C a r d s I n f o r m a t i o n Enter Card Information page, and the [ - - ] [ 0 1 ]...
  • Page 11 Check online monitors: 1 . L a n g u a g e [ 1 ] 1 . L a n g u a g e 2 . To n e S e l e c t [ 0 3 ] 3 .

  • Page 12: Specifications

    7. Specification • Power supply : DC24V(Powered by DT-DPS) • Camera Lens : 1/4 ACS 4T image sensor with DSP processor • Power consumption : Standby 3W;Working status 9W • Screen : 3.5 inch TFT • Resolution : 320(R, G, B)X240 pixels •...
