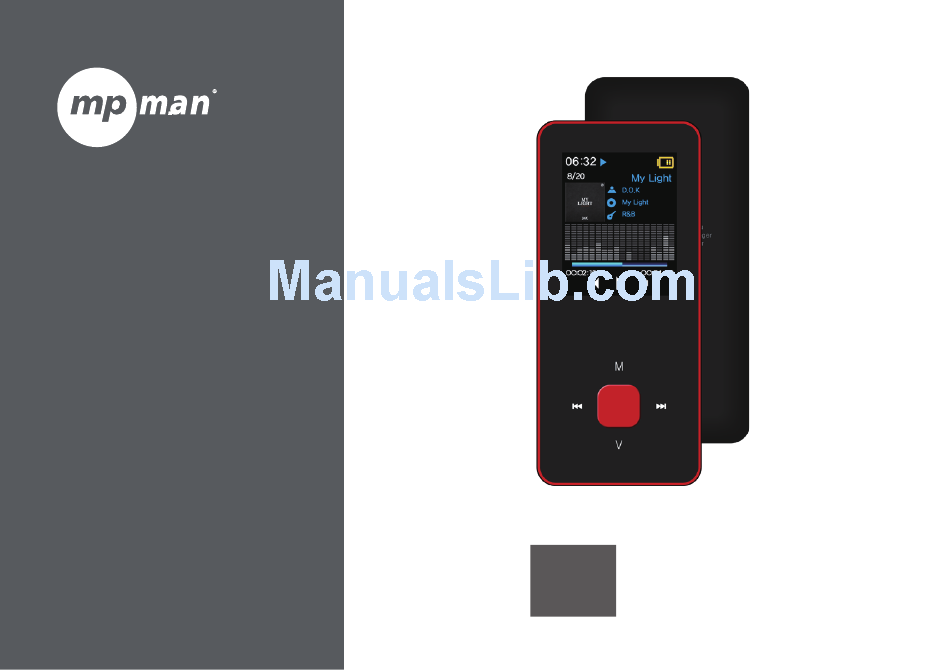

- Page 1 For Model No. User Manual BT182PAK...
- Page 2 For your safety – read this user guide carefully to ensure proper use of the product and to avoid any danger of physical damage - Be cautious while using your MP3 player to avoid explosion, fire, electric shock, etc. - When using your player, pay attention to your health, especially the hearing power. - Do not leave the player in a place subject to moisture or temperature higher than 35 or 5 .
-
Page 3: Key Features
Key features Support Bluetooth function (by connecting it to Bluetooth speakers and headphones) Support Pedometer and Stopwatch function MP3/WMA/WAV/OGG/APE/FLAC music file format supported. Support USB 2.0 capability, much faster than USB 1.1, to enable faster communication with your PC Support voice recording function. Support repeat function. - Page 4 Nomenclature M : Previous menu, Sub menu >> : Forward V : Volume control << : Backward : Enter, Play, Pause, Power on/o LCD display USB port Main power on/o switch Earphone jack Micro SD slot Page 3...
- Page 5 Charging battery safely 1. Connect to device’s USB port with the provided USB cable. 2. Battery indicator will blink while charging and once full, it will stop blinking. 3. If device is full charged, disconnect the USB cable. Note - Before using it for the rst time, please charge device. - Do not overcharge device, or it may shorten the battery’s life.
-
Page 6: Basic Operations
Basic operations Turn on device When Main Power Switch is turned off, slide button to turn on device When Main Power Switch is turned on, long press [ ] to turn on device. Turn off device When device is turned on, long press [ ] to turn off device. If device functions abnormally, slide Main Power Switch button to forcefully turn off device. -
Page 7: Key Function
Key function [Backward/Forward] : move up/down or right/left. [M] : short press to go back to previous menu and long press to show sub-menu option. [ ] : short press to enter into menu, play or pause and long press to turn off device. [V] : press to show volume control and use [Backward/Forward] key to adjust volume. - Page 8 Adding/Removing files/Folders - use device as a removable USB storage 1. Connect device to computer using provided USB cable. 2. Select ”USB Disk” and Add files/folders into it by dragging or copying and pasting them. 3. Delete files from the removable USB storage (use the "Delete" command). Page 7...
- Page 9 Disconnecting device from PC - Follow the steps to avoid damaging device or losing data. 1. Left click mouse on the icon that is on the taskbar at the bottom right corner of the desktop. 2. Click "Safely remove USB Mass storage Device” . 3.
-
Page 10: Turn On/Off Bluetooth
Connecting to Bluetooth speaker/ headphone This device can connect to Bluetooth speaker and headphone that supports A2DP, AVRCP profiles. Turn on/off Bluetooth Select “Setting” on main menu. Press [ ] to enter, select “Bluetooth” and press [ ]. Select “Bluetooth status” and press [ ] to show on/off menu. Press [Backward/Forward] to select On/Off and press [ ] to turn on or off. - Page 11 Connecting/Disconnecting/Unpairing device Go to “Device list” and press [ ] to see list of devices. Select desired device and press [ ] to show pop-up menu shown below. Connecting device : select “Bluetooth connecting” and press [ ] to connect. Once connected a sound will be played through the speaker or headphone.
- Page 12 Music Select “Music” on main menu and press [ ] to enter. Press Forward/Backward to select music files and press [ ] to playback and pause. Music Playback Submenu On music playback mode, short press to enter submenu and short press Forward/Backward to select your desired mode.
- Page 13 Now playing : Enter into music playback mode of currently playing music All Music : show all music from internal memory Artist : show music sorted by artist Album : show music sorted by album Genre : show music sorted by genre My Music list : show playlist chosen by user Dir list : show le/folder of internal or external memory Record list, My rating, Tag list : show recorded les, rating les and tag list...
- Page 14 Pedometer Select “Pedometer” on main menu and press [▶] to enter. Set the step size and weight Long press 【M】 to enter submenu and short press 【Forward/Backward】to select your step size or weight. Then short press [▶] to confirm your choice. Use a pedometer In the pedometer interface, Short press [Backward] to start pedometer, the player will show steps, distance, speed, calorie after moving.
-
Page 15: File Browsing
Photo Select “Photo” on main menu and press [ ] to enter. File browsing Dir List : browse image files from external or internal memory Photo viewing Play/Pause slide show : On viewing photo, press [ ] to play/pause slide show. View next/previous photo : On viewing photo, Forward/Backward to view next/previous photo... -
Page 16: Sound Recording
Recorder Select “Recorder” on main menu and press [ ] to enter. Sound recording Start/pause recording : Press [ ] to start recording and press it again to pause. Save recording file : while recording, long press to save file. Return to Main Menu : while recording is paused, press to return to Main Menu Page 15... - Page 17 Stopwatch Select “Stopwatch” on main menu and press [▶] to enter. Press [▶]: Start / Pause Timing Short press [Forward]: Go to the next record This player can keep six recordings. Long press [M] to reset records. Short press [M] to go back main interface and time recordings will be deleted same time.
- Page 18 Browser Select “Browser” on main menu and press [ ] to enter. Browse image files from external or internal memory and choose your desired files including video files, music files, photo files, recorded files, etc. Setting Select file/folder, long press to enter pop-up menu and select move, copy or delete according to user’s preference.
- Page 19 Setting Select “Setting” on main menu and press [ ] to enter. Set H / V Screen: Switching Horizontal Display and Vertical Display Display : Adjust brightness and Backlight time Power saving : Adjust idle time and sleep time Date & Time : Adjust date and time Language : Select menu language Advanced : View device information, adjust Effect Setting, Select Key tone, Format memory, Page 18...
-
Page 20: Specification
Specification Display 1.8" (128x160pixel) MicroSD up to 32GB USB interface USB2.0 Support Bluetooth speaker, streo headset Bluetooth Pairing, remember paired device Pro le : A2DP, AVRCP Power 5V 500mA Dimension 42x93x14mm Weight Page 19... - Page 21 For more information please check our website www.mpmaneurope.com Page 2 0...
