Summary of Contents for UDP Technology IPE3500M

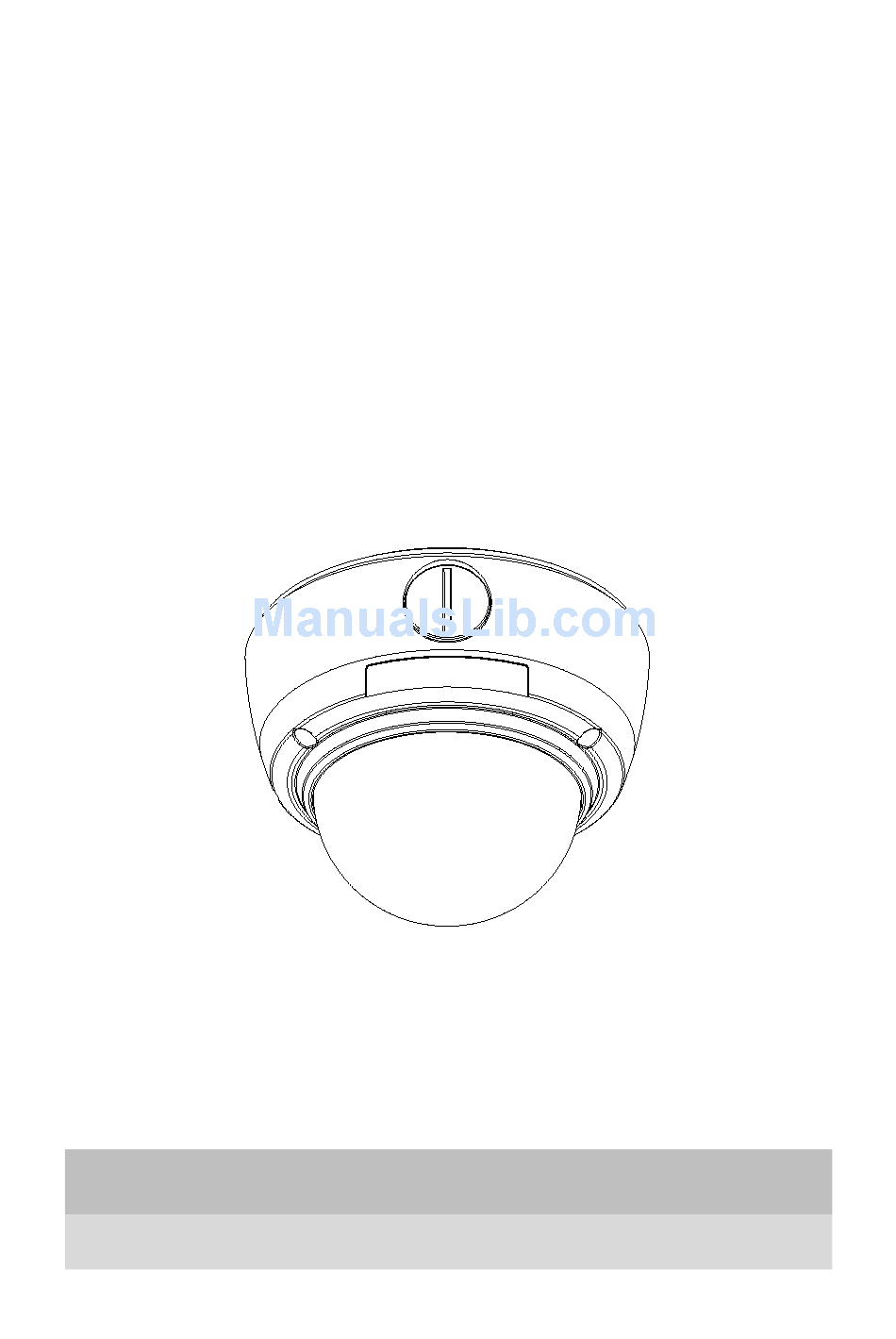

  • Page 1 IPE3500M Installation Guide...
  • Page 2: Information To User

    INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage”...
  • Page 3: Table Of Contents

    NVC/IPE Series IPE3500M Installation Guide Table of Contents 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 3.1.Internal View ........................6 4. INSTALLATION ...................... 8 4.1. Installation Template ......................9 4.2. Manual adjustment for 3-axis movements ..............10 4.3.
  • Page 4: Features

    NVC/IPE Series IPE3500M Installation Guide 1. FEATURES Camera • Indoor/Outdoor Fixed Dome IP Camera (Vandal Proof) • High Quality Compression in real time streaming • Aptina (Micron) 1/3.2” (4:3) CMOS 2M • Digital Day & Night • Improvement of color rolling suppression Streaming •...
  • Page 5: Package Contents

    NVC/IPE Series IPE3500M Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor Power extension cable 11 Pin terminal block Hex wrench driver Screws and Anchor blocks Installation Template Surface Cushion...
  • Page 6: Part Names

    NVC/IPE Series IPE3500M Installation Guide 3. PART NAMES 3.1.Internal View ④ ③ ⑥ ⑤ ② ① * Models herein and their appearance are subject to change without any prior notice. ① 11 pin terminal block for D/I, D/O, audio, and serial communication 11 pin terminal block for D/I, D/O, Audio in /Out and serial communication.
  • Page 7 NVC/IPE Series IPE3500M Installation Guide LED1 LED2 This LED lights up as orange and turns green when the encoder is powered on. LED operation setting: For the factory default setting, LED 2 blinks for the heartbeat and LED 1 turns on for video signal.
  • Page 8: Installation

    NVC/IPE Series IPE3500M Installation Guide 4. INSTALLATION Place the installation template that is provided in the package on the desired position of installation. Attach the surface cushion on the bottom plate of the device. Drill three holes on the template and insert anchor blocks into the holes.
  • Page 9: Installation Template

    NVC/IPE Series IPE3500M Installation Guide The camera may fall off the ceiling even after the proper installation and mounting. To prevent any accident, make sure the ceiling is firm and stable Caution enough to support the camera. If any reinforcement is needed, consult with your safety personnel and proceed with the installation.
  • Page 10: Manual Adjustment For 3-Axis Movements

    NVC/IPE Series IPE3500M Installation Guide 4.2. Manual adjustment for 3-axis movements After installation, make a manual adjustment on the lens body. Perform 3-axis movements manually by turning the lens body to different directions as above, and check if it moves properly.
  • Page 11: Connections

    NVC/IPE Series IPE3500M Installation Guide 5. CONNECTIONS 5.1.Connectors *When connecting leads from external devices to the terminal block, use the pin definitions shown on the circuit board as a guide. Pin definitions on the circuit board may be different from those shown below.
  • Page 12 NVC/IPE Series IPE3500M Installation Guide Internal Internal Output of Output of Sensor Sensor Relay Type Voltage Type ③ Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VAC 500mA or 12VDC 1A Do not exceed the maximum relay rating.
  • Page 13: Configuration

    NVC/IPE Series IPE3500M Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation.
  • Page 14 NVC/IPE Series IPE3500M Installation Guide To use the IPAdminTool and view the live video on a web page: 1. Start IPAdminTool. Names and info of currently activated devices appear as a list. 2. Right-click on the desired device and select Web view.
  • Page 15: View Video Using Ip Address

    NVC/IPE Series IPE3500M Installation Guide 6.2.2.View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1.
  • Page 16: Appendix (A): Specifications

    NVC/IPE Series IPE3500M Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor Aptina (Micron) 1/3.2" (4:3) CMOS 2M CMOS Effective Pixels 1600 x 1200 (UXGA, 2M) Scanning system Progressive Resolution 750 TV Lines Min. 0.5 Lux(50IRE), 0.1 Lux(DSS x5 ON)
  • Page 17: Resolutions Per Codec Frame Rate

    NVC/IPE Series IPE3500M Installation Guide Burnt-in Text (Digital) Supported (DSP) Output Not supported Audio Input/output 1/1 channel Compression Format G.711 Function Digital Input/output 1/1 channel RS-485 Supported Network 10/100 Base-T Power over Ethernet Supported TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP,...
  • Page 18 NVC/IPE Series IPE3500M Installation Guide Weight (Approx) 1,170g 02A.07 UDP Technology Ltd.
  • Page 19: Appendix (B): Power Over Ethernet

    NVC/IPE Series IPE3500M Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables.
  • Page 20: Appendix (C): Dimensions

    NVC/IPE Series IPE3500M Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 02A.07 UDP Technology Ltd.
  • Page 21: Appendix (D): Hexadecimal-Decimal Conversion Table

    NVC/IPE Series IPE3500M Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec...
  • Page 22: Revision History

    NVC/IPE Series IPE3500M Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments D1A.00 09/10/2010 Preliminary version for DP sample D1A.01 10/26/2010 Preliminary version for DP sample Added missing specification data D1A.02 11/15/2010 Preliminary version for DP sample Added a notice about the temperature change and focus shift 01A.00...
