T H E
C H A R L E S T O N

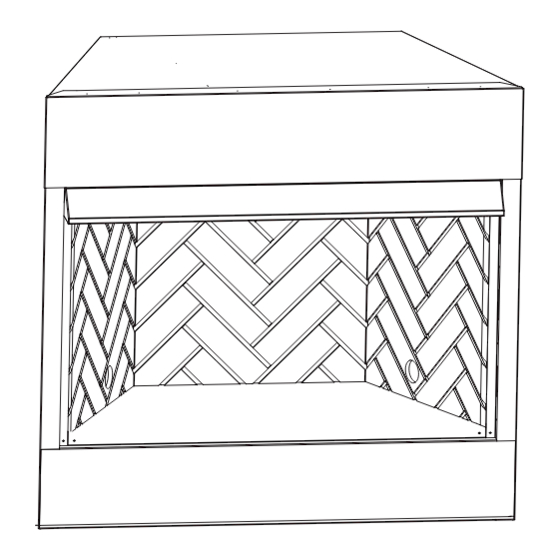

Vent Free Universal Firebox VFBC36A VFBC42A
Installation and Operating Manual
Z21.91 2007
FOR USE ONLY WITH A LISTED
GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER
NOT TO EXCEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life
Carefully review the instructions supplied
with decorative type unvented room heater
for the minimum fireplace size requirements
DO NOT INSTALL AN APPLIANCE IN THIS
FIREBOX UNLESS THIS FIREBOX MEETS
THE MINIMUM DIMENSIONS REQUIRED
FOR THE INSTALLATION
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
S E R I E S
Advertisement
Table of Contents
Related Manuals for Sure Heat Charlestone VFBC36A
Summary of Contents for Sure Heat Charlestone VFBC36A
- Page 1 T H E C H A R L E S T O N S E R I E S Vent Free Universal Firebox VFBC36A VFBC42A Installation and Operating Manual Z21.91 2007 Carefully review the instructions supplied with decorative type unvented room heater...
-
Page 2: Table Of Contents
This book contains your installation instructions and should be kept in a safe place. For you to realize all the advantages and use of the reliable service that has been engineered into your Sure Heat Manufacturing fireplace, you must carefully follow all of the instructions contained in this book regard- ing installation and operation of the fireplace. -
Page 3: Safety Information
Safety Information IMPORTANT Candles, incense oil lamps, etc. produce combustion byproducts including soot. Vent-free appliances will Read these instructions carefully before installing or trying to not filter or clean soot produced by these types of products. In operate a vent-free gas heater in this firebox. addition, the smoke and/or aromatics (scents) may be burned in the vent-free appliance which can produce odors. -
Page 4: Product Features
Product Features Do not attempt to burn wood, solid fuels, vented gas log sets, or any other combustible in this unvented firebox. Also, do not install a vent-free gas log set in this firebox if the minimum clearance and height requirements of the log set are too large for this firebox. You have purchased a vent-free firebox. -
Page 5: Hearth Dimensions
Fig. 1: Firebox Internal Dimensions Hearth Dimensions Front Width Back Width Hearth MODEL (Brick to Brick) (Brick to Brick) Depth 36" 22.5" 16.75" VFBC36A (762 (406 mm) (425.5 mm) 42" 27.5" 16.75" VFBC42A (1066.5 mm) (698.5 mm) (425.5 mm) -
Page 6: Fireplace Framing Dimensions
Framing Specifications HEADER Fig. 2 VFBC 36A VFBC 42A 40 1/4" 46 1/4" 21 1/4" 21 1/4" 36" 42" 6" 6" 34 1/4" 38 1/4" 9" 9" 20 22/25" 20 22/25" 6 3/8" 6 3/8" 25 22/25" 31 22/25" 68" 74 1/2"... -
Page 7: Installation Instructions
Installation Instructions Locating the Fireplace Figure 3 shows some of the many ways your fireplace A sediment trap may be upstream of the heater to may be installed. Consider the traffic pattern in your prevent moisture and contaminants from passing room and the location of doors and windows. -
Page 8: Drafts
Installation Instructions Drafts b) A heat reducing mantel guard is shipped with the fireplace. Use of this mantel guard is Do not locate the fireplace in high traffic areas or required in order to reduce mantel heights as areas exposed to high drafts and winds. Locate the shown in figure 5. -
Page 9: Installing The Firebox
Installation Instructions To install the required mantel guard/hood you will need Step 3: Level the Firebox flathead screwdriver. The mantel guard has a series Check the level of the firebox on the top edge of of holes along the top edge. Loosen the screws in the the fireplace face. -
Page 10: Hearth Extension
Installation Instructions Fireplace Screens Hearth Extension An optional hearth extension may be used, but is Fireplace screens, hanging rods and necessary hardware are packed with the Mantel Guard/Hood. These screens not required for these fireboxes. MUST be installed on the fireplace for safe operation. A raised hearth extension may be used as shown in Figure 9. -
Page 11: Finishing The Fireplace
Installation Instructions Finishing the Fireplace Step 6: Optional Procedure for Cold Climate Installations There are a wide variety of finishing materials available for your fireplace from formal wall treatments The insulation and sealing of the enclosure around with marble and mantles to rustic wood paneling, stone the fireplace is very important in cold climates. -
Page 12: Electrical Services
Installation Instructions Optional Electrical Junction Box Junction Box Wiring (Optional) 1. Remove (2) J-box cover retaining screws If installation of an accessory blower, or other “line- voltage” powered accessory is planned, you should from either side of the firebox (See Fig. 12). install the “J”- Box accessory (Included with BL-101) 2. -
Page 13: Replacement Parts
Contact Sure Heat Manufacturing for questions concerning prices and policies covering replacement Repair and replacement work should only be done parts. Parts may be ordered through your Sure Heat by a qualified service person. distributor or dealer. Always shut off the gas supply and make sure... -
Page 14: Warranty
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of the merchantability of fitness for the purpose and of all other obligations or liabilities. Sure Heat Mfg. Co. does not assume for it any other obligations or liabilities in connection with the sale or use of the appliance.
