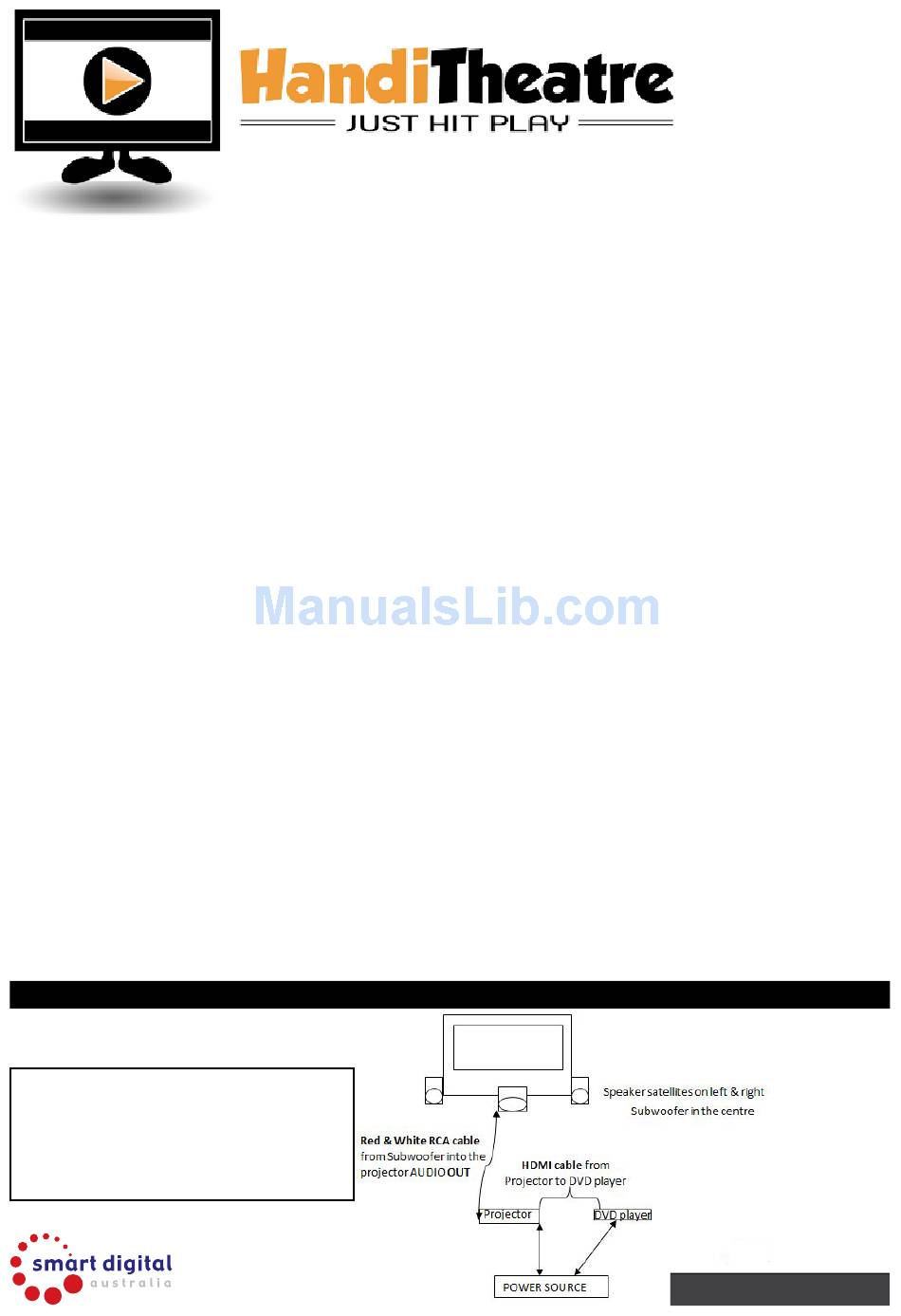

HandiTheatre System Setup
Manual
SCREEN
1.
Take out of the bag, Unroll, unfold
2.
Inflate by closing both valves on right side of the screen first
3.
Open the large valve on the left side of the screen and using your handheld blower inflate the
screen to a standing position and close the big valve.
4.
Unscrew the small valve that is onto of the large valve you just closed and using your handheld
blower proceed to inflate the screen so that it is solid and the screen has stretched
5.
Zip on screen surface and attach tethers to D-Rings - see set up guide provided for full details
and diagrams for set up, inflation & deflation.
6.
Attach the tethers to the twist stakes
SPEAKERS
1.
Place Subwoofer on the floor at the front and centre of your screen
2.
Place the speakers on either side of your Subwoofer facing the audience
3.
Connect the cable at the back of each speaker to the back of the Subwoofer
4.
Connect the Subwoofer power cable to your power outlet (do not turn on)
5.
Take the red & White RCA cable and connect it to the back of your Subwoofer
6.
Take the other end of the red & White RCA cable and connect it to the Audio out on the projector
PROJECTOR AND DVD
1.
Put the projector on a stand approx 4m – 5m away from the screen and approx 70cm high
2.
Connect the projector to the power (do not turn on)
3.
Connect one end of the HDMI cable to your projector and the other end into your DVD player
or source
4.
Connect your Blu-ray to the power (do not turn on)
TURN EVERYTHING ON, POWER BOARDS, SPEAKERS, PROJECTOR AND DVD PLAYER/SOURCE
FOR MORE DETAILS VISIT
WWW.SMARTDIGITAL.COM.AU/SUPPORT
AND
DOWNLOAD
HANDITHEATRE SET UP GUIDE
