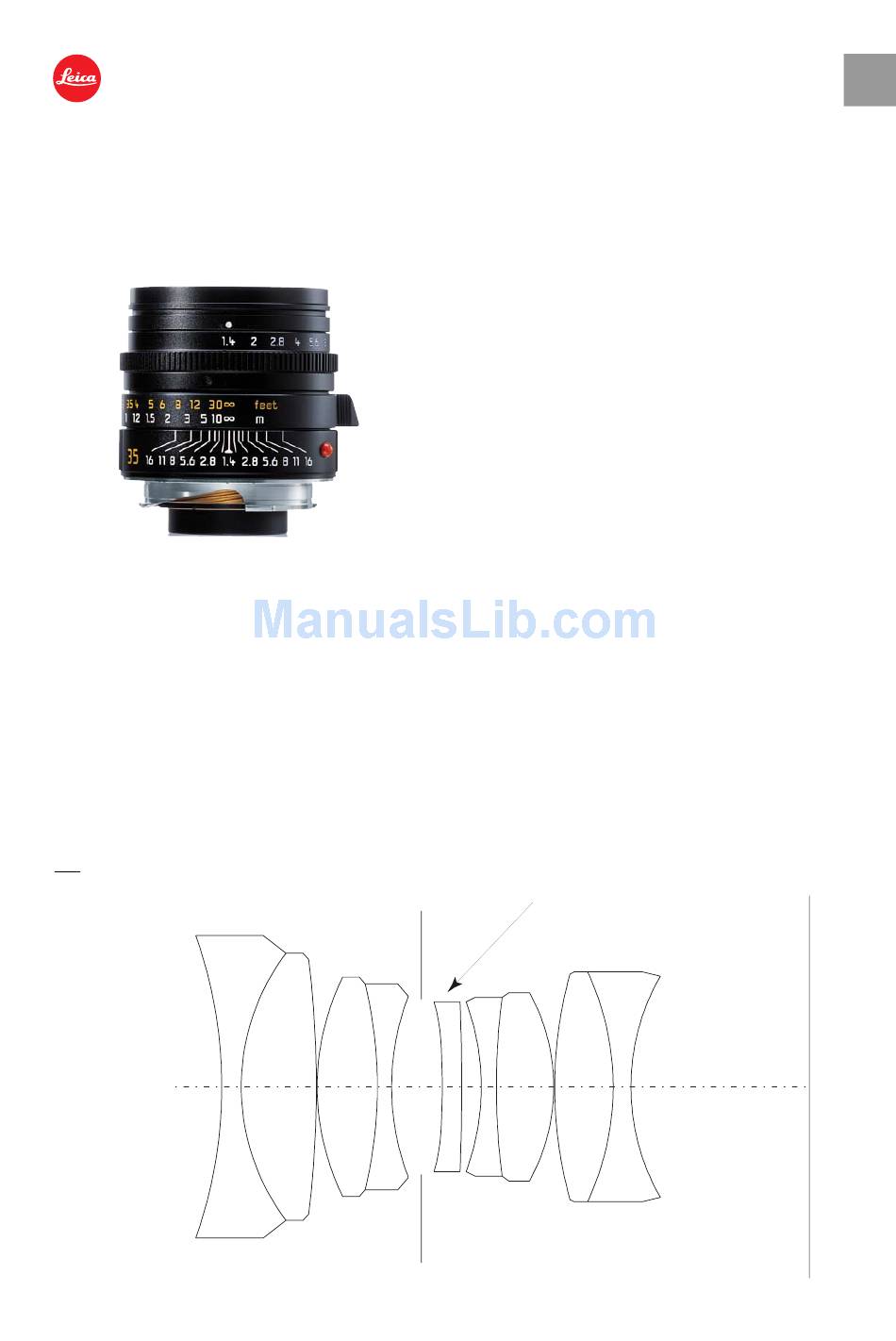

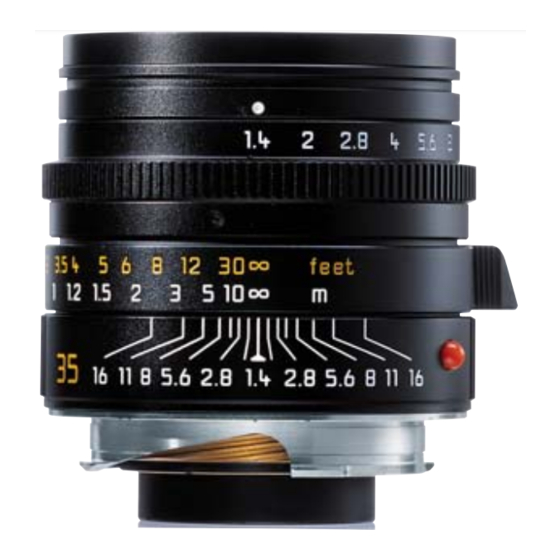

LEICA SUMMILUX-M 35 mm f/1.4 ASPH.
1
The outstanding imaging performance of this very compact lens is due to the application of aspherical technology. It delivers high
contrasts, excellent detail rendition over the entire image area, good field flatness, and it has extremely low coma. Because all
these qualities remain practically unchanged in the close-up range down to 0.7 m (28 in), this Summilux lens is the universal wide-
angle lens. Its applications range from portraits at medium distances all the way to landscape photographs. The 35 mm lenses are
already considered to be standard lenses in the Leica M system. With its large aperture, this lens masters all photographic situa-
tions superbly.
Lens shape
Asphere

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUMMILUX-M 35 mm f/1.4 ASPH. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leica SUMMILUX-M 35 mm f/1.4 ASPH.

  • Page 1 Its applications range from portraits at medium distances all the way to landscape photographs. The 35 mm lenses are already considered to be standard lenses in the Leica M system. With its large aperture, this lens masters all photographic situa- tions superbly.
  • Page 2 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. Engineering drawing Technical Data Angle of view (diagonal, horizontal, vertical) 63°, 54°, 38° Optical design Number of elements / groups: 9 / 5 Focal length: 35.6 mm Entrance pupil: 16.8 mm (related to the first lens surface in light direction) Focusing range: 0.7 m to Infinity...
  • Page 3 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. MTF graphs Aperture Stop 1.4 Aperture Stop 5.6 Y’ [mm] Y’ [mm] Aperture Stop 2.8 The MTF is indicated both at full aperture and at f/5.6 at long taking distances (infinity). Shown is the contrast in percentage for 5, 10, 20 and...
  • Page 4 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. Distortion Effective Distortion Relative Distortion Y’ [mm] Y’ [mm] X’ [mm] Vignetting Vignetting Distortion is the deviation of the real image height (in the picture) from the ideal image height. The relative distortion is the percentage deviation.
  • Page 5 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. Depth of field table ! " #" ! " #" % &' ! " #" % &'...
  • Page 6 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. ! " #" % &' ! " #" % &' ! " #" % &'...
  • Page 7 LEICA SUMMILUX-M 35 mm f/1.4 ASPH. ! " #" % &' ! " #" % &' ! " #" % &' Leica Camera AG / Oskar-Barnack-Straße 11 / D-35606 Solms / Telefon + 49 (0) 6442-208-0 / Telefax + 49 (0) 6442-208-333 www.leica-camera.com / info@leica-camera.com...
