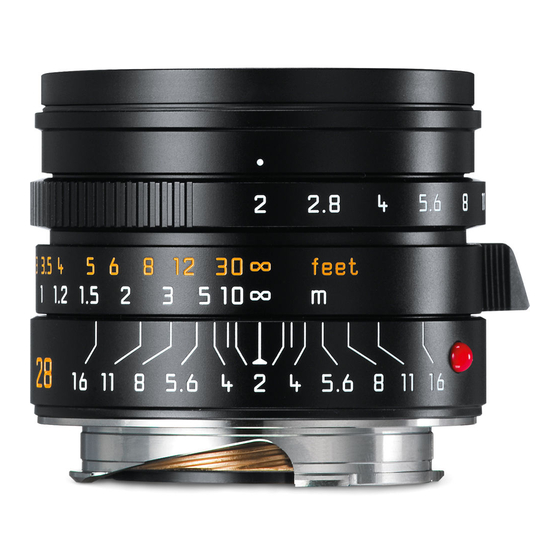

LEICA SUMMICRON-M 28 mm f/2 ASPH.
1
This fast wide-angle lens is especially compact and its imaging performance is outstanding at f/2. The rendition of the finest details
results in pictures with an extraordinary depth effect. Even in critical lighting conditions, for example in backlit situations, distrac-
ting reflections and flare are largely eliminated. Because of its large aperture of f/2, it can also be used for selective sharpness set-
tings in the wide-angle range. And when pictures are to be taken without flash under unfavorable light conditions at twilight or in
sparsely illuminated rooms, this lens is highly recommended.
Lens shape
Asphere
Advertisement
Related Manuals for Leica Summicron-M 28mm f/2 ASPH
Summary of Contents for Leica Summicron-M 28mm f/2 ASPH
- Page 1 LEICA SUMMICRON-M 28 mm f/2 ASPH. This fast wide-angle lens is especially compact and its imaging performance is outstanding at f/2. The rendition of the finest details results in pictures with an extraordinary depth effect. Even in critical lighting conditions, for example in backlit situations, distrac- ting reflections and flare are largely eliminated.
- Page 2 LEICA SUMMICRON-M 28 mm f/2 ASPH. Engineering drawing Technical Data Angle of view (diagonal, horizontal, vertical) 75°, 65°, 46° Optical design Number of elements / groups: 9 / 6 Focal length: 28.5 mm Entrance pupil: 12.8 mm (related to the first lens surface in light direction) Focusing range: 0.7 m to Infinity...
- Page 3 LEICA SUMMICRON-M 28 mm f/2 ASPH. MTF graphs Aperture Stop 2.0 Y’ [mm] Aperture Stop 2.8 Y’ [mm] The MTF is indicated both at full aperture and at f/5.6 at long taking distances (infinity). Shown is the contrast in percentage for 5, 10, 20 and...
- Page 4 LEICA SUMMICRON-M 28 mm f/2 ASPH. Distortion Relative Distortion Y’ [mm] Vignetting Y’ [mm] Distortion is the deviation of the real image height (in the picture) from the ideal image height. The relative distortion is the percentage deviation. The ideal image height results from the object height and the magnification.
- Page 5 LEICA SUMMICRON-M 28 mm f/2 ASPH. Depth of field table 0,656 - 0,752 0,638 - 0,776 0,741 - 0,870 0,719 - 0,903 0,908 - 1,115 0,873 - 1,173 1,067 - 1,373 1,019 - 1,463 1,295 - 1,786 1,224 - 1,946...
- Page 6 LEICA SUMMICRON-M 28 mm f/2 ASPH. ∞ ∞ ∞ Aperture Stop 5,6 Depth of Field [m] Aperture Stop 8 Depth of Field [m] Aperture Stop 11 Depth of Field [m]...
- Page 7 LEICA SUMMICRON-M 28 mm f/2 ASPH. ∞ Leica Camera AG / Oskar-Barnack-Straße 11 / D-35606 Solms / Telefon + 49 (0) 6442-208-0 / Telefax + 49 (0) 6442-208-333 www.leica-camera.com / info@leica-camera.com Aperture Stop 16 Depth of Field [m]...
