- Page 1 PREMIER POWER PACK INSTRUCTION MANUAL EN54-4 POWER SUPPLY UNIT INSTRUCTION MANUAL GLT.MAN-138 Issue: 1.13 27/7/2012 N.R.P.J.
-
Page 2: Table Of Contents
PREMIER POWER PACK INSTRUCTION MANUAL CONTENTS Introduction to the Premier Power Pack PSU ..............2 Changes to EN54-4 (The Fire Alarm Equipment Power Supply Standard) ......3 Indications ........................... 4 LCD ..........................4 LED External ........................5 LED Internal ........................5 Mounting the Power Supply .................... -
Page 3: Introduction To The Premier Power Pack Psu

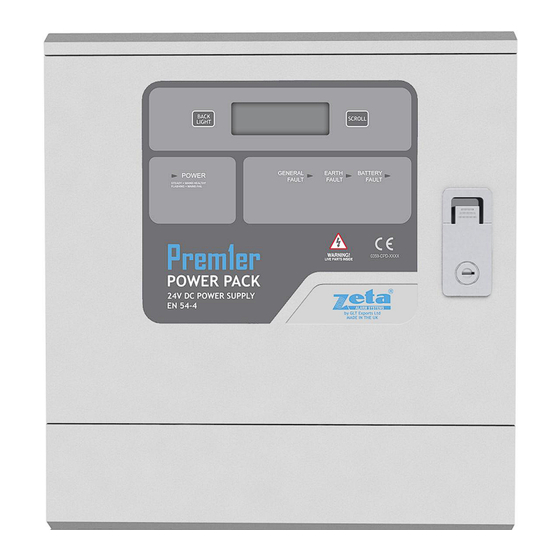

PREMIER POWER PACK INSTRUCTION MANUAL INTRODUCTION TO THE PREMIER POWER PACK PSU The Premier Power Pack is an EN54 compliant Power Supply, intended to power ancillary fire alarm equipment. It incorporates a small LCD screen that will give information about the Power Supply status (such as output voltage, output current, charger voltage etc). -
Page 4: Changes To En54-4 (The Fire Alarm Equipment Power Supply Standard)
PREMIER POWER PACK INSTRUCTION MANUAL CHANGES TO EN54-4 (THE FIRE ALARM EQUIPMENT POWER SUPPLY STANDARD) In 2006 the Fire alarm Power Supply Equipment standard changed, adding the requirement that a PSU should monitor the internal resistance of its batteries, and give a warning when it is above a certain level. The reason for this is that when a battery’s internal resistance increases, it will reach a point where the battery will no longer be able to supply the rated output voltage of the PSU under full load conditions. -
Page 5: Indications
PREMIER POWER PACK INSTRUCTION MANUAL INDICATIONS The Stand alone Premier Power Pack PSU has a 4 line LCD display, which can show the current state of the power supply. The Power supply has 2 buttons. The first turns on the backlight. The second will scroll through the available display screens, showing the PSU`s current state. -
Page 6: Led External
PREMIER POWER PACK INSTRUCTION MANUAL The Battery state indicates whether the batteries are:- GOOD – Batteries are OK HI IMPEDANCE – High internal resistance detected FLAT – Battery voltage below final voltage. Batteries should be replaced REMOVED – Batteries have been disconnected Screen 4: Misc Info Shows the earth monitoring voltage (2.5V nominal), and whether a fault has been detected. -
Page 7: Mounting The Power Supply
PREMIER POWER PACK INSTRUCTION MANUAL MOUNTING THE POWER SUPPLY The Premier Power Pack range of Power supplies are suitable for indoor use only. Before fixing the Power supply to the wall, consider the planned cable entry. The Premier Power Pack PSU has top &... -
Page 8: Electrical Connections
PREMIER POWER PACK INSTRUCTION MANUAL ELECTRICAL CONNECTIONS ELECTRICAL SAFETY MEASURES A licensed electrician must be present to connect to the mains if it is a fixed installation. Connecting equipment to a consumer unit is potentially hazardous. Ideally, do not do this work alone. Alternatively, advise a colleague that you are about to undertake this work, and that you will call them back at a set time. -
Page 9: Connecting The Mains & Battery
PREMIER POWER PACK INSTRUCTION MANUAL CONNECTING THE MAINS & BATTERY The Power Supply should be connected to 230V AC by a 3A rated spur to the fuse box with 1.0mm to 2.5mm core cable. Nothing else should be connected to this supply The mains input is to be connected to the PSU Cage. - Page 10 PREMIER POWER PACK INSTRUCTION MANUAL The battery clamp brackets should then be fitted to prevent vibration damage to the Power Supply. For 7 Ah / 12 Ah Batteries (Power Pack 2.0) Power Supply Cage For 17 Ah Batteries (Power Pack 5.0) Power Supply Cage The Recommended Battery types are: POWER SUPPLY VERSION...
-
Page 11: Connecting Ancillary Equipment To The Psu
PREMIER POWER PACK INSTRUCTION MANUAL CONNECTING ANCILLARY EQUIPMENT TO THE PSU The Ancillary equipment to be powered by the power supply should be fitted to the power supply output connections. Note that the PSU has 2 outputs labeled 24V A and 24V B, each fused at half the total output. Connect to a single output if the maximum current is less than half the maximum rated output of the power supply. -
Page 12: Recommendations For Cable To Auxiliary Equipment
PREMIER POWER PACK INSTRUCTION MANUAL RECOMMENDATIONS FOR CABLE TO AUXILIARY EQUIPMENT BS5839 Part 1 recommends that all parts of a fire system are wired in a shielded fire resistant cable. It is recommended to use 2 core (plus screen) cable with conductor cross section between 1.5mm and 2.5mm If the power supply is used for non BS5839 fire alarm purposes, many other types &... -
Page 13: Choosing The Correct Battery Size
PREMIER POWER PACK INSTRUCTION MANUAL CHOOSING THE CORRECT BATTERY SIZE The Premier Power Pack power supplies can use a wide range of battery sizes. To help determine the most suitable battery size, the following points need to be considered:- What will be the normal operating output current of the PSU. Will it be a high load (e.g. door holders), or a small load (e.g. -
Page 14: Technical Information
PREMIER POWER PACK INSTRUCTION MANUAL TECHNICAL INFORMATION OVERALL SPECIFICATION 5.0 A PSU 2.0 A PSU MAINS INPUT Nominal Mains Supply Voltage 230V AC 230V AC Cage Input voltage range 88～132 VAC / 176～264 VAC 88～264 VAC 47～63 Hz； 47～63 Hz； AC input current 2.4 A/115 V 1.6A/ 230 V 2.0A/115 V 1.2A/ 230 V... - Page 15 PREMIER POWER PACK INSTRUCTION MANUAL LCD DISPLAY (PSE Version Only) Default Screen Manufacturer Manufacturer brand name brand name Model Model System Normal System Normal Information screen 1 A = mains OK, Batts OK A = mains OK, Batts OK B = Not used B = Not used C = V(A) &...
-
Page 16: Maintenance Information
Geoff Walker Approvals Manager GLT Exports Limited July 2011 0359 Zeta Alarm Systems by GLT Exports Ltd, 72-78 Morfa Road, Swansea SA1 2EN 0359-CPD-0146 EN54-4:1997+A1:2002 + A2: 2006 Power supply equipment for fire detection and fire alarm systems for buildings...
