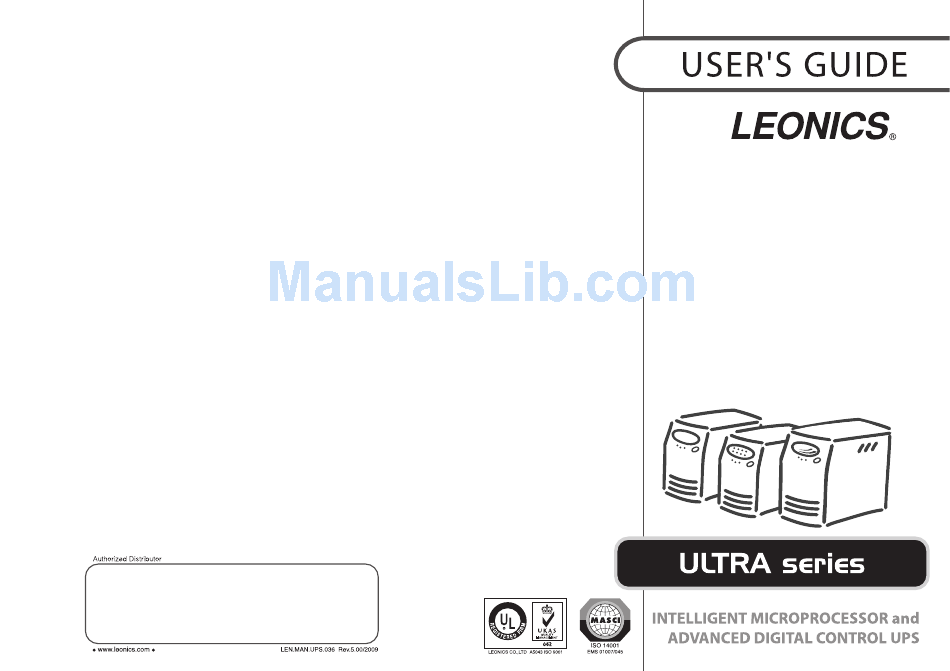

Leonics Ulta Series User Manual

Intelligent microprocessor and advaced digital control ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ulta Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leonics Ulta Series

Summary of Contents for Leonics Ulta Series

  • Page 2: Table Of Contents

    UPS STATUS DISPLAY sonnel or if there are any symptoms of problems which are not mentioned in this guide or TROUBLE SHOOTING an queries, please contact your LEONICS local distributors,LEONICS Service Center, send SERVICE e-mail to support@leonics.com or visit www.leonics.com.
  • Page 3 Users are not allowed to repair, recondition or circuit breaker. disassemble the UPS. This must be done by Leonics qualified technicians only. 1.2 CAUTION ! Safety guide for installation and operation This product contains sealed lead acid battery and must be recycled 1.2.1 Before installing or using this unit, read all instructions, caution markings on...

  • Page 4: Introduction

    - 4 - - 5 - INTRODUCTION 2.1 General The ULTRA Series UPS is a compact, light weight and attractively designed uninterruptible power supply for office automation equipment (computers and peripherals such as monitors, modem, printers, fax machines, etc.). Its major function is to eliminate any power problem such as a black out, brown out, sag, surge, spike, noise, etc.
  • Page 5 - 6 - - 7 - 2.2.1 Operating in the normal mode Normally, UPS is working under line interactive mode in which the path of current is as follows : When the current first flows into the UPS, it has to pass through a surge protection circuit to filter surges and spikes which may occur from a nearby lightning discharge or load switching by the local power company.
  • Page 6 Advanced LEONICS Microprocessor control: A specially programmed power is available. microprocessor produced only for LEONICS is used as the CPU for the UPS. Surge Protection for Telephone Line: Surge protection protects This makes the ULTRA Series UPS perform faster and more accurately to equipment data from surges that come from telephone line (RJ11).

  • Page 7: Front And Rear Panel

    - 10 - - 11 - FRONT AND REAR PANEL 3.1 Front panel EASY DISPLAY LED DISPLAY 3.1.1 Multi-function Switch: The switch to turn on, turn off, test the UPS and mute the audible alarm. For LED Display UPS, you can press it to change the display mode from input voltage - load level mode to battery voltage level mode and vice versa.
  • Page 8 - 12 - - 13 - backup mode). 3.2 Rear panel description 3.1.4 Overload Alarm (Lamp no. 3: red): Shows load status. It will be lit when your connecting loads are exceeding the UPS capacity. 3.1.5 Load Level: Shows how much power your loads are consuming compared to the UPS capacity from low to high level.
  • Page 9 Loads may the wiring is correct. be added until Power Watcher warns of an overload. (LEONICS suggest to 3.2.8 Battery extension port (option): The port for connecting with an extension connect load at no more than 75 % of UPS rated power for safety and enough battery unit to increase the duration of UPS backup time.

  • Page 10: Installation

    - 16 - - 17 - INSTALLATION 4.4.2 IEC type outlets Plug UPS output power cord which is supplied with the UPS into the UPS outlet and the inlet of the load. 4.1 Connect a signal cable from PC network (if available) to the USB port (or RS-232 port (option)) of the UPS.

  • Page 11: Operation

    UPS battery extension outlet. sounds once, then release before the second alarm beep sounds. All indicator Caution!: Use LEONICS battery extension module only. lights will lit, after that the ULTRA Series UPS will start the seft-test (See details in item 4.7 To set Easy-Mon X software (if available), follow the software installation section.

  • Page 12: Ups Status Display

    - 20 - - 21 - 5.2 Switch off 5.4 Cancel self-test You can cancel a self-test by double click the multi-function switch. However, if the Under any operating conditions, there is only one proper UPS has reached the inverter testing step, the self-test can not be cancelled (before way to shut off the UPS.
  • Page 13 - 22 - - 23 - 6.1 Indicator lights No. 1, 2 and 3 6.2 The meaning of LED display Lights condition 6.2.1 Input voltage level and Load level display mode Item UPS status Audible alarm 6.2.1.1 lndicator lights no. 4 to no. 7 show how much power your loads are consuming compared to the UPS capacity.
  • Page 14 - 24 - - 25 - 6.2.3 Self-test display mode 6.3 The meaning of LCD display After the ULTRA Series UPS finishes a self-test, it will display : 6.3.1 Input Voltage Level Display 6.2.3.1 A short beep and the one of Input Voltage Level lamps (no.4 -7) and Load Level lamps (no.8-11) will lit that means the UPS is normal.

  • Page 15: Trouble Shooting

    UPS mains power cord. lamp No. 1 and 3 are lit then release ( DC start ). The second indicator is lit when a charger If the UPS still does not fault. operate, please send it to a LEONICS Service Center.
  • Page 16 - If AC source is normal, If the UPS does not but the UPS still has the operate, please send it to same symptom, see a LEONICS Service Center. solution of the first symptom In this list. UPS operates normally Loads which are connected Reduce loads to 75%.

  • Page 17: Service

    SERVICE In case of any queries or concerns that are not referenced in this guide, please contact a LEONICS Service Center, LEONICS local distributor or e-mail your queries through support@leonics.com. 9.2 Stand the UPS up, place it at the edge of a table. Bulge its front panel from the...
  • Page 18 - 32 - - 33 - FUSE REPLACEMENT 9.3 Stand the UPS up, unscrew the screw on the battery strip. 10.1 Turn off UPS. 10.2 Unplug UPS input power cord, both from the UPS and the AC source. 9.4 Remove the battery terminal cover. Disconnect the black and red wires from the battery terminals.

  • Page 19: Storage And Preservation

    ± 1% accuracy of input and output voltage measuring circuit, or the 12.3 LEONICS presentation will show on the computer monitor. Press ESC button to UPSs are connected to different power phases of the same source. exit the Presentation and close the window, then the Easy-Mon CD window will You can find more information about Easy-Mon X in the Easy-Mon X show on screen.
