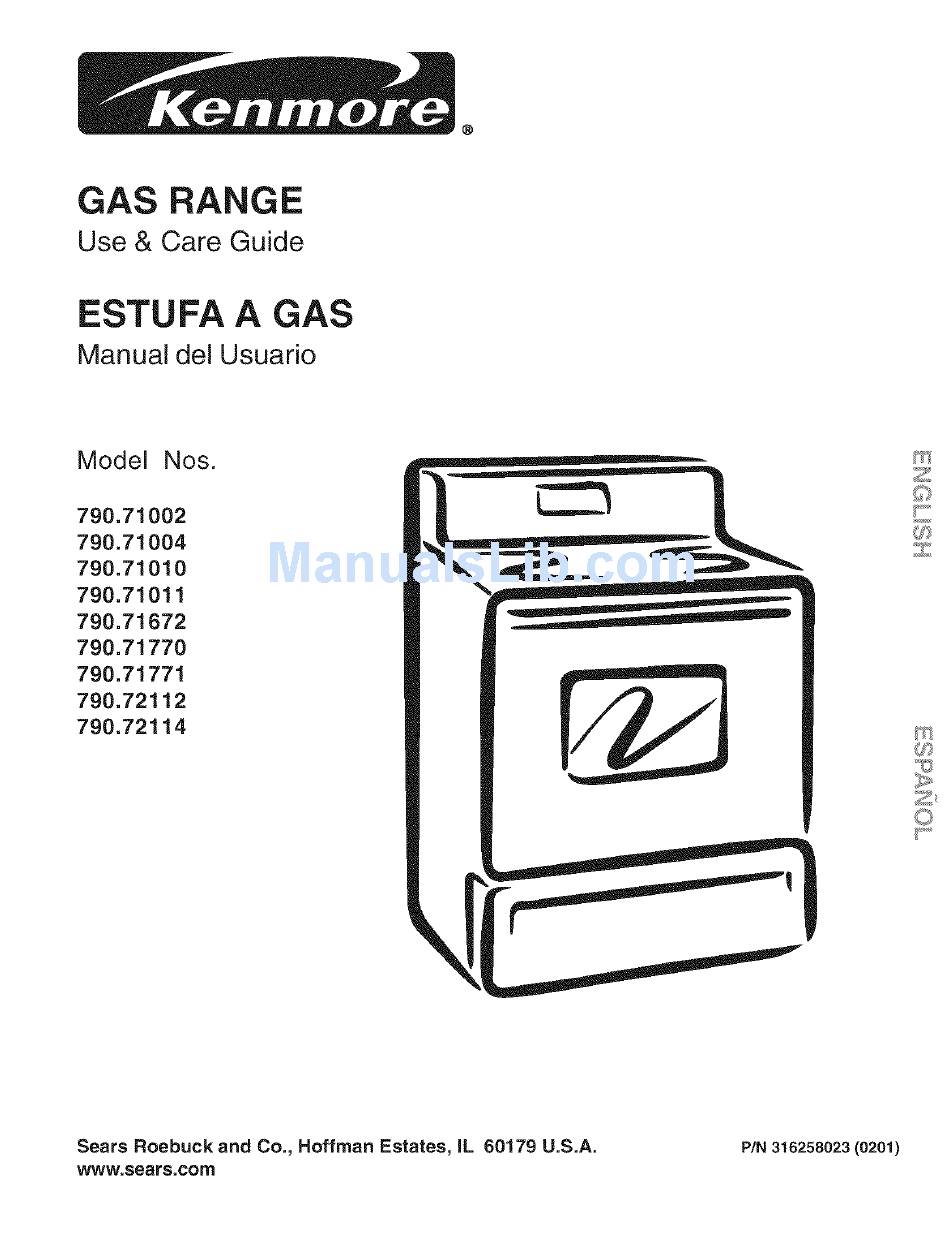

- Page 1 GAS RANGE Use & Care Guide ESTUFA A GAS Manual del Usuario Model Nos. 790.71002 790.71004 790.71010 790.71011 790.71672 790.71770 790.71771 790.72112 790.72114 Sears Roebuck and Co., Hoffman www.sears.com ® Estates, IL 60179 U.S.A. PIN 316258023 (0201)
-
Page 2: Table Of Contents
We Service What We Sell. Sears Maintenance Agreements Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced. -
Page 3: Important Safety Instructions
Do not allow children to climb or play the range. Never around the range. The weight of a child on an open door may cause material. the range to tip, resulting in serious burns or other injury. - Page 4 IMPORTANT • Use Care When Opening on hot range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven. • Keep Oven Vent Ducts Unobstructed. below the backguard. Touching the surfaces in this area when the...
-
Page 5: Serial Plate Location
DO NOT cut or remove the grounding For personal safety, the range must be properly grounded. maximum safety, the power cord must be plugged into an electrical outlet that is correctly polarized... -
Page 6: Range Features
Note: The features of your range witl vary according to model, Oven Door Light YOUr Switch Range Features At a Glance interior Light Full Width Oven Door with or without Window (stylas and color vary by model) (1)BroilPanand (1) Broil Pan insert... -
Page 7: Setting Surface Controls
Push the surface control knob in and turn counterclockwise position. Release the knob and rotate to the LITE position. If your range is equipped with electronic ignitors, all four ignitors will spark at the same time. However, only the burner you are turning on will ignite. -
Page 8: Before Setting Oven Controls
Setting Clock & Minute Timer To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, "12:00" will flash in the display window. Push _. Push in and hold ,A or v until the correct time appears in the display. -
Page 9: Setting Clock & Minute Timer
Slide broiler drawer out to the stop position. Remove broiler pan and insert, Figure 1. Always position rack before setting control, while range is cool. Position rack by tilting front of rack up and pulling rack out from locating holes in rear of broiler drawer. -
Page 10: Care & Cleaning
Avoid bending the bulb and capillary tube. DO NOT spray any cleaner on the oven door trim or gasket, broiler drawer glides, handles or any exterior surfaces of the range, plastic or painted surfaces. The cleaner can damage these surfaces. - Page 11 Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCETHE lEANINGS LATER.
- Page 12 Clean underneath using hot, soapy water and a clean cloth; then, dry. To lower the range top, grasp the front corner of each side of the top while pushing back on each rod with the heel of your hand. This will release the notched support. Hold the range top and gently slide the range top down to the range.
-
Page 13: Care & Cleaning
Turn electrical power off at the main source or unplug the range. Replace bulb with a new 40 watt appliance bulb. Turn power back on again at the main source (or plug the range back in). The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &... -
Page 14: Before You Make A Service Call
Poor installation. Place oven rack in center of oven. Place a level on the oven rack_ Adjust leveling legs at base of range until the rack is level. When range is level, cooktop may appear out of alignment if countertop Weak, unstable floor. - Page 15 Oven smokes excessively during broiling. Poor baking results. Oven light (some models) does not work. Before You Call Meat too close to the broil burner. Reposition the rack to provide more clearance between the meat and the broiler. Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges to prevent curling, but do not cut into the lean.
- Page 16 For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-1VlY-HOiVlE ® Any_me, day ornight (1-800-469=4663) For repair of carry=inproductslikevacuums, lawnequipment, and electronics, carlfor the location of your nearest Sears Parts and Repair Center. 1-800-488-1222 For the replacement parts,accessories and owner'smanuals thatyou need to do-it-yourself, carl Sears PartsDirsct_!
