QUICK START GUIDE

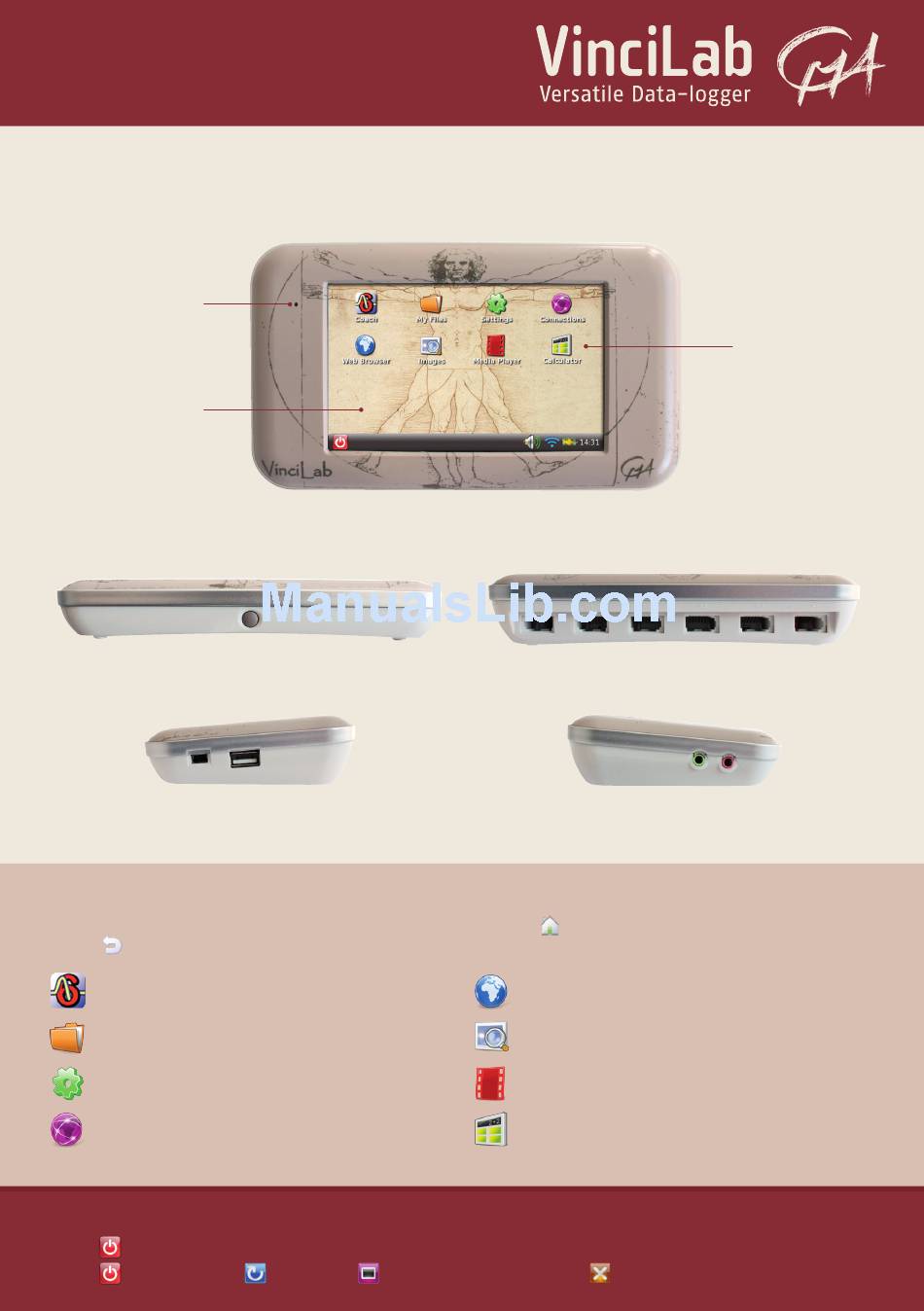

VinciLab is a modern and advanced mobile graphic data acquisition system, which can be used
in a variety of ways, standalone and with a computer, in the classroom and in the field.
Internal
Sound Sensor
for recording
sound signals
Capacitive Color
Touch Screen
for viewing
and controlling
Power Button
for turning VinciLab On or Off and
for switching the screen on and off
Mini USB Port for charging and communication
USB Port for connecting any USB peripherals
At the backside of VinciLab a Speaker and a compartment with an internal rechargeable Battery are located.
The Home Screen is the starting point for using VinciLab and provides shortcuts to applications.
Touch an application's icon to launch the application. Touch
Touch Back to return to the previous screen.
Coach 6
Collecting, graphing and processing data.
My Files
Managing user files on VinciLab.
Settings
Configuring the device to your preferences.
Connections
Configuring the wireless connections.
To turn VinciLab off:
Touch or press the hardware Power button briefly.
Touch to shut down, to reboot, to turn the screen off, or
Analog (A1, A2, A3, A4) and Digital (D1, D2) Inputs
for connecting sensors
D2 D1 A4 A3
Audio In/Out Ports for connecting
headphones, external speaker and microphone
Home to display the Home Screen.
Web Browser
Accessing the Internet.
Images
Browsing and displaying images.
Media Player
Playing audio and video files.
Calculator
Performing simple mathematical calculations.
to cancel.
Home Screen
for controlling VinciLab
and providing shortcuts
to applications
A2 A1
