Plasmon LF 6602 User Manual

Optical disk drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

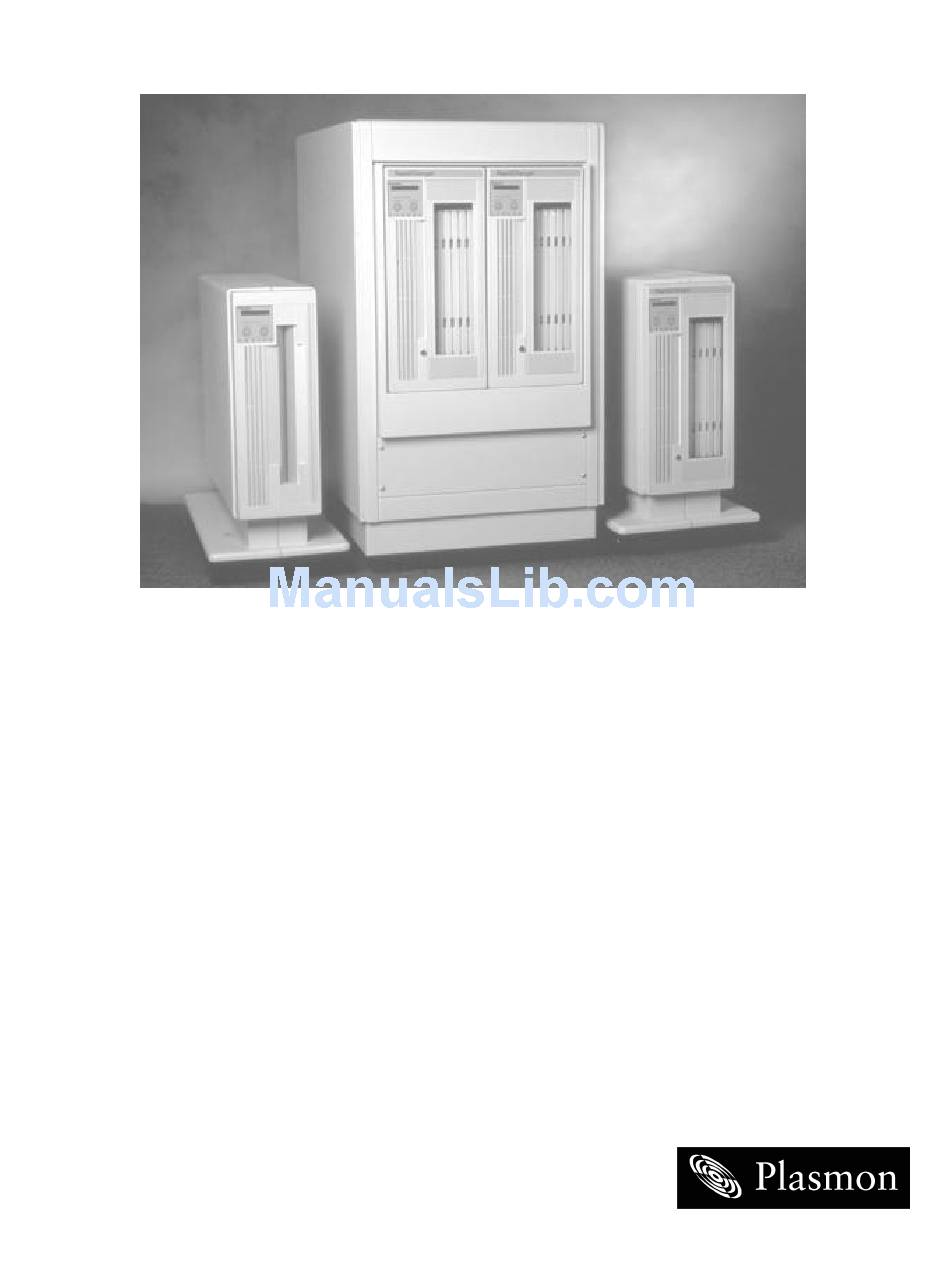

THE PLASMON INFINITY
LF 6602
OPTICAL DISK DRIVE
User Manual
P/N 97654438 E

Advertisement

Table of Contents
loading

Related Manuals for Plasmon LF 6602

Summary of Contents for Plasmon LF 6602

  • Page 1 THE PLASMON INFINITY LF 6602 OPTICAL DISK DRIVE User Manual P/N 97654438 E...
  • Page 2 Reproduction of this manual, or any portion of this manual, is prohibited without the express permission of Plasmon Laser Magnetic Storage (LMS). Plasmon LMS reserves the right to make changes in this document and the product referred to herein without prior notice.
  • Page 3 To ensure the integrity of safety features of this unit, maintenance must • be performed only by qualified service personnel using designated Plasmon LMS parts. In case of fire or other emergency, isolate the units from the main • power by disconnecting the power plugs from their site power receptacles.
  • Page 4 Gerätes zu gewährleisten, dürfen Wartungsarbeiten nur von qualifiziertem Fachpersonal ausgeführt werden. Es sind darüber hinaus nur Ersatzteile zu verwenden, die von der Firma Plasmon LMS angegeben werden. Im Falle eines Feuers oder in einem anderen Notfall sind die Geräte •...
  • Page 5 US Government Printing Office, Washington, D.C., 20402, Stock No. 044-000-00345-4. CDRH COMPLIANCE LF 6602 contains a Class 1 Laser Product. This product complies with 21CFR Chapter 1, Subchapter J, applicable at date of manufacture. CANADIAN EMI COMPLIANCE...

  • Page 7: Table Of Contents

    AC GROUND AC POWER CORD TILT RANGE HEAT DISSIPATION PARTICULATE LIMITS WARNING LABELS UNPACKING AND REPACKING INSTRUCTIONS UNPACKING THE LF 6602 INSPECTING THE LF 6602 REPACKING THE LF 6602 INSTALLATION INSTALLATION REQUIREMENTS SCSI BUS CONSIDERATIONS CONNECTING POWER AND SCSI CABLING...
  • Page 8 MEDIA CARTRIDGE HANDLING SETTING THE WRITE PROTECTION SWITCH AFFIXING LABELS MEDIA INSERTION AND REMOVAL MEDIA ACCESS DOOR CARTRIDGE INSERTION CARTRIDGE REMOVAL MANUAL CARTRIDGE RELEASE MECHANISM MEDIA LOADING OPERATOR MAINTENANCE ACCESSING DRIVES INSPECTING AND CLEANING FAN AND BLOWER FILTERS REPLACING FUSES MEDIA CLEANING MEDIA CLEANING USING CLEANING KIT P/N 97662550...

  • Page 9: Scope

    The LF 6602 is warranted as stated in the purchase agreement between Plasmon and it’s customer, or the Plasmon sales order acknowledgment, whichever is applicable. The Plasmon LMS quality system is in compliance and registered to ISO 9001. The LF 6602 is manufactured from new parts, or remanufactured parts.
  • Page 10 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 10...

  • Page 11: General Description

    The LF 6602 provides 24 GBytes of online storage and up to 144 GBytes of nearline storage. Each LF 6602 provides 12 GBytes of online storage and up to 72 GBytes of nearline storage. Each LM 6000 media cartridge has a capacity of 12 GBytes.
  • Page 12 Field Replaceable Unit (FRU). LM 6000 media is interchangeable between the LF 6602, LF 6600 and the LD 6100. The 6000 series of drives will also read LM 4000 media written by the Plasmon LMS 4000 series of optical drive products (except for media with serial numbers less than X0010000, where X designates an A or B).

  • Page 13: Drive Characteristics

    DRIVE CHARACTERISTICS FRONT PANEL The LF 6602 front panel is shown in the figure below. The LF 6600 bezels, which contain the Drive Operator Console (DOC), media access door and door lock, protrude through a frame in the cabinet. A drive's bezel can be removed to gain access to that drive.

  • Page 14: Rear Panel

    REAR PANEL On the rear of the LF 6602 cabinet, a louvered door with a latch and a key lock covers the access to the rear of the LF 6600 drives (refer to figure below). To gain access to the drives' power switches, ADP and SCSI interface connectors, unlock the door, press up on the latch and open the door.

  • Page 15: Dimensions And Weight

    DIMENSIONS AND WEIGHT The LF 6602's reference dimensions, are shown in the next table. Height: 99.9 cm (39.3 in) Width: 53.6 cm (21.1 in) Depth: 81.3 cm (32.0 in) Weight: 204 kg (450 lb) EP006029 LF 6602 Dimensions 97654438 E...

  • Page 16: Temperature, Humidity And Altitude

    Media with Media 1 Storage specifications are for 90 days maximum in Plasmon LMS packaging. No condensation is permitted. Transit spec- ifications are based on a maximum 1-week period in a factory-sealed container. 2 Maximum operating temperature is 42 _C for a free-standing drive at sea level unless otherwise stated. Maximum oper- ating temperature is derated linearly above 300 m altitude to 38 _C at 2,000 m altitude.

  • Page 17: Shock And Vibration

    4 Limit at 5.0 g peak for LF 6602 cabinet. Limit at 3.0 g peak in LF 6600/LF 6602 in front-to-back axis because media in shuttle will be displaced. The drive is not designed for pro- longed operation at these shock levels.

  • Page 18: Ac Ground

    LF 6602 chassis to safety ground through the site AC power system. If the site AC system ties its ground wire connection to earth ground, then the LF 6602 chassis will also be tied to earth ground. All site AC power connections must be maintained on the same safety ground.

  • Page 19: Warning Labels

    WARNING LABELS The LF 6602 is classified as a laser product. As such it is subject to United States federal requirements covering laser products. The warning labels shown in the next figure are required to ensure compliance with federal regulations and must not be removed from the LF 6600 drives within the cabinet.
  • Page 20 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 20...

  • Page 21: Unpacking And Repacking Instructions

    UNPACKING THE LF 6602 The LF 6602 is shipped with foam packing material which protects the unit from shock and vibration. After you receive your LF 6602, inspect the shipping carton for damage before unpacking the unit to substantiate a claim with the carrier if the unit is damaged.
  • Page 22 CARTON RAMP CUSHION BANDING STRAP PLASTIC CORNER FRONT PANEL FRAME PALLET EP005015 Unpacking the LF 6602 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 22...
  • Page 23 5) Unlock and unlatch the LF 6602's rear door (see next figure). 6) With the LF 6602's rear door open, unfasten and remove the two bolts from the front of the frame using a 1/2 in. socket wrench. Ensure that you pull the bolts completely out of the frame.
  • Page 24 REMOVE SCREWS (4X), BRACKETS (2X) AND WOOD SUPPORT FRONT OF FRAME LOOSEN BOLTS (2X) BACK OF FRAME EP005017 Removing Bolts from Front of Frame; Loosening Bolts from Back of Frame PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 24...
  • Page 25 9) Place the ramp on the front lip of the pallet (see figure below). EP005018 Positioning Ramp on Pallet 10) With the assistance of a second person, carefully roll the LF 6602 down the ramp. WARNING To prevent personal injury, you must have a second person help you roll the LF 6602 down the ramp.
  • Page 26 11) Re-install the front panel onto the LF 6602. 12) Carefully roll the LF 6602 to the selected operating site. NOTE Retain and store all fastening hardware and packing materials, including the wooden ramp. 13) Open the drives' media access doors and remove the small foam blocks. Manually move the shuttles all the way to the right to the home position, as shown in the next figure.

  • Page 27: Inspecting The Lf 6602

    Report all discrepancies, missing items and damaged equipment to your supplier. If condensation exists on the drive, allow the moisture to evaporate by exposing the LF 6602 to the operating environment for at least 6 hrs before powering on the unit.
  • Page 28 Repeat step c) at the lower manual release access hole to close the lower baseplate. e.) Reposition the shipping bracket and secure it to the LF 6602 chassis by re- installing the four screws. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL...
  • Page 29 UPPER ACCESS HOLE MANUAL RELEASE TOOL REAR PANEL LOWER ACCESS HOLE EP006047 Manually Closing the Drive's Baseplates 3) Ensure that the primary AC power cord is disconnected from the wall outlet and that the power switch on each drive is set to the OFF position ( O ). 4) Open each drive's media access door.
  • Page 30 Do not attempt to lift the LF 6602 without using proper equipment. 5) Position the ramp on the front lip of the pallet. 6) With the assistance of a second person, carefully roll the LF 6602 up the ramp. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL...
  • Page 31 13) Re-install new banding straps around the unit, placing the plastic pieces on the corners. 14) Place the protective bag over the LF 6602. 15) Position the foam cushion and ramp on top of the LF 6602. Place the shipping carton over the foam cushion, the ramp and the unit.
  • Page 32 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 32...

  • Page 33: Installation

    Before you install the LF 6602, provide for the clearances as listed in the table below to ensure that future servicing can be performed safely and to properly ventilate the LF 6602. Clearances are also necessary to provide operator access to the DOC panels and to the media access doors for loading and unloading media.

  • Page 34: Scsi Bus Considerations

    SCSI BUS CONSIDERATIONS Because the SCSI bus is limited to eight devices including the host, a maximum of three LF 6602's can be connected to a host computer in a series configuration using the appropriate SCSI controller and cable options.
  • Page 35 Installation of both an active single-ended terminator and a passive single-ended terminator on the same bus is not recommended. If only one LF 6602 is attached to a host, the bus must be terminated at the host adapter and the LF 6602 host computer (refer to the next figure).
  • Page 36 LF 6600 and may also be supplied by another device in the SCSI daisy chain. Refer to the Accessories section of this manual for a list of SCSI bus terminators, cables and their Plasmon LMS part numbers. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL...

  • Page 37: Connecting Power And Scsi Cabling

    CONNECTING POWER AND SCSI CABLING After the LF 6602 has been installed in its operating location, the primary AC power cord and host SCSI interface cabling can be connected. The type of primary AC power cord being installed depends upon the installation location.

  • Page 38: Single-Device Configuration

    A terminator is connected to the lower connector of the second drive to terminate the bus when the LF 6602 is the last or only SCSI device on a SCSI bus. SINGLE-DEVICE CONFIGURATION...

  • Page 39: Multiple-Device Configuration

    Single Device Configuration section and connect the SCSI cables according to steps 1 through 3). If the LF 6602 is part of a daisy chain configuration and is not the last unit in the chain, install one end of a SCSI interface cable into the lower connector of the second drive and then install the other end of the cable into the connector of the next device in the chain.

  • Page 40: Extension Procedures

    An interlock is incorporated into the design of the LF 6602's front panel to allow the extension of only one drive at a time (see the next figure). If the interlock is defeated and if both drives are extended simultaneously on their rack mount slides, the cabinet will become unbalanced and will topple over.
  • Page 41 WARNING Do not defeat the LF 6602's interlock and do not extend both drives simultaneously. TRIM PANEL CAUTION LABEL INTERLOCK EP006083 LF 6602 Cabinet Configuration Showing Interlock Location 4) After you have finished, return the extended drive to its original position in the cabinet;...
  • Page 42 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 42...

  • Page 43: Operating Instructions

    OPERATING INSTRUCTIONS CONTROLS AND INDICATORS The Drive Operator Console (DOC) for each drive is located on the front panel of the LF 6602. The DOC provides the controls and indicators that enable a user to operate each LF 6600. The DOC controls and indicators consist of an alphanumeric display, a LOAD/MENU switch, a TEST/ SELECT switch, and a WRITE PROTECT indicator.
  • Page 44 (write disabled). The WRITE PROTECT indicator will flash when an RTPM condition occurs. Also, the WRITE PROTECT indicator will flash when the drive or the media is in a read only condition. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 44...

  • Page 45: Power-On Procedure

    POWER-ON PROCEDURE Perform the following procedure to power on each LF 6600: 1) Ensure that the LF 6600 is properly connected (refer to the SCSI Bus Consideration section). 2) Refer to the Media Insertion and Removal section and insert a cartridge into slot 1. If slot 1 is empty, the LF 6600 will display "1 Empty"...

  • Page 46: Modes Of Operation

    LOAD/MENU switch. To enter Operating mode if the drive is in Configuration mode, press the LOAD/ MENU and the TEST/SELECT switches simultaneously. NOTE The pound symbol #, shown in the table below, designates the slot number. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 46...
  • Page 47 NOTE The pound symbol #, shown in the table below, designates the slot number. LF 6600 DOC Operating Mode Messages DOC DISPLAY DOC DISPLAY DOC DISPLAY OPERATING CONDITION (ENGLISH) (FRENCH) (GERMAN) Inserting Cartridge # Inserting # Insere# Einfügend Loading Media # Loading # Charger # Ladend #...

  • Page 48: Configuration Mode

    Configuration mode can be entered when the "Ready" message is displayed on the DOC. To enter the Configuration mode: 1) Press both the LOAD/MENU and TEST/SELECT switches simultaneously. 2) Verify that "View Config" is displayed. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 48...
  • Page 49 Entry to Configuration mode starts with a Main menu, allowing the user to select one of four submenus. The Main menu includes the following submenu options: "View Config" This is the entry point into the Configuration menu. Press the SELECT switch to enter a submenu allowing the user to view the drive operating parameters, firmware revisions and hardware serial numbers.
  • Page 50 SET CONFIG MENU SWITCHES SIMULTANEOUSLY TO RETURN TO MAIN MENU MENU "Set Config" ENTER Diagnostics SELECT DIAGNOSTIC MENU MENU ENTER SERIAL NUMBER Set Serial # SELECT ENTRY MENU MENU Main Menu PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 50...
  • Page 51 VIEWING THE CONFIGURATION ("VIEW CONFIG") To view the configuration, press the TEST/SELECT switch while "View Config" is displayed in the Main menu. The drive will enter the View Configuration menu which includes the following options: "View Current" Press the SELECT switch to display the current drive operating parameters. The operating parameters are listed in the table below.
  • Page 52 TO RETURN TO MAIN MENU MENU "Set Config" DISPLAY HW SELECT View HW S/Ns SERIAL NUMBERS MENU DISPLAY HW View HW P/Ns SELECT PART NUMBERS MENU View Config Menu PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 52...
  • Page 53 SETTING THE CONFIGURATION OF THE OPERATING PARAMETERS ("SET CONFIG") To enter the mode to set the drive configuration, press the TEST/SELECT switch while "Set Config" is displayed in the Main menu. The drive will enter the Set Configuration menu which includes the following options: "Set Defaults"...
  • Page 54 To exit the Configuration mode, press the LOAD/MENU and TEST/SELECT switches simultaneously from the Main menu. The display will show the message which appeared prior to the drive entering the Configuration mode. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 54...
  • Page 55 SET VALUES SELECT SET DEFAULT TO DEFAULT MENU SELECT SCSI ID MENU SELECT PRESS BOTH PARITY SWITCHES SIMULTANEOUSLY TO RETURN TO MAIN MENU MENU "Set Config" SELECT LANGUAGE MENU SELECT WrtProt MENU SELECT AutoLoad MENU SELECT Load SW MENU Set Config Menu (Part 1) 97654438 E Page 55...
  • Page 56 PRESS BOTH CDE Curs SWITCHES SIMULTANEOUSLY TO RETURN TO MENU MAIN MENU "Set Config" SELECT Busy MENU SELECT ModSel RA MENU SELECT MM SpinUp MENU Set Config Menu (Part 2) PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 56...
  • Page 57 SETTING THE SCSI ID The SCSI ID can be set to one of eight device Identification (ID) numbers (0 through 7); however, each device connected to the same SCSI bus must have a different SCSI ID. Perform the following procedure to set the LF 6600's SCSI ID number: 1) Enter the Configuration mode by pressing both the LOAD/MENU and TEST/SELECT switches simultaneously.
  • Page 58 Configuration mode. Simultaneously press the LOAD/MENU and TEST/SELECT Switches again to move up to the Main menu. NOTE The Write Protect indicator on the DOC is illuminated when write protect is enabled. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 58...
  • Page 59 SETTING THE MEDIA AUTOLOAD OPTION The media AutoLoad load option enables a user to choose which media cartridge is automatically inserted and loaded at power up and whenever the LOAD/MENU switch is pressed while in the Operating mode. The factory default selects the cartridge in slot 1. Perform the following procedure to set the LF 6600's AutoLoad option: 1) Enter the Configuration mode by pressing both the LOAD/MENU and TEST/SELECT switches simultaneously.
  • Page 60 2) Press the MENU switch until "Set Config" is displayed. 3) Press the SELECT switch to enter the Set Configuration menu. 4) Press the MENU switch until "CDE Curs:" is displayed. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 60...
  • Page 61 5) Press the SELECT switch to scroll through the states for CDE Curs (on, off). When the desired state is displayed, press MENU to enter the state and move to the next option in the Set Configuration menu. 6) Simultaneously press the LOAD/MENU and TEST/SELECT switches to exit the Configuration mode.
  • Page 62 Set Configuration menu. 6) Simultaneously press the LOAD/MENU and TEST/SELECT switches to exit the Configuration mode. Simultaneously press the LOAD/MENU and TEST/SELECT Switches again to move up to the Main menu. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 62...
  • Page 63 VIEWING DIAGNOSTIC RESULTS OR PERFORMING DIAGNOSTIC OPERATIONS ("DIAGNOSTICS") To enter the diagnostic submenu, press the TEST/SELECT switch while "Diagnostics" is displayed in the Main menu. The drive will enter the Diagnostics menu which includes the following options: "Park Drive" Press the SELECT switch to park the baseplates for drive shipment. If the "Park Failed, Close Manually"...
  • Page 64 The media serial number will be displayed for 5 sec (S/N: ########) and then the drive channel will be displayed for 4 sec (Channel: A, B, or A+B). The display will then return to the View RTPM option. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 64...
  • Page 65 "Clear RTPM" CAUTION RTPM errors indicate the drive or media require maintenance, and place the drive in a read only mode. Corrective action may be as simple as cleaning the media that caused the error, or may require the attention of a trained Customer Engineer (CE) to repair the drive.
  • Page 66 "Set Config" Confirm Cal Shuttle SELECT Cal Shuttle SELECT MENU Display Default View CDEs SELECT Information MENU SELECT Sys Log MENU SELECT Test Thru MENU Diagnostics Menu (Part 1) PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 66...
  • Page 67 Display RTPM SELECT Information View RTPM PRESS BOTH MENU SWITCHES SIMULTANEOUSLY RTPM TO RETURN TO SELECT Confirm Clear True MAIN MENU "Set Config" SELECT Clear RTPM No RTPM Err RTPM Condition is Cleared MENU SELECT Reset Drive Init Done Init DPC Self Test MENU Diagnostic Menu (Part 2)
  • Page 68 Main menu. Simultaneously press the LOAD/MENU and TEST/SELECT switches again to exit Configuration mode. A structure diagram for the Set Serial # menu is shown in the next figure. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 68...
  • Page 69 SELECT DRV SN Blank MENU SELECT PRESS BOTH SWITCHES DRV SN SIMULTANEOUSLY Blank TO RETURN TO MAIN MENU MENU "Set Config" SELECT DRV SN Blank MENU SELECT DRV SN Blank MENU SELECT DRV SN Blank MENU = Digit to be Set is Flashing Set Serial # Menu 97654438 E Page 69...

  • Page 70: Test Mode

    Pressing TEST resets "Test Thru:" value to 00 and initiates selftest option. At the successful completion of this selftest, the LF 6600 is returned to the operating mode, ready for normal operation. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 70...

  • Page 71: Media Cartridge Handling

    MEDIA CARTRIDGE HANDLING The LM 6000 media is used in all LD 6100/LF 6600/LF 6602 drives. The LM 6000 media cartridge, illustrated in the next figure, is shipped ready for immediate use and does not require preformatting. CARTRIDGE DOOR ROLLER DETENT...
  • Page 72 14) Keep external surfaces of the cartridge clean. Dust the cartridge periodically with a soft, dry, lint-free cloth. For more information concerning media care and handling, refer to the LM 6000 Media Specification (P/N 97647044). PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 72...

  • Page 73: Setting The Write Protection Switch

    SETTING THE WRITE PROTECTION SWITCH To manually write protect a cartridge, set the write protect switch on the data cartridge as indicated in the next figure. WRITE PROTECT NOT WRITE SWITCH PROTECTED WRITE PROTECTED (NOT WRITE PROTECTED HOLE IS OPEN WRITE PROTECTED HOLE IS CLOSED) WRITE PROTECT...

  • Page 74: Affixing Labels

    Operator access to the media requires the shuttle to be in the home position. The home shuttle position squarely aligns all six cartridge slots with the media access door as illustrated in the next figure. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 74...
  • Page 75 ELECTRICAL SAFETY LOCK LATCH KEY LOCK LATCH DOOR SAFETY SWITCH TAB KEY LOCK EP006026 LF 6600 Media Access Returning the shuttle to home can be accomplished by host command or by pressing LOAD/MENU at the DOC. If access is authorized, the drive will unload the media cartridge into the shuttle, move the shuttle to the home position, and unlock the electrical safety door lock.

  • Page 76: Cartridge Insertion

    ENSURE THAT CARTRIDGES DIRECTIONAL ARROWS POINT IN TOWARD THE SHUTTLE INSERTION DIRECTION ARROWS CARTRIDGE EP006091 Data Cartridge Insertion PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 76...

  • Page 77: Cartridge Removal

    CARTRIDGE REMOVAL LM 6000 media cartridges may be removed from the media access door. To aid in removing the closely spaced cartridges, the top rear edge of the shuttle is cut away and a notch is provided on the exposed edge of each cartridge.

  • Page 78: Manual Cartridge Release Mechanism

    3) Repeat step 2) at the lower access hole to open the lower baseplate. UPPER ACCESS HOLE MANUAL RELEASE TOOL REAR PANEL LOWER ACCESS HOLE EP006046 Manually Opening the LF 6600 Baseplates PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 78...
  • Page 79 REMOVING THE BEZEL NOTE A T15 screwdriver is required for removing the bezel assembly. 1) Release the electrical safety door lock by inserting the flat handle end of the manual release tool through the slot in the bezel and move the locking lever to the left out of the door lock tab as shown below.
  • Page 80 CHASSIS ASSEMBLY MOUNTING HOOKS DOOR SAFETY SWITCH CABLES M4 X 20 SCREW BACK VIEW OF BEZEL BEZEL DOOR SAFETY SWITCH HOOK RESTS EP006044 Bezel Removal PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 80...
  • Page 81 RETRACTING THE CARTRIDGE 1) Insert the manual release tool onto the D-shaped shaft at the front of the drive as shown below to operate the cartridge insertion mechanism. Turn the tool clockwise as far as it will turn, pulling the cartridge back into the shuttle. FRONT ACCESS MANUAL...

  • Page 82: Media Loading

    If the selected cartridge is not present, the DOC displays "# Empty", where # represents cartridges 1-6. For more information on viewing and setting drive configuration options, refer to the Configuration Mode section of this manual. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 82...

  • Page 83: Operator Maintenance

    An interlock is incorporated into the design of the LF 6602's front panel to allow the extension of only one drive at a time. If the interlock is defeated and if both drives are extended simultaneously on their rack mount slides, the cabinet will become unbalanced and will topple over.
  • Page 84 WARNING Do not defeat the LF 6602's interlock and do not extend both drives simultaneously. TRIM PANEL CAUTION LABEL INTERLOCK EP006083 LF 6602 Cabinet Configuration Showing Interlock Location 4) After you have finished, return the extended drive to its original position in the cabinet;...

  • Page 85: Inspecting And Cleaning Fan And Blower Filters

    INSPECTING AND CLEANING FAN AND BLOWER FILTERS Two filters located on the drive's rear panel remove contaminants from air pulled into the drive (see figure below). FILTER ELEMENT OUTER FAN GRIL HALF EP006088 Removing Filter Element from Fan Inspect the Filters at the rear of the drive on a 1 - 6 month schedule and clean, if necessary, to ensure that cooling air flow is not restricted.

  • Page 86: Replacing Fuses

    2) Insert a small, flat-blade screwdriver between the fuse holder and the receptacle housing, as shown in the next figure. FUSE SPARE FUSE FUSE HOLDERS EP006079 Removing Fuse from AC Power Receptacle (Rear View of Unit) PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 86...

  • Page 87: Media Cleaning

    Media disk surfaces should be inspected periodically and cleaned on an as-needed basis. MEDIA CLEANING USING CLEANING KIT P/N 97662550 The Cleaning Kit P/N 97662550 provides a semi-automated cleaning method for cleaning the Plasmon LM 4000 and LM 6000 12 inch optical media. Follow the instructions given in the enclosed Cleaning Instructions.
  • Page 88 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 88...

  • Page 89: Accessories

    The following accessories are available from Plasmon LMS. The cables listed in the table below can be purchased to connect product and host. All Plasmon SCSI cables are shielded and can be used for both Differential and Single Ended applications.
  • Page 90 68 pin high-density B 68 pin high-density B Terminator cable Male cable Female 97655540 Pass Thru Differential 68 pin high-density B 68 pin high-density B Terminator Terminator cable Male cable Female PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 90...
  • Page 91 Differential and Single - ended Cable Kits PLASMON Part Product Description Includes Number SP97660827 Kit, Cable, Differential, US 15165428, 97653429 SP97660828 Kit, Cable, Differential, EUR 97646185, 97653429 SP97660829 Kit, Cable, Differential, UK 97646184, 97653429 SP97660830 Kit, Cable, S/E, US 15165428, 97653428...
  • Page 92 PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 92...

  • Page 93: German Translations/ Übersetzungen Ins Deutsche

    APPENDIX A GERMAN TRANSLATIONS / ÜBERSETZUNGEN INS DEUTSCHE ABMESSUNGEN UND GEWICHT Die Bezugsabmessungen für den LF 6602 (wie auch aus Abbildung 4 ersichtlich) betragen wie folgt: Höhe: 99.9 cm Breite: 53.6 cm Tiefe: 81.3 cm Der LF 6602 wiegt 204 kg.
  • Page 94 Der primäre Netzkabeltyp hängt von der bestellten Konfiguration für den LF 6602 ab. Das primäre Netzkabel versorgt die Steckdosenleiste im Gehäuse des LF 6602 mit Strom. Jeder LF 6602 ist über ein geerdetes Netzkabel an die Steckdosenleiste angeschlossen. Beim LF 6600 ist der Verbindungstecker in die Netzsteckdose integriert. Schutz gegen Überlaststrom wird durch zwei Sicherungen gewährleistet, die zusammen mit zwei Reservesicherungen in die Netzsteckdose integriert...
  • Page 95 WECHSELSTROMERDUNG Um einen sicheren Betrieb zu gewährleisten, muß das Gehäuse des LF 6602 geerdet sein. Das W e c h s e l s t r o m k a b e l e n t h ä l t e i n e E r d l e i t u n g , d i e d a s G e h ä u s e d e s L F 6 6 0 2 d u r c h d i e Wechselstromversorgung des Standorts an Sicherheitserde legt.
  • Page 96 Hilfsvorrichtungen angehoben werden. Beim Auspacken und Transport des LF 6602 ist sicherzustellen, daß die Einheit um nicht mehr als 10 Grad gekippt wird. Der LF 6602 wiegt über 181 kg. Wenn die Einheit um mehr als 10 Grad gekippt wird, kann sie unversehens umfallen und zu Personenverletzungen führen.
  • Page 97 LF 6602 auf einer Rampe nach oben zu rollen. Hierbei ist sicherzustellen, daß die Einheit um nicht mehr als 10 Grad gekippt wird. Der LF 6602 wiegt über 181 kg. Wenn die Einheit um mehr als 10 Grad gekippt wird, kann sie unversehens umfallen und zu Personenverletzungen führen.
  • Page 98 ANSCHLUßÜBERPRÜFUNG Vor dem Einschalten des Systems sind folgende Schritte durchzuführen: 1) Überprüfen Sie, ob der Host-Adapter, falls vorhanden, ordnungsgemäß abgeschlossen ist. 2) Überprüfen Sie, ob der letzte LF 6602 im Bus, falls ein Bus vorhanden, ordnungsgemäß abgeschlossen ist. VORSICHT Vor dem Einschalten der Laufwerke ist sicherzustellen, daß die Transportblöcke aus Schaumstoff aus den Wagenvorrichtungen...
  • Page 99 WARNUNG Setzen Sie die Verriegelung des LF 6602 nicht außer Kraft, und öffnen Sie nicht beide Laufwerke gleichzeitig. EINSCHALTVERFAHREN HINWEIS Die Seriennummer, die dem Laufwerk zugeordnet wird, muß mit den letzten 5 Ziffern der tatsächlichen Seriennummer des Laufwerks übereinstimmen, damit eine exakte interne Ereignisprotokollierung stattfinden kann.
  • Page 100 Stunde Gebrauch angegebenen Betriebstemperaturbereich stabilisieren. 9) Die Zugangsabdeckung des Datenträgers nicht öffnen. 10) Die Plattenoberfläche nicht durch die Zugangsabdeckung berühren. 11) Die Magnetplatte nicht aus der Kassette herausnehmen. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 100...
  • Page 101 Handhabung von Datenträgern finden Sie in der Spezifikation für den LM 6000- Datenträger (Bestellnr. 97647044). WARNUNG Setzen Sie die Verriegelung des LF 6602 nicht außer Kraft, und öffnen Sie nicht beide Laufwerke gleichzeitig. VORSICHT Wenn die Gebläsefilterelemente nicht sauber gehalten werden, kann die Luftzirkulation im Laufwerk beeinträchtigt werden.
  • Page 102 Wenden Sie sich an die nächste Stufe technischer Unterstützung. Dies könnte das Symptom eines schwerwiegenderen Problems sein, das entweder am Netzteil des Laufwerks oder in der Stromversorgung liegt. PLASMON LASER MAGNETIC STORAGE - LF 6602 USER MANUAL Page 102...
