Plasmon 8000 Series User Manual

Autoloader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

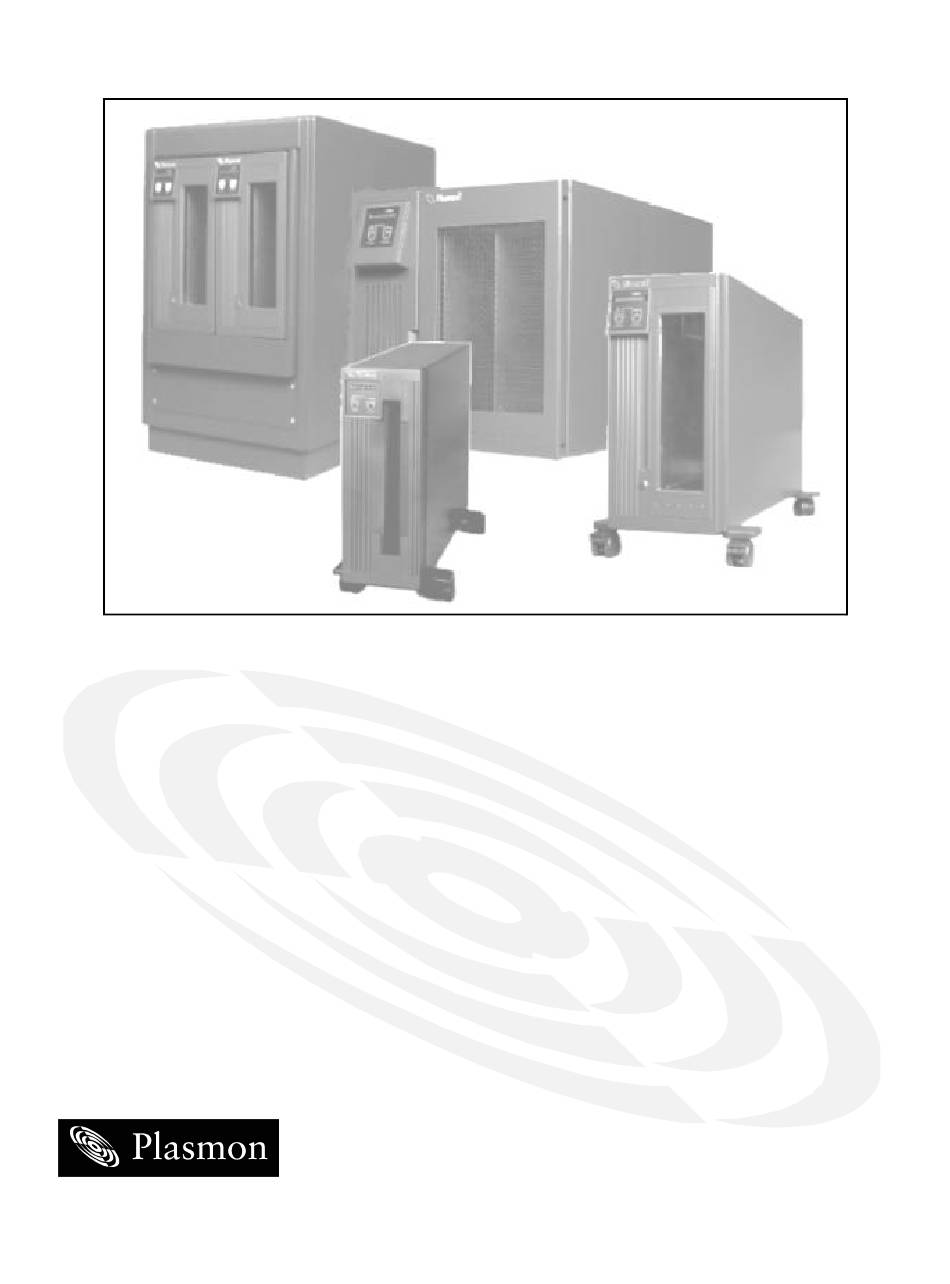

THE PLASMON 8000 SERIES
A
L
LF 8602
UTO
OADER
USER MANUAL
P/N 97663083 A
Storing More Of Your
Digital World ™. Permanently.

Advertisement

Table of Contents
loading

Related Manuals for Plasmon 8000 Series

Summary of Contents for Plasmon 8000 Series

  • Page 1 THE PLASMON 8000 SERIES LF 8602 OADER USER MANUAL P/N 97663083 A Storing More Of Your Digital World ™. Permanently.
  • Page 2 Reproduction of this manual, or any portion of this manual, is prohibited without the express permission of Plasmon Laser Magnetic Storage (LMS). Plasmon LMS reserves the right to make changes in this document and the product referred to herein without prior notice.
  • Page 3 To ensure the integrity of safety features of this unit, maintenance must • be performed only by qualified service personnel using designated Plasmon LMS parts. In case of fire or other emergency, isolate the units from the main • power by disconnecting the power plugs from their site power receptacles.
  • Page 4 Gerätes zu gewährleisten, dürfen Wartungsarbeiten nur von qualifiziertem Fachpersonal ausgeführt werden. Es sind darüber hinaus nur Ersatzteile zu verwenden, die von der Firma Plasmon LMS angegeben werden. Im Falle eines Feuers oder in einem anderen Notfall sind die Geräte •...
  • Page 5 Réglements concernant les Interférences Radioélectriques établis par le Ministére des Communications du Canada. All Plasmon LMS products comply with the requirements of this standard. Agency Compliance and Approval For details on Agency Compliance and Approval refer to the LF 8602 Product Specification Manual.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS SCOPE RELATED PUBLICATIONS GENERAL DESCRIPTION DRIVE CHARACTERISTICS FRONT PANEL REAR PANEL DIMENSIONS AND WEIGHT TEMPERATURE, HUMIDITY AND ALTITUDE MEDIA ENVIRONMENTAL CHARACTERISTICS SHOCK AND VIBRATION AC POWER REQUIREMENTS AC GROUND AC POWER CORD TILT RANGE HEAT DISSIPATION PARTICULATE LIMITS WARNING LABELS UNPACKING AND REPACKING INSTRUCTIONS UNPACKING THE LF 8602...
  • Page 8 VIEWING THE CONFIGURATION ("VIEW CONFIG") SETTING THE CONFIGURATION MENU OPTIONS SET DEFAULTS SETTING THE SCSI ID SETTING THE BUS PARITY CHECKING SETTING THE LANGUAGE SETTING THE WRITE PROTECT OPTION SETTING THE MEDIA AUTOLOAD OPTION SETTING THE LOAD SWITCH OPTION SETTING THE READ AHEAD OPTION SETTING THE CDE CURS OPTION SETTING THE BUSY OPTION SETTING THE MODSEL RA OPTION...

  • Page 9: Scope

    The LF 8602 is warranted as stated in the purchase agreement between Plasmon and its customer, or the Plasmon sales order acknowledgment, whichever is applicable. The Plasmon LMS quality system is in compliance and registered to ISO 9001. The LF 8602 is manufactured from new parts, or remanufactured parts.
  • Page 10 PLASMON L M S - LF 8602 USER MANUAL Page 10...

  • Page 11: General Description

    GENERAL DESCRIPTION The Plasmon LF 8602 AutoLoader is a cabinet configuration, housing two LF 8600 AutoLoader drives side-by-side, as shown in the next figure. Figure 1. LF 8602 Configuration Each LF 8602 drive is a write once read many (WORM), high-capacity, optical disk drive with an integral shuttle, capable of holding up to twelve LM 8000/LM 6000 media cartridges.
  • Page 12 Field Replaceable Unit (FRU). LM 8000 media is interchangeable between the LD 8100, LF 8120, LF 8600 and the LF 8602. The 8000 series of drives will also read LM 6000 media. PLASMON L M S - LF 8602 USER MANUAL Page 12...

  • Page 13: Drive Characteristics

    DRIVE CHARACTERISTICS FRONT PANEL The LF 8602 front panel is shown in the figure below. The LF 8600 bezels, which contain the Drive Operator Console (DOC), media access door and door lock, protrude through a frame in the cabinet. A drive's bezel can be removed BEZEL to gain access to that drive.

  • Page 14: Dimensions And Weight

    The LF 8602's reference dimensions, are shown in the next table. Height: 99.9 cm (39.3 in) Width: 53.6 cm (21.1 in) Depth: 81.3 cm (32.0 in) Weight: 204 kg (450 lb) Figure 4. LF 8602 Dimensions PLASMON L M S - LF 8602 USER MANUAL Page 14...

  • Page 15: Temperature, Humidity And Altitude

    (-984 to 40,000 ft) with Media 1 Storage specifications are for 90 days maximum in Plasmon LMS packaging. No condensation is permitted. Transit specifi- cations are based on a maximum 1-week period in a factory-sealed container. 2 Maximum operating temperature is 42 _C for a free-standing drive at sea level unless otherwise stated. Maximum operating temperature is derated linearly above 300 m altitude to 38 _C at 2,000 m altitude.

  • Page 16: Media Environmental Characteristics

    31 - cm (18 - in) Drop Test Flat 1 With media removed 2 In LMS-approved packaging 3 Shock repetition rate should be limited to allow mechanical sys- tem transients to subside between pulses. PLASMON L M S - LF 8602 USER MANUAL Page 16...

  • Page 17: Ac Power Requirements

    AC POWER REQUIREMENTS The primary AC power cord type will depend on the LF 8602 configuration ordered. The primary AC power cord supplies power to the power socket strip located within the LF 8602 cabinet. Each LF 8602 is connected to the power socket strip with a grounded AC power cord. The power connector of each LF 8600 is integrated into the AC power receptacle.

  • Page 18: Tilt Range

    LF 8600 drives within the cabinet. LASER CLASS LABEL LASER DANGER LABEL CANADIAN CLASS A COMPLIANCE LABEL FCC CLASS A LABEL Figure 5. Location of LF 8600 Warning Labels PLASMON L M S - LF 8602 USER MANUAL Page 18...

  • Page 19: Unpacking And Repacking Instructions

    UNPACKING AND REPACKING INSTRUCTIONS If the Laser Drive’s shipping carton shows evidence of rough handling or damage, return the unit in its original packaging to your supplier and request a replacement. UNPACKING THE LF 8602 The LF 8602 is shipped with foam packing material which protects the unit from shock and vibration. After you receive your LF 8602, inspect the shipping carton for damage before unpacking the unit to substantiate a claim with the carrier if the unit is damaged.
  • Page 20 CARTON RAMP CUSHION BANDING STRAP PLASTIC CORNER FRONT PANEL FRAME PALLET EP005015 Figure 6. Unpacking the LF 8602 PLASMON L M S - LF 8602 USER MANUAL Page 20...
  • Page 21 4. Cut the banding straps that secure the unit to the pallet and removes plastic corners. BANDING STRAP AND PLASTIC CORNER EP005016 Figure 7. Removing Banding Straps from LF 8602 5. Unlock and unlatch the LF 8602's rear door (see next figure). 6.
  • Page 22 BRACKETS (2X) AND WOOD SUPPORT FRONT OF FRAME LOOSEN BOLTS (2X) BACK OF FRAME EP005017 Figure 8. Removing Bolts from Front of Frame; Loosening Bolts from Back of Frame PLASMON L M S - LF 8602 USER MANUAL Page 22...
  • Page 23 9. Place the ramp on the front lip of the pallet (see figure below). EP005018 Figure 9. Positioning Ramp on Pallet 10. With the assistance of a second person, carefully roll the LF 8602 down the ramp. WARNING To prevent personal injury, you must have a second person help you roll the LF 8602 down the ramp.
  • Page 24 13. Open the drives' media access doors and remove the small foam blocks. Manually move the shuttles all the way to the right to the home position, as shown in the next figure. EP006042A Figure 10. Moving the Shuttle to the Home Position PLASMON L M S - LF 8602 USER MANUAL Page 24...

  • Page 25: Inspecting The Lf 8602

    INSPECTING THE LF 8602 The following items should be included in the LF 8602 carton: One LF 8602 • One daisy chain SCSI cable • One primary AC cord • One User Manual • One Manual Release Tool • Accessories such as a SCSI terminator, a SCSI cable and optional LM 8000 media cartridges, if ordered, will accompany the LF 8602 in a separate carton.
  • Page 26 Repeat step c) at the lower manual release access hole to close the lower baseplate. e.) Reposition the shipping bracket and secure it to the LF 8602 chassis by re- installing the four screws. PLASMON L M S - LF 8602 USER MANUAL Page 26...
  • Page 27 UPPER ACCESS HOLE MANUAL RELEASE TOOL REAR PANEL LOWER ACCESS HOLE EP006047 Figure 12. Manually Closing the Drive's Baseplates 3. Ensure that the primary AC power cord is disconnected from the wall outlet and that the power switch on each drive is set to the OFF position ( O ). 4.
  • Page 28 Do not attempt to lift the LF 8602 without using proper equipment. 5. Position the ramp on the front lip of the pallet. 6. With the assistance of a second person, carefully roll the LF 8602 up the ramp. PLASMON L M S - LF 8602 USER MANUAL Page 28...
  • Page 29 WARNING To prevent personal injury, you must have the assistance of a second person to help roll the LF 8602 up the ramp. When the LF 8602 is being rolled up the ramp, ensure that the unit is tilted no more than 10 degrees in the vertical position. The LF 8602 weighs more than 181 kg (400 lbs).
  • Page 30 PLASMON L M S - LF 8602 USER MANUAL Page 30...

  • Page 31: Installation

    INSTALLATION INSTALLATION REQUIREMENTS The LF 8602 is shipped as a complete assembly, ready for cable connection and power up. No tools are required for the basic installation. CAUTION Remove the foam shipping block from each of the shuttle assemblies before powering on the LF 8600 drives. Ensure that the internal temperature within the cabinet does not exceed the operating limits as described in the Product Specification (P/N 97663035) and this document.

  • Page 32: Scsi Bus Considerations

    When the single-ended interface controller is used on all SCSI devices, the total length of the SCSI interface cable cannot exceed 6 m(19.5 ft). (Plasmon LMS does not recommend single-ended fast synchronous.) When a differential interface controller is used on all SCSI devices, the total SCSI interface cable length cannot exceed 25 m (82 ft).
  • Page 33 HOST HOST SCSI CONNECTOR NOTE: The SCSI bus must also be terminated at the host. Normally, the termination function is built into the host adapter. LF 8602 LF 8602 LF 8602 LF 8600 LF 8600 LF 8600 LF 8600 LF 8600 LF 8600 SCSI SCSI...
  • Page 34 LF 8600 and may also be supplied by another device in the SCSI daisy chain. Refer to the Accessories section of this manual for a list of SCSI bus terminators, cables and their Plasmon LMS part numbers.

  • Page 35: Connecting Power And Scsi Cabling

    CONNECTING POWER AND SCSI CABLING After the LF 8602 has been installed in its operating location, the primary AC power cord and host SCSI interface cabling can be connected. The type of primary AC power cord being installed depends upon the installation location.

  • Page 36: Single-Device Configuration

    Install the cable into that connector. 3. Ensure that the shorter Plasmon LMS-supplied SCSI cable connecting the two drives is securely fastened to the connectors. This cable connects from the first drive's upper connector to the second drive's upper connector.

  • Page 37: Multiple-Device Configuration

    MULTIPLE-DEVICE CONFIGURATION To connect SCSI cables and a terminator, if necessary, in a multiple LF 8602 configuration, refer to the Single Device Configuration section and connect the SCSI cables according to steps 1 through 3). If the LF 8602 is part of a daisy chain configuration and is not the last unit in the chain, install one end of a SCSI interface cable into the lower connector of the second drive and then install the other end of the cable into the connector of the next device in the chain.

  • Page 38: Extension Procedures

    (see the next figure). If the interlock is defeated and if both drives are extended simultaneously on their rack mount slides, the cabinet will become unbalanced and will topple over. PLASMON L M S - LF 8602 USER MANUAL Page 38...
  • Page 39 WARNING Do not defeat the LF 8602's interlock and do not extend both drives simultaneously. TRIM PANEL CAUTION LABEL INTERLOCK EP006083 Figure 19. LF 8602 Cabinet Configuration Showing Interlock Location 4. After you have finished, return the extended drive to its original position in the cabinet; remount the shipping bracket on the rear of the cabinet and secure the bracket by re- installing the four screws.
  • Page 40 PLASMON L M S - LF 8602 USER MANUAL Page 40...

  • Page 41: Operating Instructions

    OPERATING INSTRUCTIONS CONTROLS AND INDICATORS The Drive Operator Console (DOC) shown in the figure below, is located on the front panel of each LF 8600. The DOC provides the controls and indicators that enable a user to operate the LF 8600. The DOC controls and indicators consist of an alphanumeric display, a LOAD/MENU switch, a TEST/SELECT switch, and a WRITE PROTECT indicator.

  • Page 42: Power-On Procedure

    3. Set the AC Power Switch to the ON ( I ) position and verify that air is flowing through the LF 8600. 4. Verify that the WRITE PROTECT indicator is illuminated briefly. 5. Verify that the "Selftest" message is displayed on the DOC. PLASMON L M S - LF 8602 USER MANUAL Page 42...

  • Page 43: Modes Of Operation

    The "Selftest" message indicates that the power-on selftests are running. When the power-on selftests have run without errors, the drive will perform a test to determine which slots in the shuttle are occupied by media cartridges and then will load media number 1. When the "1 Ready"...
  • Page 44 Porte Ouvert Türe Offen Shuttle Moving to Home Position Move to Home Depl Origine Zur Ruhepos 1 "Locked" means that the host has issued a PREVENT MEDIA REMOVAL command. PLASMON L M S - LF 8602 USER MANUAL Page 44...

  • Page 45: Configuration Mode

    CONFIGURATION MODE Configuration mode is used to view and set drive operating parameters. The parameters that can be configured and displayed are summarized in the following (the corresponding DOC display is shown in parentheses). Viewing the configuration ("View Config") View the current operating parameters ("View Current") View the firmware revisions of the drive ("View FW Revs") View the hardware revisions of the drive ("View HW S/Ns") View the hardware part numbers of the drive ("View HW P/Ns")
  • Page 46 Main menu. The display will show the message which appeared prior to the drive entering the Configuration mode. The "Ready" message is displayed when a media cartridge is loaded on the drive spindle. PLASMON L M S - LF 8602 USER MANUAL Page 46...
  • Page 47 MAIN MENU ENTER VIEW View Config SELECT CONFIG MENU PRESS BOTH SWITCHES SIMULTANEOUSLY FROM ANY MENU TO RETURN TO MENU THE MAIN MENU ENTER Set Config SELECT SET CONFIG MENU MENU ENTER Diagnostics SELECT DIAGNOSTIC MENU MENU ENTER SERIAL NUMBER Set Serial # SELECT ENTRY MENU...

  • Page 48: Viewing The Configuration ("View Config")

    Rd Ahead On or Off CDE Curs On or Off Busy On or Off ModSelRA On or Off MMSpinUp On or Off TargSDTR On or Off TargWDTR On or Off PLASMON L M S - LF 8602 USER MANUAL Page 48...

  • Page 49: Setting The Configuration Menu Options

    A structure diagram for the View Configuration menu is shown in the next figure. To move up a level in the Configuration menu hierarchy to the Main menu, press the LOAD/MENU and TEST/SELECT switches simultaneously. To exit the Configuration mode, press the LOAD/MENU and TEST/SELECT switches simultaneously. The display will show the message which appeared prior to the drive entering the Configuration mode.
  • Page 50 TargSWTR. Press SELECT again to toggle between TargSWTR OFF and ON. When the desired selctions have been made, press MENU and SELECT simultaneously to return tothe NEGOTIATIONS menu. PLASMON L M S - LF 8602 USER MANUAL Page 50...
  • Page 51 A structure diagram for the Set Configuration menu is shown in the next figure. To move up a level in the configuration menu hierarchy to the Main menu, press the LOAD/MENU and TEST/SELECT switches simultaneously. To exit the Configuration mode, press the LOAD/MENU and TEST/SELECT switches simultaneously. The display will show the message which appeared prior to the drive entering the Configuration mode.
  • Page 52 MENU TOP OF MENU Negotiation TargSDTR SELECT SELECT MENU MENU SELECT PRESS BOTH MENU SELECT = SWITCHES SIMULTANEOUSLY TargWDTR SELECT MENU SELECT Figure 25. Set Config Menu (Part 2) PLASMON L M S - LF 8602 USER MANUAL Page 52...

  • Page 53: Set Defaults

    SET DEFAULTS The SET DEFAULT fuction will reset all operating parameters to factory defaults. Perform the following procedure to set the LF 8600's to the factory defaults: 1. Enter the Configuration mode by pressing both the LOAD/MENU and TEST/SELECT switches simultaneously. 2.

  • Page 54: Setting The Bus Parity Checking

    Set Configuration menu. 6. Simultaneously press the LOAD/MENU and TEST/SELECT switches to move up to the Main menu. Simultaneously press the LOAD/MENU and TEST/SELECT switches again to exit Configuration mode. PLASMON L M S - LF 8602 USER MANUAL Page 54...

  • Page 55: Setting The Write Protect Option

    SETTING THE WRITE PROTECT OPTION The write protect option enables the user to inhibit the LF 8600 from writing to any media inserted into the drive, regardless of the write protect setting on the media cartridges. Perform the following procedure to turn write protect on or off: 1.

  • Page 56: Setting The Load Switch Option

    Set Configuration menu. 6. Simultaneously press the LOAD/MENU and TEST/SELECT switches to move up to the Main menu. Simultaneously press the LOAD/MENU and TEST/SELECT switches again to exit Configuration mode. PLASMON L M S - LF 8602 USER MANUAL Page 56...

  • Page 57: Setting The Cde Curs Option

    CAUTION The read ahead option is system dependent. Ensure that you check with your system analyst before setting this option. When enabled, the read ahead option uses the data buffer (12.8 MBytes) to store data sectors read from the disk beyond those sectors requested by the host. Subsequent sequential sectors will be read directly from the buffer instead of incurring the latency time it takes to access sequential sectors.

  • Page 58: Setting The Busy Option

    Set Configuration menu. 6. Simultaneously press the LOAD/MENU and TEST/SELECT switches to move up to the main menu. Simultaneously press the LOAD/MENU and TEST/SELECT switches again to exit Configuration mode. PLASMON L M S - LF 8602 USER MANUAL Page 58...

  • Page 59: Setting The Mm Spinup Option

    SETTING THE MM P OPTION When enabled, the (Media Management Spin Up) MM SpinUp option allows the LaserDrive to read necessary media management information during spin up. If not enabled, the media management information will be recovered on the first media access command. Perform the following procedure to enable or disable the MM SpinUp option: 1.

  • Page 60: The Diagnostic Menu

    Press the SELECT switch to select last Test to be performed (0 - 9). Once the desired test has been selected, press MENU to select the Test Cycle value (see the next table for the test value and test name). PLASMON L M S - LF 8602 USER MANUAL Page 60...
  • Page 61 Table 9. Diagnostics Selftests TEST # DESCRIPTION OF TEST Power-on self-test. This test cannot be disabled; it runs automatically when the drive is powered on. PCA Self-tests, DPR Communication Read/Write Data Path Cartridge Guide and Shuttle Sensors Baseplate and Spindle Motor Operation Servo Control Systems Read Performance Reserved...
  • Page 62 To exit the Configuration mode, press the LOAD/MENU and TEST/SELECT switches simultaneously from the Main menu. The display will show the message which appeared prior to the drive entering the Configuration mode. PLASMON L M S - LF 8602 USER MANUAL Page 62...
  • Page 63 Park Drive SELECT MENU Enter Sensor SELECT Test Sensors Display Mode MAIN MENU SELECT PRESS BOTH SWITCHES MENU SIMULTANEOUSLY FROM SET CONFIG TO RETURN TO THE MAIN MENU Confirm Clear SELECT Clear NV RAM SELECT SET CONFIG MENU MENU Follow all instructions SELECT displayed on DOC PRESS BOTH SWITCHES...
  • Page 64 Force WPC SELECT single WPC MENU Will Clear Drive SELECT Clear WPC WPC Log MENU SELECT MENU PRESS BOTH MENU SELECT = SWITCHES SIMULTANEOUSLY Figure 27. Diagnostic Menu (Part 2) PLASMON L M S - LF 8602 USER MANUAL Page 64...

  • Page 65: Set The Internal Drive Serial Number ("Set Serial #")

    SET THE INTERNAL DRIVE SERIAL NUMBER ("SET SERIAL #") To enter the serial number submenu, press the TEST/SELECT switch while "Set Serial #" is displayed in the Main menu. The drive will enter the menu allowing the operator to view and change the internal drive serial number.
  • Page 66 SERIAL # MENU DRV SN Blank MENU SELECT DRV SN Blank = Digit to be Set is Flashing MENU SELECT DRV SN Blank MENU Figure 28. Set Serial # Menu PLASMON L M S - LF 8602 USER MANUAL Page 66...

  • Page 67: Test Mode

    TEST MODE The LF 8600 automatically enters the Test mode each time the Drive is powered on. Power-on selftest diagnostics are run to verify the operational readiness of the drive. After the LF 8600 successfully passes the power-on selftests, the LF 8600 enters the Operating mode. While the Drive is in the Operating mode, the operator may manually enter the Diagnostic Test mode.

  • Page 68: Media Cartridge Handling

    Drive, then the media should be acclimated in the Drive environment for at least 30 minutes before writing to the media. Reading from the media may be done immediately. PLASMON L M S - LF 8602 USER MANUAL Page 68...
  • Page 69 Observe the following precautions to ensure data integrity when handling or storing a media cartridge: 1) Do not drop the media cartridge onto hard surfaces. 2. Do not physically abuse the cartridge exterior or access mechanisms. 3. Do not store the media cartridge in the drive. 4.

  • Page 70: Setting The Write Protection Switch

    NOT WRITE SWITCH PROTECTED WRITE PROTECTED (NOT WRITE PROTECTED HOLE IS OPEN WRITE PROTECTED HOLE IS CLOSED) WRITE PROTECT SWITCH EP004350 Figure 31. Manually Write Protecting the Media Cartridge PLASMON L M S - LF 8602 USER MANUAL Page 70...

  • Page 71: Affixing Labels

    AFFIXING LABELS Title and content labels are supplied with each LM 8000 media cartridge and should be affixed before the cartridge is inserted into the LF 8600. Before affixing the labels in the recessed areas (see figure below), ensure that the surface of the cartridge is clean and dry. SIDE A VIEW POSITION LABELS HERE...
  • Page 72 If access is denied by command from the host, pressing LOAD/MENU will have no effect and the DOC will briefly display the "Denied" message. PLASMON L M S - LF 8602 USER MANUAL Page 72...

  • Page 73: Cartridge Insertion

    CARTRIDGE INSERTION LM 8000 media cartridges are inserted directly into the LF 8600 shuttle via the media access door described in the Media Access Door section. Ensure that the arrows on the cartridge point toward the shuttle and insert the cartridge into the slot until it is fully seated and its back edge is flush with the edge of the shuttle.

  • Page 74: Cartridge Removal

    Pulling on the cartridge notch with one finger as shown in the next figure, will back the cartridge out far enough so that it can be grasped and removed. Figure 35. LM 8000 Cartridge Removal PLASMON L M S - LF 8602 USER MANUAL Page 74...

  • Page 75: Manual Cartridge Release Mechanism

    MANUAL CARTRIDGE RELEASE MECHANISM If power fails or if the drive fails with a media cartridge inserted, the media cartridge can be manually removed by opening the drive baseplates, removing the bezel and then retracting the cartridge. OPENING THE BASEPLATES With the manual release tool, perform the following procedure: 1) Move the AC power switch to the OFF ( O ) position and disconnect the AC power cable from the wall outlet.

  • Page 76: Removing The Bezel

    CAUTION Ensure that you do not damage the door safety switch cables when you are removing the bezel. PLASMON L M S - LF 8602 USER MANUAL Page 76...
  • Page 77 CHASSIS ASSEMBLY MOUNTING HOOKS DOOR SAFETY SWITCH CABLES M4 X 20 SCREW BACK VIEW OF BEZEL BEZEL DOOR SAFETY SWITCH HOOK RESTS EP006044 Figure 38. Bezel Removal 97663083 A Page 77...

  • Page 78: Retracting The Cartridge

    Turn the tool clockwise as far as it will turn, pulling the cartridge back into the shuttle. FRONT ACCESS MANUAL RELEASE TOOL EP006040A Figure 39. LF 8600 Manual Cartridge Retraction PLASMON L M S - LF 8602 USER MANUAL Page 78...

  • Page 79: Media Loading

    2. Manually move the shuttle to the home position as shown below. EP006039 Figure 40. Manually Moving the Shuttle Assembly to the Home Position 3. Remove the cartridge from the shuttle slot. MEDIA LOADING Individual media cartridges can be selected for loading by host command or by the autoload configuration option.
  • Page 80 PLASMON L M S - LF 8602 USER MANUAL Page 80...

  • Page 81: Operator Maintenance

    OPERATOR MAINTENANCE ACCESSING DRIVES During operator maintenance, if you need to extend and access a drive through the front of the LF 8602, perform this procedure: 1) Disconnect a drive from the shipping bracket at the rear of the LF 8602 by unfastening the four M4 screws (see figure below).
  • Page 82 4. After you have finished, return the extended drive to its original position in the cabinet; remount the shipping bracket on the rear of the cabinet and secure the bracket by re- installing the four screws. 5. Re-install the cabinet's trim panel. PLASMON L M S - LF 8602 USER MANUAL Page 82...

  • Page 83: Inspecting And Cleaning Fan And Blower Filters

    INSPECTING AND CLEANING FAN AND BLOWER FILTERS Two filters located on the drive's rear panel remove contaminants from air pulled into the drive (see figure below). FILTER ELEMENT OUTER FAN GRIL HALF EP006088 Figure 43. Removing Filter Element from Fan Inspect the Filters at the rear of the drive on a 1 - 6 month schedule and clean, if necessary, to ensure that cooling air flow is not restricted.

  • Page 84: Replacing Fuses

    2. Insert a small, flat-blade screwdriver between the fuse holder and the receptacle housing, as shown in the next figure. FUSE SPARE FUSE FUSE HOLDERS EP006079 Figure 44. Removing Fuse from AC Power Receptacle (Rear View of Unit) PLASMON L M S - LF 8602 USER MANUAL Page 84...

  • Page 85: Media Cleaning

    Media disk surfaces should be inspected periodically and cleaned on an as-needed basis. MEDIA CLEANING USING CLEANING KIT P/N 97662550 The Cleaning Kit P/N 97662550 provides a semi-automated cleaning method for cleaning the Plasmon LM 8000 and LM 6000 12 inch optical media. Follow the instructions given in the enclosed Cleaning Instructions.
  • Page 86 PLASMON L M S - LF 8602 USER MANUAL Page 86...

  • Page 87: German Translations/Übersetzungen Ins Deutsche

    APPENDIX A GERMAN TRANSLATIONS/ÜBERSETZUNGEN INS DEUTSCHE ABMESSUNGEN UND GEWICHT Die Bezugsabmessungen für den LF 8602 (wie auch aus Abbildung 4 ersichtlich) betragen wie folgt: Höhe: 99.9 cm Breite: 53.6 cm Tiefe: 81.3 cm Der LF 8602 wiegt 204 kg. TEMPERATUR, LUFTFEUCHTIGKEIT UND SEEHÖHE In Tabelle 1 sind die Temperatur-, Luftfeuchtigkeits- und Meereshöhengrenzwerte für die im LF 8602 installierten LF 8600-Laufwerke aufgeführt.
  • Page 88 1 Die Lagerungsangaben beziehen sich auf maximal 90 Tage in der Plasmon LMS-Verpackung. Kondensation ist nicht zuläs- sig. Die Transportangaben gelten für maximal 1 Woche in einem werkseitig verschlossenen Behälter. 2 Falls nicht anders angegeben ist die maximale Betriebstemperatur für ein freistehendes Laufwerk auf Meereshöhe. 42 C.
  • Page 89 Das Netzteil ist selbstregulierend und erfordert kein mechanisches Schalten der Eingangsspannung oder Netzfrequenz. Tabelle 3. Wechselstrombedarf LEISTUNG EINSCHALT- NENNLEISTUNG, (TYPISCH) STROMSTOSS1 FREQUENZ WECHSELSPANNUNG 47 bis 66 Hz 86,7 bis 128 V 3,0 A 10.0 A 15 A 47 bis 66 Hz 173,4 bis 268 V 1,5 A 5.0 A...
  • Page 90 Die Grundplatten der Laufwerke müssen sich in geschlossener Stellung befinden, bevor der LF 8602 transportiert wird. Nur so kann eine nicht unter den Garantieschutz fallende Beschädigung der Laufwerke vermieden werden. PLASMON L M S - LF 8602 USER MANUAL Page 90...
  • Page 91 WARNUNG Der LF 8602 darf nicht ohne geeignete Hilfsvorrichtungen angehoben werden. WARNUNG Um Personenverletzungen zu vermeiden, sind zwei Personen erforderlich, um den LF 8602 auf einer Rampe nach oben zu rollen. Hierbei ist sicherzustellen, daß die Einheit um nicht mehr als 10 Grad gekippt wird.
  • Page 92 Vor dem Einschalten der Laufwerke ist sicherzustellen, daß die Transportblöcke aus Schaumstoff aus den Wagenvorrichtungen entfernt wurden. Anweisungen zum Einschalten des Systems finden Sie in Abschnitt 5 des vorliegenden Handbuchs. PLASMON L M S - LF 8602 USER MANUAL Page 92...
  • Page 93 WARNUNG Setzen Sie die Verriegelung des LF 8602 nicht außer Kraft, und öffnen Sie nicht beide Laufwerke gleichzeitig. EINSCHALTVERFAHREN HINWEIS Die Seriennummer, die dem Laufwerk zugeordnet wird, muß mit den letzten 5 Ziffern der tatsächlichen Seriennummer des Laufwerks übereinstimmen, damit eine exakte interne Ereignisprotokollierung stattfinden kann.
  • Page 94 Stunde Gebrauch angegebenen Betriebstemperaturbereich stabilisieren. 9. Die Zugangsabdeckung des Datenträgers nicht öffnen. 10. Die Plattenoberfläche nicht durch die Zugangsabdeckung berühren. 11. Die Magnetplatte nicht aus der Kassette herausnehmen. PLASMON L M S - LF 8602 USER MANUAL Page 94...
  • Page 95 12. Die Datenträgerkassetten in einer sauberen Büroumgebung benutzen, handhaben und lagern. 13. Während der Handhabung von Datenträgern nicht rauchen. Asche und Tabak sind eine Hauptquelle für die Verunreinigung von Magnetplatten. Alle Rauchutensilien sind aus den Bereichen fernzuhalten, in denen Datenträger benutzt oder gelagert werden. 14.
  • Page 96 Wenden Sie sich an die nächste Stufe technischer Unterstützung. Dies könnte das Symptom eines schwerwiegenderen Problems sein, das entweder am Netzteil des Laufwerks oder in der Stromversorgung liegt. PLASMON L M S - LF 8602 USER MANUAL Page 96...
