Prosonic TFD-1501 Instruction Manual

15″ tft lcd tv & dvd combo
Hide thumbs Also See for TFD-1501:
Table of Contents

Advertisement

Quick Links

Download this manual
15" TFT LCD TV & DVD COMBO
TFD-1501
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFD-1501 and is the answer not in the manual?

Questions and answers

Related Manuals for Prosonic TFD-1501

Summary of Contents for Prosonic TFD-1501

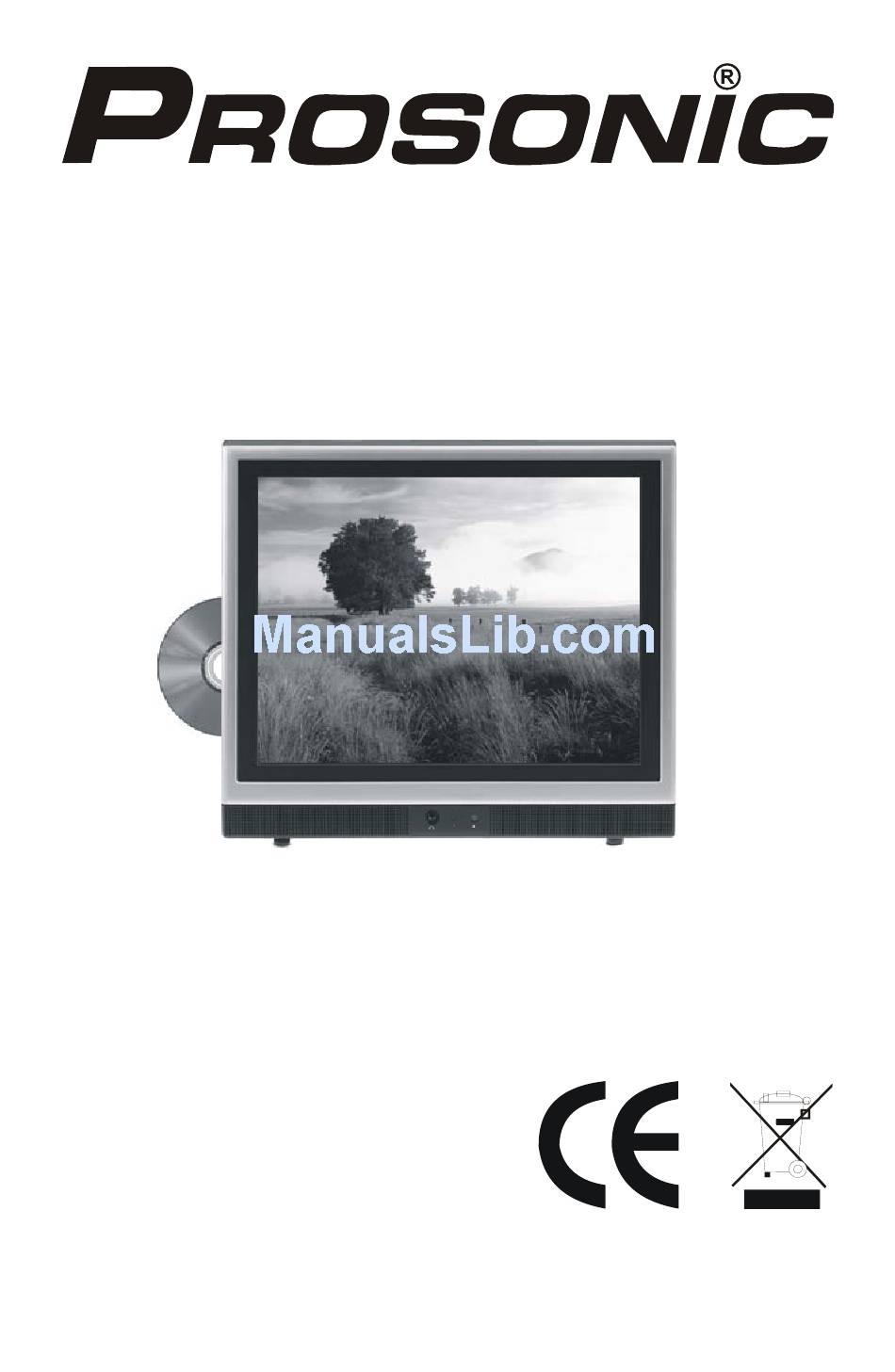

  • Page 1 15″ TFT LCD TV & DVD COMBO TFD-1501 Instruction Manual...

  • Page 2: Dear Customers

    Dear Customers Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend that you carefully read the safety and operation instructions before operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your TFT-LCD TV/Monitor and in this manual. Safety information __________________________________________________ Note: Before connecting the AC power cord to the DC adapter outlet, make sure...

  • Page 3: Power Cord Protection

    Precautions ________________________________________________________ Please read the below precautions carefully before operating the unit. Power cord protection: Never use your LCD TV/Monitor if the power cord has been damaged. Do not put anything on the power cord, and keep the power cord away from where people can easily trip over it.
  • Page 4 Keep away from water/magnetic fields: Do not expose the LCD TV/Monitor to rain or use it near water source. If the LCD TV/Monitor got wet, unplug it and contact an authorized dealer immediately. Do not clean the front panel with Ketone-type materials, ethyl alcohol, toluene, acid, methyl, or chloride since they may cause damage on panel.
  • Page 5 Unpacking ____________________________________________ Please make sure that the following items are included with your LCD TV/Monitor. If any item is missing, please contact your dealer. TFT LCD TV/ Monitor Remote control Operation manual DC adapter Power cord RCA cable...
  • Page 6 View of the monitor Side view Front view Back view Remote sensor 12. VGA jack Power indication light 13. SCART jack Headphone jack 14. S-video jack CH+/up direction button 15. Video in jack CH-/down direction button 16. Audio in (left) jack VOL up/RIGHT direction button 17.
  • Page 7 II. Remote control reference guide (1) Remote control function 1. DVD open/close 2. Video out mode button 3. SLEEP button 4. 0-9 Numerical button 5. Program play button 6. Volume down button 7. Unit system menu button 8. Display status message button 9.
  • Page 8 ● TELETEXT BUTTONS (If TV has teletext function. You may enjoy it by using these buttons) Name Function Name Function To select TXT/TV mode To show the sub page Enter into TXT list mode Keep the page display Display the hidden INDEX Menu display information...
  • Page 9 3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a different type. 4. If you don’t intend to use the remote controller for an extended period, remove the batteries to prevent possible leakage and corrosion. Notes: Do not drop, apply shock or step on the remote control.
  • Page 10 VHF antenna UHF antenna 75ΩCo-axis cable Input terminal of Mixer antenna Co-axis antenna plug Antenna in jack Ω Co-axis cable Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper AUDIO input jacks ‘L’ and ‘R’. Connect the video source to the VIDEO jack by RCA cable. If the video source has a SCART output jack, you can connect the signal to the monitor by the SCART cable.
  • Page 11 The Picture setup, Sound setup, Previous channel can be memorized before you switch off the TV/Monitor. The TV/Monitor will re-start under the previous state when you switch on it again. If you unplug the power cord to cut off the power supply completely, all previous setting will be lost.
  • Page 12 Select the suitable input to pickup the AV signal. Press P+ or P- button to select source, then press SVideo V + button to confirm your selection. Or press DVD Button on the remote control to select DVD source SCART directly.

  • Page 13: Menu Setting And Adjustment

    V. Menu setting and adjustment PICTURE SETTING Press the MENU button on the remote control, there will be a menu displayed on the screen as below: On this menu, the Picture setting icon of is in red frame. (1). Use the V+ button firstly, the cursor will be on the line of “Picture Mode: Vivid”.
  • Page 14 On this menu, the Audio setting icon of is in red frame. (1). Use the V+ button firstly, the cursor will be on the line of “Sound Mode: Normal”. And then, press the V+ or V - button repeatedly to select the picture mode from Normal, News,Movie or User.
  • Page 15 On this menu, the Channelsetting icon of is in red frame. (1). Auto Tune Use the V+ button firstly, the cursor will be on the line of “Auto Tune ”. And then, press the V+ button again, a menu will be displayed as followed: As shown on the menu, the TV will automatically search stations.

  • Page 16: Function Setting

    Setting to “On”, the channel will not be selected by Channel Up/Down keys. (5).Sound SYS. Press the P- or P+ button to select the Sound SYS. setting, and press the V- or V+ button repeatedly to select .You could choose D/K,L,LL ,B/G or I according to your local TV sound system.
  • Page 17 press button repeatedly select WEST,RUSSIAN,ARABIC,FARSI or EAST according to your meaning. (4).Color Temp. Move the cursor to the line of “Color Temp. Normal ”. And then, press the V+ or V - button , a menu will be displsyed as followed: Press the V+ or V - button repeatly, you could select User, Normal, Warm or Cool according to your request.
  • Page 18 5. PC SETTING ( FOR PC SIGNAL SOURCE ONLY) Press the MENU button on the remote control to display the menu, and then press the P- button to select the PC setting, and the menu will be shown on the screen as below: On this menu, the Channel setting icon of is in red frame.

  • Page 19: Dvd Player Operation

    VI. DVD PLAYER OPERATION a. Basic play Press the TV/AV button on the unit or the remote control to select the DVD function mode. Or press DVD button of the remote control directly. Insert a disc into the slot of DVD player and it will be read automatically. Press ”OPEN/CLOSE”...

  • Page 20: Zoom Picture

    or 32X speed. Press ENTER/PLAY button to return to normal play. SKIP NEXT/ PREVIOUS Press the / button to select the next track or the previous track. b. SLOW PLAY Press SLOW PLAY button when playing, you can play the disc at 1/2, 1/4, 1/8, 1/16 of the normal speed.

  • Page 21: Power On/Off

    e. STEP When the PAUSE/STEP button on the remote control is pressed 1st time, the picture will become still on the screen. By pressing this button again and again, the picture will advance picture by picture (frame by frame). To return to normal play, press the ENTER/PLAY button.
  • Page 22 favorite order. HOW TO SET TITLES, CHAPTERS, OR TRACKS IN A FAVORITE ORDER The program playback function will automatically playback titles, chapters or tracks in the order preprogrammed. Insert a disc, press the PROG button, and the menu will display on TV, as the following: Program : TT(- -)/CH(- -) 01 TT: CH:...

  • Page 23: Selecting Subtitles

    NOTE: The angle function will not work on DVD video discs that do not contain recorded multiple angles. During still playback, you are able to change the camera angle. However, when you resume to normal playback, the camera angle changes to the new settings. The angle icon indicator will illuminate while playing back a title that contains at least one scene recorded with multiple angles.
  • Page 24 Press the ENTER/PLAY button to play the MP3 file. Press during playback to skip the tracks. If you need to return to the main directory (folder), press STOP. NOTE: The left column on the TV screen is a list showing the name of the folder.
  • Page 25 AUDIO SETUP You could choose AUDIO OUT mode as SPEAKER SETUP, AUDIO SETUP, could setup to get the best sound as followed: PREFERENCE PAGE SETUP You could choose PREFERENCE PAGE mode as followed menu. Note: Preference Page Setup fun. is only useful to set as followed status: a.

  • Page 26: Password Setup

    4 PASSWORD SETUP...

  • Page 27: Other Operation

    VII. Other Operation a. Earphone operation This unit possesses earphone jack. Connect the earphone with the socket and adjust the volume to what you want. Once plugged in, the speaker output will be cut off automatically. b. AUDIO effect Press the AUDIO/ST/D/I/II button on the remote control frequently to select Mono Left, Mono Right , Mix-Mono or Stereo effect.
  • Page 28 b. TV/Monitor Symptom Remedy 1. Check whether the power plug is connected to the power No power supply. 2. Pull out the plug and wait for 60 seconds, and then insert the power plug again and switch on the TV/monitor. Check whether the antenna is connected properly.
  • Page 29 IX. Notes (1) Please read these operating instructions carefully before you operate this unit. (2) When you want to cut off the electricity supply of the whole unit’s power, please press the POWER button on the unit. And take out the plug from wall outlet.

  • Page 30: Maintenance

    X. Maintenance 1). Cleaning the cabinet Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives. 2). Cleaning discs When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre outwards.

  • Page 31: Specifications

    Specifications Screen size, visible 15 inch Screen format Resolution 1024 * 768 Minimum contrast ratio 450:1 Minimum brightness 250 cd/m² Display colors 16.2M Minimum viewing angle 120° (horizontal) / 100° (vertical) Maximum response Time 16 ms Minimum lifetime background light 50,000 hours Video color systems PAL/NTSC3.58/NTSC4.43/SECAM...

  • Page 32: Display Modes

    XII. Display modes Resolution Horizontal Freq. (KHz) Vertical Freq. (Hz) 720x400 31.5 640x400 31.5 640x480(VGA) 31.5 640x480(VGA) 37.9 640x480(VGA) 37.5 800x600(SVGA) 37.9 800x600(SVGA) 47.2 800x600(SVGA) 46.9 1024x768(XGA) 48.4 1024x768(XGA) 56.5 1024x768(XGA) 60.0 1280x1024(SXGA) 63.5 1280x1024(SXGA) 80.0 Modes, which are not listed in the above table, may not be supported. For an optimal picture it is recommended to choose a mode listed in the table.
  • Page 33 “ ELIMINATION OF RESIDUES OF ELECTRIC AND ELECTRONIC APPLIANCES BY CONSUMERS RESIDENT IN THE EUROPEAN UNION.” This symbol on the product or in its packaging indicates that it must not be disposed off with other household waste produced in the user`s residence. It is the responsibility of the user to dispose off these types of appliances by depositing in a “recycling plant”...
