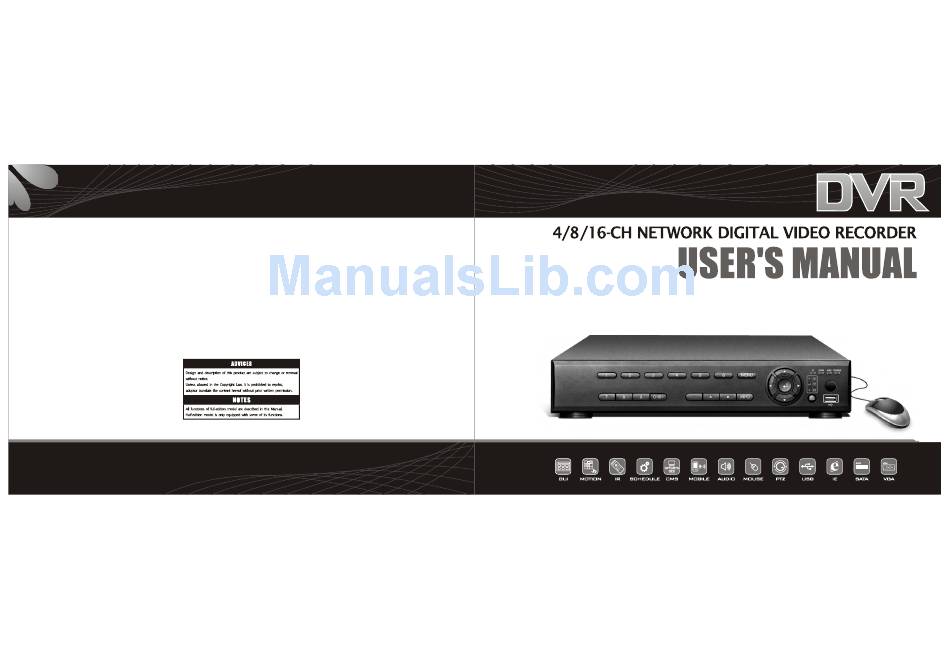

DVR 4-CH User Manual

4/8/16-ch network digital video recorder
Hide thumbs Also See for 4-CH:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4-CH and is the answer not in the manual?

Questions and answers

Related Manuals for DVR 4-CH

Summary of Contents for DVR 4-CH

  • Page 2 DVR. Do not expose the DVR to rain or use it under high humidity circumstance. This DVR cannot be installed at the places with much dust, and avoid pot ential me chanic al vibration or impact.
  • Page 3 DVR can be restarted only after being checked by qualified servicemen. If the DVR is not in use for a long period of time, please disconnect the power supply and pull the power line plug out from the power socket.

  • Page 4: Table Of Contents

    Network Digital Video Recorder Operation Manual ( V2.0 ) Table of contents Chapter I Product Introduction 1.1 Summary 1.2 Functions and features Chapter II Operation instructions 2.1 Description of front panel 2.2 Description of rear panel 2.3 Connection figure of rear panel 2.4 Description of alarm port in the rear panel 2.5 Remote control operation 2.6 Mouse operation...
  • Page 5 3.4 Record setup 3.5 Schedule setup 3.6 Motion alarm 3.7 PTZ setup 3.8 Network setup 3.9 Alarm setup 3.10 Disk management 3.11 User setup Chapter IV Basic Operations 4.1 Turn on DVR 4.2 Live screen 4.3 Software update 4.4 PTZ control...
  • Page 6 Network Digital Video Recorder Operation Manual ( V2.0 ) 4.5 System information 4.6 Log list 4.7 Recording preparation 4.8 Recording operation 4.9 Search, playback and backup 4.10 Audio setup 4.11 SEQ 4.12 User login 4.13 PC Client software instruction 4.14 Power off Appendix 1 Technical parameters Appendix 2 Trouble shooting...

  • Page 7: Chapter I Product Introduction

    Network Digital Video Recorder Operation Manual ( V2.0 ) Chapter I Product Introduction Summary This equipment is a standalone digital hard disk video recorder specially designed for security .It adopts the emb- edded processor and embedded operating system and integrates with latest technologies in IT field, such as video fre- quency/audio frequency compression/decompression, large capacity hard disk storage, TCP/IP net work remote cont- rol etc., investing the system with high intellectualization and stability.
  • Page 8 Network Digital Video Recorder Operation Manual ( V2.0 ) If the electricity suddenly off while recording, it will record automatically when power on. Support CMS Support DDNS Support network preview, playback, setup, remote recording, PTZ control and camera name setup. Support IE browsing and Network remote Client.

  • Page 9: Chapter Ii Operation Instructions

    Network Digital Video Recorder Operation Manual ( V2.0 ) Chapter II Operation Instructions Description of front panel Name Description a) input numbers. b) keystroke 1~9 : select channels. Number keys c) [0/10+]: Press it once to input number 0. Press it twice to input number 10. Press it and other number keys to input the numbe r more th an 10.
  • Page 10 Network Digital Video Recorder Operation Manual ( V2.0 ) Key Name Description Start recording. Record In live mode, press this key to enter playback mode and play the last file. Press it Playback/ Pause again to pause. Press it the third time to continue playing. In playback mode, press it to stop playing and return to search menu;...

  • Page 11: Description Of Rear Panel

    Connected to U disk and used for system software upgrade or video file backup. USB2.0 port Insert the U disk after turn off the DVR. Better not connect the mouse here, or the system would be abnormal. Receive signal from remote control.
  • Page 12 Network Digital Video Recorder Operation Manual ( V2.0 ) Rear panel of 8 channel H.264 DVR: Rear panel of 16 channel H.264 DVR:...
  • Page 13 USB pendrive or mouse and used for system software upgrade or video file backup. RJ-45 network port, connected to network cable and used for remote browse or control. Power input is DC 12V/5A (16 channel DVR). Power Power input is DC 12V/3A (4/8 channel DVR).

  • Page 14: Connection Figure Of Rear Panel

    Network Digital Video Recorder Operation Manual ( V2.0 ) Connection figure of rear panel Take 16 channel DVR as example to show how to connect. Video input video output VGA output camera1 camera16 Power alarm port Switch audio output USB mouse...

  • Page 15: Description Of Alarm Port In The Rear Panel

    Network Digital Video Recorder Operation Manual ( V2.0 ) Description of alarm port in the rear panel Connection figure of alarm input and output. alarm input alarm output Description: (1) "1-4 " is alarm input. "NC/NO/COM": Alarm relay output. NC is normal close, NO is normal open, COM is the public terminal. (2) "...

  • Page 16: Remote Control Operation

    Before using it, please confirm that batteries have been installed correctly.When using it, please aim IR TX (transmitter) of the remote control at IR reception of the DVR.Then the IR light in the front panel is on and the icon on the top-right of the monitor screen turns to blue "...
  • Page 17 In normal running mode, press " " key to pop up a menu to prompt whether to Power turn off. The DVR will be turned off . Press the key about 3 seconds, the DVR will start. Audio setup menu will pop up.
  • Page 18 Network Digital Video Recorder Operation Manual ( V2.0 ) In playback mode, press key to play images forward or backward at 2X Forward speed. Press it twice to play at 4X speed. Press it third time to play at 8X speed, four Rewind times for 16X, five times for32X, six times for 64X, Direction...

  • Page 19: Mouse Operation

    Network Digital Video Recorder Operation Manual ( V2.0 ) I+/I- In PTZ control mode, "I+/I-" key is used to enlarge/ reduce the iris (aperture). IRIS CRUISE Standby FOPEN FCLOSE Mouse operation USB mouse can be used. Hot swap for mouse is supported. Move the mouse cursor onto the mouse icon to see the name.

  • Page 20: Chapter Iii Menu Setup

    Network Digital Video Recorder Operation Manual ( V2.0 ) 1 Move the cursor. Move the mouse 2 Move the cursor to the bottom of the screen to pop up the mouse tool bar. Move the cursor onto the icon to show the name. 1 To select shield area in "Camera setup".

  • Page 21: System Setup

    (3) Time DISP POS: display position of time and date, top middle / bottom middle / no display are optional. (4) Border DISP: to select the color of borders, green/black/white/off are optional. (5) Video format: to select the video mechanism, PAL/ NTSC are optional. The DVR system will be forced to rest- artafter switching...

  • Page 22: Camera Setup

    Network Digital Video Recorder Operation Manual ( V2.0 ) (6) Remote ID: used to set the remote control ID corresponding to the current machine so as to make remote control, off/ on/ numbers from 0 to 9 are optional. (7) Alarm spot pop up: on/off. Open or close the function. (8) Alarm main pop up: on/off.
  • Page 23 Network Digital Video Recorder Operation Manual ( V2.0 ) C A M E R A 0 1 s e c 0 0 0 0 0 0 0 0 0 0 0 0 SAVE SAVE EXIT EXIT SAVE SAVE EXIT EXIT (2) Camera title: used to set the camera title.

  • Page 24: Record Setup

    EXIT (1) Resolution: 352 288 PAL ; 352 240 NTSC . 4 channel and 8channel DVR could be changed into D 1 resolution: 720 576 PAL ; 720 480 NTSC (2) Quality: the higher video quality, the larger occupied HDD space.

  • Page 25: Schedule Setup

    Network Digital Video Recorder Operation Manual ( V2.0 ) Schedule setup A L L A L L M OT I O N T I M E M OT I O N T I M E SAVE SAVE EXIT EXIT (1) Camera: used to select the channel to be set. The parameters are effective for all channels after selecting" All CAM". (2) Day: used to select the day of video schedule.

  • Page 26: Motion Alarm

    Network Digital Video Recorder Operation Manual ( V2.0 ) Motion alarm C A M E R A 0 1 0 0 6 0 1 5 3 3 5 0 1 5 2 3 0 SAVE SAVE EXIT EXIT (1) Camera: used to select the channel to be set. (2) Sensitivity: low / high optional from "1-10".

  • Page 27: Ptz Setup

    Network Digital Video Recorder Operation Manual ( V2.0 ) PTZ setup C A M E R A 0 1 9 6 0 0 P E L C O _ D 2 SAVE SAVE EXIT EXIT (1) Camera: to select the channel to be set. (2) Baudrate: to set baudrate corresponding to the current channel PTZ.

  • Page 28: Network Setup

    (1) IP allocation: STATIC and DHCP/DDNS optional. (In static mode, please set IP address, gateway and subnet mask. In DHCP mode, DVR could get IP from DHCP server. Please refer to the "Client and network manual" in the accessory CD.) (2) IP address: It must be unique to avoid colliding with other DHCP.

  • Page 29: Alarm Setup

    Network Digital Video Recorder Operation Manual ( V2.0 ) Alarm setup SAVE SAVE EXIT EXIT SAVE SAVE EXIT EXIT There are two ways for alarm output, Buzzer and Relay. They include three alarm modes: (1) Video loss alarm(Loss); (2) Video motion detection alarm(Motion); (3) Sensor input alarm(Sensor).

  • Page 30: Disk Management

    Network Digital Video Recorder Operation Manual ( V2.0 ) 3.10 Disk management D I S K A 0 7 4 0 9 9 0 0 0 FORMAT FORMAT SAVE SAVE EXIT EXIT (1) Overwrite: If click " " the previous recorded video will be replaced in turn when the hard disc is full. If not, record will stop.

  • Page 31: User Setup

    (3) Permissions: set the operation permissions for users by admin. Users can't operate the function which does not be selected. Note: If the DVR is locked, " " will display in the top right of the screen. Click the icon to input password.

  • Page 32: Chapter Iv Basic Operations

    DVR is turned on again. CH03 CH04 Live screen (1) Turn on the DVR, you could see the live screen. If no video input, the screen is as above: (Take 4 channel DVR as example.)
  • Page 33 Image lost in the process of record. Red L It is recording by time. Red T DVR is waiting for video event triggered in auto recording mode. Green I Image lost in the process of waiting for record. Green L Yellow ? No record.
  • Page 34 Infomation No hard disk. Click it to pop up info menu. Move the mouse cursor to the icon in the bottom left of the screen. Mouse tool bar " " will pop up as follows.(Take 16 channel DVR as example)

  • Page 35: Software Update

    Copy the new version software to the root directory of USB pendrive, the file name is fireusb. Turn off the DVR. Insert the USB pendrive with software into USB port in DVR front panel, then power on again. 30 seconds later, it will pop up "software updating" and "Time: s" on the screen, the system update automatically.

  • Page 36: Ptz Control

    Network Digital Video Recorder Operation Manual ( V2.0 ) the machine. If "pdate fail, try again!" pop up more than 4 times, please contact after-sales service department to deal with it. In the process of update, please ensure no power breakdown and don't pull out USB pendrive, or update will be unsuccessful.
  • Page 37 Operation Manual ( V2.0 ) Characters "PTZ: CAM01 SPEED:16 DATA:01" display on the top of the monitor screen, indicating the DVR is under PTZ control. PTZ control parameters of each channel can be modified in the system menu. Press PTZ key again or press ESC key or click the icon "...

  • Page 38: System Information

    1 9 2 . 1 6 8 . 0 0 1 . 2 0 7 6 8 0 2 (2) Total capacity: total size of all hard drives in the DVR. S e p 1 5 2 0 0 9 1 2 : 0 1 : 4 7 DVD-RW not included.

  • Page 39: Log List

    If necessary, enter the "RECORD SETUP" to set audio recording,video image qua lity and recor ding frame rate. If DVR is equipped several hard drive, please enter "DISK MANAGEMENT" to check the hard drive information...

  • Page 40: Recording Operation

    " " by mouse. When DVR is under recording, the HDD light in the front panel will flash. Please select the recording channel according to fact need so as to save more HDD capacity. It will be back to live when you press icon in the remote control / the front panel.
  • Page 41 If the video capacity is large, it will remind you waiting until calculation fi- nished. : Before backup,please connect the backup device to DVR, e.g. USB pendrive, USB HDD , etc. You BACKUP...
  • Page 42 And click the "Backup" icon to start backup.The process will last for a few minutes. When backup finished, please remove the device from DVR. (7) Please note that the size of video file should not exceed the maximum capacity of backup device. If system can- not find backup device, it will be back to search menu.

  • Page 43: Audio Setup

    Press the key in remote control or click the icon " " with mouse to e nter audio setu p inte rface.Take 1 6 channel DVR as example. C H 0 1 C H 0 2 C H 0 3...

  • Page 44: User Login

    Network Digital Video Recorder Operation Manual ( V2.0 ) will display the icon " " on top right of screen. It will switch automatically between 1 channel, quad, 8ch and 16ch.The interval is 5 second. Click the icon " " with mouse or press key in the remote control to end SEQ.

  • Page 45: Pc Client Software Instruction

    Network Digital Video Recorder Operation Manual ( V2.0 ) 4.13 PC Client software instruction You could control the DVR via client software on PC. Please refer to < Client and network manual> attached in CD. 4.14 Power off Normal power off: Stop all the operations, pr ess "...
  • Page 46 Network Digital Video Recorder Operation Manual ( V2.0 ) Items 4CH H.264 DVR 8CH H.264 DVR 16CH H.264 DVR Alarm input 4ch opto-coupler input Alarm output Relay output,NO,NC,COM Sensor alarm, motion detection,video loss,HDD full alarm Alarm mode 720 576(PAL) ; 720 480(NTSC) Live resolution 352 288/ 720 576 (PAL) ;...

  • Page 47: Appendix 2 Trouble Shooting

    Network Digital Video Recorder Operation Manual ( V2.0 ) Appendix 2 Trouble shooting FAQ : 1. Why cannot detect hard drive? Default cause: The HDD power line or data cable is not connected well. Resolution: Please check the power cable and data cable. And format the HDD. 2.
  • Page 48 Operation Manual ( V2.0 ) 6. Why there are no video output when connect DVR with camera? Default cause: 1 BNC connector not connect well. 2 The system format is different between DVR and came- ra. 3 Modified the system date back.
