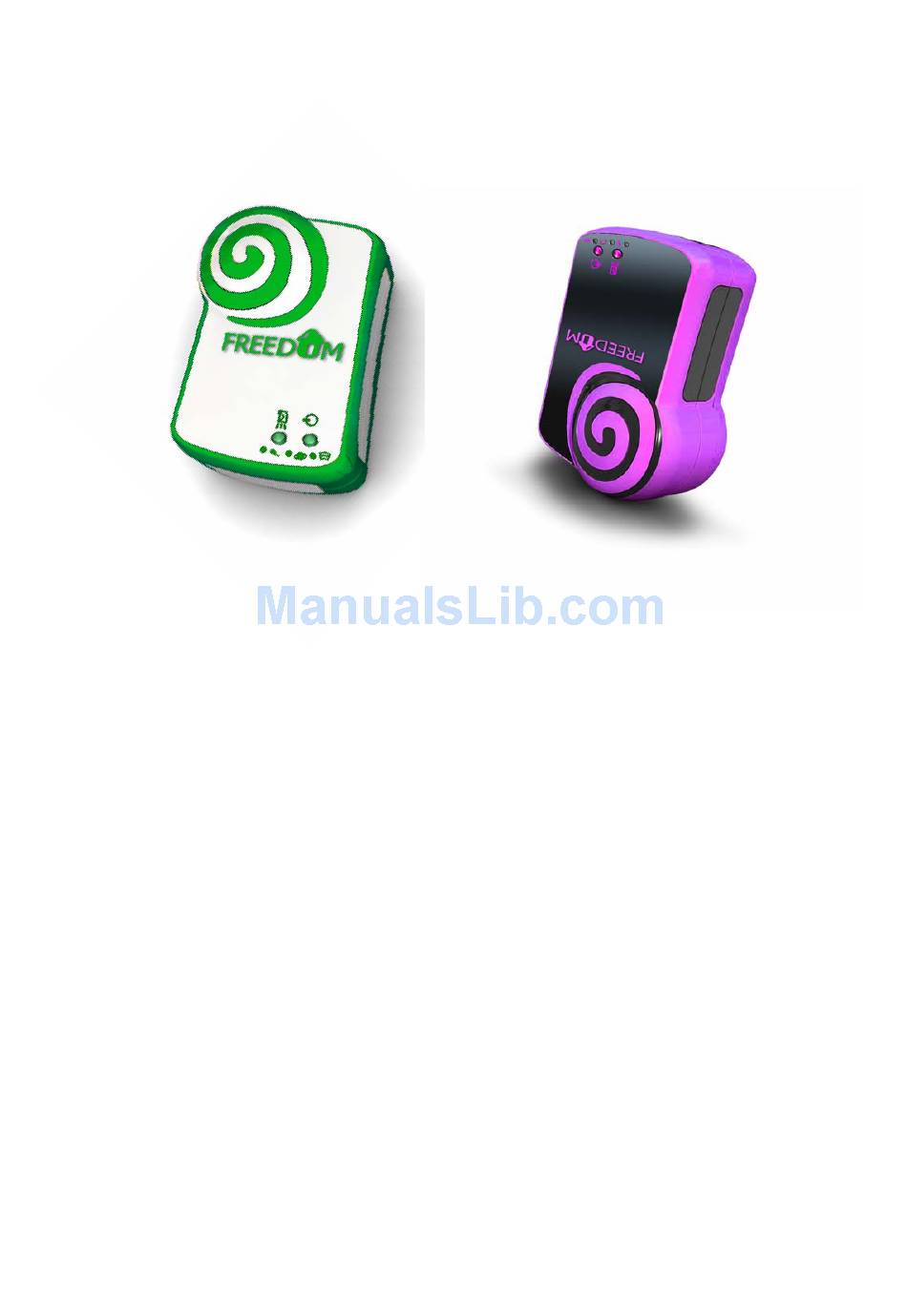

USER MANUAL

PT-9
reface
P
Thank you for purchasing the PT-9. This manual shows how to operate the device smoothly and correctly. Make sure to read this
manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in
this manual. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions
in this document.
