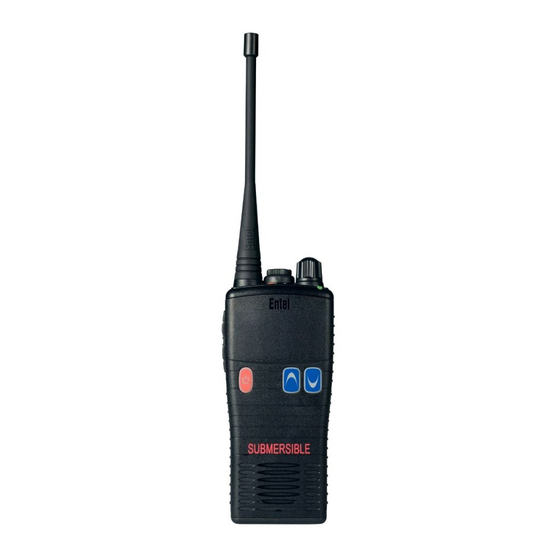

Ht700 series professional submersible handheld transceivers

Advertisement

User Guide – HT700 Series
Professional submersible handheld transceivers
Common Information
HT702/712/722/782(U)
HT702S/712S/722S/782S(U)
HT703/713/723/783(U)
HT705/715/725/785(U)
Advanced Selcall, 8-key
HT706/716/726/786(U)
Advanced Selcall, Full Keypad
v01/10
(all models)
Entry
Entry Selcall
Entry LCD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT702 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Entel HT702

  • Page 1 User Guide – HT700 Series v01/10 Professional submersible handheld transceivers Common Information (all models) HT702/712/722/782(U) Entry HT702S/712S/722S/782S(U) Entry Selcall HT703/713/723/783(U) Entry LCD HT705/715/725/785(U) Advanced Selcall, 8-key HT706/716/726/786(U) Advanced Selcall, Full Keypad...
  • Page 2: Table Of Contents

    Introduction This guide covers the ‘basics’ of your radio’s operation. To meet your exact requirements the radio may have been customised by your Entel authorised dealer. These features will be explained in a separate guide issued by the dealer. Table of Contents...
  • Page 3: Certification

    CE Compliance Statement The HT700 series transceiver displays "CE" on the serial number label, indicating its compliance with the essential requirements of the EEC directive for Electromagnetic Compatibility. Declaration of Conformity We Entel UK Limited 320 Centennial Avenue Centennial Park Elstree Borehamwood...
  • Page 4: Radio / Battery Care

    Battery care Introduction already fully charged. This could lead to a premature battery replacement warning Your Entel radio is supplied with a high per- message. (See Battery Communications on formance Lithium Ion (Li-Ion) battery. page 4) These batteries: •...
  • Page 5: Battery Care / Information

    Minimise the number of times you charge your battery especially in hotter environments which further shortens a battery’s life. Note: only genuine Entel batteries should be used. attery Communications Only genuine batteries offer the battery charge count feature informing you when the battery is Each battery used with your radio has a reaching the end of its useful life.
  • Page 6: Packing List

    Packing List • HT7XX Radio • CNB750E Rechargeable 1800mAh Li-Ion battery • CBH750 Spring loaded belt clip • CATXX Antenna • User guide CD • Single way charger (only supplied with HT7X2, HT7X2S and HT7X3 models) Optional Accessories Battery & Charger Options CNB750E Spare 1800mAh Lithium-Ion battery pack with rear clip CSAHT...
  • Page 7: Preparing Your Radio For Use 6

    Stubby antenna VHF CAT80S Stubby antenna UHF For complete up to date list of optional accessories visit www.entel.co.uk Preparing Your Radio For Use Attaching / Removing the Battery Pack To attach, locate the pegs on the bottom of the battery and place into the slots on the radio.
  • Page 8 Preparing Your Radio For Use cont... Attaching / Removing the Aerial To attach, carefully align the aerial with the socket. Screw in the aerial clockwise (taking care not to cross the thread) until it is seated firmly against the top of the radio. To remove, unscrew the aerial anti-clockwise.
  • Page 9: Ht702/712/722/782(U)

    HT702/712/722/782(U) Standard Features: • 16 programmable channels • Full transmit power output (5 Watts VHF, 4 Watts UHF) • CTCSS & DCS (analogue & digital squelch) with squelch tail elimination (removes the ‘shh’ noise) • Exceptionally loud and clear audio •...
  • Page 10: Controls & Indicators

    Controls & Indicators Dealer Channel / Scan programmable control button 3 Antenna Dealer programmable LED indicator button 1 Push To Talk (PTT) button Volume control Dealer programmable button 2 Speaker On / Off Microphone On / Off button. Press to turn radio on, press and hold to turn off. Press up / down buttons to increase / reduce volume.
  • Page 11: Ht702S/712S/722S/782S(U)

    HT702S/712S/722S/782S(U) All the features of the HT702/712/722/782 (see page 8) plus the following features: Standard Features: • Entry level selective calling • Voice scrambler with 4 codes per channel included as standard Dealer programmable features: • Open or closed channel modes (allows private conversations) •...
  • Page 12: Controls & Indicators

    Controls & Indicators Dealer programmable Channel / Scan / button 3 Contact Control Antenna Dealer programmable LED indicator button 1 Push To Talk (PTT) button Volume control Dealer programmable button 2 Speaker On / Off Microphone On / Off button. Press to turn radio on, press and hold to turn off. Press up / down buttons to increase / reduce volume.
  • Page 13: Ht703/713/723/783(U)

    HT703/713/723/783(U) All the features of the HT702/712/722/782 (see page 8) plus the following additional features: Standard Features: • LCD screen to display channel number / battery charge count • 255 channel capacity...
  • Page 14: Controls & Indicators

    Controls & Indicators Dealer Channel / Scan control programmable or volume control button 3 Antenna (dealer definable) Dealer programmable LED indicator button 1 Push To Talk (PTT) button Channel / Scan control Dealer or volume control programmable (dealer definable) button 2 Speaker On / Off Microphone...
  • Page 15: Ht705/715/725/785(U)

    HT705/715/725/785(U) All the features of the HT703/713/723/783 (see page 12) plus the following features: Standard Features: • Advanced selective calling • Voice scrambler with up to 4 codes per channel • Intuitive menus (like a mobile phone) • Info button (user guide built-in to radio) Dealer programmable features: •...
  • Page 16: Controls & Indicators

    Controls & Indicators Dealer Multi-function control programmable Antenna button 3 Dealer programmable LED indicator button 1 Push To Talk (PTT) button Dealer programmable Dealer multi-function buttons programmable button 2 Speaker On / Off Microphone On/Off button. Press to turn radio on, press and hold to turn off. Multi-function dealer programmable control (ask your dealer for more information).
  • Page 17: Lcd Icons

    LCD Indicators • Message Received • Missed Call • Key Bleeps Off • Silent Profile • Keypad Locked • Man Down • Lone Worker • Bluetooth device connected • Accessory Connected • VOX Enabled • Scramble Enabled • Do Not Disturb •...
  • Page 18 INTENTIONALLY LEFT BLANK...
  • Page 19: Ht706/716/726/786(U)

    HT706/716/726/786(U) All the features of the HT705/715/725/785 (see page 14) plus the following features: Standard Features: • Keypad Dealer programmable features: • Edit contact list • Free dial radio contacts • Free dial telephone numbers • Free dial DTMF numbers...
  • Page 20: Controls & Indicators

    Controls & Indicators Dealer Multi-function rotary programmable control Antenna button 3 Dealer programmable LED indicator button 1 Push To Talk (PTT) button Dealer programmable Dealer multi-function buttons programmable button 2 Speaker On / Off Microphone Keypad On / Off button. Press to turn radio on, press and hold to turn off. Multi-function dealer programmable control (ask your dealer for more information).
  • Page 21: Lcd Icons

    LCD Indicators • Message Received • Missed Call • Key Bleeps Off • Silent Profile • Keypad Locked • Man Down • Lone Worker • Bluetooth device connected • Accessory Connected • VOX Enabled • Scramble Enabled • Do Not Disturb •...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 ‘the professional’s choice’ <Intended Country Of Use> Registered Community Design Application 000810890 U.S. Design Patent Pending No. 23/182,829 Copyright and Unregistered Design Right Entel UK 2009 All rights reserved Headquarters: United Kingdom www.entel.co.uk...
