Congratulations on your purchase! The VMPR1 ceiling mount provides a unique, simplified method of ceiling mounting inverted
LCD/DLP projectors. Its low profile design offers roll, pitch and yaw adjustment. The ceiling mount is a steel-to-steel construction with
adjustable height to maintain proper projector ventilation, holds registration for quick lamp changes and easy filter cleaning without
loosing registration.
Caution:
•The maximum weight to be installed on the mount is 50 pounds (22.68 Kg).
•To prevent damage to the mount, which could affect or void the Factory warranty, thoroughly study all instructions and illustrations
before you begin to install the VMPR1.
•If you have any questions about this installation, contact Sanus Systems at 800.359.5520
Warning:
Improper installation can result in serious personal injury! Make sure that the structural mem-
bers can support a redundant weight factor five times the total weight of the equipment. If the structure can
not support this weight, reinforce the structure before installing the VMPR1.
Required Tools: Open End Wrenches (M10 & M12). Phillips screwdrivers, No. 1 and No. 2. Allen Wrench (provided).
Note: Other tools may be required depending on the method of installation.
470.15
18.51
Covering area with
extension arms installed
305.07
12.01
Covering area without
extension arms installed
Step 1: Inspect the Unit Before Installing
Carefully inspect the VMPR1 before installing. Please call Sanus if anything is missing or damaged. Our customer service department
can assist you quickly with any missing or damage parts. Never use damaged parts! Read all instructions before starting installation.
Lay out components to ensure you have all the required parts before proceeding (see "PARTS" on the next page).
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Assembly Instructions for model: VMPR1

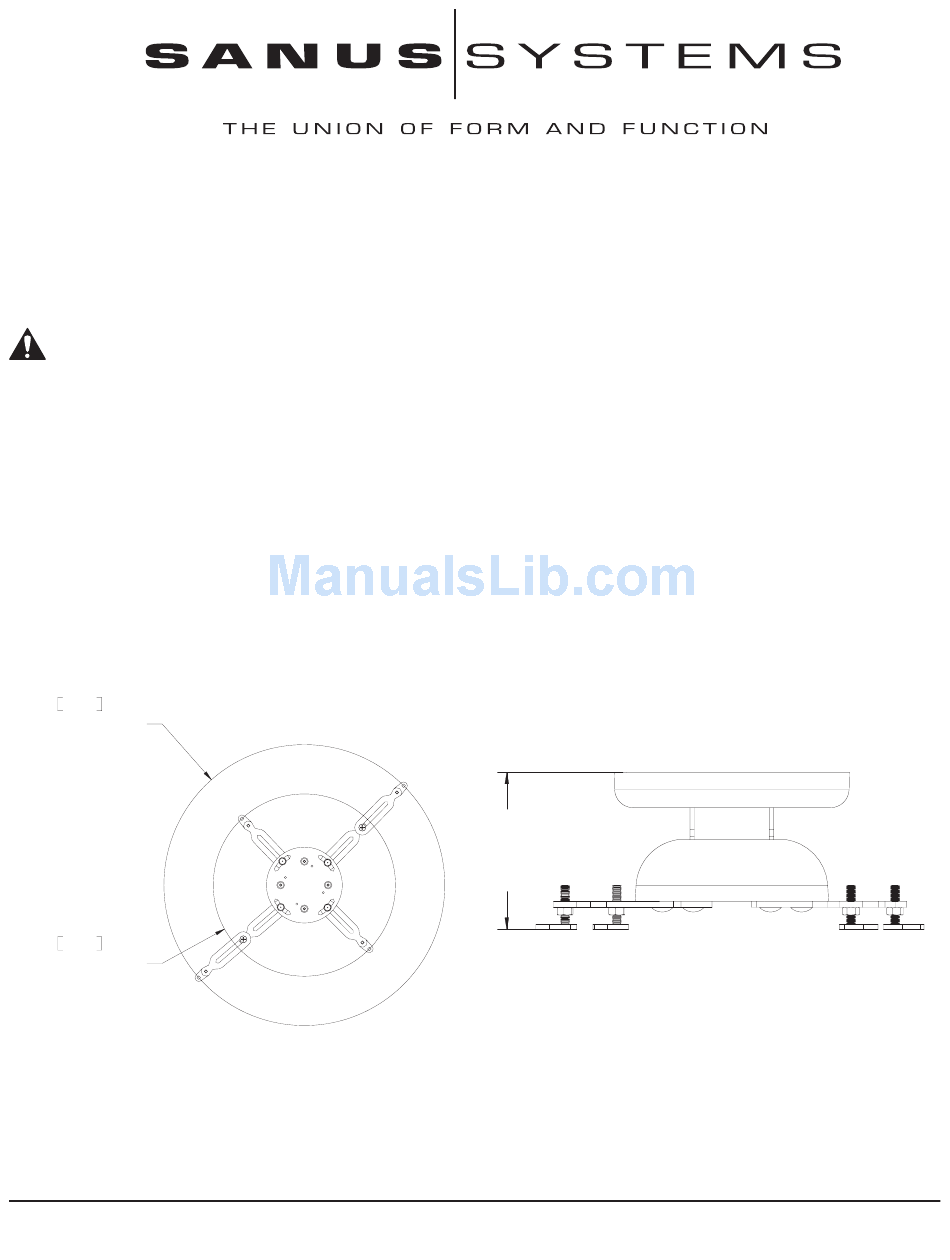

Dimensional Drawings:
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 5.11.05
[117.348]
4.62
TO
[100.076]
3.94
Advertisement
Related Manuals for Sanus Systems VMPR1
Summary of Contents for Sanus Systems VMPR1
-
Page 1: Dimensional Drawings
Step 1: Inspect the Unit Before Installing Carefully inspect the VMPR1 before installing. Please call Sanus if anything is missing or damaged. Our customer service department can assist you quickly with any missing or damage parts. Never use damaged parts! Read all instructions before starting installation. - Page 2 Parts: Check carefully to make sure all parts listed are not missing or damaged! (1) Universal Projector Interface - a (2) Extension Arm - b (1) Ceiling Plate - c (1) Adjustment Bracket - d (2) Bottom Cover - e (2) Top Cover - f (4) M3 x 10 mm - g (4) M4 x 12 mm - h...
- Page 3 Standard Fasteners Flush Mounting to a Wood Framing Member The VMPR1 can be secured to a wood framing member through the two larger slots (5.25” apart) in the ceiling bracket using two 1/4” lag screws for single stud mounting. If you have a solid back ceiling, and the area is accessible from above, you many also use four 1/4”...
- Page 4 8. Secure (loosely) front two legs of VMPR1 to the projector at mounting locations. 9. Move VMPR1 to the center of gravity of the projector. You can find the center of gravity by attempting to lift the projector straight up by the mount. If it feels like it wants to twist, move the mount toward the heavier side. When the projector feels balanced under the mount, you have found the center of gravity.
- Page 5 Diagram 4 Button Head Cap Screw Place Tabs of flush mount plate over top of VMPR1 portion and add 5/16" screws Step 5: Ceiling Installation Procedures Proceed to mount the top assembly to the ceiling using one of the appropriate hardware combinations mentioned in Step 2. Diagram below shown attaching a Lag Bolt (t) with a Lag Bolt Washer (r) to a single wood stud or joist.
- Page 6 The two halves of the VMPR1 attach by lifting and rotating the Universal Projector Interface so the Threaded Studs rotate into the four vee slots of the Adjustment Bracket (d). Align the four locating slots of the Adjustment Bracket with the threaded studs of the Universal Projector Interface and rotate the bracket to the limit of the slotted holes.
- Page 7 The VMPR1 can be adjusted for vertical elevation (pitch), horizontal tilt (roll), and rotation (yaw). Once the desired position is located and all the screws of the VMPR1 are tightened, the projector may be removed from its location and replaced using the four Tapered Nuts (n) without loosing the registration of the projector.
- Page 8 Flex Bottom Cover (e) at the seam just enough to fit around the mount. Sanus suggests aligning the seam in the least visible location and installing a small piece of tape inside to secure the seam. Diagram 11 Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 5.11.05 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
