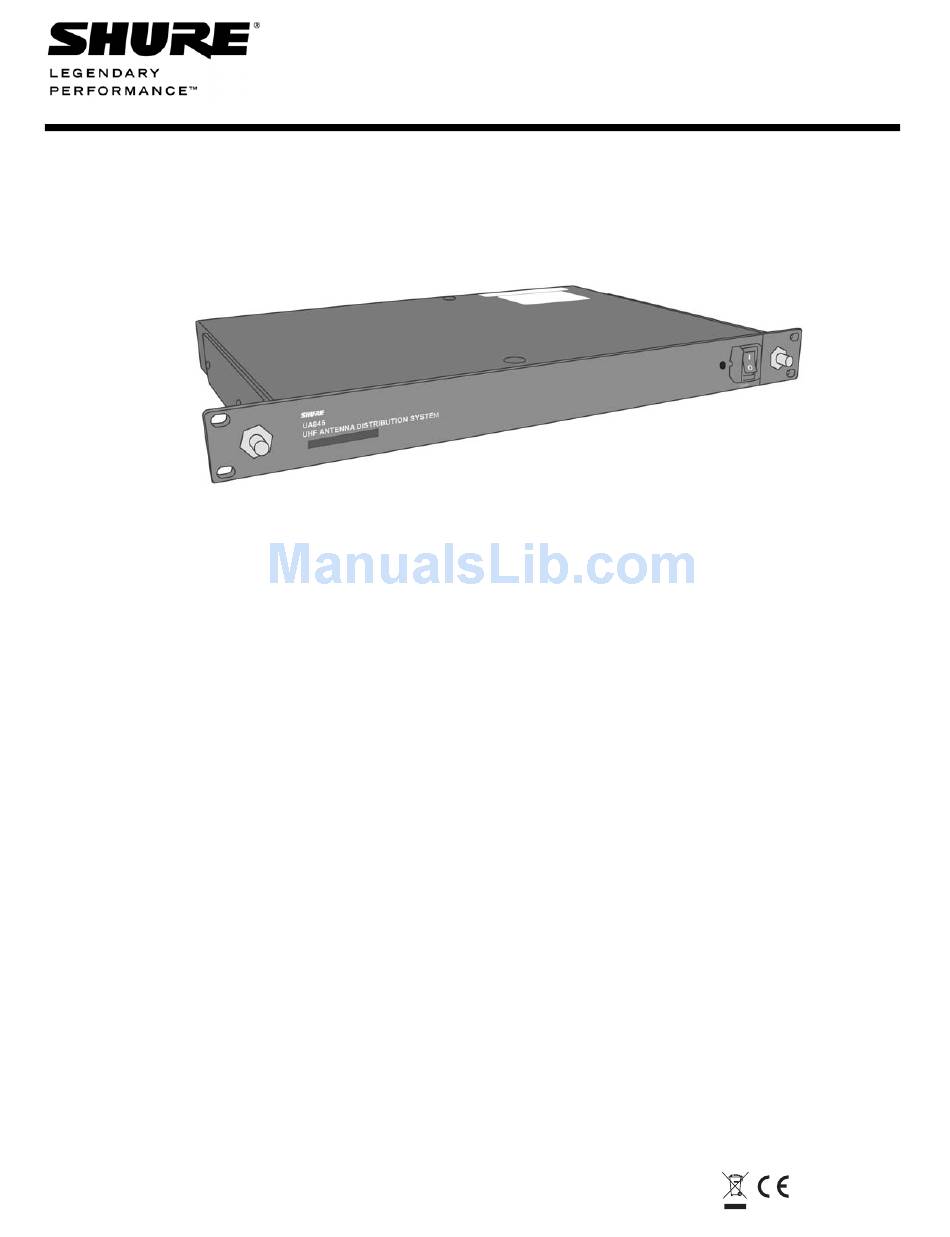

MODEL UA845
USER GUIDE
ANTENNA DISTRIBUTION SYSTEM
USER'S GUIDE
RÉPARTITEUR D'ANTENNE
LE GUIDE DE L'UTILISATEUR
ANTENNENVERTEILERSYSTEM
BEDIENUNGSANLEITUNG
SISTEMA DE DISTRIBUCIÓN DE ANTENAS
GUÍA DEL USUARIO
SISTEMA DI DISTRIBUZIONE AD ANTENNE
GUIDA DELL'UTENTE
2008 Shure Incorporated
Printed in U.S.A.
©
27F8635 (Rev. 9)
