eLine IR PTZ Dome Camera Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

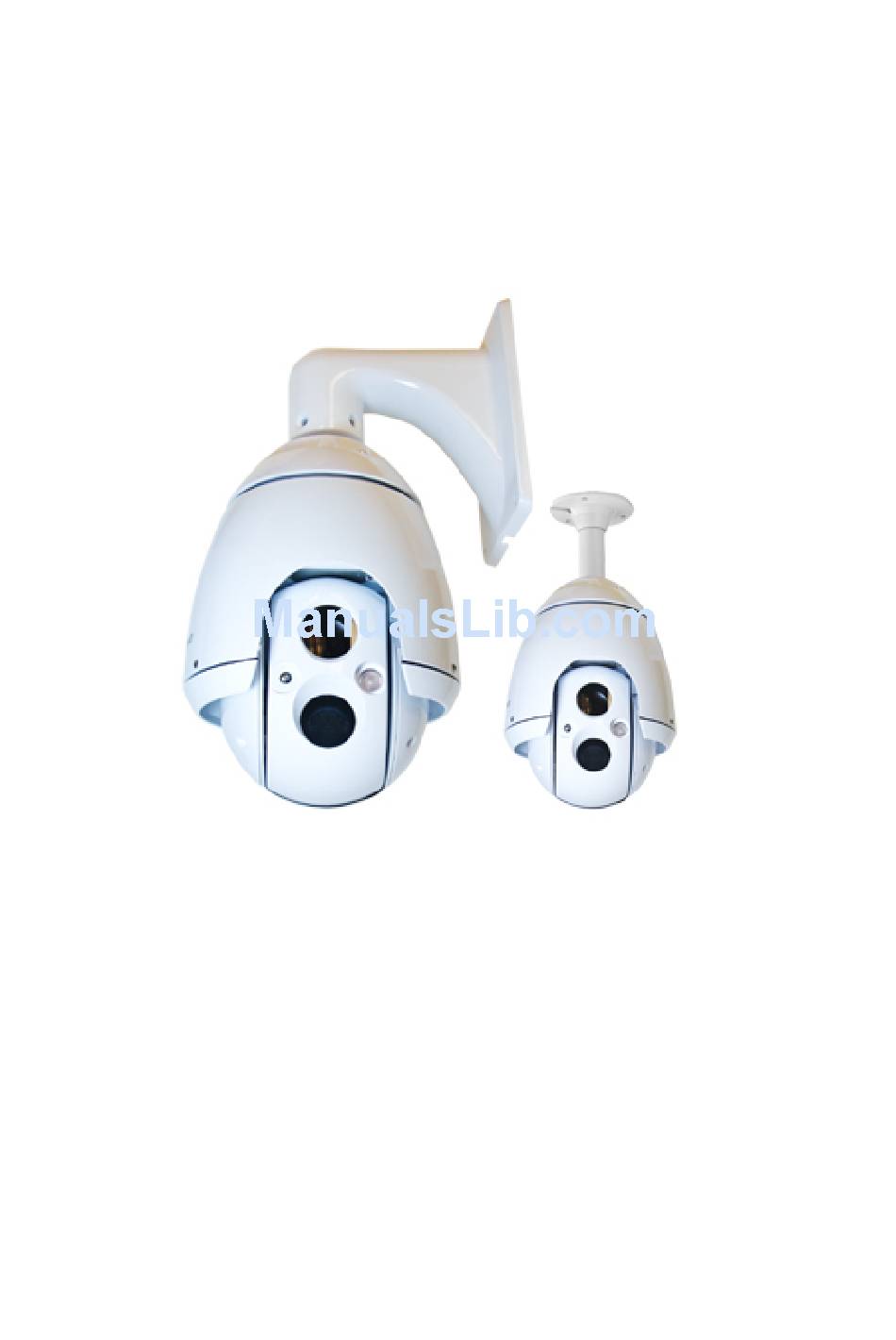

IR PTZ Dome Camera
Read this Manual carefully before installation and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR PTZ Dome Camera and is the answer not in the manual?

Questions and answers

Related Manuals for eLine IR PTZ Dome Camera

Summary of Contents for eLine IR PTZ Dome Camera

  • Page 1 IR PTZ Dome Camera Read this Manual carefully before installation and keep it for future reference.
  • Page 2 Operation Manual of P T Z Dome Camera Notice: Precautions: 1.Non-techinician is forbidden to operate this dome device before reading this manual thoroughly. 2.Cut the power supply off before operating the dome device to avoid damage caused by improper operation. 3.Interior of the Dome device are precision optical and electrical device.

  • Page 3: Table Of Contents

    Operation Manual of P T Z Dome Camera Content Chapter 1 Product Overview ..................4 1.1 Performance Instructions................4 1.2 Feature Functions Instruction..............4 Chapter 2 Menu setting....................7 2.1 Operation instructions ................7 2.2 Main menu ....................7 2.3 Dome information ..................8 2.4 Display Options..................
  • Page 4 Operation Manual of P T Z Dome Camera Chapter 3 Short-cut Operations and Specification of Dome Device ....24 Chapter 4 Trouble Shooting of Dome Device ............. 27...

  • Page 5: Chapter 1 Product Overview

    Operation Manual of P T Z Dome Camera Chapter 1 Product Overview 1.1 Performance Instructions Address of Dome device is from 0～255. The number (address) of dome device in the control system is setup by the hardware (8-digit on and off switch) of dome device.
  • Page 6 Operation Manual of P T Z Dome Camera screen.) Operation crosshair function.(Enable this option, the target can be captured more effectively with crosshair on the screen.) Three PTZ tours operation with 8 minutes record of each tour.(Can real-time monitor and record the action of manual operation) Six group of programmable vector scans.(including scan speed, dwell time, preshot and interruption between tours) Auto flip function with 10 degree move up.
  • Page 7 Operation Manual of P T Z Dome Camera than 5 watts, Subversion of the traditional infrared lighting quick decline fatal shortcoming b. Use its power can be considered as a single point of light source characteristics, developed a variable angle infrared light With the perspective of the size of the change in one machine simultaneously follow the changes to ensure the infrared light is neither wasted nor flashlight effect, to maximize the use of infrared light, the subversion of the traditional large volume of long-range needs of the practice...

  • Page 8: Chapter 2 Menu Setting

    Operation Manual of P T Z Dome Camera Chapter 2 Menu setting 2.1 Operation instructions Menu operation instruction To make a selection, move the joystick in the Up or Down direction. The on-screen arrow points to the selected option. Using the joystick to the Left or Right position you can change the value of your selection or enter the submenu for the selected option.

  • Page 9: Dome Information

    Operation Manual of P T Z Dome Camera 4. Control Options Set the pan or tilt and camera of the dome manually or auto compatible with the entire control system. User individualized operation setting. 5.Camera Options Set camera function. 6. Function Programming Program and execute PTZ and VectorScan etc.

  • Page 10: Dome Addr Setup

    Operation Manual of P T Z Dome Camera 2.4.1 Camera Name Setup Set the camera name 1.NAME CAMERA NAME SETUP [1].Move the joystick up/down to move the 1 NAME ___________ cursor to select the Name. 2 NAME DISPLAY [2].Move the joystick left/right or press OPEN to enter name editing menu.

  • Page 11: Control Option Operation

    Operation Manual of P T Z Dome Camera 2.5.2 Control Option Operation Move the cursor to select Auto Flip/Proportional Speed/Pan Reverse/ Tilt Reverse/VectorScan Still/VectorScan AF/-2 Tilt Limit/Speed Limit. Move the joystick left/right or press OPEN to Display on/off/PTZ/Z/OFF Auto Flip: If the camera lens auto rotates pan 180° then tilt 10° to auto track forward when the lens goes down tilt 90°.
  • Page 12 Operation Manual of P T Z Dome Camera ZOOM AND FOCUS 3.AF Sensitivity Steps: 1 ZOOM SPEED [1].Move the joystick up/down to move 2 DIGITAL ZOOM the cursor to select AF Sensitivity. 3 AF SENSITIVITY HIGH [2].Joystick left/right setup Sensitivity function of the camera 2.6.2 Camera Exposure CAMERA EXPOSURE 1.AE Mode...

  • Page 13: Camera Exposure

    Operation Manual of P T Z Dome Camera 3. Shutter Speed(Shutter Speed works 4. Iris (IRIS works under Manual/IRIS under Manuel/Shutter MD) Steps: Steps: [1].Joystick up/down to move the [1].Joystick Up/Down to move the cursor to select Shutter MD cursor to select IRIS LEVEL [2].Joystick left/right to set up Shutter [2].Joystick Left/right to set up the Speed...

  • Page 14: Others

    Operation Manual of P T Z Dome Camera CAMERA EXPOSURE 7.Spot AE(OFF/ON) 1 AE MODE AUTO Steps: 2 SLOW SHUTTER [1].Joystick Up/Down to move the cursor 3 SHUTTER SPEED AUTO to select Spot AE. 4 IRIS LEVEL AUTO [2].Joystick Left/right to set up the Spot AE 5 AGC LEVEL AUTO 6 BRIGHT LEVEL...
  • Page 15 Operation Manual of P T Z Dome Camera 2.7 Function Programming FUNCTION PROGRAMMING Preset option 1. Move the joystick left/right or press 1 PRESET OPEN to enter Function Programming 2 VECTORSCAN options. 3 PATTERN 2. Move the joystick up/down to move the 4 SECTOR SETUP cursor to select the preset options.
  • Page 16 Operation Manual of P T Z Dome Camera level. without save your selection. PRESET 1 NUMBER 2 SET PRESET IRIS OPEN WHEN DONE 3 CALL PRESET 4 DELETE PRESET 5 NAME _____________ 6 NAME DISPLAY STORED 3.Call Preset PRESET Call Preset 1 NUMBER [1].Move the joystick left/right or press 2 SET PRESET...

  • Page 17: Function Programming

    Operation Manual of P T Z Dome Camera 5. Name PRESET Name 1 NUMBER [1].Move the joystick up/down to move the 2 SET PRESET cursor to select the Name. 3 CALL PRESET [2].Move the joystick left/right or press 4 DELETE PRESET OPEN to enter name editing menu.

  • Page 18: Program Vectorscan 1

    Operation Manual of P T Z Dome Camera VECTORSCAN I:Name Pr:stands for Preset Position. 1 NUMBER Vs:stands for VectorScan. 2 PROGRAM A VECTORSCAN Pt: stands for PTZ Tour. 3 RUN A VECTORSCAN II:Number Programming-selection 4 DELETE A VECTORSCAN based on the name. III:SP-Set up the speed of Preset.
  • Page 19 Operation Manual of P T Z Dome Camera [3].Joystick Up/Down to select pending PATTERN operating programming 1 NUMBER Pattern(number range:1～3). 2 PROGRAM A PATTERN [4].Joystick Up/Down to move the cursor 3 RUN A PATTERN to select Program a Pattern. 4 DELETE A PATTERN [5].Press OPEN to enter recording of the 5 NAME ______...

  • Page 20: Sector Setup

    Operation Manual of P T Z Dome Camera 2.7.4 Sector Setup Function: To display the sector name when dome in the setted area FUNCTION PROGRAMMING Sector Setup: 1 PRESET [1].Move the joystick up/down to move 2 VECTORSCAN the cursor to select sector setup. 3 PATTERN [2].Move the joystick left/right or press 4 SECTOR SETUP...

  • Page 21: Mask Zone

    Operation Manual of P T Z Dome Camera 2.7.5 Mask Zone Function: User can protect the partial area by mask setting from the whole monitoring area according to the situation. MASK ZONE MASK ZONE 1 NUMBER [1].Number 2 MASK EDIT .Joystick Up/Down to move the cursor ⑴...

  • Page 22: Motion

    Operation Manual of P T Z Dome Camera 2.7.7 Motion MOTION MOTION 1 PARK ACTION [1].Move the joystick left/right or press 2 POWER ON ACTION OPEN to enter sub-menu. [2].The menu of “AUTO TRACK SETUP” 3 LIMIT OPERATION 4 AUTO TRACK SETUP <NA> is invalid.

  • Page 23: System Setup

    Operation Manual of P T Z Dome Camera ⑴. Select the Action and move the joystick left/right or press OPEN to enter Action. Actionincludes:None/Preset/VectorScan/Pattern/PanScan/AutoScan ⑵.Select the Number and move the joystick left/right or press OPEN to enter. Setup method: refer to preset setup instruction. [3].

  • Page 24: Clear Memory

    Operation Manual of P T Z Dome Camera 2.8.1 Clear Memory [1].Joystick Up/Down to move the cursor to select Clear Memory. [2].Joystick Left/Right or press OPEN to enter. [3].Press OPEN to Clear Memory or press CLOSE to cancel. ARE YOU SURE TO DO THIS Press PLEASE WAIT...
  • Page 25 Operation Manual of P T Z Dome Camera Chapter 3 Short-cut Operations and Specification of Dome Device 1．Short-cut operation table Number Call preset of preset Control Object Save preset position position position Record line Run cruise track scanning speed Start line Set line scanning starting Pan-Tilt Control scanning...
  • Page 26 Operation Manual of P T Z Dome Camera Run vectorscan 5 Run vectorscan 6 Picture freeze* Dynamic preset Call dynamic point preset point Dome reset Reset dome Main menu Call main menu Set the auto flip Pan continuous scanning Notes: 1.These functions differs depending on different types of camera.
  • Page 27 Operation Manual of P T Z Dome Camera 3. Description of “Line-Scanning” function: Dome device will auto line-scan between two specified points. User can set the start point by “52+SHOT+ON” and end point by “53+SHOT+ON”. Line scanning speed set: user keep a manual line scan speed three seconds above, then through“51+SHOT+ACK”...

  • Page 28: Chapter 4 Trouble Shooting Of Dome Device

    Operation Manual of P T Z Dome Camera Chapter 4 Trouble Shooting of Dome Device 1.Problem description: After power on without any response, not lock motor nor images. Possible reason: The power circuit maybe have some problem Solution: Check the power cable is connected to power of AC24V. 2.
