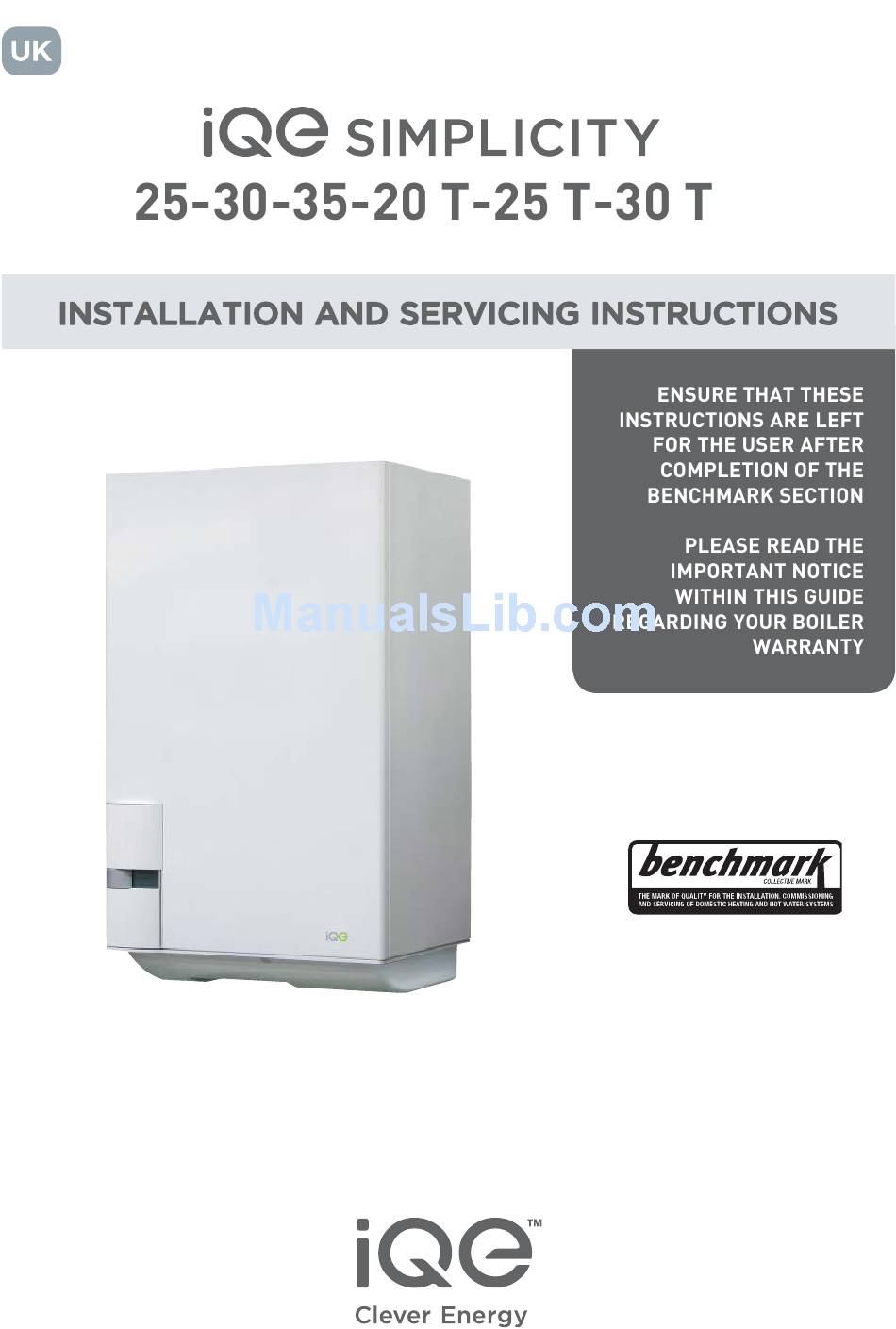

iQe SIMPLICITY 25 Installation And Servicing Instructions
  1. Manuals
  2. Brands
  3. iQe Manuals
  4. Water Heater
  5. SIMPLICITY 20 T
  6. Installation and servicing instructions

iQe SIMPLICITY 25 Installation And Servicing Instructions

Hide thumbs Also See for SIMPLICITY 25:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMPLICITY 25 and is the answer not in the manual?

Questions and answers

Related Manuals for iQe SIMPLICITY 25

Summary of Contents for iQe SIMPLICITY 25

  • Page 6 42.5 R M G E U 124 60 70 70 70 70 92,5 42,5 85 70 70...
  • Page 7 ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★...
  • Page 11 x + y = L (m) L (m)
  • Page 12 OPERAZIONE DA ESEGUIRE SOLO NEL MONTAGGIO DEL KIT Ø 80 COD. 8089912 CA CA 67,5 277,5...
  • Page 14 M2 R2 BOLLITORE...
  • Page 18 2. Visualizzazione temperatura sonda 10. Visualizzazione ore di funzionamento del bruciatore in h x 100 (es. 14.000 riscaldamento (SM) 3. Visualizzazione temperatura sonda 11. Visualizzazione numero di accensioni del bruciatore x 1.000 (es. 97.000 e sanitario (SS) solo per caldaie istanta 12.
  • Page 21 con by-pass senza by-pass 25 30 1000 1200 PORTATA (l/h) velocità max pompa modulante velocità min. pompa modulante 1000 1200 PORTATA (l/h) RIFERIMENTO POSIZIONE BY-PASS...
  • Page 26 Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty. This does not affect the customer’s statutory rights. If yes, and if required by the manufacturer, has a water scale reducer been fitted? CONDENSING BOILERS ONLY The condensate drain has been installed in accordance with the manufacturer’s instructions and/or BS5546/BS6798 If the condensate pipe terminates externally has the pipe diameter been increased and weatherproof insulation fitted?
  • Page 27 Service R ecord It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. This is also a condition of any extended warranty offered. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 31 INDUSTRY GUIDANCE FOR INSTALLERS ON CONDENSATE DRAINAGE PIPE INSTALLATION This guidance is endorsed by HHIC members. 1. BACKGROUND During recent winters the UK has experienced prolonged spells of extremely cold weather - down to minus 20 C and below in many areas. This resulted in a significant increase in the number of calls to boiler manufacturers and heating engineers from householders with condensing (high efficiency) boilers where the condensate drainage pipe had frozen and become blocked with ice, causing the boiler to shut down.
  • Page 32 2.1 INTERNAL TERMINATION: Wherever possible, the condensate drainage pipe should be terminated at a suitable internal foul water discharge point such as (a) an internal soil and vent stack or (b) an internal kitchen or bathroom waste pipe, washing machine waste pipe etc. A suitable permanent connection to the foul waste pipe should be used.
  • Page 33 The use of fittings, elbows etc should be kept to a minimum and any internal “burrs” on cut pipework should be removed so that the internal pipe section is as smooth as possible. The customer/householder should be advised that even with the above measures this type of installation could freeze, and that if this were to occur then boiler shutdown could result, requiring remedial action - possibly involving a chargeable engineer call-out.
  • Page 34 NOTES The Benchmark Commissioning Checklist (located at the back of the boiler installation manual) should be completed as required to record details of the condensate drainage pipe installation. Where an external condensate drainage pipe is installed, the customer should be made aware of the risks and consequences of its freezing and offered the option to fit trace heating (or other measures approved by the boiler manufacturer or service organisation).
  • Page 35 Figure 1 – Connection of condensate drainage pipe to internal soil and vent stack Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler Soil and vent stack Invert 450 mm minimum up to three storeys...
  • Page 36 Figure 2(a) – Connection of a condensate drainage pipe downstream of a sink, basin, bath or shower waste trap Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 37 Figure 2(b) – Connection of a condensate drainage pipe upstream of a sink, basin, bath or shower waste trap Boiler Visible air break at plug-hole 75 mm sink, basin, bath or shower waste trap Sink, basin, bath or shower with integral overflow Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 38 Figure 3 – Connection of a condensate pump - typical method (NB manufacturer’s detailed instructions should be followed).
  • Page 39 Figure 4 – Connection of condensate drainage pipe to external soil and vent stack Boiler 450 mm minimum up to three storeys Visible air break Minimum internal diameter 19 mm 75 mm trap Pipe size transition point Visible air break and trap not required if Minimum internal diameter 30 mm there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 40 Figure 5 – External termination to rainwater downpipe (NB only combined foul/rainwater drain) Condensate discharge pipe from boiler Air gap Pipe size transition point 68 mm PVCu strap-on fitting Water/weather proof insulation Minimum internal diameter 19 mm 43 mm 90° male/female bend Minimum internal diameter 30 mm External rain water pipe into foul water End cut at 45 °...
  • Page 41 Figure 6 – External drain, gully or rainwater hopper Boiler Visible air break 38 mm minimum trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 38 mm incorporated into the boiler External length of pipe 3 m maximum Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 42 Figure 7 – Example of a purpose-made soakaway Condensate discharge pipe from boiler Ground (this section of the condensate drainage pipe may be run either above or below ground level); End cut at 45 ° Diameter 100 mm minimum plastic tube Bottom of tube sealed Limestone chippings Two rows of three 12 mm holes at 25 mm centres, 50 mm from bottom of tube and...
  • Page 43 IQE Simplicity 25 - 30 - 35...
  • Page 46 Position Code Description Model 5192200 Gasket for sealed chamber 6001210 Peephole 2030228 Gasket diam. 17x24x2 6304700 Control panel 6305160 Guidelight with led 6305120 Kit Rubber button 6247327 Cap for time programmer 6304890 Flap door assembly 6301416 Main PCB 6305000 Cover 6305010 connection cover 6305020...
  • Page 47 Position Code Description Model Hexagonal nozzle diam. 2,60 107 A 6322358 25 - LPG Hexagonal nozzle diam. 3,80 107 B 6322350 30 - MET Hexagonal nozzle diam. 2,90 107 C 6322352 30 - LPG Hexagonal nozzle diam. 4,00 107 D 6322353 35 - MET 107 E...
  • Page 48 IQE Simplicity 20 T - 25 T - 30 T - 35 T...
  • Page 52 Description Model Position Code 107 D 6322353 Hexagonal nozzle diam. 4,00 35T MET 107 E 6322354 Hexagonal nozzle diam. 3,00 35T LPG 6322306 Round nozzle diam. 2,40 20T-25T MET 20T-25T LPG 108 A 6322308 Round nozzle diam. 1,90 108 B 6322300 Round nozzle diam.
