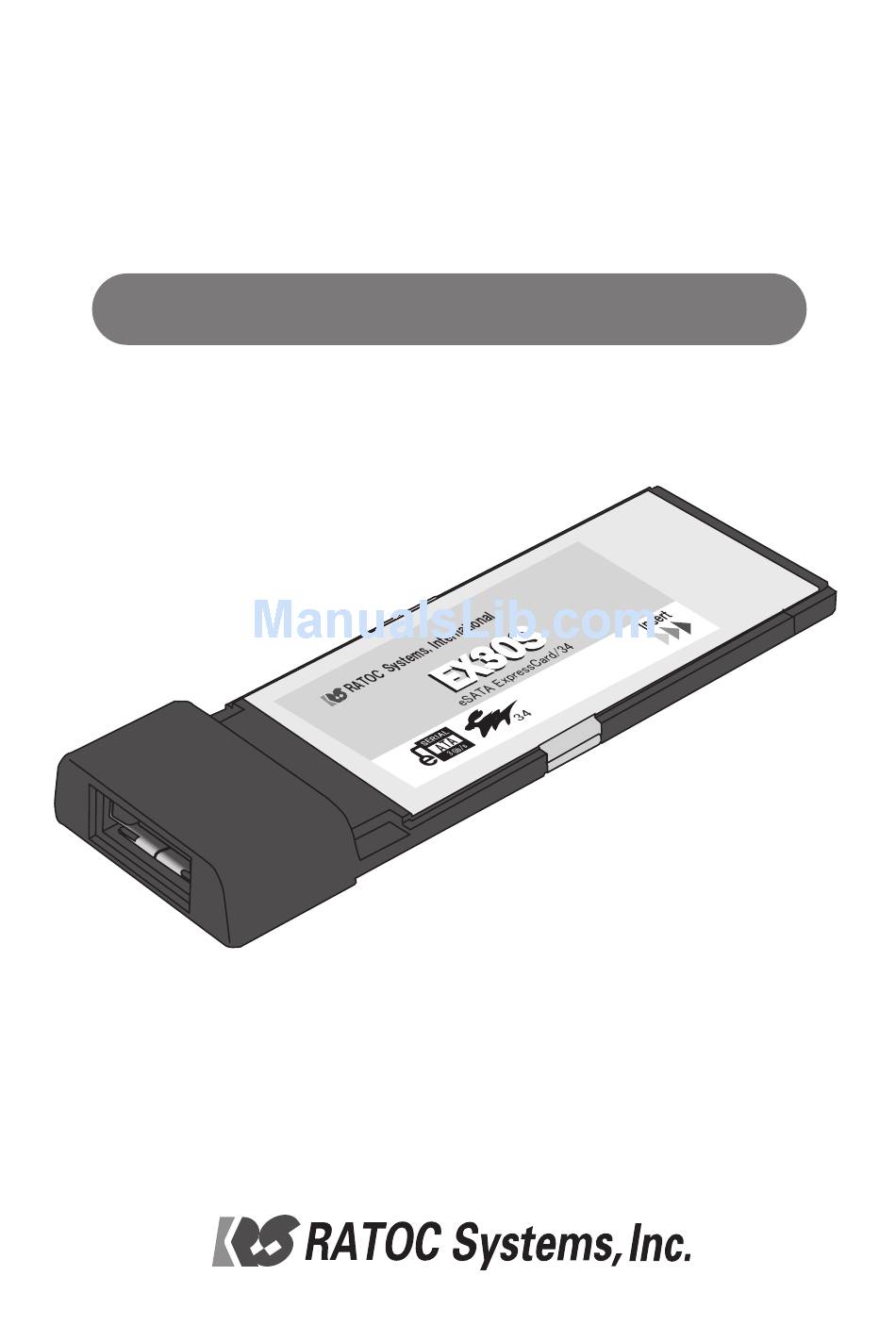

- Page 1 ExpressCard/34 eSATA ExpressCard/34 EX30S EX30S User's Guide User's Guide Mar. / 2007 Rev 1.2...
-
Page 2: Table Of Contents
* * *15 Removing ExpressCard Removing ExpressCard * * *16 * * *16 -1. How to remove EX30S on Windows -1. How to remove EX30S on Windows * * *16 * * *16 -2. How to remove EX30S on Mac -2. -
Page 3: Introduction
Introduction Introduction The EX30S is a high speed eSATA ExpressCard for use in ExpressCard enabled system. This user's guide describes how to install and use the EX30S. ReadMe file in the CD-ROM may include newer information. For the latest information, go to our home page. -
Page 4: System Requirements
SATAII HOST Only one 1.5Gbps HD14 cable HD15 -4. Specification -4. Specification Part number EX30S Product name eSATA ExpressCard/34 Bus interface ExpressCard/34(ExpressCard Standard Release 1.0) PCI Express-based module SATA Controller SiI 3132 (SATA II Compliant) Connector eSATA connector x 1 Transfer rate 3.0Gbps/1.5Gbps (theoretical number) -
Page 5: Caution
ExpressCard slot. Sudden removal of the EX30S card may cause system error. Caution In following cases, the EX30S may be removed from the ExpressCard slot. * When removing the eSATA cable from the EX30S. -
Page 6: Setup
-1. Installation on Windows system -1. Installation on Windows system Power on and start the system. Put the ExpressCard in the ExpressCard slot. The EX30S works on both ExpressCard/34 slot and ExpressCard/54 slot. Note Insert the card while the system is powered... - Page 7 Windows XP, Server 2003 Windows XP, Server 2003 When the ExpressCard is inserted, Found New Hardware Wizard Found New Hardware Wizard shows up. Insert software CD-ROM. At the right window, select No, not at this time No, not at this time, then click Next Next.
-
Page 8: To Verify Driver Installation (Windows) -2. To Verify Driver Installation (Windows)
-2. To Verify Driver Installation -2. To Verify Driver Installation Open Device Manager. (To open the Device Manager, go to Start - Right click My Computer - Properties - Hardware - Device Manager) On the device manager, double click on SCSI and RAID controllers. Make sure if Silicon Image Silicon Image SiI SiI 3132 SATALink Controller 3132 SATALink Controller is registered... -
Page 9: Hotplug Tool (Windows)
What's HotPlug Tool What's HotPlug Tool HotPlug Tool allows to remove the eSATA drive connected to the EX30S without the system shut down. If the eSATA drive needs to be removed from the EX30S before shut down, install the HotPlug Tool. - Page 10 Uninstall HotPlug Tool Uninstall HotPlug Tool Open Add or Remove Programs Add or Remove Programs from Control Panel Control Panel. Select HotPlugTool HotPlugTool and click Change or Remove Programs Change or Remove Programs. Click OK OK at following window. HotPlug Tool will be uninstalled. Click Finish.
- Page 11 -4. Installation on Mac System -4. Installation on Mac System Insert software CD-ROM. Double click on SiI3132_1.1.6u_Sil_Pkg SiI3132_1.1.6u_Sil_Pkg and follow the instructions. Restart the system and insert the EX30S to ExpressCard slot. Card icon will be shown on the Apple menu bar.
-
Page 12: Connecting/Removing Esata Drive * * *11
Removing eSATA drive without HotPlug Tool may cause data loss or physical defect of eSATA drive. * ExpressCard may be removed easily from the ExpressCard slot. Sudden removal of the EX30S card may cause system error. Connect eSATA cable to eSATA port of the ExpressCard and eSATA drive. - Page 13 The eSATA drives connected to the EX30S will be listed by clicking the icon in the task tray. eSATA drives connected to the EX30S are shown as SCSI Disk SCSI Disk Device Device. Click on the drive that you would like to remove.
- Page 14 Unplugging the eSATA cable from the eSATA drive is highly recommended. ExpressCard may be removed easily from the ExpressCard slot. Be careful that the ExpressCard card will not be removed by pulling the eSATA cable. Sudden removal of the EX30S card may cause system error.
- Page 15 HotPlug Tool Window HotPlug Tool Window Double click HotPlug Tool icon in the task tray to open HotPlug Tool window. [1] Removing eSATA drive [1] Removing eSATA drive Connected eSATA drives will be listed. Select the drive and click Stop Stop button to remove the drive.
- Page 16 Just trash the icon of the eSATA drive (Drag and drop the icon to trash) before unplugging eSATA cable. Remove the eSATA cable carefully. Note Unplugging the cable form the drive is recommended. The EX30S may be removed easily from the ExpressCard slot.
-
Page 17: Removing Expresscard * * *16
EX30S ExpressCard. -2. How to remove EX30S on Mac -2. How to remove EX30S on Mac Click a small card icon upper right side of the screen and select Power off Card Power off Card to remove the EX30S ExpressCard. -
Page 18: Registration & Tech-Support * * *17
Technical Support Technical Support If you have any question, please feel free to contact to our tech-support: Open 9:30AM-5:00PM(PST) Mon-Fri(except holidays) RATOC Systems International, Inc. Tech support Address: 2000 Wyatt drive Suite 9 Santa Clara, CA 95054 TEL: 408-986-9040 FAX: 408-986-9042 E-mail: http://www.ratocsystems.com/english/contact/support.html... -
Page 19: Appendix
Appendix Appendix Trademarks -Windows is a registered trademark of Microsoft Corporation. -MacOS, PowerMacintosh, PowerBook and Mac logo are registered trademarks of Apple Computer, Inc. -Other brand and product names may be registered trademarks or trademarks of their respective holders. Regulatory Agency Notice FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 20 RATOC Systems, Inc. All rights reserved.
