Related Manuals for L'Equip LD-9013
Summary of Contents for L'Equip LD-9013

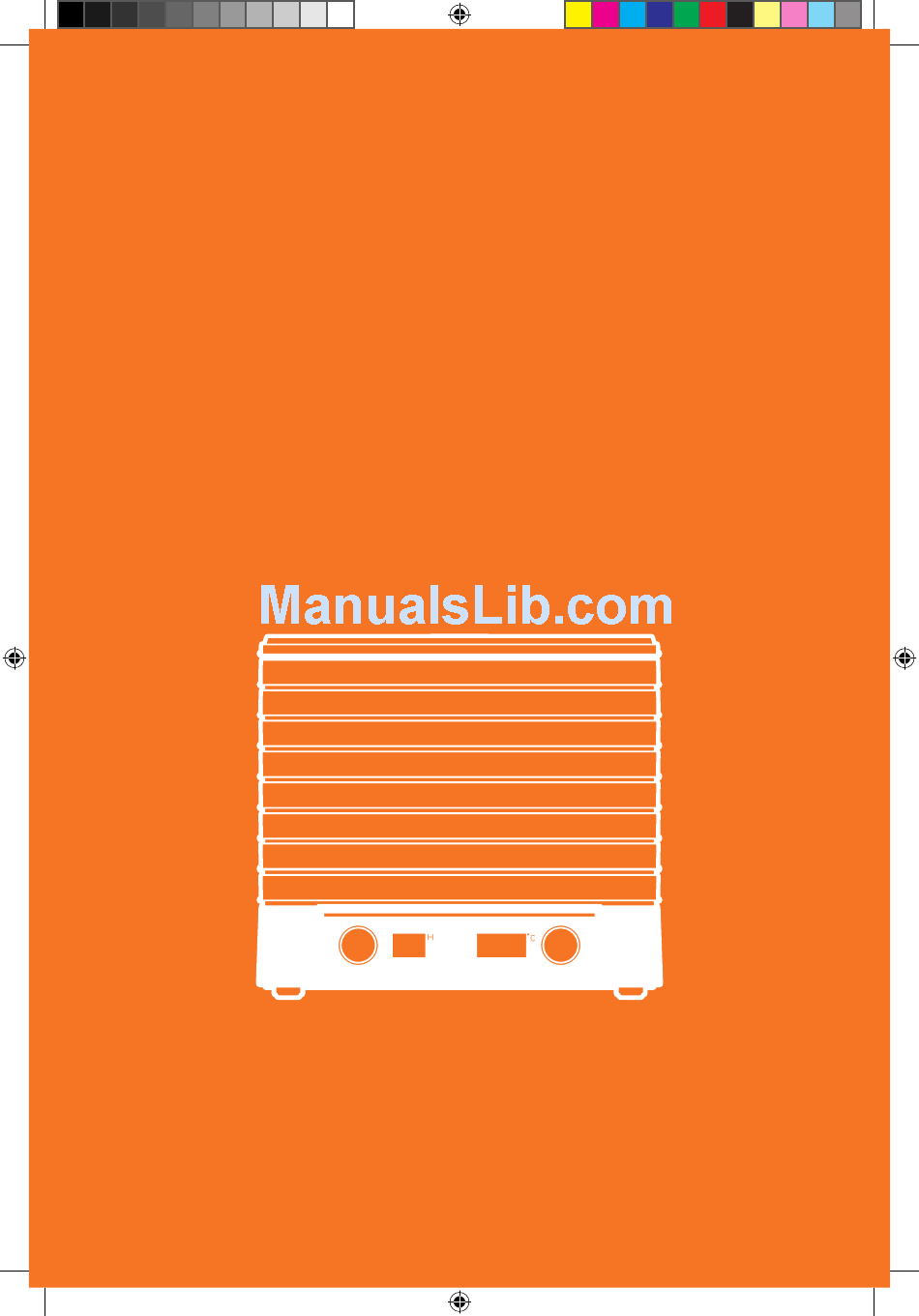

- Page 1 LD-9013 L'EQUIP Dehydrator Manual User Guide ver.01 LD-9013_Manual_EN.indd 1 2014. 9. 30. 오전 11:27...
-
Page 2: Product Information
Thank you for using L’EQUIP product. The Food Dehydrator assembly is complete. Please find page 6 and 7 to double check that all the parts are included. Before use, wash the trays, lid, nets and solid trays. DO NOT IMMERSE APPLIANCE INTO WATER OR ANY OTHER LIQUID. Product Information According to the Food and Drug Administration (FDA), the nutrient conservation rates by food’s process methods are as follows. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid. -
Page 4: Care And Cleaning
CARE AND CLEANING Appliance Base ● ● Use a damp soft cloth or towel to remove any dried food residue from the power head unit. Avoid dripping any water or other liquid into electrical parts. CAUTION: DO NOT IMMERSE POWER UNIT IN WATER OR OTHER LIQUD! DO NOT remove any parts from the power head unit! Be sure power head unit is unplugged before cleaning. - Page 5 Warning | By not following the instructions, it could cause serious injury or negligent accident. * Make sure moist of the ingredient (Especially salt) is mostly vaporized before using the dehydrator. Water flowing to the dehydrator could cause electrical shock and fire. Excessive ingredients could decrease the performance of the dehydrator and cause failure of the product.
- Page 6 Warning | By not following the instructions, it could cause serious injury or negligent accident Do not disassemble and/or modify the appliance unless you are a ● ● repairing technician. D onotusetheappliancenearinflammableobjectsasitcould ● ● causefire D onotinsertyourhand,forkandanyothermaterialsintothe ● ●...
- Page 7 Features of LD-9013 Forhouseholduseonly Air Vent Expander Tray Mesh Net Tray LED Time Bar Base Temperature Control Time Display Temperature Display Air Filter Motor/Heater/Fan Power Switch (Push Button) Time Control Model Tray Expander Tray Mesh Net Yogurt Cup Silicon Tray...
- Page 8 Accessories Air Vent Mesh Net Tray (2.5cm) Expander Tray (3.3cm) Silicone Tray Yogurt Cup Use Expander trays for various size of foods. LD-9013_Manual_EN.indd 8 2014. 9. 30. 오전 11:27...
-
Page 9: Operating Instructions
Operating Instructions Place the body on flat, dry and stable surface. ● ● The appliance should be at least 10cm away from walls and ● ● other electronic device. Prepare foods or crafts and load it on the trays. Keep them from ●... - Page 10 Features Temperature Control Time Display Power & Time control Temperature Display Select the desired time. (1~99 hours / continuously) ● ● Turn the time control clockwise to select the time. ● ● After finish using the appliance, the ‘END’ sign will ●...
-
Page 11: General Drying Guidelines
General Drying Guidelines The humidity in the air and even methods of food handling makes a difference in the drying time and quality of the dried product. SELECTING FOODS TO DRY Select the best quality produce at the peak of ripeness and flavor. ●... - Page 12 TROUBLESHOOTING GUIDELINES Symptom Probable Cause Items to Check 1. Unit is plugged in. 2. Power switch is on. No Heat – No Fan No power to Unit Switch ● ● 3. Make sure your house power is on and that the outlet is working.
-
Page 13: Cleaning Guidelines
Cleaning Guidelines TRAYS (INCLUDING EXPANDER TRAYS, LID, MESH NETS AND SOLID TRAYS) Your dehydrator trays are easy to to clean, simply soak in warm ● ● water with a mild detergent for several minutes. A soft-bristle brush will loosen food particles that resist softening by soaking. Don’t clean any parts with scouring pads, abrasive cleaners, ●... -
Page 14: Storing Dried Foods
Storing Dried Foods When food is sufficiently dehydrated, cool thoroughly before storing (approximately 15-30 minutes). If food is allowed to sit too long in the open air, it will begin to absorb moisture. Select appropriate airtight storage containers and store at optimal conditions. If moisture or condensation appears in storage container, food has not completely dried. - Page 15 L'EQUIP Dehydrator Dehydrating Guidelines ※ Many variables can contribute to a large difference in drying time LD-9013_Manual_EN.indd 15 2014. 9. 30. 오전 11:27...
- Page 16 Fruit NOTE: Dry fruit at 55~60˚C (130~140˚F). Use average times only as general guideline. Average Test for Fruit Preparation Drying Dryness Time/ Hrs Leathery, no Apples Peel if desired. Core. Cut slices, rings or chop into pieces moisture when cut Apricots Do not peel.
- Page 17 Pears Wash. Peel if desired. Core. Cut in slices or rings 10-12 Leathery, no moisture when cut Remove crown, skin & eyes. Cut in half. Cut in slices, Pliable, still slightly sticky. No Pineapple 8-10 leaving core in or remove, dice or chop and use Net visible signs of moisture Plums Do not peel.
- Page 18 Vegetables Avg. Dry Vegetable Preparation Time (Hrs) Asparagus Remove woody end. Slice diagonally into ½”-1” pieces. Blanch/steam. Snip off ends, pull off strings. Dry whole or slice diagonally into ½”-1” Green Beans 10-11 pieces or cut lengthwise. Blanch/steam. Beets Steam until tender. Cool and peel. Cut in slices, cubes or shoestring strips. Broccoli Cut all stalks in halves or quarters.
- Page 19 Herb NOTE: Dry herbs at 35~41°C (95~105°F). Use average times only as general guideline. Part of Herb Part of plant to dehydrate plant to dehydrate Basil Leaves Chili Peppers Pods 8-10 Chives Leaves (Chop) Cilantro Leaves Trim outer leaves. Cut in half. Core. Cut into strips or dry whole leaves. Cumin Blanch/steam.
- Page 20 Address : 1196, Poseungjangan-ro, Jangan-myeon, Hwaseong-si, Gyeonggi-do, Korea TEL : +82-2-2061-1336 E-mail : lequip@lequip.co.kr L’EQUIP Site : www.lequip.co.kr LD-9013_Manual_EN.indd 20 2014. 9. 30. 오전 11:27...
