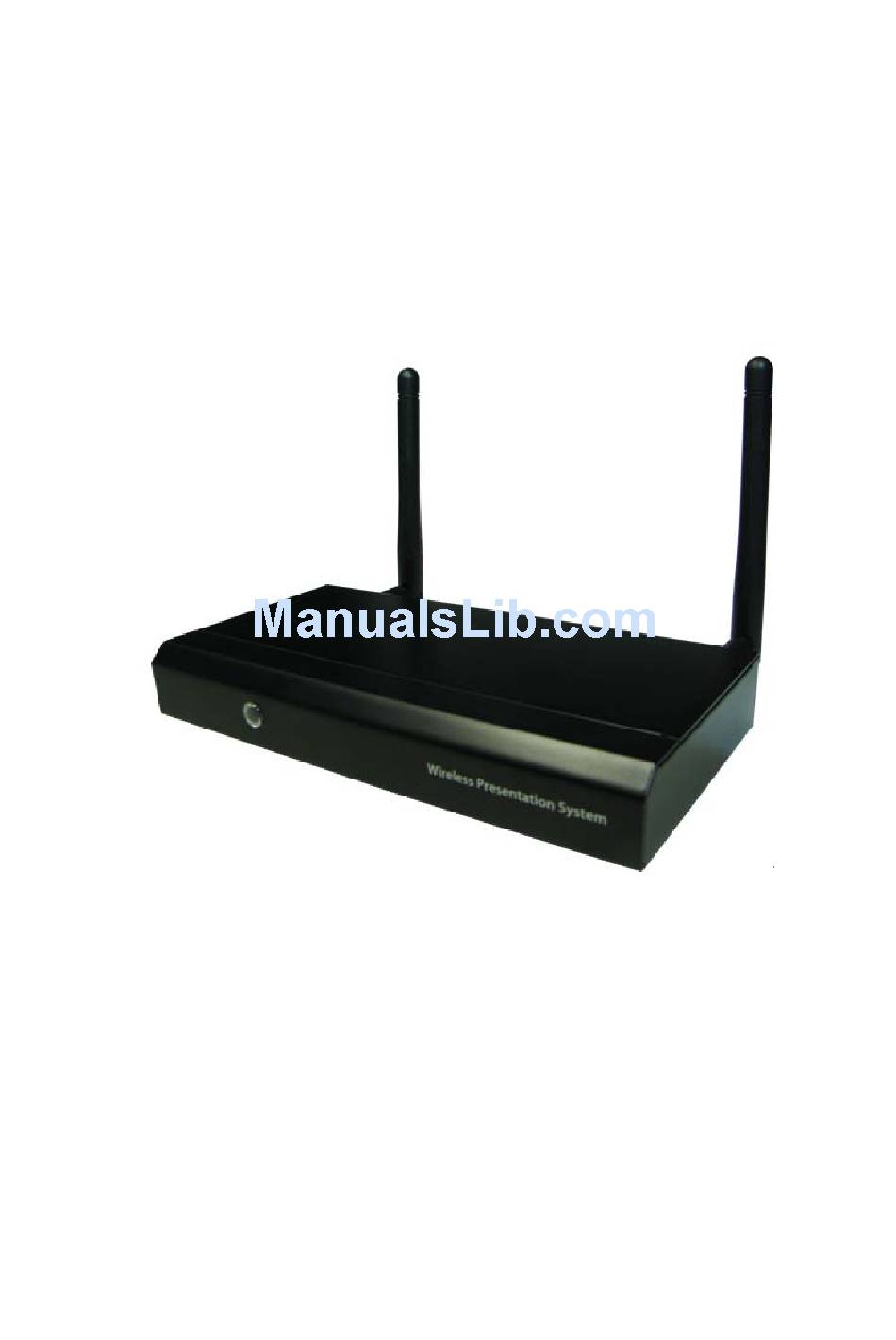

- Page 1 VPS-HD Video Presentation System User’s Manual Version: 1.5 Date: Feb. 25, 2011...
-
Page 2: Table Of Contents
Table of Contents Overview ..................... 4 Quick Start ..................6 Windows Client Utility ..............10 Starting Program ................10 Login ....................11 Main User Interface ..............11 Screen Projection ................11 Audio Projection ................ - Page 3 Windows Mobile Utility ............... 22 Download from VPS unit ............22 Using MobiShow with a Smartphone ........22 Web Management ................. 27 Home Page ..................27 Download Software ..............27 Conference Control ............... 28 ...
-
Page 4: Overview
1. Overview VPS is a must-have device for your meeting room! It turns your existing "wired" projector into a "high-end wireless" projector. With the revolutionary Plug-and-Show wireless projection features, VPS makes every of your presentation and meeting efficient and successful. High Performance Wireless Projection &... - Page 5 Change Standby Screen You can use the application “Screen Image Background Maker” to change the Splash Screen. Design the image with message you would like to present, upload it through web control page, and you could have customized starting page. AP Client Mode You can enable the AP-Client Mode function to let VPS join the existing Access Point through Wi-Fi.
-
Page 6: Quick Start
Features ■ Support Windows Win7, Vista, XP, and Mobile 5/6 ■ Plug and Show! No installation required … just plug in the accompanied token to a USB port, and hassle free presentation can be started in seconds. ■ 4-to-1 split screen projection! Turn one projector into four, increase meeting productivity right away. - Page 7 3) Make sure your PC WLAN is enabled already, and connect your PC with VPS unit. 4) Open your browser and enter the IP address to access the VPS web home page. ♦ The default IP address of VPS is 192.168.100.10 or refers to the IP address shown on the left corner of projector screen.
- Page 8 After installing the program, you will see the VPS shortcut on the PC screen. 6) Make sure your personal firewall allows VPS software to pass through. 7) Select device that your want to projection...
- Page 9 8) Enter the LOGIN CODE and You can see the login code on the projector screen 9) Click the “Play” button to start projection!
-
Page 10: Windows Client Utility
3. Windows Client Utility 3.1 Starting Program After you download VPS Windows program via web page successfully, then follow below steps to start. 1) Click VPS icon to execute the program. 2) Program start to search for VPS unit automatically, 3) If VPS unit founded then “Login Code”... -
Page 11: Login
3.2 Login 1) After “Login Code” dialog box shown, enter login code to start presentation. 2) You can see the login code shown on the projector screen. 3.3 Main User Interface Menu Area Status Indicator Control Area for Screen Projection Feature Speedy mode 3.4 Screen Projection Click the “Play”... -
Page 12: Audio Projection
clicking speedy mode button, the projection will enter speedy mode for faster projection. 4-1 function will be disabled in speedy mode. To enable audio projection, you have to install provided audio driver first. Button Description Full Screen projection Project to Split #1 Project to Split #2 Project to Split #3 Project to Split #4... -
Page 13: Menu Description
3.6 Menu Description Menu Login Code Exit 3.6.1 Show Login Code Minimize Click “Show Login Code”, it will display the login code on the right-upper of desktop and close it automatically after 10 seconds. You can also click on the area to close this window manually. -
Page 14: Open Admin Web Page
3.6.2 Open Admin Web Page Click to open function menu and select “Web Admin” management web page. The web page detailed functions will be described on next chapter. 3.6.3 WiFi AP-Client Configuration Click “WiFi AP-Client Configuration” to set AP client mode to join others Access Point via wireless, besides, the others user client also can login VPS for presentation and join to others Access Point network,... -
Page 15: Searching Server
3.6.4 Searching Server Click “Search Server” to re-search the VPS again. 3.6.5 Projection Source Click the “Projection Source”, you can select to project the main screen of desktop or the virtual extended screen. P.S: Virtual Extended Screen option You need to install “VDD.exe” driver first which is stored in the USB token. -
Page 16: Auto Wifi Connect
3.6.6 Auto WiFi Connect Click “Auto WiFi Connect” to enable the auto WiFi discovery and connection function for quick wireless set up. 3.6.7 Auto Power Manager To make the highest projection performance, application will turn the PC’s windows power scheme from current settings to “highest performance”, however, you can click the “Auto Power Manage”... -
Page 17: Hide Ui
3.6.8 Hide UI Click the “Hide UI”, you can choose to hide or display the application control panel from projection screen. 3.6.9 Advanced Screen Capture Click the “Advanced Screen Capture”, you will be able to see tip windows and other layered windows (include the main UI) on the connected display. However, the mouse cursor may blink from time to time when you are projecting your PC screen! Disable “Advanced Screen Capture”. -
Page 18: Make Vps Token
Enable “Advanced Screen Capture”. Tip windows is shown in projector 3.6.10 Make VPS Token Click “Make VPS Token” to make a USB VPS Token, you can insert a USB thumb drive and follows the wizard to make the Token. -
Page 19: Copy Application To Desktop
3.6.11 Copy Application to desktop Click the “Copy Application to desktop”, it will copy the application to your desktop immediately even you don’t have the system privilege... -
Page 20: Hot Key
3.6.12 Hot Key Click “Hot Key” to show Hot Key guide. You can use hot key to control the projection by keyboard. 3.6.13 About Click “About” to show system information. It includes product model name, Client version, IP address and other information. -
Page 21: Exit
3.6.14 Exit Click “Exit” to exit this application. It will stop current playing status and close the application immediate. -
Page 22: Windows Mobile Utility
4. Windows Mobile Utility Download from VPS unit 1) Turn on WiFi on your phone. 2) Connect your phone to MobiShow wireless network. The SSID is displayed on screen 3) Open the browser on your phone and enter the IP address of the MobiShow box. - Page 23 4) Select a MobiShow wireless network (SSID with prefix MobiShow) to connect to. 5) MobiShow client will connect to that access point and search for MobiShow devices automatically. When a MobiShow device is found, it will automatically login and the following main menu is shown on your phone. If more than one MobiShow devices are found, the following list will be displayed for you to select the one to use.
- Page 24 Screen Projection: MobiShow will project anything displayed on your screen. You may launch another application (such PowerPoint Viewer) or open any file (such as Word document or JPG image) and it will be projected to the projector. Note: Do not exit MobiShow application while opening other application to keep screen projected.
- Page 25 Click “Prev” or “Next” to go to the previous or next item in the slide. Click “PgUp” or “PgDn” to go to previous or next slide. Click “Stop” to stop projecting the file. The icon will become “Play” if the file is not played.
- Page 26 Photo Slideshow: You can use MobiShow to project photos stored on your phone to big screen. The photos will be prepared for playback on big screens rather than for the tiny screens of your phone. To open a single photo, select one photo and click the OK button. The photo will be displayed on the display connected to MobiShow device.
-
Page 27: Web Management
5. Web Management Home Page 1. Make sure your PC connect to VPS unit successfully. 2. Open your browser, it will enter VPS home page automatically. 3. If not, enter your IP address on the browser, you can see the IP on the projector screen. -
Page 28: Conference Control
5. Once installation complete, a utility shortcut come out on the screen. Conference Control 1) This function allows you to host a meeting smoothly without projector cable swapping and each participant can show their presentation easily. 2) Select “Conference Control” function. 3) Enter password, the default value is “trainer”, and then press [Login]. - Page 29 4) After login, you can see a User List on the screen which indicates all of users connected to VPS unit. 5) There are three columns, “Computer Name”, “Play Control” and “IP Address”. 6) Play Control，There are six buttons, including Play(Full) , Play Split #1 , Play Split #2 ,Play Split #3...
-
Page 30: Login Web Admin
Login Web Admin 1. Click [Admin] and then enter password to login web page. 2. The password default value is “admin”. 5.4.1 System Status Click [System Status], shows current system status. Model Name: Product model name Versions: 1. Firmware version no.: Product firmware version number. Network Status:... -
Page 31: Network Setup
1. IP address：IP address of VPS device. 2. Subnet Mask：subnet mask 3. Default Gateway：default gateway 4. Wireless MAC address：wireless MAC address 5. Wire MAC address：wire MAC address Connection Status: 1. Projecting status: which is “Waiting for projecting” or “Projecting” 2. Total Users: It shows how many users login into VPS unit. 5.4.2 Network Setup There are many kinds of operating configurations as below. -
Page 32: Wireless Setup
Auto-Configuration Network Setup < > The default setting of the VPS unit is DHCP client. When the VPS unit is connected to a LAN that already has a DHCP server present, the VPS unit takes an IP address assigned to it by the server. When the VPS unit is connected to a LAN that does not have a DHCP server, the VPS unit becomes the DHCP server in the network. -
Page 33: Osd Setup
< Gatekeeper> Gatekeeper is designed for ensuring the enterprise network security within VPS unit ♦ All Block can block Guest Users(through wireless) to access all office network(LAN), ♦ All Allow can pass Guest Users(through wireless) to access all office network ♦... -
Page 34: Projection Setup
5.4.4 Projection Setup Click [Projection Setup] button ♦ <Resolution>: VGA: XGA(1024*768), WXGA(1280x800) ,WXGA (1280*768) and SVGA(800*600). The default value is XGA. HDMI: 720p(1280*720) ♦ <Screen Refresh Rate>: This is VGA output refresh rate, provides 60 Hz and 75Hz to suit for different kinds of projectors. ♦... -
Page 35: Change Passwords
5.4.5 Change Passwords Click [Change Password] button, to change password value. The length of password is up to 8 characters. ♦ <Enter New Password>: enter new password you want to change for each category. ♦ <Confirm New Password>: double confirm new password. ♦... -
Page 36: Firmware Upgrade
Click [Reset to Default] button to restore factory default settings. <Apply>: Confirmation and action. 5.4.7 Firmware Upgrade Click [Firmware Upgrade] button to upgrade firmware. 1. Firstly, you have to get latest firmware image file from your vendor. 2. Click <Browse> to specify file name you want to upgrade. 3. -
Page 37: Reboot System
Warning: Don’t power off VPS while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor for fixing. 5.4.8 Reboot System Click [Reboot System] button, to restart system ♦ <Reboot>: reboot system automatically. -
Page 38: Logout
5.4.9 Logout... -
Page 39: Appendix
Appendix Screen Image Background Maker Quick Installation Guide Version: 1.00... - Page 40 1) Run the “Screen Image Background Maker” and follows the wizard to convert the image file. 2) Press “Open” to select a file to convert this image for background use. 3) Press “Saver” to save this file.(*.ib)
- Page 41 4) Please connect to VPS webpage, and then connect to OSD setup page. 5) Press “Browser” to choose the *.ib file. 6) Press “image file upload” to upload your background image. Then it will show the message as below.
- Page 42 Note: You may find “Screen Image Background Maker” in the USB Token.
-
Page 43: Ptg Converter
PtG Converter Quick Installation Guide Version: 1.00... -
Page 44: Using Ptg Converter
Using PtG Converter Open “MobiShow PtG Converter” in “MobiShow\MobiShow PtG Converter” folder from “Programs” in the Start menu. The following control panel is displayed on your Desktop when it is launched. Click the “ Convert” button to select a PowerPoint PPT file and start conversion.
