Unitec CSR-150 Owner's Manual And Operating Instructions

20” walk-behind pneumatic concrete saw
Hide thumbs Also See for CSR-150:

Advertisement

Quick Links

Download this manual
Enlarged version
Owner's Manual and Operating Instructions
Owner's Manual and Operating Instructions
Model CSR-150
Model CSR-150
20" Walk-Behind Pneumatic Concrete Saw
20" Walk-Behind Pneumatic Concrete Saw
CS Unitec, Inc.
CS Unitec, Inc.
Printed in U.S.A.
Copyright
CS Unitec, Inc. 2006
Printed in U.S.A.
Copyright
CS Unitec, Inc. 2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the CSR-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitec CSR-150

Summary of Contents for Unitec CSR-150

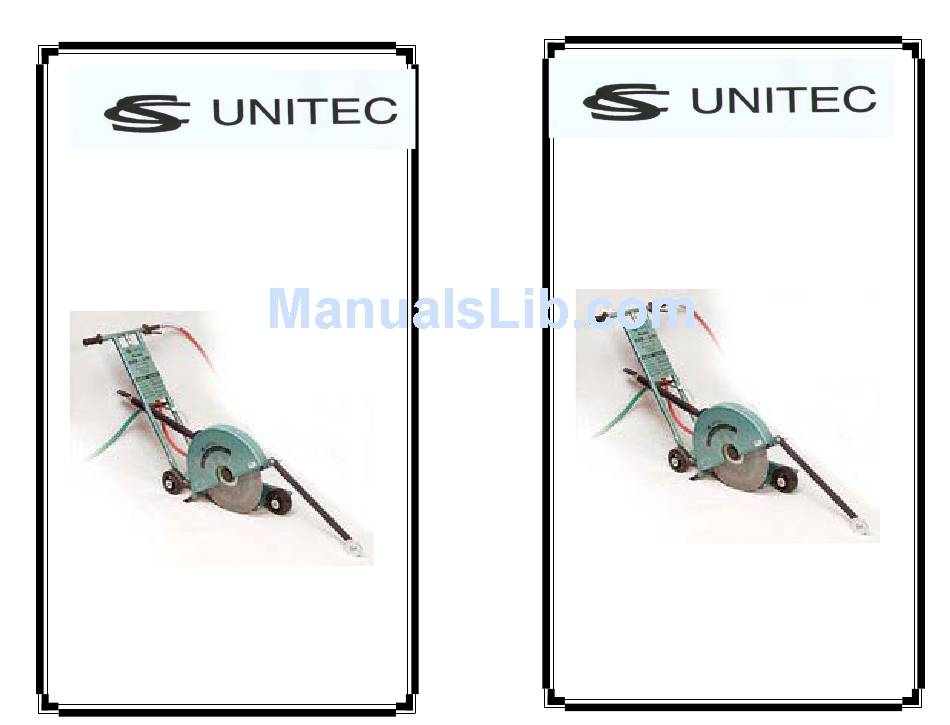

  • Page 1 Owner’s Manual and Operating Instructions Model CSR-150 Model CSR-150 20” Walk-Behind Pneumatic Concrete Saw 20” Walk-Behind Pneumatic Concrete Saw CS Unitec, Inc. CS Unitec, Inc. Printed in U.S.A. Copyright CS Unitec, Inc. 2006 Printed in U.S.A. Copyright CS Unitec, Inc. 2006...

  • Page 2: First And Foremost

    The heart of the CSR-150 is a newly developed pneumatic motor coupled The heart of the CSR-150 is a newly developed pneumatic motor coupled with a heavy-duty gear drive. Our motor runs at a higher speed than most with a heavy-duty gear drive.
  • Page 3 AND OPERATING THIS EQUIPMENT. AND OPERATING THIS EQUIPMENT. * All CS Unitec pneumatic saws are designed to be operated @ 90 P.S.I. * All CS Unitec pneumatic saws are designed to be operated @ 90 P.S.I. min. (6.2 bar) air pressure, 85 CFM min., with a minimum 1/2” (13 mm) min.
  • Page 4 Connect the air hose from the center of the handle to the in-line oiler Connect the air hose from the center of the handle to the in-line oiler on the motor. Fill the oiler with CS Unitec Air Tool Lubricant. on the motor. Fill the oiler with CS Unitec Air Tool Lubricant.
  • Page 5 ASSEMBLY DIAGRAM ASSEMBLY DIAGRA SET BOLT PUSH DOWN PUSH DOWN SET BOLT 3/4” HANDLE PINS 3/4” HANDLE PINS SQUARE TUBE ON HANDLE SQUARE TUBE ASSEMBLY ON HANDLE ASSEMBLY SQUARE TUBE ON CARRIAGE SQUARE TUBE ON CARRIAGE 3/8-16 HEX NUT 3/8-16 HEX NUT JACK MOUNT JACK MOUNT ON MOTOR...
  • Page 6 ______________ ______________ Saws returned to CS Unitec for warranty consideration must be Saws returned to CS Unitec for warranty consideration must be shipped prepaid, along with proof of date of purchase, a brief...

  • Page 7: Warranty

    WARRANTY WARRANTY The manufacturer of this product warrants this product to be free The manufacturer of this product warrants this product to be free from defects in materials and workmanship for a period of one from defects in materials and workmanship for a period of one year from the date of original purchase.
  • Page 8 - 7 - - 7 -...
  • Page 10 CS Unitec, Inc. CS Unitec, Inc. 22 Harbor Ave., Norwalk CT 06850 22 Harbor Ave., Norwalk CT 06850 Phone (800) 700-5919 or (203) 853-9522 ♦ Fax (203) 853-9921 Phone (800) 700-5919 or (203) 853-9522 ♦ Fax (203) 853-9921 Website: http:/www.csunitec.com ♦ e-mail: info@csunitec.com...
