Door Swing

Units have a zero clearance when installed adjacent to
cabinets.
For Integrated models that are installed adjacent to a wall,
1/4" (6 mm) clearance is recommended from wall on
hinge side to allow the door to open 90°. Allow for
additional space for any knobs or pulls installed on the
integrated panel/frame.
Stainless Steel models that are installed adjacent to a wall
require 2-1/4" (57 mm) door clearance on hinge side to
allow for door handle.

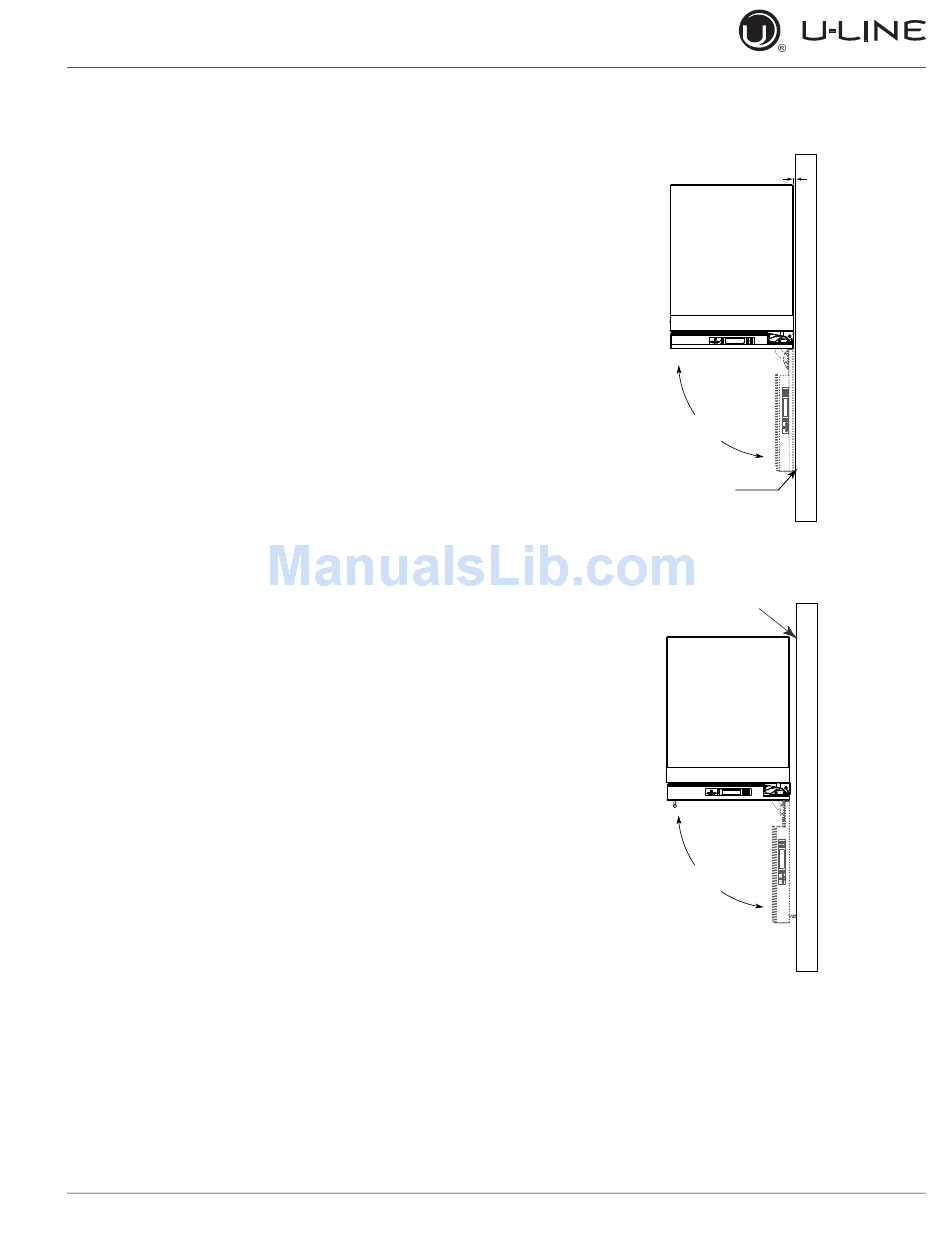

Door Swing
Space Required
For any Knobs or Pulls
Integrated
Door Swing
4
u-line.com
Wall
1/4" (6 mm)
90°
2-1/4" MIN
Wall
(57 mm MIN)
90°
Stainless
