Summary of Contents for PowerMaster IntelliCHARGER
-

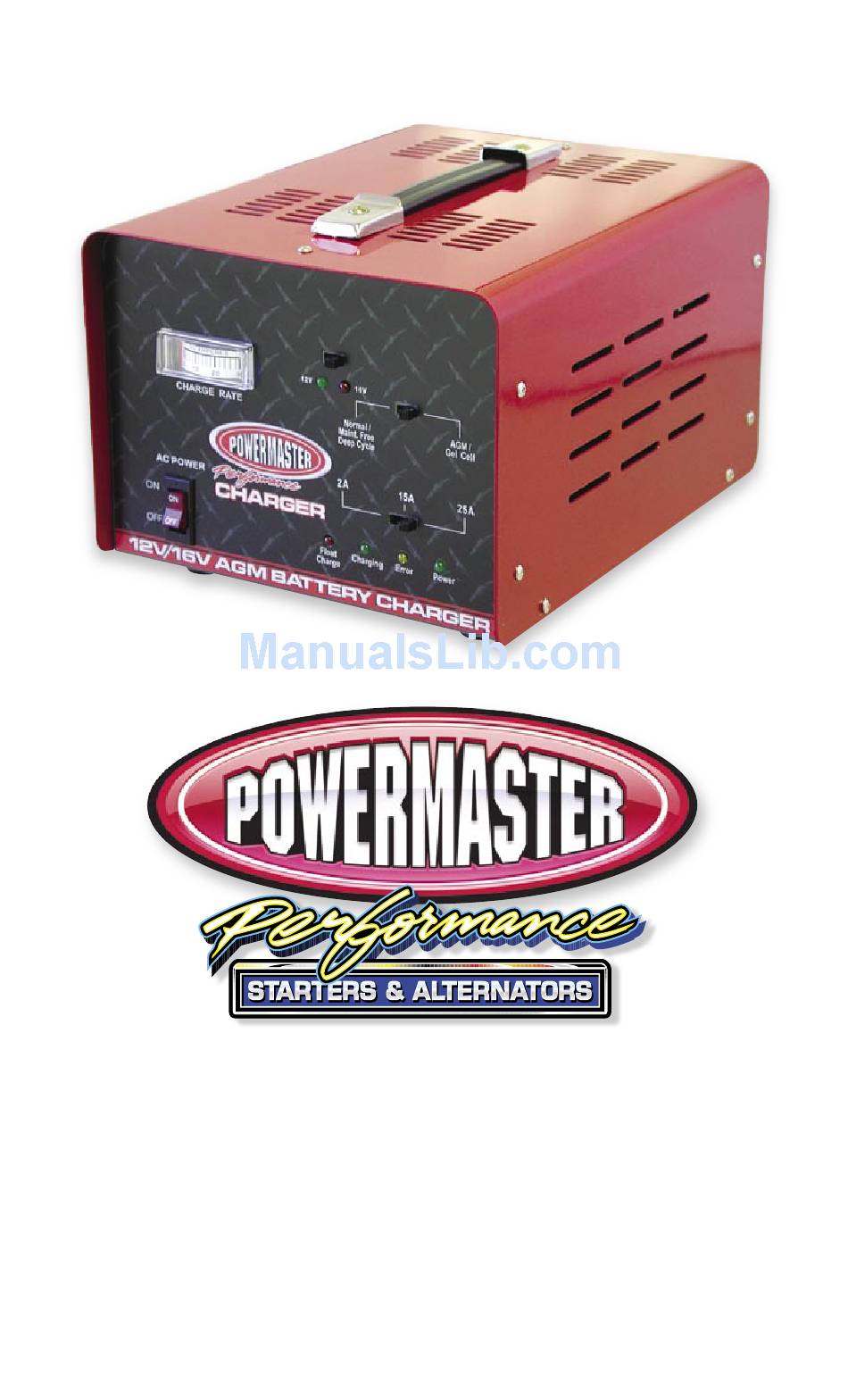

Page 1: User Guide
Powermaster IntelliCHARGER Microprocessor Controlled Three-Stage 12V/16V Automatic Battery Charger P/N 1005 User Guide... -
Page 2: Table Of Contents
About Powermaster Quick Start Guide Powermaster designs and manufactures custom charging and starting solutions for street rods, racing applications, custom car audio. These products include high performance starters, alternators, batteries, Chapter 1 contains information on the features, the switches, and indicators and related accessories for the performance automotive industry. -
Page 3: Important Safety Instructions
Important Safety Instructions IntelliCHARGER User Guide Chapter 1 The IntelliCHARGER generates a low DC voltage and high DC current to the battery CAUTION being charged. Operating the IntelliCHARGER incorrectly or misusing it may damage the charger or create hazardous conditions for the user. - Page 4 Three Stage Charging Charge Rate Ammeter At the heart of the technology in the Powermaster Performance battery charger are The Battery Charger features an ammeter allowing the user to monitor the charging the three distinct charging stages. During the first stage, called “Bulk” charging, the progress.
- Page 5 Front and Rear Panel Switches and Indicators IntelliCHARGER User Guide Chapter 1 1) Charge Rate Ammeter: Displays the amount of current flowing into the battery. 5) Power indicator: Illuminates when the input AC power is applied. During stage one or bulk charging this will be the selected charge rate. During...
-
Page 6: Chapter 2, Operation
Instructions” on page v and take all safety precautions when working with batteries. 1) Make sure the area around the battery is well ventilated. The IntelliCHARGER has been designed to provide fully automatic recharge of 12V or 2) Never smoke or allow a spark or flame near the battery(ies). -
Page 7: Chapter 3, Troubleshooting
IntelliCHARGER. Please read this chapter before calling Customer Service. If you CAUTION: Use the correct battery type at all times. Do not charge AGM & Gel- cannot solve the problem with the IntelliCHARGER, record the information asked for on cell batteries in the “Flooded” mode. -
Page 8: Appendix A, Specifications
AC Input Connections 5.0’ (1.5 m) AWG 16 Bulk Charge In the first stage, known as “bulk” charging, the IntelliCHARGER delivers its full-rated DC Output Connections 6.0’ (1.8 m) AWG 10 output current. This constant current is delivered to the batteries until the battery voltage approaches its absorption voltage, either 2.5V per cell or 2.375V per cell... -
Page 9: Faqs
This depends on the size of the batteries. All batteries in the bank must be of the same type and size. In addition, the IntelliCHARGER is expecting the battery bank to be at full charge in ten hours or less. Therefore the size of the batteries and their depth of discharge will play a role in the answer here. -
Page 10: Warranty
If the product is not covered under the terms of this warranty. Powermaster will advise you of the costs to carry out any repairs necessary and the unit will be shipped to you on receipt of payment for the work including the return freight charges. -
Page 11: Contact Information
Information About Your System As soon as you unpack your IntelliCHARGER, record the following information and be sure to keep your proof of purchase. Serial Number (on back panel) __________________________________ Purchased From ___________________________________________ Purchase Date ____________________________________________ If you need to contact Customer Service, please record the following details before calling.
