Summary of Contents for Synxcom SM9256D

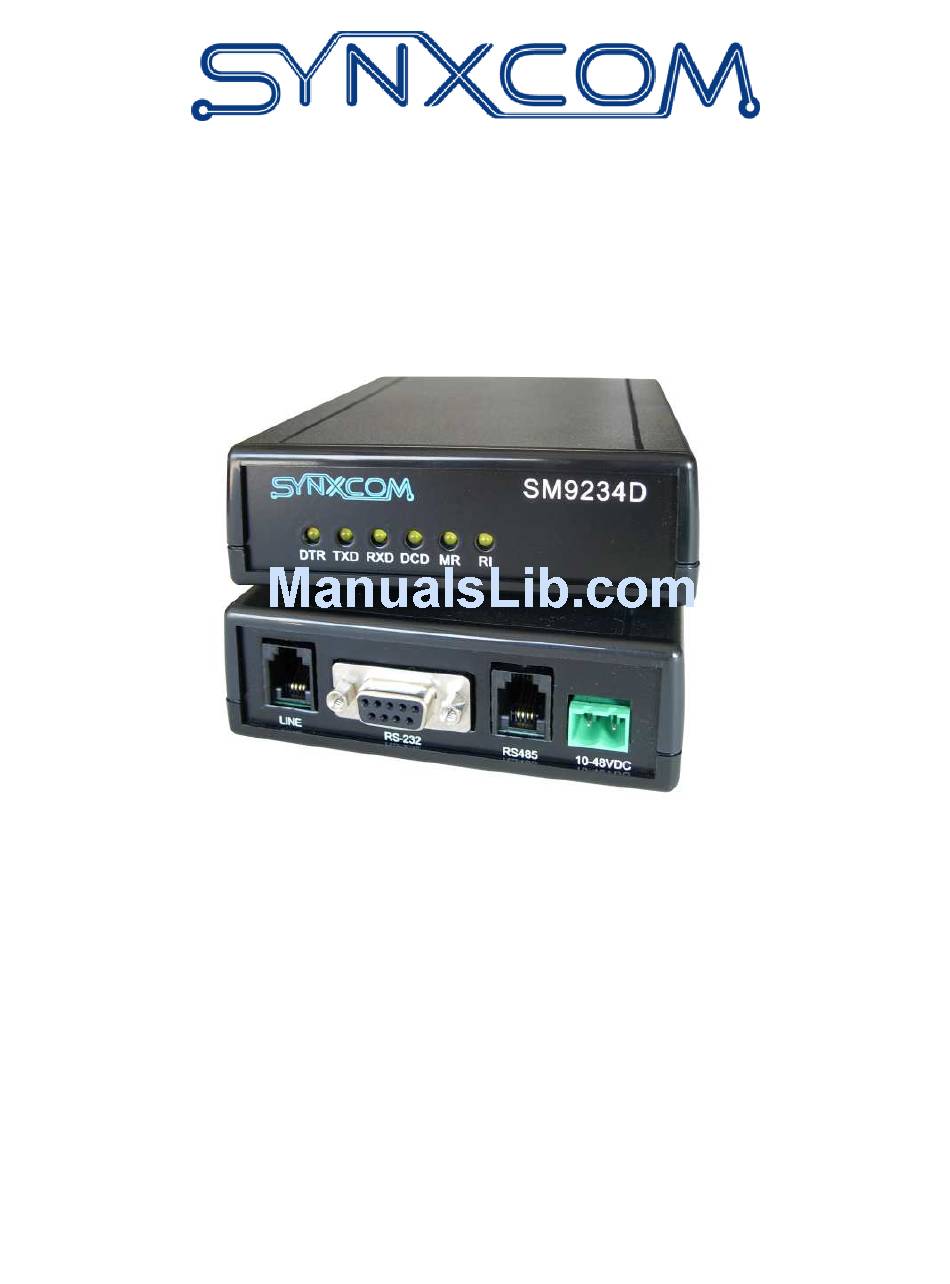

- Page 1 SM9256D/SM9234D/SM9232D Modems User’s Guide 520-01003-001 Rev .A...
- Page 2 Synxcom Corporation will makes best efforts to update or keep current the information in this User’s Guide, and reserves the right to make changes to this User’s Guide and/or product without notice.
- Page 3 FCC Requirements This device complies with Part 15 Class A of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 Class A of the FCC Rules.
- Page 4 If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. If you experience trouble with this telephone equipment, please contact Synxcom Corporation, 1000 Dove Street, Newport Beach, CA 92660, Phone (949) 677-6204 for information on obtaining service or repairs.
- Page 5 (The telephone number provided may not be a 900 number or any other number for which charges exceeds local or long-distance transmission charges.) Page v...
- Page 7 The SM9256D easily handles tasks such as remote LAN access, telecommuting, remote file transfer, access to the Internet, and any other applications that require fast, reliable transmission speeds.
-
Page 8: Model Numbers And Order Information
Introduction Model Numbers and Order Information Model SM9256D: V92/V34/V32bis/V32/V22bis (56K) Stand-alone with AC power module 90 to 264 VAC or 100-400 VDC Model SM9256D-DC: V92/56K/V34/V32bis/V32/V22bis Stand-alone, DC power, 10-48 VDC Model SM9234D: V34/V32bis/V32/V22bis (33.6K) Stand-alone with AC power module 90 to 264 VAC or 100-400 VDC Model SM9234D-DC: V34/V32bis/V32/V22bis (33.6K) - Page 9 Introduction Mounting kit Accessories EN2-KIT-DIN: DIN Rail Mounting Kit for S/A units EN2-KIT-WMB: Wall-Panel mounting kit for S/A units Page 9...
-
Page 10: Chapter 2 Installation
Installation Unpacking Your Modem Your SM92xxD modem package includes the following items: One Synxcom SM9256D, SM9234D or SM9232D standalone modem An RJ-11 telephone cable An 115/230VAC AC to DC power supply converter (+12 Vdc, 800 ma Output) A DC power cable for the DC Power only version A CD containing the modem drivers and this User’s Guide... - Page 11 Setting-up and Installing Your Modem Configuring Your Modem’s DTE/RTU Interface Your SM9256D and SM9234D support RTU/DTE with either RS-232 or RS-485 interface for communications. The modem is set to use the RS-232 interface (DB-9 connector) as the default interface from the factory. If you do not use RS-485/RS-422 option of the modem, skip this section and continue the installation with the “Installing You Modem”...
-
Page 12: Installing Your Modem
Installation Installing Your Modem The following procedure describes how to install your SM92xxD modem. You perform these procedures using the connectors and jacks on the back of your SM9256D modem (see Fig. 2 on page 17). Turn off your computer. -
Page 13: Installing The Driver
If your computer contains the Microsoft Windows XP or Windows7 operating system, use the following procedure to install the modem driver. Windows detects your SM9256D modem automatically. In your computer’s CD-ROM drive, insert the supplied driver CD. Click Install the software automatically [Recommended] if it’s not selected and click Next. -
Page 14: Modem Operation
Installation LEDs The SM9256D modem provides six LED indicators. Table 2-6 lists the modem LED indicators. Table 2-6. LEDs Indicating Modem Control Signals DTE Signal Data Terminal Ready Transmitted Data Received Data Data Carrier Detect Modem Ready Ring Indicator Modem Operation Before you start using the modem, you must set up the modem to match your DTE&RTU... - Page 15 Installation zero. For example, issuing the AT command ATS0=1 configures the modem to auto-answer calls after the first ring. These commands are typed from your computer or DTE keyboard using terminal-emulation software such as HyperTerminal. If you change the auto-answer parameter, the new setting remains in effect until your modem is powered-off.
-
Page 16: Call Answer Testing
Configure your SM92xxD modem to auto-answer incoming calls, as described under “Modem Operation” on page 13. Use a telephone to call the SM92xxD modem. Listen to the call to verify that the SM9256D modem answers the call with its answer tone and performs its handshaking sequence in an attempt to make a data connection. - Page 17 Installation NOTES Page 17...
- Page 18 Chapter 3 Using the Modem’s Security Features This section is available with the security modems only Contact Synxcom’s Technical Support for information for specifications for Security modems for the PSTN networks...
- Page 19 AT Commands Page 19...
- Page 20 AT Commands Appendix A AT Commands Please refer to separate AT command set document provided with the modem. Page 20...
-
Page 21: Limited Product Warranty
Products which are returned F.O.B., Synxcom' facility, Newport Beach, California (or, at Synxcom' option refunding the purchase price of such products). In no case are Products to be returned without first obtaining permission and a customer return order number from Synxcom. - Page 22 Synxcom. If you bought the product from a Distributor or Systems Integrator, the product should be returned to that vendor. The most convenient method to obtain an RMA number for a product purchased from Synxcom is to send mailto:support@Synxcom.com an email to .
