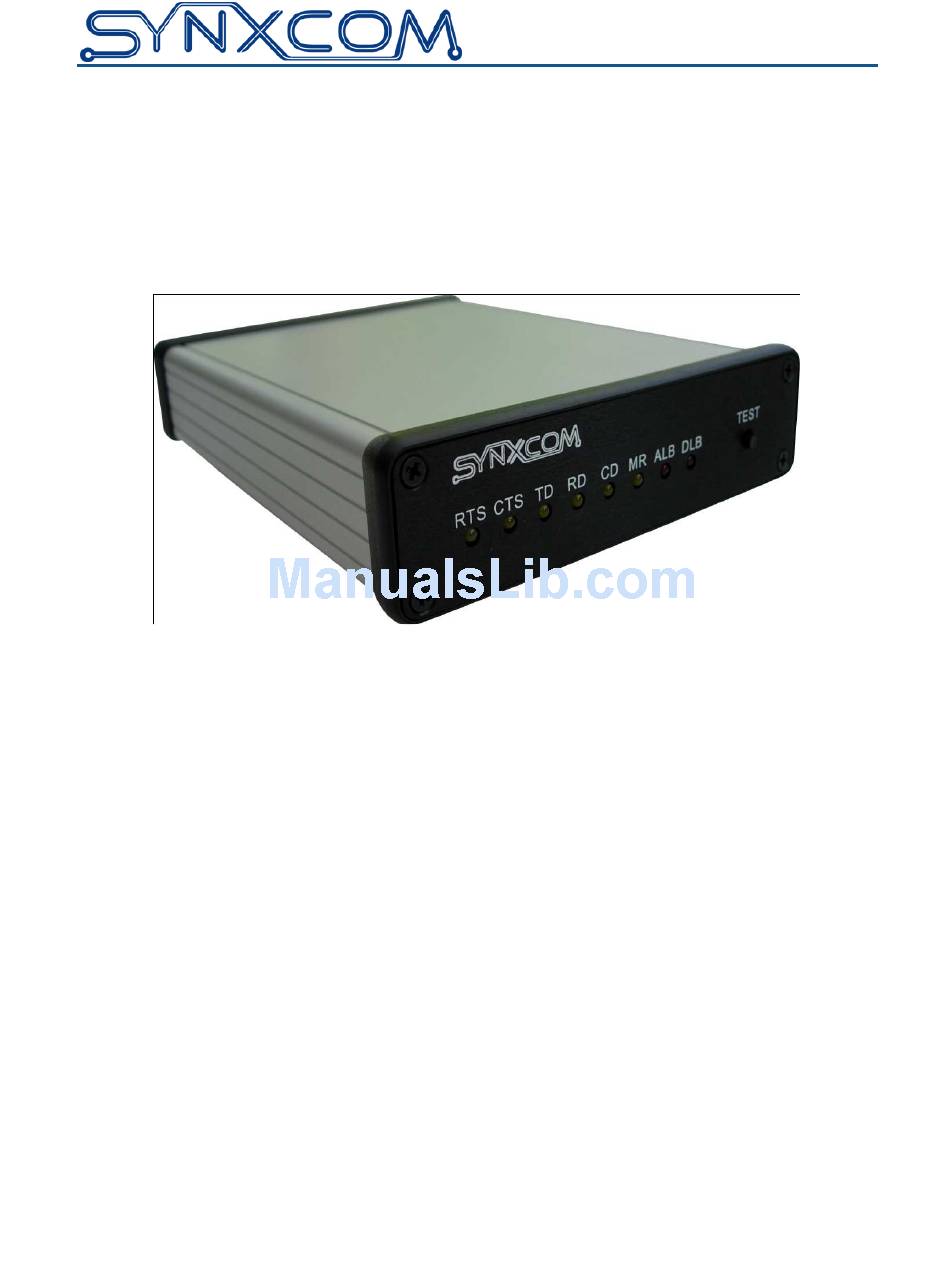

- Page 1 User’s Manual For Models SM19202FP, SM19202FP-K SM96202FP, SM96202FP-K Fast Poll Modems Document Number 520-01014-001 Rev. C...
- Page 2 This User’s Manual contains proprietary information protected by copyright, and this User’s Guide and all accompanying hardware and documentation are copyrighted. Synxcom Inc. does not warrant that the product will work in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
-
Page 3: Table Of Contents
S1-1, S1-2, S1-3 − Modem Data Rate ..............15 S1-4 − Async Character (Fast-Poll Mode Only) ..........16 S1-5 − Auto RTS ....................16 S1-6 − Transmit Carrier Control (For SM19202FP-K only) ....... 16 S1-7 − 2-/4-Wire Leased Line Operation ............17 S1-8 − Transmitter Impedance ................17 S1-9 −... - Page 4 Contents Connecting to a Transmission Line ................22 Connecting to a Voltage Source ................23 Connecting to an RS-232 Device ................24 Connecting to an RS-485 Device ................24 LEDs........................26 Loopback Control Switch ..................26 Appendix A Troubleshooting................28 Problem Solving ......................
- Page 5 Figures Figure 1-1. Point-to-Point Network Using the SM19202FP Modem ........8 Figure 1-2. Multipoint Polling Network Using the SM19202FP Modem ........8 Figure 2-1. Front View of the SM19202FP Modem .............. 10 Figure 2-2. Back View of SM19202FP Modem ..............10 Figure 2-3.
-
Page 6: Chapter 1 Introduction
The modem is also backward compatible with Bell 202 and ITU-T V.23 modems. The SM19202FP is the most technologically advanced modem on the market. Boasting a fast DSP processor and automatic adaptive equalizer, the SM19202FP modem is ideally suited for multi-point communication systems that require fast response time, short training time, and low throughput delay. -
Page 7: Features
The SM19202FP modem is specifically designed for harsh environments typically associated in utility substations and industrial facilities. Though functionally similar to commercial modems, the SM19202FP provides the following unique features that make it well suited for utility and industrial applications. -
Page 8: Applications
Introduction Applications The SM19202FP modem is designed for point-to-point and multipoint data communications. Figure 1-1 shows a typical point-to-point configuration using the SM19202FP modem and Figure 1-2 shows a typical multipoint configuration using the SM19202FP modem. Modem Modem Remote Terminal Workstation Figure 1-1. -
Page 9: Chapter 2 Installation
90 to 265 Volts AC, 50 to 60 Hz, single phase or 100 to 400 VDC (if you have the model SM19202FP modem), or – 10 to 60 Volts DC (if you have the model SM19202FP-DC modem) – For the SM19202FP-RM, consult the documentation for your Motorola/UDS RM16M User’s Manual - SM19202 Fast Poll Modem... -
Page 10: Hardware Overview
Installation Hardware Overview Front View Figure 2-1 shows the front view of the SM19202FP stand-alone modem. Starting from the left side, this view shows: A set of eight LEDs for modem interface status (see Table 2-6 on page 26) A loopback control push-button switch (see Loopback Control Switch on page 26) Figure 2-1. -
Page 11: Rack-Mount View
Installation Rack-Mount View Figure 2-3 shows the rack-mount plug-in module. Figure 2-3. Rack-Mount Module for the SM19202FP-RM Modem Board Installation Summary This section describes the steps for installing the modem. NOTE: It is important to follow the steps below to configure the modem’s DIP switches to match your DTE/RTU interface requirement and the transmission line characteristics. -
Page 12: Configuring The Stand-Alone Modem
Installation Configuring the Stand-alone Modem You configure the modem using the three sets of DIP switches located at the bottom of the modem box S1 and S2, and S3. Configuration DIP switches S1 and S2 for the stand-alone and rack-mount modems are identical. -
Page 13: Figure 2-4. Sm19202 Fast-Poll Stand-Alone Modem Switches
Installation Figure 2-4. SM19202 Fast-Poll Stand-alone Modem Switches User’s Manual - SM19202 Fast Poll Modem... -
Page 14: Setting The Dip Switches
Installation Configuration DIP Switches Configuration Jumper for Receiver Termination High-Z 600 ohm Figure 2-5. SM19202 Fast-Poll Rack-mount Modem Board Setting the DIP Switches S1, S2 and S3 are miniature switches used to configure all the options and features of the modem. -
Page 15: S1-1, S1-2, S1-3 − Modem Data Rate
OFF (Default) S1-5: Auto RTS Enabled Disabled S1-6: Transmit Carrier Control Radio Push-to-Talk option Normal Leased Line (SM19202FP-K only) S1-7: 2- or 4-wire leased line 2-wire half duplex 4-wire full duplex S1-8: Transmitter Impedance Controlled by RTS 600 ohms S1-9: Remote Digital Loopback... -
Page 16: S1-4 − Async Character (Fast-Poll Mode Only)
TXD is detected after some length of idle time (approx 2 characters). S1-6 − − − − Transmit Carrier Control ( For SM19202FP-K only S1-6 ON = Enable transmit carrier control for radio push-to-talk User’s Manual - SM19202 Fast Poll Modem... -
Page 17: S1-7 − 2-/4-Wire Leased Line Operation
RTS is asserted by the RTU to the SM19202FP-K modem. The modem will use the delayed Clear-To-Send (CTS) as the indicator to the RTU to signal the start of sending data to the host end. -
Page 18: S1-9 − Remote Loopback Enable
Installation If you use the modem with transmission lines that are transformer-coupled or with an impedance-isolated network (such as a transformer bridge), set switch S1-8 OFF for proper operation. S1-9 − − − − Remote Loopback Enable S1-9 ON = Loopback enabled S1-9 OFF = Loopback disabled (default) During instances of channel noise, the modem may mistake a received preamble as a request to go into remote digital loopback. -
Page 19: S2-4 − Receiver Dynamic Range
S2-6 ON = Enable RX Cable Equalizer S2-6 OFF = Disable RX Cable Equalizer (default) If you use the SM19202FP as a limited-distance modem over pilot wire or unloaded cables, you may need to improve or extend the modem’s polling performance on long transmission lines by using the modem’s internal fixed Compromise Cable Equalizer when polling on long... -
Page 20: S2- 9− Forced Rts On (Constant Rts)
The SM19202FP will only send out a training pattern when the transmit modem’s RTS is raised from the OFF to ON state (i.e. Switched Carrier mode). -
Page 21: S3-3 Rs-485 Receiver Termination
Installation S3-3 RS-485 Receiver Termination When RS-485 is used, a 120 ohm receiver termination may be used to terminate the receiver. • S3-3 a 120 ohms load is placed across the RX+ and RX- signal • S3-3: OFF, no termination is connected to the receiver S3-4- Not Used S-3-5... -
Page 22: Connecting To A Transmission Line
Rx (4-wire only) Tx (Tx/Rx-2-wire) Tx (Tx/Rx-4-wire) Earth Ground (optional) NOTE: When 2-wire half duplex is used, the TX pair must be used for both transmit and receive. Figure 2-6. SM19202FP Modem Transmission Line Interface User’s Manual - SM19202 Fast Poll Modem... -
Page 23: Connecting To A Voltage Source
Model SM19202FP (with AC-DC power converter): 90 to 265 Volts AC, 50 to 60 Hz, single phase or 100 to 400 VDC. The output of the converter is a 12 VDC source that will power the modem. -
Page 24: Connecting To An Rs-232 Device
Installation Connecting to an RS-232 Device The modem back panel provides a female, 9-pin RS-232 connector that accepts an attached RS-232 device (see Figure 2-2 on page 10). This connector accepts a standard connection to a DTE (RTU) that conforms to the pin assignments shown under Table B-2 “RS-232 (DTE) Interface”... - Page 25 Installation Modem DTE / RTU RxD+ RxD- RJ-11C TxD+ TxD- 4 wire RS-485 Connection Modem DTE / RTU RxD+ / TxD+ RxD- / TxD- RJ-11C Not Used 2 wire RS-485 Connection User’s Manual - SM19202 Fast Poll Modem...
-
Page 26: Leds
Installation LEDs The front panel of the modem provides the LEDs shown in Table 2-5. Table 2-6. Modem LEDs Color Description Yellow Request To Send Yellow Clear To Send Yellow Transmit Data Yellow Receive Data Yellow Carrier Detect Yellow Modem Ready Red* Analog Loopback Red*... -
Page 27: Figure 2-8. Loopback Diagnostic Modes
Installation NOTE: Be sure switch S1-9 is set to the ON position to enable the remote modem to respond to remote digital loopback requests. This test is only available in fast- poll mode at 2400 bps or higher. Figure 2-8 shows these three loopback diagnostics. Transmitter Receiver Leased Line... -
Page 28: Appendix A Troubleshooting
Appendix A Troubleshoot In the event you encounter a problem using your Synxcom modem, refer to the troubleshooting information in this appendix. IMPORTANT: If you encounter a problem with your modem, be sure the switches on the modem are set to the appropriate positions (see Table 2-1 on page 14). If a switch is halfway between an on and off setting, the modem will not operate properly. -
Page 29: Appendix B Specifications
Operating temperature: -40°C to +85°C Power supply: Wide range switching power supply: • SM19202FP (AC version): 90 to 265 Volts AC, 50/60 Hz, single phase or 90 to 400 VDC • SM19202FP-DC (DC version):10 to 60 Volts DC Surge protection:... -
Page 30: Mechanical Specifications
Specifications Anti-streaming: 27-second timer to prevent transmitter lock-up network Mechanical Specifications Enclosure: Aluminum with removable front and rear panels Dimensions: 5.0” wide x 6.5” long x 1.30” high Weight: 1.0 lbs without AC to DC power converter module Interface connectors Leased Line: 5-position screw terminal (includes earth ground) Data Terminal Equipment:... -
Page 31: Rs-232 (Dte) Interface
Specifications RS-232 (DTE) Interface Table B-2. RS-232 (DTE) Interface Signal Name Modem Input/Output DB-9 Pin Description Output Data Carrier Detected Output Receive Data Input Transmit Data Signal Ground Output Data Set Ready (Modem Ready) Input Request To Send Output Clear To Send RS-485 (DTE) Interface Table B-3. -
Page 32: Appendix C Limited Product Warranty
Synxcom's Irvine, California facility (or, at Synxcom's option, refunding the purchase price of such products). In no case are Products to be returned without first obtaining permission and a customer return order number from Synxcom. In no event shall Synxcom be liable for any consequential or incidental damages. -
Page 33: Appendix Drma Procedure
Distributor or Systems Integrator, the product should be returned to that vendor. The most convenient method to obtain an RMA number for a product purchased from Synxcom is to fill out and submit the RMA form on-line, or send an email to support@Synxcom.com. Information required must include:... - Page 34 RMA Procedure User’s Manual - SM19202 Fast Poll Modem...
