Summary of Contents for Inalsa PSG 15GL

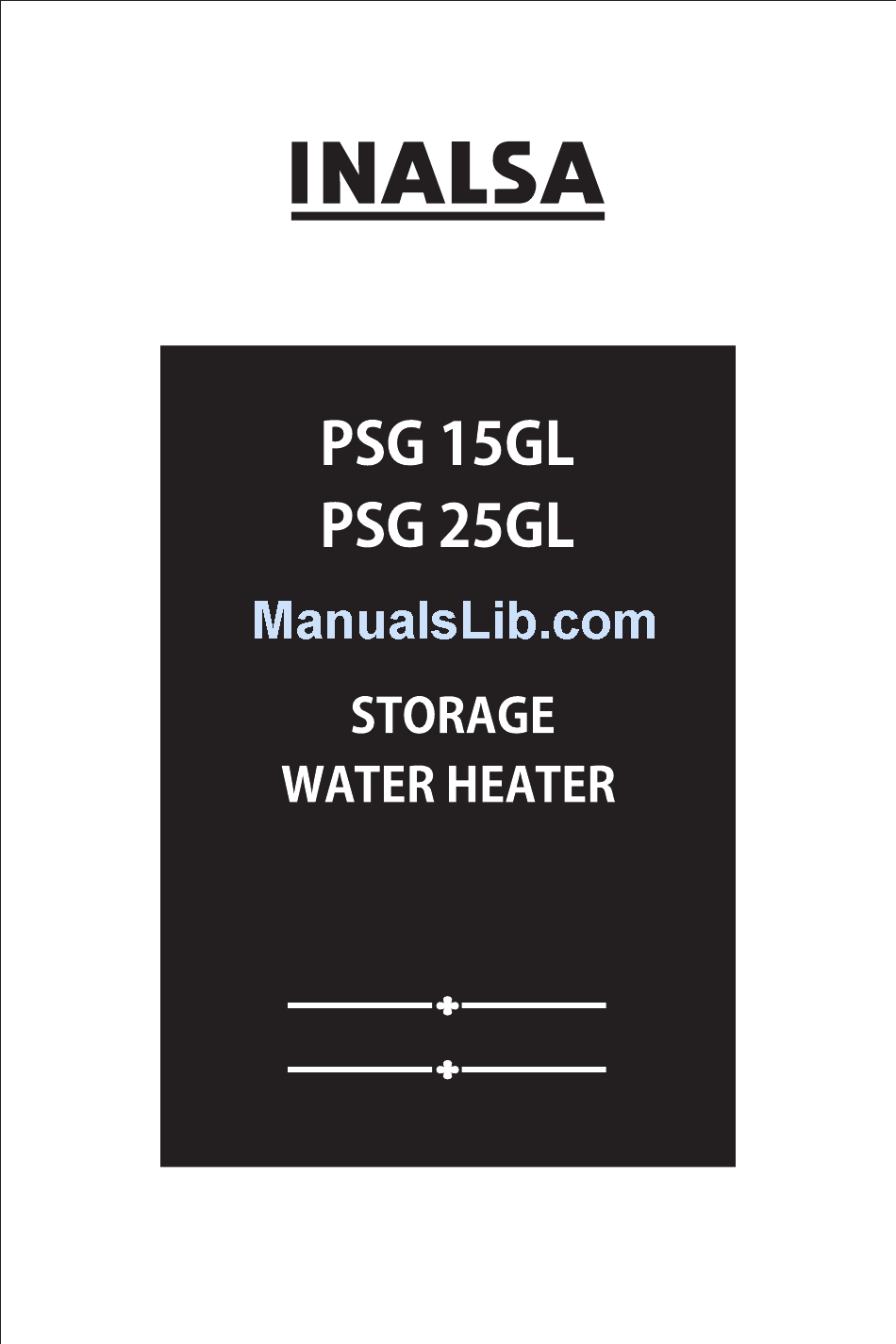

- Page 1 Instruction Manual...
- Page 2 Your INALSA Storage Water Heater has a lot of thoughtful features built in to make your working convenient. Please read these instructions carefully, so that you may get the best out of the power packed features in your INALSA Storage Water Heater.
-
Page 3: Parts Identification
Parts Identification S. No. Parts Name Decorating cover Outer casting Temperature meter Temperature control knob Hot water outlet (Red) Multi functional safety valve Cord plug Wall mounting bracket Indicator light - heating Indicator light - power Cold water inlet (Blue) Technical Specifications* Model PSG15GL... - Page 4 Heating element SS 800 Glass lined Thermostat range 10 - 75°C Thermal cut out Pre set at 93°C Additional safety device Multi functional safety valve * Due to continuous improvements in product, specifications are subject to change without prior notice. Key features 1.
- Page 5 Generally indicates the heating of water and related temperature. Safety devices INALSA water heater is built - in with a lot of safety devices to ensure 100% safety at all times. The operation of these device are described below. a) Thermostat Capillary type thermostat;...
- Page 6 Installation a) Always use services of qualified plumber/electrician to install this unit. b) For easy installation and servicing, enough space should be provided around this unit (50mm from ceiling, 500 mm from sides & minimum 1.8m rom ground). c) Ensure following tools accessories are made available before installation of this unit (not provided by company).
- Page 7 Installation positions Mounting imensions (in mm) Model no. A PSG 15GL 324 G½ PSG 25GL 365 G½ Water connections Caution A. Do not connect the inlet directly to water lifting pump. B. Do not SWITCH ON water Heater without water filled in tank.
-
Page 8: Internal Wiring Diagram
Electrical connections 1. This unit is provided with all internal connections / wiring made in the factory itself. 2. The water heater is provided with supply cord. and a 3 pin plug top of 15 Amp. 3. Make sure that the electrical contact of 3 pins plug and switch is secure with proper earthing. 4. - Page 9 In this way you can have hot water always. Maintenance & cleaning To benefit from the highest standards of service and to ensure your guarantee remains in focus, please always contact INALSA approved dealer or INALSA Authorised service franchise. Always keep the inlet control valve open.
- Page 10 However get this done through a qualified technician/plumber only. Always get the water heater serviced once in a year from a INALSA authorized service representative. Use genuine spares when spares replacement is necessary.
-
Page 11: Troubleshooting Chart
Trouble Shooting Chart Trouble Problem Cause Remedy 1. The power - source plug Inspect whether it exist the no power or bad contacts. power and contact between the socket and plug must be good. Failure of 2. The interior wire indicator lighting damaged.
