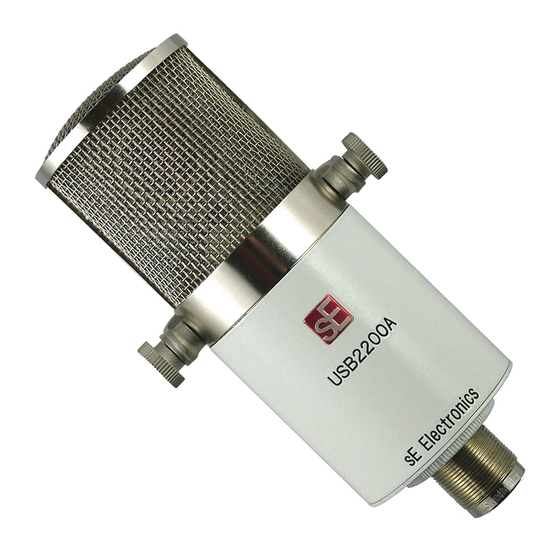

SE Electronics USB2200a Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USB2200a
Microphone Manual
Electronics

Advertisement

loading
Need help?

Need help?

Do you have a question about the USB2200a and is the answer not in the manual?

Questions and answers

Related Manuals for SE Electronics USB2200a

Summary of Contents for SE Electronics USB2200a

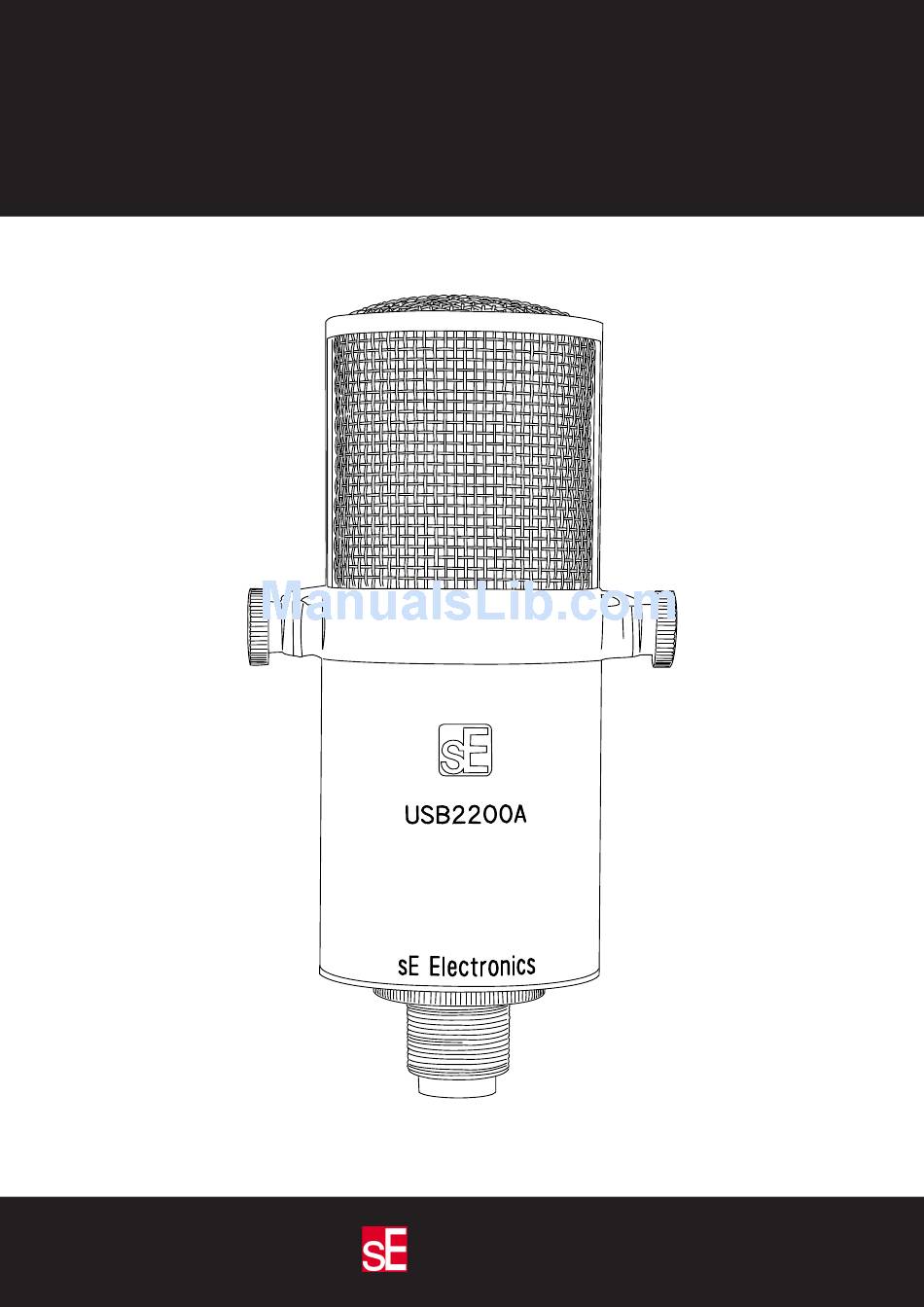

  • Page 1 USB2200a Microphone Manual Electronics...
  • Page 2 USB2200a Technical Manual...
  • Page 3 Connector: 3-pin * Note: The USB2200a will lock to 88.2 and 96 K clocks on most software, writing files as 16 bit and, with the automatic conversion (bit stuffing), 24 bit files. Therefore users who have sessions at different rates and want to use the mic, in most cases, can.

  • Page 4: Care And Maintenance

    In the case of the USB2200a this shock system is pre-attached to the mic itself in the form of a ‘C’ shaped cradle. When recording vocals at close range, you should use an external mesh pop screen to prevent low frequency thumps caused by air expelled from the mouth on certain syllables.

  • Page 5: Key Features

    The combination of the MAC/PC gain switch and the ability to further adjust the mic gain via the Mac and PC control panel allows the USB2200a to be applicable for a far wider range of pro applications than other USB microphones. To ensure the highest audio quality, the sE USB2200a uses extremely advanced, proprietary voltage conditioning technology to ensure that the noise and distortion performance is not compromised by the quality of the USB port power supply.
  • Page 6 IMPORTANT: The sE USB2200a is a cardioid or unidirectional microphone, so it is imperative that the sound being recorded faces into the side of the microphone bearing the SE Logo, not into the rear or end of the microphone.
  • Page 7 DAW only. You can then adjust the mix of what you hear within your DAW in the usual way. USB Port: Use the supplied USB cable to connect the sE USB2200a to the USB port of your computer. We recommend where possible that you connect your sE USB2200a directly to the computer rather than via a hub as the data bandwidth may be inadequate if other devices are operating at the same time.

  • Page 8: Usb Connection

    Where the OS and DAW software permits, and where you have a separate audio interface soundcard you wish to use for playback, you can simply select the sE USB2200a as the audio input source while still using your usual audio interface for monitoring. *If your DAW software only permits you to select the same device for audio input and output, then select the sE USB2200a and monitor via headphones plugged into your sE USB2200a while recording.
  • Page 9 Apple Macintosh machines may find the signal level too low if they use the P setting. Advanced Functions - Digital Gain Control: When using the USB2200a with a USB connection, there is the option of additional gain control. The gain range offered can extend the range of applications for the USB2200a to include more distant placements or softer instruments.
  • Page 10 PC Windows Audition/Cool Edit Pro To select the sE USB2200a as an output device in Audition/Cool Edit Pro, go to ‘Option’ , then ‘Choose Device Properties’ to reach the audio attributes window. Click on ‘Wave Out’ then choose sE USB2200a by clicking ‘Use this device’...
  • Page 11 Electronics www.seelectronics.com...
