User's Guide

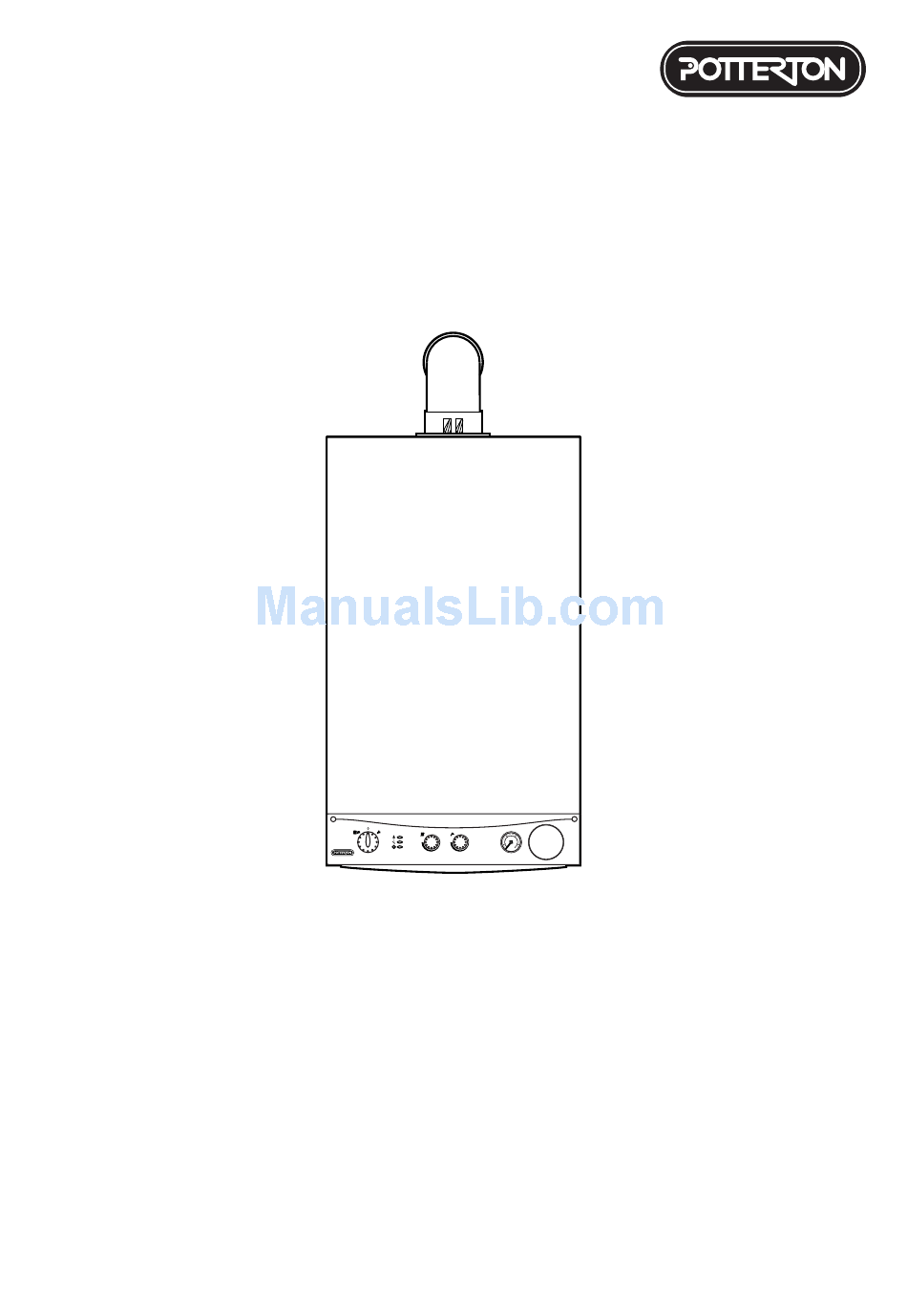

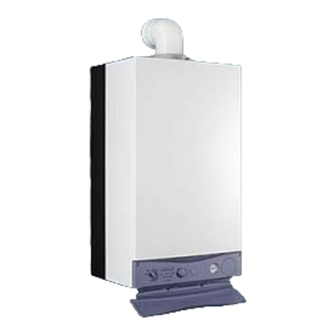

This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency) Regulations 1993 N
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0051.
Product/Production certified by:
Notified Body 0051.
For use in GB/IE only.
2
Reset
Burner On
Flame Failure
Power On
bar
Performa
24 Eco HE
o
3083" and is

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa 24 Eco HE and is the answer not in the manual?

Questions and answers

Related Manuals for Potterton Performa 24 Eco HE

Summary of Contents for Potterton Performa 24 Eco HE

  • Page 1 User’s Guide Performa 24 Eco HE Reset Burner On Flame Failure Power On This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083”...
  • Page 2 the nation’s favourite PLUMBING & HEATING SUPPLIES FREE SHIPPING SECURE PAYMENTS on all orders over £100 to mainland UK shop online with confidence FINANCE AVAILABLE PRICE MATCH spread the cost with low interest rates always get the best deals available we have H U G E R E D U C T I O N S...
  • Page 3 Natural Gas IMPORTANT - Installation, Commissioning, Service & Repair Potterton Performa 24 Eco HE This appliance must be installed in accordance with the G.C.N 47 393 11 manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance.
  • Page 4 In an Emergency If a water or gas leak occurs or is suspected, the boiler can be isolated at the inlet valves as follows; 1. Turn off the electrical supply and turn the selector switch on the facia box to the OFF position. 2.
  • Page 5 Introduction 1. Your Potterton Performa 24 Eco HE is a gas fired, room sealed, powered flue condensing combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light.
  • Page 6 Fault Indication 1. Your Potterton Performa 24 Eco HE has three neon indicators. The upper two function as boiler on and fault indicators. Burner On 2. Depending on the nature of the fault the upper two neons will illuminate, go off or flash.
  • Page 7 Temperature Control 1. Central Heating: The central heating hot water flow temperature can be adjusted between 30° C (± 5° C) minimum and 85° C (± 5° C) maximum. 2. Turn the control knob clockwise to increase the temperature (Fig. 8). 3.
  • Page 8 Central Heating System Pressure Pressure Gauge 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the pressure should be between 0.5 and 1.0 bar. During operation the pressure should not exceed 2.5 bar, and will normally be between 1.0 and 2.0 (Figs.
  • Page 9 20mm/5mm Min 450mm 5mm Min see *NOTE: Clearances around the Boiler (Figs. 15 & 16) 1. The minimum clear spaces needed around the boiler 200mm Min measured from the casing are as follows: 200mm Bottom 200mm Left side Right Side - 20mm/5mm Front (In Operation)
  • Page 10 1. Any repairs to the boiler will usually be the responsibility of the Installer during the guarantee period after which spare parts may be obtained through approved Potterton stockists if required. 2. Quote the appliance name, model number and where possible the part number when ordering spares.
  • Page 11 Legislation Potterton declare that no substances harmful to health are contained in the appliance or used during appliance manufacture. The appliance is suitable only for installation in GB Codes of Practice, most recent version should and IE and should be installed in accordance with...
  • Page 12 Notes Publication No. 5111812...
  • Page 13 5111812 - Iss. 3 Publication No. (04/2005) When contacting Baxi Potterton please have the General Enquiries (GB) following information to hand: 08706 060 780 Tel. Appliance Name Model Number Serial Number Technical (GB) 08706 049 049 A label giving these details is situated on the inner Tel.
