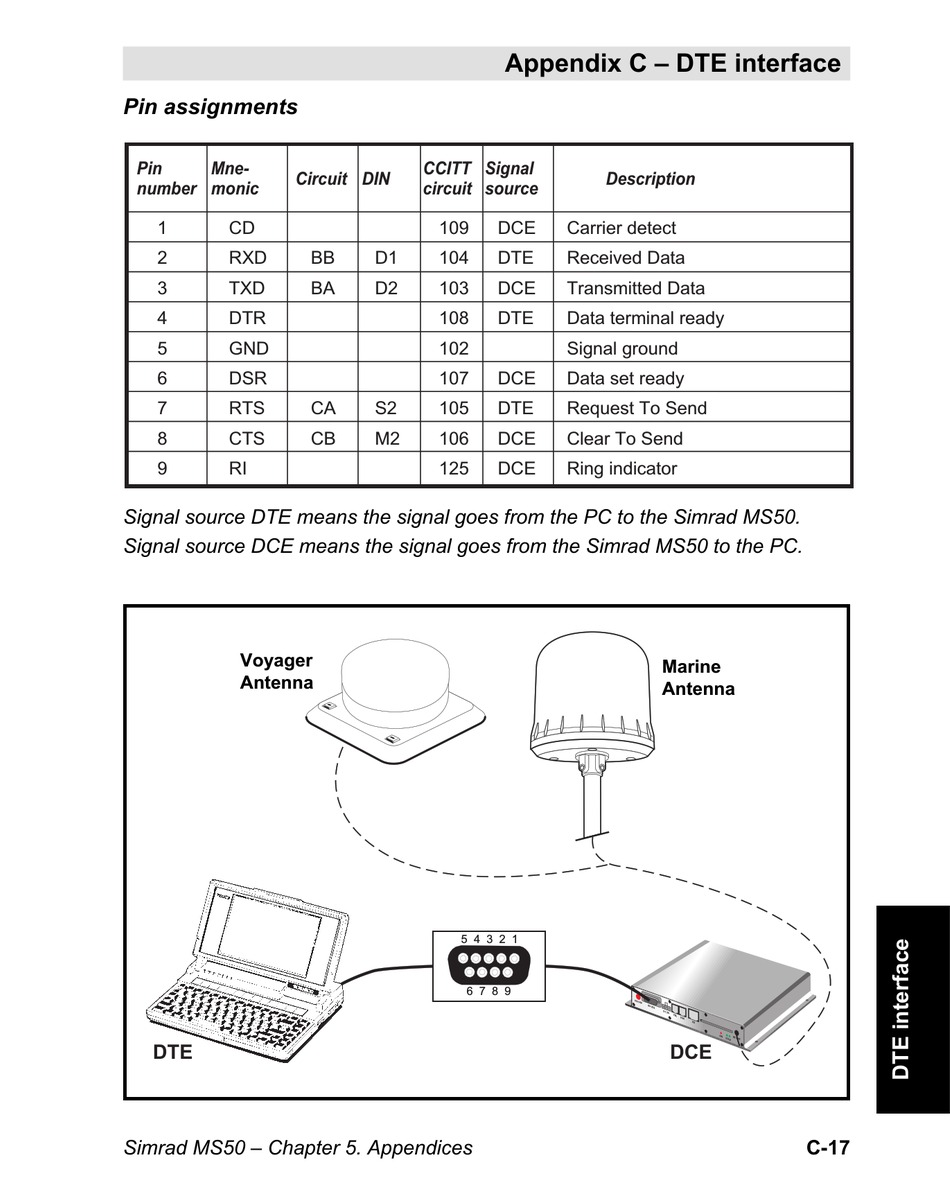

Pin assignments
Pin Mne-
Circuit DIN
number monic
1 CD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Signal source DTE means the signal goes from the PC to the Simrad MS50.
Signal source DCE means the signal goes from the Simrad MS50 to the PC.
WorldPhone
Voyager
Voyager
Antenna
DTE
Simrad MS50 – Chapter 5. Appendices
CCITT Signal
circuit source
109
BB D1 104
BA D2 103
108
102
107
CA S2 105
CB M2 106
125
5 4 3 2 1
6 7 8 9
Appendix C – DTE interface
Description
DCE Carrier detect
DTE Received Data
DCE Transmitted Data
DTE Data terminal ready
Signal ground
DCE Data set ready
DTE Request To Send
DCE Clear To Send
DCE Ring indicator
WorldPhone
Marine
Antenna
DCE
Marine
C-17
