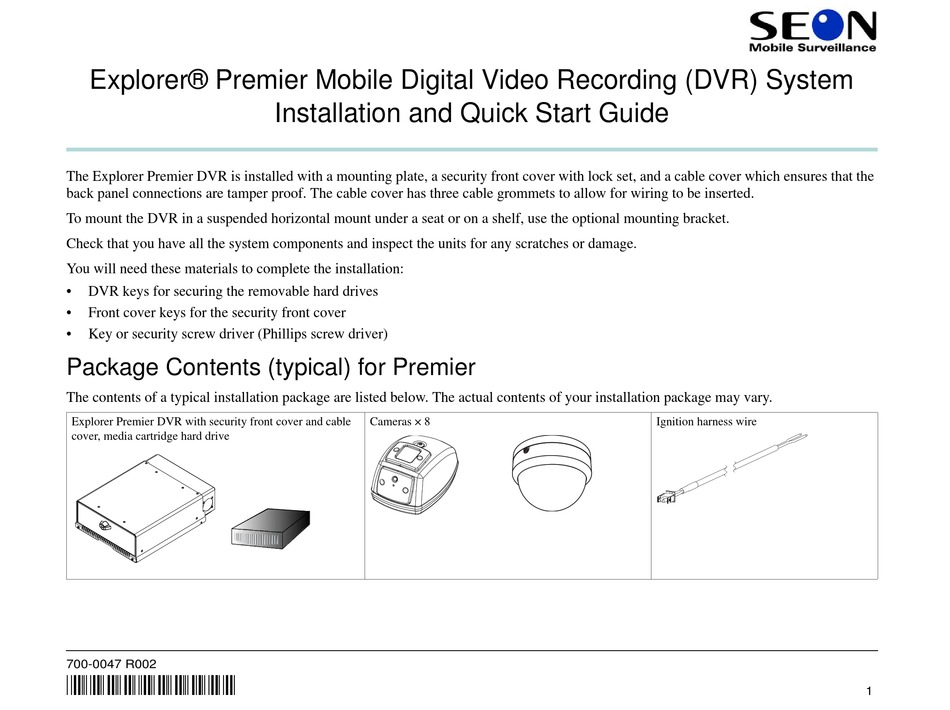

Explorer® Premier Mobile Digital Video Recording (DVR) System
The Explorer Premier DVR is installed with a mounting plate, a security front cover with lock set, and a cable cover which ensures that the
back panel connections are tamper proof. The cable cover has three cable grommets to allow for wiring to be inserted.
To mount the DVR in a suspended horizontal mount under a seat or on a shelf, use the optional mounting bracket.
Check that you have all the system components and inspect the units for any scratches or damage.
You will need these materials to complete the installation:
•
DVR keys for securing the removable hard drives
•
Front cover keys for the security front cover
•
Key or security screw driver (Phillips screw driver)
Package Contents (typical) for Premier
The contents of a typical installation package are listed below. The actual contents of your installation package may vary.
Explorer Premier DVR with security front cover and cable
cover, media cartridge hard drive
700-0047 R002
*700-0047*
Installation and Quick Start Guide
Cameras × 8
Ignition harness wire
1
Advertisement
Table of Contents
Related Manuals for Seon Mobile Surveillance Explorer Premier Mobile Digital Video Recording System
Summary of Contents for Seon Mobile Surveillance Explorer Premier Mobile Digital Video Recording System
- Page 1 Explorer® Premier Mobile Digital Video Recording (DVR) System Installation and Quick Start Guide The Explorer Premier DVR is installed with a mounting plate, a security front cover with lock set, and a cable cover which ensures that the back panel connections are tamper proof. The cable cover has three cable grommets to allow for wiring to be inserted. To mount the DVR in a suspended horizontal mount under a seat or on a shelf, use the optional mounting bracket.
- Page 2 Quick Installation Guide Power input harness with in-line fuses SA external microphone (optional) IR Illuminator (optional) Premier Plus components Smart-Link™ module for signal interfaces Smart-Link-to-DVR connection harness (identical Signal harness connectors) Diagnostic indicator/alarm button (extension wiring Speed cable Alarm input harness not shown) GPS receiver (optional) Inertia sensor (optional)
-
Page 3: Quick Installation Guide
Quick Installation Guide Explorer® Premier Typical Plus System Setup Peripherals Seon System Vehicle Electrical Interface Supports Eight Cameras AUDIO1 AUDIO2 Remote Microphone CAMERA1 CAMERA2 CAMERA3 CAMERA4 CAMERA5 CAMERA6 CAMERA7 CAMERA8 POWER SMART LINK™ CONTROL LAN2 LAN3 AUDIO OUT VIDEO OUT POWER1 POWER2 IR Illuminators... -
Page 4: Installation
Quick Installation Guide Installation The DVR typically ships with the security front cover and the cable cover on. Horizontal Installation with the Mounting Plate To install the Premier DVR: 1 Select an appropriate mounting location. For the dimensions and locations of the mounting holes, see Figure 11. 2 Unlock the door lock and remove the security front cover from the unit to access the front panel. - Page 5 Quick Installation Guide grommets on the cable cover allow the wiring to be inserted from different sides. The cable cover sits on two pins. See Figure 3. Pin × 2 Figure 3 Cable cover removed from DVR 5 Remove the necessary knockout (s), insert plugs and cable grommets. 6 Use the mounting plate to mark the desired position of the DVR and drill the 6 mounting holes.
- Page 6 Quick Installation Guide Figure 5 Sliding the DVR onto the mounting plate 9 Connect the necessary components. Attach the cable cover. 10 Fasten the two security Torx screws to the mounting plate. This secures the DVR onto the mounting plate. Figure 6 Attaching DVR to mounting plate with security Torx screws 700-0047 R002...
- Page 7 Quick Installation Guide 11 Figure 7 shows a completed installation with security front cover, cable cover and the mounting plate. Cable cover Door latch Locking front cover Figure 7 Explorer Premier DVR secured Horizontal Installation with the Mounting Bracket Use the mounting bracket with the mounting plate to install the Premier DVR in a suspended horizontal orientation only. 1 Fasten the mounting plate to the mounting bracket using the six screws provided.
-
Page 8: Installing The Cameras
Quick Installation Guide 2 or Install the mounting bracket in desired location and fasten the mounting plate with six screws to the bracket flanges. 3 Determine where the wiring and camera cables will enter the unit: on the left side, right side or back. 4 Install the DVR and make the necessary connections. -
Page 9: Installing The Smart-Link™ Module And Connecting The Constant And Switched Power Harness
Quick Installation Guide Installing the Smart-Link™ Module and Connecting the Constant and Switched Power Harness Important: The in-line automotive fuse holders consist of a black plastic piece with an attached cap. Pull the cap apart, install the fuse and snap the holder back together. -
Page 10: Hardware Installation Final Checklist
Quick Installation Guide duty, vandal-resistant switch with an green indicator ring around the switch button. The diagnostic indicator/alarm button has a weather- sealing gasket attached to prevent water penetration. The diagnostic indicator/alarm button is supplied with a 12" cable and connector. A 10-foot extension cable is provided as a standard accessory. -
Page 11: Inertia Sensor
Quick Installation Guide Recorder • Check for tight mounting of hardware. • Confirm that the cable grommet is properly installed. • Check that all connections are tight. System • Install the fuses. • Plug the video monitor into the DVR. •... -
Page 12: Physical Specifications
Quick Installation Guide Physical Specifications Important: Specifications are subject to change without notice. Explorer Premier DVR Figure 10 shows the physical specifications of the Premier. Table 2 shows the weight and material of the DVR. 321 mm 17 13 32 in 8 in 442 mm 315 mm... -
Page 13: Customer Service Contact Information
Quick Installation Guide Mounting Plate and Smart-Link™ Module 9 in 229 mm 9 in 229 mm 104 mm 9 in 229 mm 28 mm Figure 11 Mounting plate dimensions and Smart-Link module Table 3 Smart-Link physical specifications Height × Width × Depth 5.875"... - Page 14 Quick Installation Guide 700-0047 R002...
