MT2001USBi
MD/LD
1
2
3
5
12
9
15
16
25
Operating and Installation Guide
MD/LD
6
8
10
7
13
11
19
20
21
22
23
24
14
26
4
(1-6)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT2001USBi and is the answer not in the manual?

Questions and answers

Related Manuals for Mutant MT2001USBi

Summary of Contents for Mutant MT2001USBi

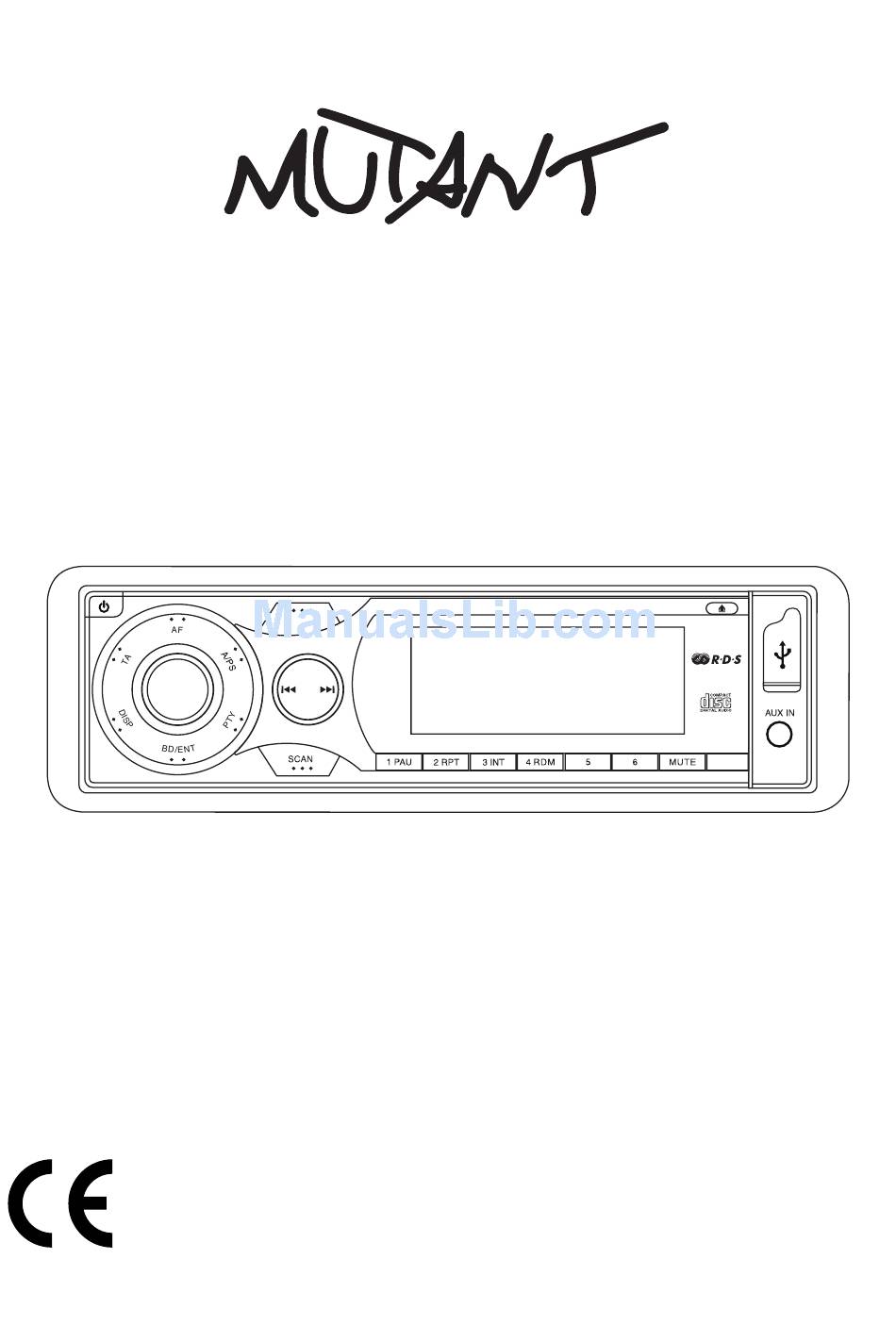

  • Page 1 MT2001USBi MD/LD Operating and Installation Guide MD/LD (1-6)

  • Page 2: Locations Of Controls

    LOCATIONS OF CONTROLS MD/LD MD/LD (1-6) . POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP 3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON /DSP 4. PRESET STATIONS (,2,3,4,5,6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) 6. ‘TA’ function (TRAFFIC ANNOUNCEMENT) MD/LD 7. ‘PTY’ function (PROGRAM TYPE) 8. DISPLAY BUTTON (DISP) 9. MODE/LOUDNESS BUTTON (MD/LD) 0. BAND/ENTER BUTTON (BD/ENT) . AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN CD TRACK/SEARCH BUTTON 2. AUTO SEEK SEARCH TUNING (A/PS) 3. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCAN) 4. MUTE BUTTON (MUTE) (1-6) 5. LCD DISPLAY 6. OPEN PANEL BUTTON ( 7. CD SLOT 8. CD EJECT BUTTON ( 9. PAUSE BUTTON 20. REPEAT BUTTON 2. INTRO BUTTON (Preview all Tracks)

  • Page 3: Installation Precautions

    INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. Mounting angle adjustment Adjust the mounting angle to less than 20°. MOUNTING EXAMPLE Installation in the dashboard Release screw and bracket 182mm 53mm Bend these claws, if necessary Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car. Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen.

  • Page 4: To Support The Unit

    1. UNIT TO SUPPORT THE UNIT 2. RELEASE CASE 3. DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT ISO CONNECTOR RCA Jack Line Out: Red (right) White (left) RCA Jack Line In: Red (right) White (left) CONNECTOR A...

  • Page 5: Power On/Off

    OPERATING INSTRUCTIONS 1. POWER ON/OFF ( By pressing this key, the unit is on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP) 3. VOLUME UP/DOWN Turning VOL knob (right/left) to adjust VOL/BAS/TRE/BAL/FAD. To select other functions, press the VOL knob shortly until the desired functions are shown on the display. Figure  shows how to control functions that are selected using the VOL knob. Fig.  Selection of sound control functions . VOL 2. SEL 3. BASS 4. TRE 5. BAL 6. FAD Increase or decrease the volume by turning VOL knob (right/left). These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER. 2 sec. IN VOL TA VOL Press and hold SEL to adjust INIT VOL /CT/TA VOL/EON ON/DSP INIT VOL: Initial Volume when the unit turns on.

  • Page 6: Display (Disp)

    5. ‘AF/REG’ function (ALTERNATIVE FREQUENCIES) When pressed momentarily, AF/REG switching mode is selected. When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When pressed long, it is activated as regional mode ON/OFF. – Regional mode ON: AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on, in LCD display. – Regional mode OFF The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented. 6. ‘TA’ function (TRAFFIC ANNOUNCEMENT) When pressed momentarily, it is activated as TA mode on or off When TA mode is on and traffic announcement is transmitted – When the unit in CD/MP3 mode, it will switch to radio mode temporarily. – If the volume level was under the threshold point, it will be raised to the threshold point.
  • Page 7 10. BAND BUTTON (BD) Each band is toggled cyclically by pressing this key FM---FM2---FM3--MW--MW2. 11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN (A) RADIO MODE When pressed momentarily, these keys are operated as SEEK tuning mode. When pressed longer than  sec., they are operated as MANUAL tuning mode. (B) CD/MP3 PLAYER MODE When pressed momentarily, they are operated as TRACK UP or TRACK DOWN mode. When pressed longer than  sec., they are operated as CUE or REVIEW mode. 12. AUTO SEEK SEARCH TUNING (A/PS) PS - By pressing shortly, the radio searches for each preset station. Each preset station will be played for 5 sec. AS - By pressing longer than  sec, the 6 strongest stations are stored in the correspond- ing preset memory number. When Automatic Scan operation is finish, the radio executes the preset scan. 13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCAN) Press SCN button to activate radio scan. The unit will search for every station and will play 5 seconds of each station found. To cancel SCAN, press the button once more.
  • Page 8 20. REPEAT BUTTON When this button is pressed, “RPT ON” indication is displayed and play of the selected track will be continually repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button again. 21. INTRO BUTTON (Preview all Tracks) When this button is pressed, “INT ON” indication is displayed and the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. 22. RANDOM BUTTON When this button is pressed, “RDM ON” indication is displayed and each track of the disc is played in random instead of normal progression. To cancel RANDOM mode, press ‘RDM’ button (22) again. 23, 24. FOLDER DOWN/UP (In case of MP3 files) M5: Folder down / M6: Folder up HOW TO SELECT MP3 FILES 1.
  • Page 9 You can connect your iPOD portable device and play songs from the car stereo. Only the audio feature is supported, other features of iPOD is not supported. An additional cable is required, Part number PC7-HU, Available from Motor World Branches and most Mutant stockists. Playing Songs in iPOD You now can play songs in iPOD once the cable is properly connected.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS CD/MP3 PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency range 87.5-08 MHz Intermediate frequency 0.7 MHz Sensitivity 2.8 µV Stereo separation 30 dB Signal to noise ratio 50 dB Channel step 50 kHz TUNER (MW) Frequency range 522-620 KHz Intermediate frequency 450 KHz Usable sensitivity 32 dB LINE-OUT Output 5V (max.) Impedance 0k Ohm GENERAL Power Supply 2V DC (0.8-5.6V allowable) Speaker impedance 4 or 8 ohm Output power...
