Ansel Vandal P/T User Manual

H.264 vandal p/t mega-pixel / multi-profile network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H.264 Vandal P/T
Mega-Pixel / Multi-Profile

Network Camera

User's Manual
Firmware Version 5.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vandal P/T and is the answer not in the manual?

Questions and answers

Related Manuals for Ansel Vandal P/T

Summary of Contents for Ansel Vandal P/T

  • Page 1: Network Camera

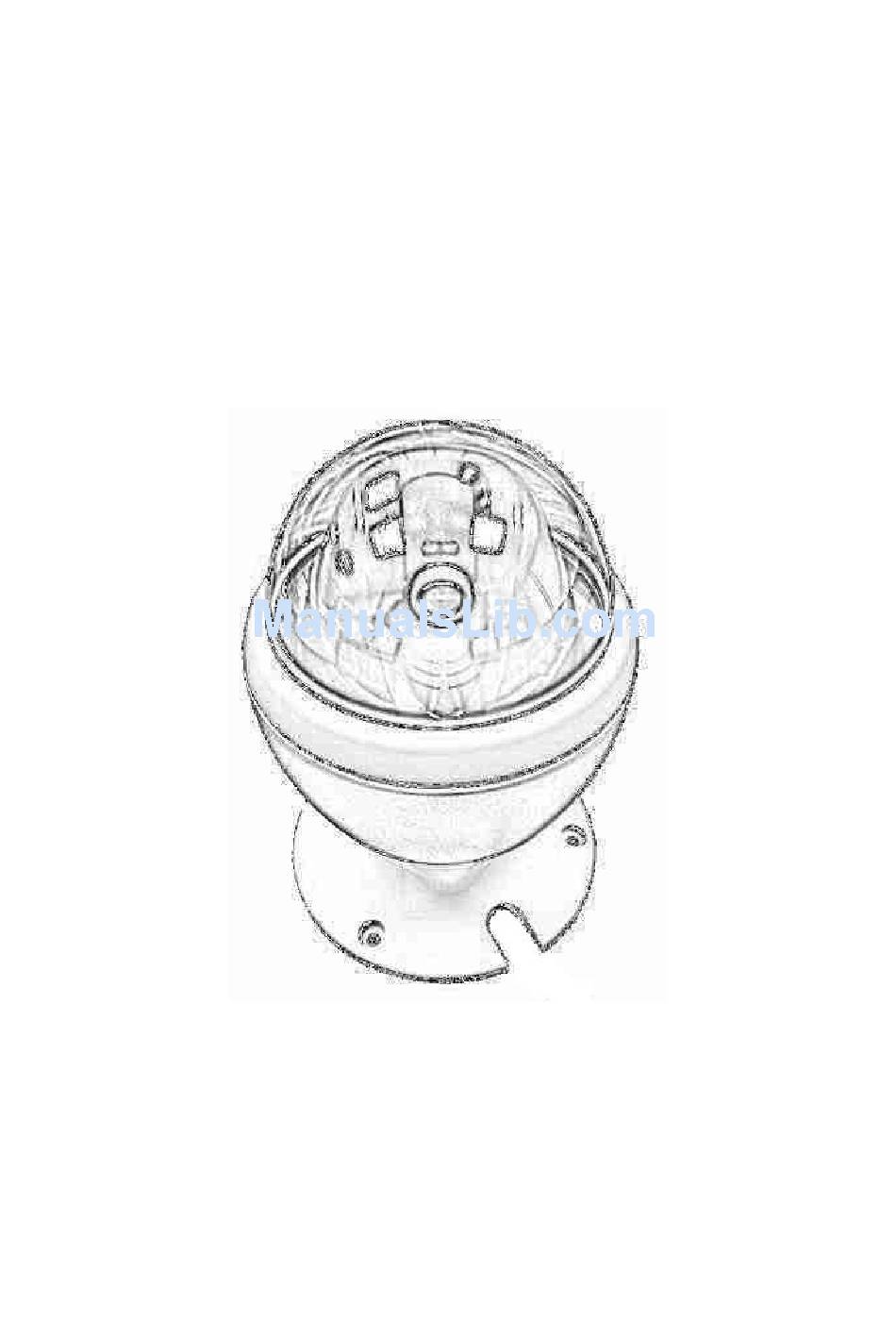

    H.264 Vandal P/T Mega-Pixel / Multi-Profile Network Camera User’s Manual Firmware Version 5.0.0...
  • Page 2 Network Camera User’s Guide Owner's Record The model and serial numbers are located at the bottom of device. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your dealer regarding this product. Model No. ____________________ Serial No.
  • Page 3 Network Camera User’s Guide Declaration of Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Network Camera User’s Guide Table of Contents Overview ..........................6 Introduction......................... 6 Features ........................6 Minimum System Requirements................. 7 Package Contents........................ 8 Connections......................... 9 Mounting the Camera ....................... 11 Install the Camera in LAN ....................11 Preparation ........................12 Search and Set up by IPWizard II................12 Search........................
  • Page 5 Network Camera User’s Guide Camera: Adjust Camera parameters..............37 Picture ....................... 37 Preset Setting .................... 38 Tour Setting....................39 System: Configure and maintain system............41 System....................... 41 Date & Time....................42 Maintenance....................44 Video: Configure profile ................... 47 Common....................47 H264......................

  • Page 6: Overview

    Network Camera User’s Guide Overview This user’s guide explains how to operate this camera from a computer. User should read this manual completely and carefully before you operate the device. Introduction This camera is an inexpensive and fully scalable surveillance device. Because the Network Cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.

  • Page 7: Minimum System Requirements

    Network Camera User’s Guide Two-way audio Intelligent motion detection up to 10 zones Go to preset once motion triggered Image transmission using an FTP or e-mail for event DDNS and PPPoE Multi-channel control software for surveillance application On-line firmware upgrade 802.3af PoE support (wired model only) Minimum System Requirements Microsoft Internet Explorer 6.0 or later...

  • Page 8: Package Contents

    Network Camera User’s Guide Package Contents User can find the following items in the package: Item Descriptions 1. This Unit is the main element of the product. 2. Screws x 3 3. Power Adapter dedicates 12V DC electric power output to Network Camera.

  • Page 9: Connections

    Network Camera User’s Guide Connections DI/DO MIC in Line out 12V DC in RJ45 Factory Default Reset 1. RJ45 LAN socket: Connect to PC or Hub/Switch. For connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically.
  • Page 10 Network Camera User’s Guide 12VDC Brown/White DC 12V (50mA maximum) Blue/White Purple/White Do not connect Gray Do not connect Green/White Digital signal input Orange/White Digital signal output 3. Factory Default Reset This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state.

  • Page 11: Mounting The Camera

    Network Camera User’s Guide Mounting the Camera Ceiling Mount Fix the camera to ceiling with the three supplied screws Fixed it by Screws Install the Camera in LAN 1. Plug an Ethernet cable into the Camera Connect an Ethernet cable to the LAN socket and attach it into the network. 2.

  • Page 12: Preparation

    Network Camera User’s Guide Preparation Search and Set up by IPWizard II When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera’s IP address and set up related parameter in a Camera.

  • Page 13: View

    Network Camera User’s Guide View If IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Then you could see the video from camera directly. Furthermore you could double click the left button of mouse to link to the network device by browser.

  • Page 14: Lan

    Network Camera User’s Guide In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below. You could modify the relative settings of the selected device. Click “<<” button will quit the LAN setting procedure and click “>>”...

  • Page 15: Wireless

    Network Camera User’s Guide In case, you do not want to change username and/or password, then just click “Submit” button to perform your setting accordingly. Click “<<” button will go back to previous page. If you like to change username and/or password of the device, just click the check button. Then, the related fields will show up as below.

  • Page 16: Using Upnp Of Windows Xp Or Vista

    Network Camera User’s Guide ® Using UPnP of Windows XP or Vista UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP or Vista, of your PC is UPnP enabled, the Network Camera will be very easy to be found.

  • Page 17: Install The Device Behind A Nat Router

    Network Camera User’s Guide Install the Device behind a NAT Router Once installed, the device is accessible on your LAN. To access the device from the Internet you must configure your broadband router to allow incoming data traffic to the device.

  • Page 18: Access The Device From The Internet Explorer For The First Time

    Network Camera User’s Guide Access the device from the Internet Explorer for the first time Start the web browser on the computer and type the IP address of the Camera you want to monitor as below: The Login Window of the Camera is prompted: Type in your login name and password under “USERNAME”...

  • Page 19: Logging In As An User

    Network Camera User’s Guide According your browser’s security setting, the IE Web Page may prompt the “Security Warning” window. If so, select “Yes” to install and run the ActiveX control into your PC. Otherwise, the system will load the ActiveX silently. After the ActiveX control was installed and ran, the first image will be displayed.

  • Page 20: Operating The Network Camera

    Network Camera User’s Guide Operating the Network Camera Start-up screen will be as follow no matter an ordinary users or an administrator. ActiveX Video Control Profile Streaming Protocol Language Setting Menu Control 2-Way Monitor Image Audio Section Monitor Image Section The image shot by the device is shown here.

  • Page 21: Streaming Protocol

    Network Camera User’s Guide Streaming Protocol User can select proper streaming protocol according to networking environment. Language The device could provide multiple languages to meet customer’s requirement. 2-Way Audio The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below.

  • Page 22: Activex Control

    Network Camera User’s Guide Hide PTZ control: Click the icon will hide the PTZ control function. Camera direction: Control camera up/down/left/right and home position. Camera speed: Choose the speed of Pan and Tilt. Preset: Add/Update the preset positions or go to one of these positions. Tour: Select one of the camera tours.

  • Page 23: Digital Zoom

    Network Camera User’s Guide Digital Zoom Click Digital Zoom to active this function as above. User can drag or scale the box over the video to adjust zoom ratio and position. Record 23/90...

  • Page 24: Snapshot

    Network Camera User’s Guide Click Record to activate this function. Press Record button to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue.

  • Page 25: Voice

    Network Camera User’s Guide If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools. Voice Click Volume to activate this function. There are two control bars for speaker and microphone volume respectively.

  • Page 26: About

    Network Camera User’s Guide About Click About to show this ActiveX information. 26/90...

  • Page 27: Administrating The Device

    Network Camera User’s Guide Administrating the Device System Setting This function is only available for user logged into Camera as administrator. Click on each menu name to display its setting page. Item Action Network Configure Network settings such as DHCP, DDNS, 3GPP, PPPoE and UPnP Camera Adjust camera parameters, day &...
  • Page 28 Network Camera User’s Guide MAC address: Displays the Ethernet MAC address of the device. Note that user can not change it. Obtain an IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment.

  • Page 29: Ddns Service

    Network Camera User’s Guide This port is very useful for Intranet usage. The second HTTP port is changeable. Users could assign the second port number of http protocol, and the WAN users should follow the port number to login. If the http port is not assigned as 80, users have to add the port number in back of IP address.

  • Page 30: Pppoe

    Network Camera User’s Guide DDNS: To enable or disable the DDNS service here. Server name: Choose the built-in DDNS server. DDNSHost: The domain name is applied of this device. User name: The user name is used to log into DDNS. Password: The password is used to log into DDNS.
  • Page 31 Network Camera User’s Guide The device can directly connect to the xDSL, however, it should be setup on a LAN environment to program the PPPoE information first, and then connect to the xDSL modem. Power on again, then the device will dial on to the ISP connect to the WAN through the xDSL modem.

  • Page 32: Streaming

    Network Camera User’s Guide Streaming RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data.
  • Page 33 Network Camera User’s Guide device is an UPnP enabled Video Server. If your operating system is UPnP enabled, the device will automatically be detected and a new icon will be added to “My Network Places.” If you do not want to use the UPnP functionality, it can be disabled. In addition, this device also provides UPnP IGD function for NAT traversal easily.

  • Page 34: Ip Filter

    Network Camera User’s Guide IP Filter You can enter different user’s IP address which are allowing enter or denying by the device. IP Filter: To enable or disable the IP filter function here. IP Filter Policy: Choose the filter policy where is denying or allowing. IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled.
  • Page 35 Network Camera User’s Guide Type the subject/title of the E-mail. TCP Notification: If enable this function, then the “TCP Server“, “TCP Port”, and “Message” fields need to be filled. TCP Server: Type the server name or the IP address of the TCP server. TCP Port: Set port number of TCP server.
  • Page 36 Network Camera User’s Guide HTTP Login name: Type the user name for the HTTP server. HTTP Login Password: Type the password for the HTTP server. Proxy Address: Type the server name or the IP address of the HTTP Proxy. Proxy Port: Set port number of Proxy.

  • Page 37: Camera: Adjust Camera Parameters

    Network Camera User’s Guide Camera : Adjust Camera parameters Use this menu to set the functions of the camera parameters of the device. Picture Rotation: Turn the “Mirror” and “Vertical Flip” On or OFF. The image will be overturned as below. 37/90...

  • Page 38: Preset Setting

    Network Camera User’s Guide White Balance: Auto: will adjust the white balance automatically. Hold: will hold the white balance. Exposure Control: Auto: will adjust the internal gain automatically. Hold: will hold the internal gain. Color Level: Large value will be colorful. Brightness: Large value will brighten camera.

  • Page 39: Tour Setting

    Network Camera User’s Guide Tour Setting Up to 128 positions can be preset, and the camera can be programming to move to the preset position sequentially. Tour Name: The group name of the sequence of camera tour. The maximum number of camera tour is 16.
  • Page 40 Network Camera User’s Guide Running: Enable or disable this camera tour. Preset: Set the sequence of the tour. Maximum 16 points can be assigned. The selected preset position is added in the Sequence list from 1 to 16. Wait Time: Type a period of time during which the camera is to stay at each preset point, between 0 to 36000 seconds.

  • Page 41: System: Configure And Maintain System

    Network Camera User’s Guide System : Configure and maintain system Use this menu to perform the principal settings of the device. System DIPS (Dynamic IP Service): To enable or disable the DIPS® (Dynamic IP Service) function. Device ID (for DIPS): It’s a unique number of each device for identification and this ID is used for DIPS.

  • Page 42: Date & Time

    Network Camera User’s Guide Enter your Device Number and press “OK” button. Then, a new web page will pop up and link to your device accordingly. You will see that DIPS is a much easier service than DDNS. Device Title: You can enter the name of this unit here.
  • Page 43 Network Camera User’s Guide Displays the date and time of the device. PC Time: Displays the date and time of the connected PC. Adjust: - Synchronize with PC: Click this option to enable time synchronization with PC time. - Manual setting: Click this option to set time and date manually.

  • Page 44: Maintenance

    Network Camera User’s Guide Maintenance Hard Factory Default (Include the network setting): Recall the device hard factory default settings. Note that click this button will reset all device’s parameters to the factory settings (including the IP address). Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values.
  • Page 45 Network Camera User’s Guide Firmware Upgrade: The device supports new firmware upgrade (the software that controls the operation in the device). Please contact your dealer for the latest version if necessary. Download the latest firmware file from our website or your dealer. Unzip this firmware file to binary file and store it into your PC.
  • Page 46 Network Camera User’s Guide Warning!!! The download firmware procedure can not be interrupted. If the power and/or network connection are broken during the download procedure, it might possibly cause serious damage to the device. Strongly suggest that DO NOT upgrade firmware via Wireless LAN due to high error rate possibly and don't allow any other clients to access this unit during updating procedure.

  • Page 47: Video: Configure Profile

    Network Camera User’s Guide Video : Configure profile This device provides 2 modes of video profile. The first one is Mega-pixel mode which supports video resolution up to Mega-pixel. However the maximum frame rate of this mode is up to 15fps only. The second one is VGA mode which supports video resolution up to VGA but frame rate can be up to 30fps.

  • Page 48: Mpeg4

    Network Camera User’s Guide It’s H.264 encoder mode in this profile. Resolution: There are four resolutions in this profile: SXGA, VGA, QVGA and QQVGA. Rate Control: Defines the rate control method of this profile. There are two options: Constant Bit Rate (CBR) or Variable Bit Rate (VBR).

  • Page 49: Mjpeg

    Network Camera User’s Guide It’s MPEG4 encoder mode in this profile. Resolution: There are three resolutions in this profile: VGA, QVGA and QQVGA. Rate Control: Defines the rate control method of this profile. There are two options: Constant Bit Rate (CBR) or Variable Bit Rate (VBR).
  • Page 50 Network Camera User’s Guide It’s MJPEG mode in this profile. Resolution: There are four resolutions in this profile: SXGA, VGA, QVGA and QQVGA. Rate Control: The quality level is between 1 and 100. The higher value can reach the better quality but of course will consume higher bandwidth.

  • Page 51: Audio: Audio Parameters

    Network Camera User’s Guide Audio : Audio parameters Audio: To enable or disable audio function Audio Mode: To select Simplex or Full duplex (2-way audio) mode Input Gain: To adjust gain of input audio Output Gain: To adjust gain of output audio 51/90...

  • Page 52: User: Manage User Name, Password And Login Privilege

    Network Camera User’s Guide User : Manage user name, password and login privilege Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer. Viewer login: Select “Anonymous” to allow any one viewing the video once connected. Otherwise, only users in database can view the video after login.

  • Page 53: E-Mail: Setup E-Mail Configuration

    Network Camera User’s Guide E-Mail : Setup E-Mail configuration You may setup SMTP mail parameters for further operation of Event Schedule. That’s, if users want to send the alarm message out, it will need to configure parameters here and also add at least one event schedule to enable event triggering. SMTP Server: Type the SMTP server name or the IP address of the SMTP server.
  • Page 54 Network Camera User’s Guide E-mail From: Type the sender’s E-mail address. This address is used for reply e-mails. E-mail Subject: Type the subject/title of the e-mail. 54/90...

  • Page 55: Object Detection: Setup Object Detection

    Network Camera User’s Guide Object detection : Setup Object detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. Add and Del: To add or delete the motion windows. User can specify up to 4 Included and/or Excluded windows to monitor the video captured by this device.

  • Page 56: Event Server: Setup Ftp/Tcp/Http/Samba Server Configuration

    Network Camera User’s Guide Event Server : Setup FTP/TCP/HTTP/SAMBA server configuration FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 57: Tcp Server

    Network Camera User’s Guide FTP Path: Set working directory path of FTP server. FTP Passive Mode: Select passive or active mode connecting to FTP server. TCP Server In addition to send video file to FTP server, the device also can send event message to specified TCP server.
  • Page 58 Network Camera User’s Guide Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. URL: Type the server name or the IP address of the HTTP server. Test: Check the HTTP server whether it is available or not. HTTP Login name: Type the user name for the HTTP server.

  • Page 59: Samba Server

    Network Camera User’s Guide SAMBA Server The device also can send video stream to specified SAMBA server. Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server.

  • Page 60: Event Schedule: Configure The Event Schedule

    Network Camera User’s Guide Event Schedule : Configure the event schedule Setting This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened.
  • Page 61 Network Camera User’s Guide Example 1: Send file to FTP server by motion triggered always: Select event trigger Enable time: start from 00:00 to 24:00 every day Trigger by: Motion Area (Added in Object Detection page) Action : Send FTP (Add in Event Server -> FTP Server page) Example 2: Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00...
  • Page 62 Network Camera User’s Guide Example 3: Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. Type: Select schedule trigger and interval is 10-minute. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hous.

  • Page 63: Record

    Network Camera User’s Guide Record User can choose the type of record file for event or schedule application. Record File Type: Choose AVI or JPEG file format. Record File Prefix: Define the prefix of recorded filename. JPEG Picture Numbers: Define the picture numbers of JPEG to be sent out. 63/90...

  • Page 64: Appendix A: Alarm I/O Connector

    Network Camera User’s Guide Appendix A: Alarm I/O Connector Some features of the Camera can be activated by the external sensor that senses physical changes in the area Camera is monitoring. These changes can include intrusion detection or certain physical change in the monitored area. For examples, the external sensor can be a door switch or an infrared motion detector.
  • Page 65 Network Camera User’s Guide Explanation of External I/O Circuit Diagram: CAUTION! • THE LOW VOLTAGE/CURRENT CIRCUITS AND HIGH VOLTAGE/ CURRENT CIRCUITS NETWORK CAMERA CIRCUIT. QUALIFIED ELECTRICIAN SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING COULD DAMAGE NWTWORK CAMERA. YOU COULD RECEIVE THE FATAL ELECTRIC SHOCK.

  • Page 66: Appendix B: Troubleshooting & Frequently Asked Questions

    Network Camera User’s Guide Appendix B: Troubleshooting & Frequently Asked Questions Question Answer or Resolution Features The video and audio The device utilizes H.264, MPEG4 and JPEG triple codec is adopted in the compression to providing high quality images. Where H.264 device.
  • Page 67 Network Camera User’s Guide holding down more than 3 seconds on the device. 2. Reconfigure the device. Forgot the IP address of Check IP address of device by using the IPWizard II program the device. or by UPnP discovery. IPWizard II program •...
  • Page 68 Network Camera User’s Guide on the LAN. • Make sure the http port used by the Network Camera, default=80, is forward to the Network Camera’s private IP address. • The port number assigned in your Network Camera might not be available via Internet. Check your ISP for available port.
  • Page 69 Network Camera User’s Guide but not externally. Internet firewall with your system or network administrator. The firewall may need to have some settings changed in order for the device to be accessible outside your LAN. • Make sure that the device isn’t conflicting with any other web server running on your LAN.
  • Page 70 Network Camera User’s Guide Image flickers. • Wrong power line frequency makes images flicker. Make sure the 50 or 60Hz format of your device. • If the object is dark, the image will flicker. Make the condition around the Camera brighter. The video images might be noisy if the device is located in a Noisy images occur.

  • Page 71: Appendix C: Ping Ip Address

    Network Camera User’s Guide Appendix C: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm the device installed or if the IP address conflicts with any other devices over the network.

  • Page 72: Appendix D: Bandwidth Estimation

    Network Camera User’s Guide Appendix D: Bandwidth Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your device.

  • Page 73: Appendix E: Specifications

    Network Camera User’s Guide Appendix E: Specifications Camera Image Device 1.3 Mega-pixel image sensor Effective Pixels 1280 x 1024 pixels Sensitivity 1.0V/lux-sec (550nm) Signal to Noise 44dB Lens f:4.3mm / F:1.8 Pan & Tilt 355° Pan Degree Tilt Degree -10~90° 180°/ second (max) Manual Pan Degree Manual Tilt Degree...
  • Page 74 Network Camera User’s Guide Security Password protection, IP address filtering, user access log 20 simultaneous unicast users Users Unlimited users using multicast 10/100M auto negotiation Ethernet System Integration Application Open API for software integration Programming Interface Alarm Triggers Intelligent video motion detection and external input Motion Detection 10-zone video motion detection File upload via FTP, SAMBA or email...

  • Page 75: Appendix F: Configure Port Forwarding Manually

    Network Camera User’s Guide Appendix F: Configure Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup.
  • Page 76 Network Camera User’s Guide Your WAN IP Address will be listed here. Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.
  • Page 77 Network Camera User’s Guide If you are using the default camera port settings, enter 80 into the Public and • Private Port section, click Apply. Scheduling should be set to Always so that the camera images can be accessed • at any time.

  • Page 78: Appendix G: Ddns Application

    Network Camera User’s Guide Appendix G: DDNS Application 1. Preface If you have a Cable modem or xDSL, this is a great way to host your own Networked Device or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc).
  • Page 79 Network Camera User’s Guide (3). After the columns show up at the left side, click “Create Account”. (4). Fill the application agreement and necessary information. a. Username b. E-mail address and confirmation c. Password and confirmation 79/90...
  • Page 80 Network Camera User’s Guide d. Submit all the input information and finish creating an account Click these two options 80/90...
  • Page 81 Network Camera User’s Guide (5). Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied. Then DDNS you applied activated. Click to confirm (6).
  • Page 82 Network Camera User’s Guide Input your account (7). If the correct username and password are input, you can see the following picture at the top-right of the login page. (8). Click the “Services”. (9). Click the “ Dynamic DNS ”. 82/90...
  • Page 83 Network Camera User’s Guide (10). Click the “Get Started”. (11). We could create a domain name without any charge at this step. First, we input the host name. (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) The 3 step is to click “Offline Hostname”...
  • Page 84 Network Camera User’s Guide 4. Setup the DDNS and PPPoE of Networked Device At last, users have to enter the web page of Networked Device and setup the necessary information of DDNS and PPPoE after the application of DDNS service. Please check the user manual to access the DDNS and PPPoE pages.

  • Page 85: Appendix H: Power Line Frequency

    Network Camera User’s Guide Appendix H: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that used in Argentina 220V 50 Hz Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.

  • Page 86: Appendix I: 3Gpp

    Network Camera User’s Guide Appendix I: 3GPP To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Note that to use the 3GPP function, it strongly recommends to install the Networked Device with a public and fixed IP address without any firewall protection.

  • Page 87: Appendix J: Enable Upnp Of Windows Xp

    Network Camera User’s Guide Appendix J: Enable UPnP of Windows XP Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP. Go to Start > Settings. Click Control Panel 87/90...
  • Page 88 Network Camera User’s Guide Click Add or Remove Programs Click Add/Remove Windows Components The following screen will appear: Select Networking Services 88/90...
  • Page 89 Network Camera User’s Guide Click Details Select Universal Plug and Play Click Ok 89/90...
  • Page 90 Network Camera User’s Guide Click Next Please wait while Setup configures the components. Click Finish 90/90...
