Sanan SA-2107A User Manual

4/8-ch embedded digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

4 / 8-channel Embedded Digital Video Recorder
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-2107A and is the answer not in the manual?

Questions and answers

Related Manuals for Sanan SA-2107A

Summary of Contents for Sanan SA-2107A

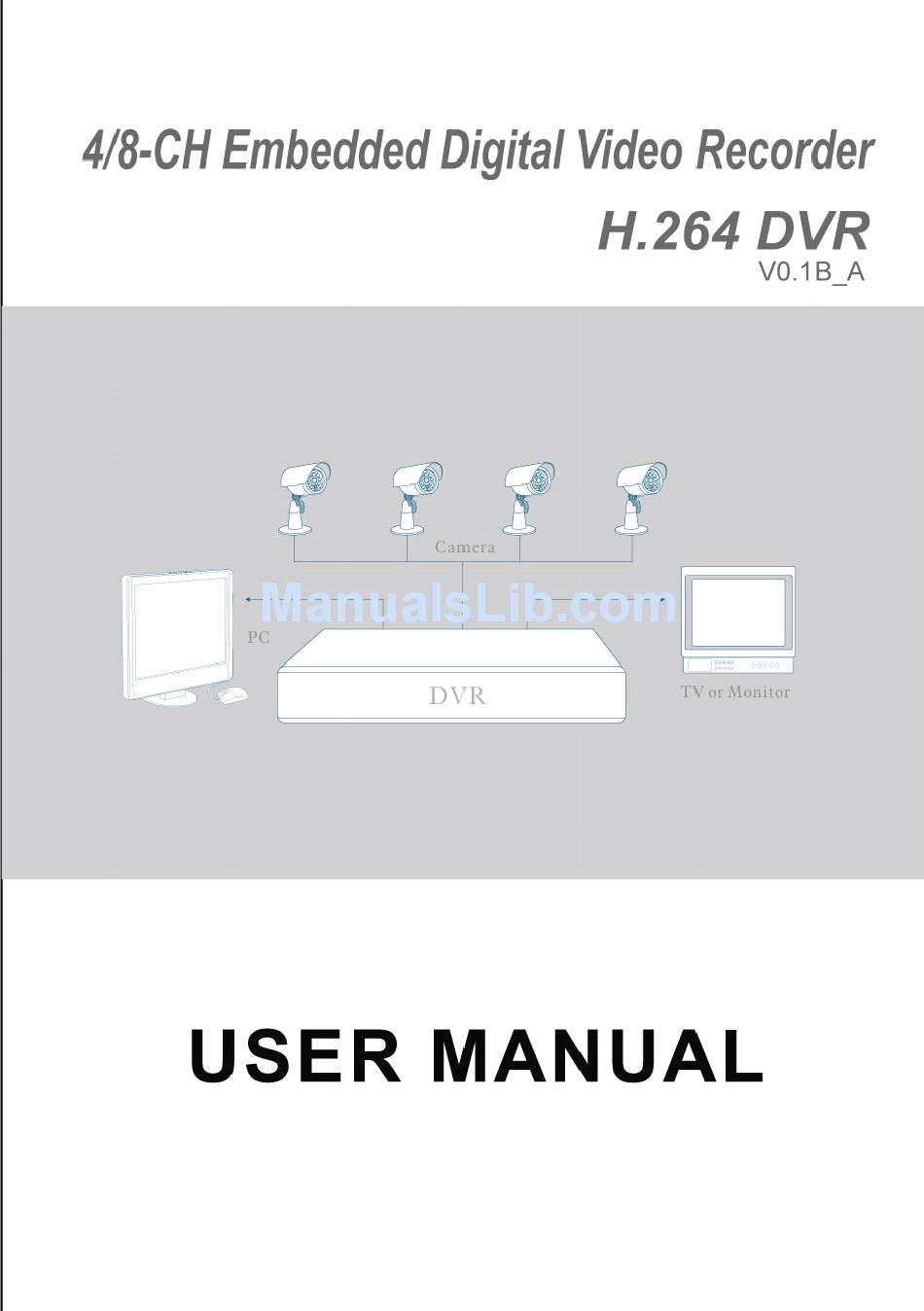

  • Page 1 4 / 8-channel Embedded Digital Video Recorder...

  • Page 2: Table Of Contents

    4/8-channel H.264 DVR User Manual Notes ..............................3 Chapter Chapter Chapter 1 1 1 1 Overview Overview Overview Chapter Overview ........................3 1.1 Introduction ........................3 1.2 Packaging and accessories ..................3 1.3 Main features ........................4 1.4 Technical parameters ....................4 1.5 Product appearance and interface definition ............
  • Page 3 4/8-channel H.264 DVR User Manual 3.6.5 VIDEO/AUDIO ....................18 3.7 Advanced ........................18 3.7.1 Alarm ........................18 3.7.2 System info ....................... 20 3.7.3 Motion detection ....................20 3.7.4 Mobile phone monitoring ................22 3.7.5 System maintenance ..................22 3.7.6 PTZ ........................23 3.7.7 Network setup ....................

  • Page 4: Introduction

    4/8-channel H.264 DVR User Manual Notes Notes Notes Notes � The power supply of this DVR is provided through DC12V3A adapter, please check the power outlet before installation and ensure it can meet the requirements of adaptor; � Do not place the DVR at a place subject to rain or moisture; �...

  • Page 5: Main Features

    4/8-channel H.264 DVR User Manual ◎ One piece of HDD power cable (already installed in the host) ◎ One piece of CD. Main Main features features 1.3 Main Main features features ◎ Standard H.264 video compression format ◎ 16-bit true-color semi-transparent graphical menu interface, menu options tip ◎...

  • Page 6: Front Panel

    4/8-channel H.264 DVR User Manual Recording diaplay Special player,support AVI file format conversion JPEG capture function Support,3M Pixels@10fps Email alarm Send pictures to the designated Email Support PTZ protocol PELCO-D,PELCO-P Support 1 SATA HDD，capacity to 2T HDD remain time hint Support Network and protocol 1 RJ-45 10/100M via Ethernet，support TCP/IP、...

  • Page 7: Back Panel

    4/8-channel H.264 DVR User Manual Front panel 2 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ ⑨ Definition Definition Definition Power switch Mute PTZ control Rewind Video search Exit/Return DISPLAY:Display mode Play ALARM:Alarm indicator MENU:Main menu Pause LINK:Network connection indicator 13 up, down, left , right and Confirm USB PORT: Used for connecting Foward...

  • Page 8: Remote Controller

    4/8-channel H.264 DVR User Manual Remote Remote controller controller 1.6 Remote Remote controller controller For reference only, the real product shall prevail. Functional definition Spare keys Spare keys Channel selection; number keys PTZ Control Single and multi-split screen Quit shortcut menu Shortcut menu Direction buttons: Next, on the left and right...

  • Page 9: Mouse

    4/8-channel H.264 DVR User Manual Mouse Mouse 1.7 Mouse Mouse This equipment supports USB1.1 mouse, so the user can operate with mouse (mouse operation is as same as WINDOWS operating setting) to realize menu functions. It is just ok to insert the mouse with USB interface to the mouse interface in this equipment. Mouse Function action...

  • Page 10: Hdd Installation

    4/8-channel H.264 DVR User Manual Chapter Chapter 2 2 2 2 Quick Quick installation Chapter Chapter Quick Quick installation installation installation Installation 2.1 HDD HDD Installation Installation Installation Harddisk installation must be carried out by technicians to avoid damage to the equipment and harddisk.

  • Page 11: Shortcut Menu

    4/8-channel H.264 DVR User Manual Equipment Equipment code: code: Equipment Equipment code: code: it is just ok to enter equipment code “000000” displayed on right side in corresponding input box. The defaulted code will be guided to the number box when mouse operation;...

  • Page 12: Mute

    4/8-channel H.264 DVR User Manual also controllable. 2.4.6 2.4.6 MUTE MUTE 2.4.6 2.4.6 MUTE MUTE 2.4. 2.4. 2.4. 2.4.7 7 7 7 Manual Manual Manual Manual recording/stop recording/stop recording/stop recording/stop recording recording recording recording If “timing record” is on (please see Chapter 3), and recording is not set in this period, "manual recording"...

  • Page 13: Video Search

    4/8-channel H.264 DVR User Manual REC.MODE REC.MODE REC.MODE: : : : available in the two modes of startup recording and timing recording. REC.MODE When When When When powered powered powered powered up up: : : : starting recording when this unit is energized (It works only if the corresponding channel is enabled in the “Channel”...
  • Page 14 4/8-channel H.264 DVR User Manual Month: Month: Month: Month: displaying the record information of every day in the current month. A green block indicates normal recording, a red block indicates alarm recording, and the background color indicates no recording. Click a date on this bar to search the record information of every hour of that day.

  • Page 15: Backup

    4/8-channel H.264 DVR User Manual the menu of the previous level; When the selected record file has been played out, any consecutive record file will be played automatically; if there is no consecutive record file, this unit will return to the detailed file list automatically. Backup Backup 3.4 Backup...

  • Page 16: Basic Setup

    4/8-channel H.264 DVR User Manual in the harddisk state, when you can click “HDD Format ” to format the harddisk. If the system detects any available harddisk, the harddisk state will be “ONLINE”; ALL/FREE ALL/FREE ALL/FREE: : : : referring to the total storage capacity and current remaining storage ALL/FREE capacity of the harddisk;...

  • Page 17: Time Setup

    4/8-channel H.264 DVR User Manual The system has optional multiplex languages ,after choosing the language,click "Apply" button to save, and it will go into effect after system restart. 3.6.2 3.6.2 Time Time setup setup 3.6.2 3.6.2 Time Time setup setup Move the cursor to the “DATE/TIME”...

  • Page 18: Cameras

    4/8-channel H.264 DVR User Manual Admin Admin password password Admin Admin password password: This option is operated with keys or the mouse. Enter digits directly to set the administrator password. Notes Notes Notes Notes: This unit has no initial password. When you’re setting up passwords, it is recommended that the two passwords are set up together.

  • Page 19: Advanced

    4/8-channel H.264 DVR User Manual Preview Preview time time Preview Preview time time: On: The system date and time are displayed right above the Video Preview screen; Record Record Time Time Record Record Time Time : On: A clock can be displayed in the playback of the current record file. 3.6.5 3.6.5 V V V V IDEO/AUDIO IDEO/AUDIO...
  • Page 20 4/8-channel H.264 DVR User Manual CHANNEL/ALARM CHANNEL/ALARM I/O CHANNEL/ALARM CHANNEL/ALARM: Each channel corresponds to an I/O state alarm, when the alarm input of a channel is valid, the alarm record of the corresponding channel will be started. Normal Normal Normal Normal On On: The external alarm circuit is open at ordinary times, and closed when there is an alarm.

  • Page 21: System Info

    4/8-channel H.264 DVR User Manual SSL: a secure link transmission protocol, whose “Off” or “On” state is determined by the mailbox server. “Off” is usually chosen. SMTP SMTP SMTP SMTP PORT PORT PORT PORT: the mailing port of the mailbox server, usually being 25, with the exception of a few mailboxes, such as the mailing port of the GMAIL server whose port number is 465.
  • Page 22 4/8-channel H.264 DVR User Manual MD Channel Channel Channel Channel and and STATUS STATUS STATUS STATUS: Each channel has a corresponding switch. Press “Enter” to select motion detection “On” or “Off”. SENSITIVITY SENSITIVITY SENSITIVITY SENSITIVITY: Each channel has a corresponding sensitivity setting, with the 4 levels of 1, 2, 3 and 4, in which 4 is the highest.

  • Page 23: Mobile Phone Monitoring

    4/8-channel H.264 DVR User Manual 3.7.4 3.7.4 3.7.4 3.7.4 Mobile Mobile Mobile Mobile phone phone phone phone monitoring monitoring monitoring monitoring The mobile phone monitoring function of this series DVR is supported by mobile Windows Windows Mobile Mobile Symbian Symbian phones of the Windows Windows Mobile Mobile and...

  • Page 24: Network Setup

    4/8-channel H.264 DVR User Manual The power system should not be interrupted during updating. DEFAULT DEFAULT SETTING SETTING DEFAULT DEFAULT SETTING SETTING:Restore the system parameters to the default settings. RESTART RESTART RESTART : : : : Restart this unit. RESTART 3.7.6 3.7.6 3.7.6...
  • Page 25 4/8-channel H.264 DVR User Manual successful, this unit will be allocated an IP address, which will be displayed on the screen. PPPOE PPPOE PPPOE PPPOE: broadband dial-up network access, as shown below: PPPOE PPPOE user user name name password password PPPOE PPPOE user user name...
  • Page 26 4/8-channel H.264 DVR User Manual DDNS DDNS (domain (domain name name resolution) resolution) DDNS DDNS (domain (domain name name resolution) resolution): with the two options of “ON” and “OFF”; when a domain name resolution server is available, please select DDNS "ON"; SERVICE SERVICE SERVICE: : : : The user may select his/her desired DDNS server...
  • Page 27 4/8-channel H.264 DVR User Manual Activate account Log in your mailbox and open the confirmation link sent from support@dyndns.com, as shown below: Click the link below and enter the website to activate the account. Login After successful activation, open the home page http://www.dyndns.com/ to log in.
  • Page 28 4/8-channel H.264 DVR User Manual Enter the “Dynamic DNS Free” screen, as shown below. Click “ ”. Enter the hostname, select the service type and then enter the dynamic IP address (usually being the dynamic IP address of the network of the DVR host) to be tied in the Add New Hostname screen, as shown below.
  • Page 29 4/8-channel H.264 DVR User Manual...

  • Page 30: Port Forwarding

    4/8-channel H.264 DVR User Manual 3. 3. 3. 3.9 9 9 9 Port Port forwarding Port Port forwarding forwarding forwarding Port forwarding procedures: Set the host IP address. See the relevant section. Log in the router. If the IP address of the router is 192.168.1.1. After this IP has been entered in the IE address bar, a login prompt box will appear, as shown below: Click “Enter”...
  • Page 31 4/8-channel H.264 DVR User Manual Click “Applications& Gaming ”, as shown below: As shown above, fill in the IP and the port number in the corresponding files, and select “Both” in [Protocol]. The tick below [Enable] denotes “selected”. After setup, click “Save Setting”...

  • Page 32: Chapter 4 4 4 4 Dvr Dvr Dvr Network Network

    4/8-channel H.264 DVR User Manual 80 stands for the WEB port, 9000 for the media port and 6000 for the mobile phone port. All these ports can be modified in the menu. Chapter Chapter Chapter 4 4 4 4 DVR network network Chapter...

  • Page 33: Ie Log-In

    4/8-channel H.264 DVR User Manual 4.3 IE IE IE IE log-in log-in log-in log-in Log in the system after the plug-in unit has been installed. For example, if the domain name of the DVR dvrtest05.eicp.net and its port is 80, enter the domain name in the IE address bar, as shown below, enter the user name and the password, select “LAN”...
  • Page 34 4/8-channel H.264 DVR User Manual Record Record playback playback 4.5 Record Record playback playback Click "PLAYBACK"to enter the Record Playback screen, as shown below: First select the date of the record to be played and the channel and record types, and then click “Search”.

  • Page 35: Network Setup

    4/8-channel H.264 DVR User Manual Chapter 3 for details. Note: Note: Note: Note: “Detail” can be set in 4-channel DVRs only. Alarm Alarm setup setup 4.7 Alarm Alarm setup setup Click “Setup” →“Alarm ” to enter the Alarm Setup screen, as shown below: The setup method is the same as the mainframe menu.

  • Page 36: System Setup

    4/8-channel H.264 DVR User Manual 4.10 4.10 System System setup setup 4.10 4.10 System System setup setup Click “Setup” →“Setting” to enter the Setting screen, as shown below: INTERNET INTERNET INTERNET: : : : setting the code stream; the higher the code stream is, the clearer the INTERNET remote image will be, but the network bandwidth must be high, otherwise the image may have a delay.

  • Page 37: Player

    4/8-channel H.264 DVR User Manual Chapter Chapter 5 5 5 5 Client Client software software & & & & Player Player Chapter Chapter Client Client software software Player Player Client software 5.1 Client Client Client software software software Open the Client software file " ,operate one of these two files and install it according to the remarks.Operate the program icon on the...
  • Page 38 4/8-channel H.264 DVR User Manual Click “File（F）” as shown in the following image,select 'open the local files（F）' When opening the root of the record file,please select the format as .264,as shown in the following image:...
  • Page 39 4/8-channel H.264 DVR User Manual There will be .264 files in the file list,select one of the files to be played.Click 'OPEN' as shown in the following image: Then click 'PLAY' option as shown in the following image: After clicking 'PLAY' option,click the button of the player button, to enter the following interface as shown in the following image:...
  • Page 40 4/8-channel H.264 DVR User Manual ① Function Definition Function Definition Icon Icon ① Recording Schedule All video Play Forward, Play backword Increase video Pause, STOP Start Operation Backward /forward frame File Cut << >> << << << >> >> >> Slow/Normal/Fast File Deletion Next Hour...

  • Page 41: Appendix 1. Q&A

    4/8-channel H.264 DVR User Manual Select the channel audio to be played,then click 'OK', as shown in the following instructions: Appendix Appendix Appendix 1. 1. 1. 1. Q&A Q&A Q&A Appendix Q&A How to recover password if forgotten? A: Please contact technicians from vender or manufacturer if you have forgotten the password.
  • Page 42 4/8-channel H.264 DVR User Manual How long can a 4-channel or 8-channel DVR record if 1000G harddisk is used? A: Please refer to Appendix 2 “harddisk space calculation”. DVR’s remote controller can not work, but the monitor screen is right and the panel buttons can be used properly? A: If the controller is pointing to the IR signal on equipment front panel, but the operation is still invalid, please check the batteries in remote controller, if above...
  • Page 43 4/8-channel H.264 DVR User Manual when select “LAN” in “network environment” option in login interface; for 4-channel DVR, in addition to select “LAN” in “network environment” option in login interface, please select “ordinary” in “details” option under recording mode. 16. Remote login interface is available, but show “Login failed” when login? A: 1) Please check whether the account matches the password you entered, if you forget the password, please enter “User Password”...
  • Page 44 4/8-channel H.264 DVR User Manual...
