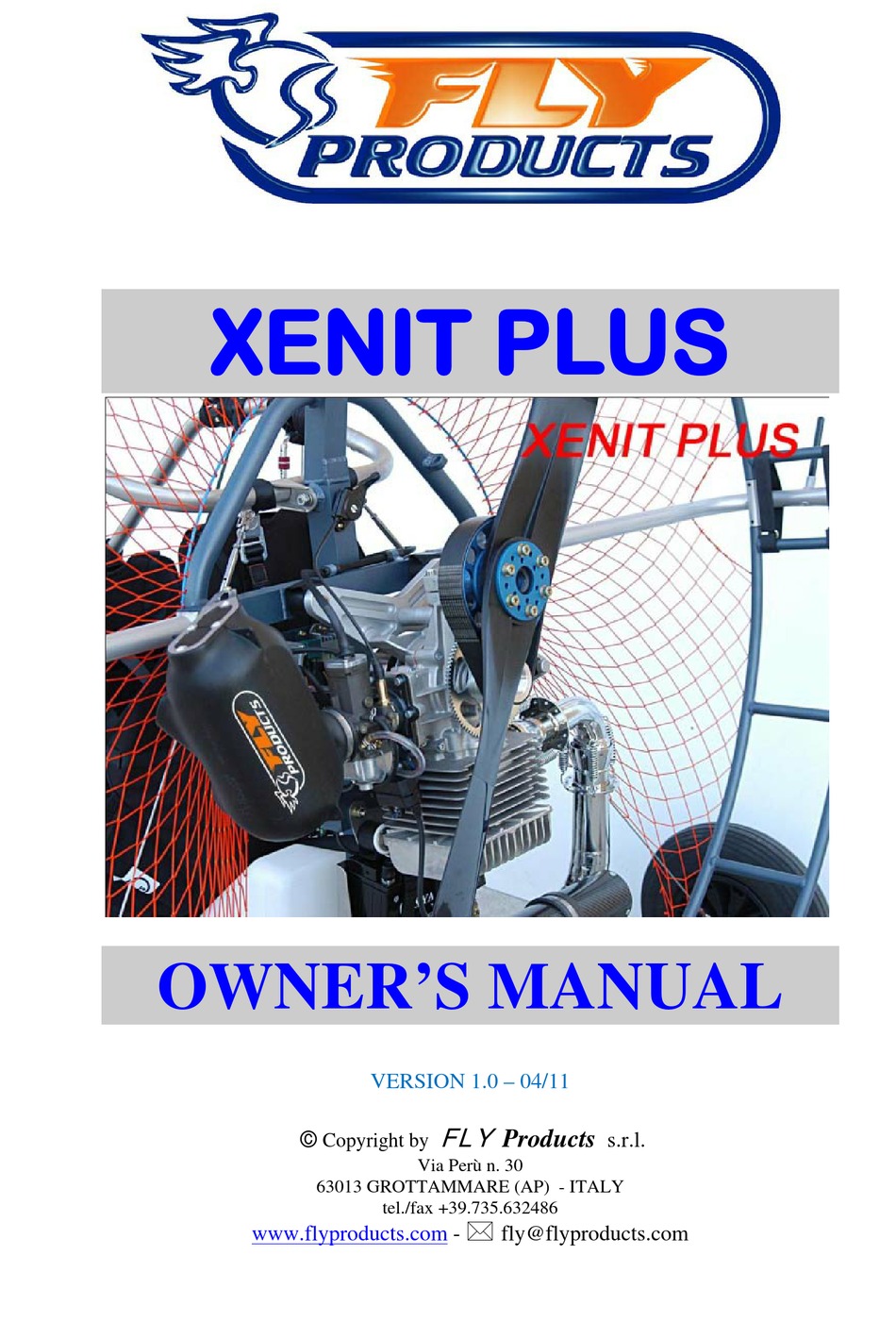

- Page 1 XENIT PLUS OWNER’S MANUAL VERSION 1.0 – 04/11 Products © s.r.l. Copyright by Via Perù n. 30 63013 GROTTAMMARE (AP) - ITALY tel./fax +39.735.632486 www.flyproducts.com fly@flyproducts.com...
- Page 2 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Index Chapter Description INTRODUCTION GENERAL INFORMATION UNPACKING AND ASSEMBLING YOUR “XENIT PLUS” PREPARING YOUR FLIGHT FLYING YOUR NEW “XENIT PLUS” MAINTENANCE TROUBLESHOOTING SPECIFICATION AND PERFORMANCE MISCELLANEOUS ___________________________________________________________________________ Products © Copyright s.r.l. Page...
-
Page 3: Introduction And General Information
However, it is still aviation, and it brings with it all the inherent potential dangers of aviation. People can, and do, get hurt, and even killed, in any form of aviation, including to fly with Trike. For that reason it is imperative that before flying with this Trike you must receive proper... - Page 4 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 XENIT PLUS features • Easy assembly and disassembly • Electric Starter • Power Ignition • Reduction drive Dimensions ___________________________________________________________________________ Products © Copyright s.r.l. Page...
-
Page 5: Frame Assembly
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 UNPACKING AND ASSEMBLING “XENIT PLUS” Frame assembly Frame assembly and disassembly is very fast and easy. The outer frame consists of four parts, and they are held together by the velcro straps. - Page 6 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Locking cables side Symmetric tension cables Locking the cable back with the help of body weight. The tensioner is locked by two nuts as shown in the picture. ___________________________________________________________________________ Products © Copyright s.r.l.
- Page 7 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Lock the tank Mount the pilot harness Mount the passenger harness Place media cage Block with velcro ___________________________________________________________________________ Products © Copyright s.r.l. Page...
-
Page 8: Emergency Parachute
Block with velcro Net stretching Emergency parachute A reserve parachute can be attached to the XENIT PLUS and is highly recommended for obvious security reasons. The reserve parachute is inserted under the harness of the pilot. Assembly procedure of the emergency system:... -
Page 9: Prop Mounting
PREPARING FOR YOUR FLIGHT Fuel and Oil FLY PRODUCTS recommends the use of a unleaded automotive gasoline of 92 octane or higher, and the use of semi-synthetic 2-cycle oil. Mix fresh gas and oil before each flying session. -
Page 10: Before Starting The Engine
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Use only fresh fuel and oil, and use clean containers, funnels, hoses, etc. To fill the fuel tank, remove the fuel tank by unscrewing the fuel tank cap . Take care not to get dirt, dust, etc. -
Page 11: Starting The Engine
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 A – STOP” button B – “START” button C – Throttle lever D – Cruise control setup E – Velcro strap F – Not in use Since it’s important to know how to stop the engine once it’s started, let’s cover “Stopping the Engine”... - Page 12 Make sure that you CANNOT inadvertently squeeze the throttle handle when starting in this position. - In flight One very valuable feature of the XENIT PLUS is its ability to be started while in flight. This feature allows the pilot the freedom to turn-off the engine and glide silently, to enjoy the exhilaration of thermal soaring, and then when he gets low, to start the engine and climb back up to do it again.
- Page 13 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Carburetor Adjusting with BING To adjust the idling, turn the screw shown in Fig The (A) screw sets the revs at idle, by opening or closing the butterfly valve Choke lever is used only for cold engine starting, do not leave it “ON” for long time to avoid a flooded...
- Page 14 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 L screw adjust: rotate clockwise until completely closed. Now carefully open the screw counter clockwise min 1 turn turn half. This is the standard factory setting for L. H screw adjust: rotate clockwise until completely closed.
-
Page 15: Engine Break-In
During the break-in, gently change RPM from idle to 3/4-throttle and back. At this point, you can fly the XENIT PLUS however avoid long durations of full Power, and vary the throttle setting often. Break-in is complete after 10 liters of fuel have been run through the engine. - Page 16 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 • Current weather • Long-range (next few hours) forecast • Takeoff/landing direction • Obstructions (especially Power lines) Wing • Lay wing out into wind direction • Lines straight and clear • Riser/Line condition •...
- Page 17 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Changing points of coupling Lines position for take off ___________________________________________________________________________ Products © Copyright s.r.l. Page...
-
Page 18: Regular Checks Obligation
MAINTENANCE Remember… …that YOU are ultimately responsible for your motor and it’s proper care, FLY PRODUCTS and it’s dealers assume NO responsibility for any engine problem resulting from improper use! Before leaving the factory each motor has been tested for up to 30 minutes to insure that it is in proper running order and all FLY PRODUCTS units are guaranteed of one year after purchase. - Page 19 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 INTERVENTIONS EVERY 20 HOURS • Clean filter carburetor • Clean fuel filter • Check the belt tension and condition • Lubricate the ball joint of the muffler INTERVENTIONS EVERY 60 HOURS • Replace the engine and exhaust silent blocks •...
- Page 20 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 piston: • - There must not be any signs of seizure or deep cracks. - Check the wear by measuring the piston at 18.5mm from the bottom keeping the measuring instrument at a right angles to the axis pin.
- Page 21 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 • Measure the bearing seating, which must not be lower than the height limit: 24.98mm • Check with a feeler gauge that the axle slack of the connecting-rod between the two semi shaft, which must not exceed the height limit: 0.7mm •...
-
Page 22: Prop Care
(h) Cleaning Clean your XENIT PLUS with clean water and a mild soap. Dust and dirt can be brushed off, or removed with water and mild soap. Grease and oil can be removed with a good water-based degreaser such as “Simple Green”. -
Page 23: Spark Plug
Store the Prop Horizontally When storing the XENIT PLUS, rotate the prop to a horizontal position. This is because if the prop is stored vertically, moisture and oils in and on the prop can migrate downward and cause prop imbalance. -
Page 24: Reduction Belt
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Reduction belt ADJUSTING REDUCTION BELT Attention: Only qualified people can do this procedure, otherwise consult your dealer. The reduction belt is regulated by the manufacturer, in case of it stretching, which is noticeable by a whistling sound and a harsh increase in runs when accelerating, it should be adjusted. -
Page 25: Diagnosing And Starting A Flooded Engine
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 TROUBLESHOOTING Diagnosing and starting a flooded engine A flooded engine can be identified by the smell of unburned gasoline coming from the exhaust pipe, or by periodic weak firing and puffs of black smoke during starting attempts. If you have a flooded engine, follow the procedure below: •... -
Page 26: Specification And Performance Summary Chart
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 SPECIFICATIONS AND PERFORMANCE Specification and Performance Summary Chart ITEM TYPE Engine Make and Model Simonini MINI-3 Engine Type Single cylinder, air cooled Displacement cc. 270 (Bore 72,8 mm x Stroke 65 mm) -
Page 27: Torque Specification Chart
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 Torque Specification Chart ELEMENTS TORQUE (Kgm) Cylinder head bolts ( M8 BTR ) Magnet fixing nut ( M10 x 1 ) Reduction cam locking screw ( M8 ) Primary pulley locking screw ( M12 x 1.25 ) -
Page 28: Obtaining Repair Parts
XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 MISCELLANEOUS Obtaining Repair Parts To obtain repairs parts for your machine, call your FLY PRODUCTS local dealer or FLY PRODUCTS directly. MINI3 ENGINE SPARE PARTS ___________________________________________________________________________ Products © Copyright s.r.l. Page... - Page 29 XENIT PLUS _ OWNER’S MANUAL ____ VER. 1.1 MINI3 engine spare parts list MINI 3/01 KIT ENGINE SCREWS MINI 3/46 ECCENTRIC PINION MINI 3/02 EXHAUST SYSTEM MINI 3/47 SEEGER REDUCTION MINI 3/03 COMPLETE SET OF GASKETS MINI 3/48 COMPLETE SET OF REDUCTION BEARINGS...
-
Page 30: Warranty
VER. 1.1 Warranty FLY PRODUCTS will warrant their product to be free from defects in materials and workmanship for a period of one year from the date of purchase. This warranty applies to the product in normal usage situations only. The dealer, from whom you purchased the product, or FLY PRODUCTS, will repair the product free-of-charge.
