Keating Of Chicago Cooktop Service Manual

Keating of chicago inc. cooktop user manual

Advertisement

Quick Links

SERVICE MANUAL
TM
TOP-SIDE
COOKER
manufactured years
1998 - 2004
Keating Of Chicago, Inc.
1-800-KEATING
www.keatingofchicago.com
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cooktop and is the answer not in the manual?

Questions and answers

Summary of Contents for Keating Of Chicago Cooktop

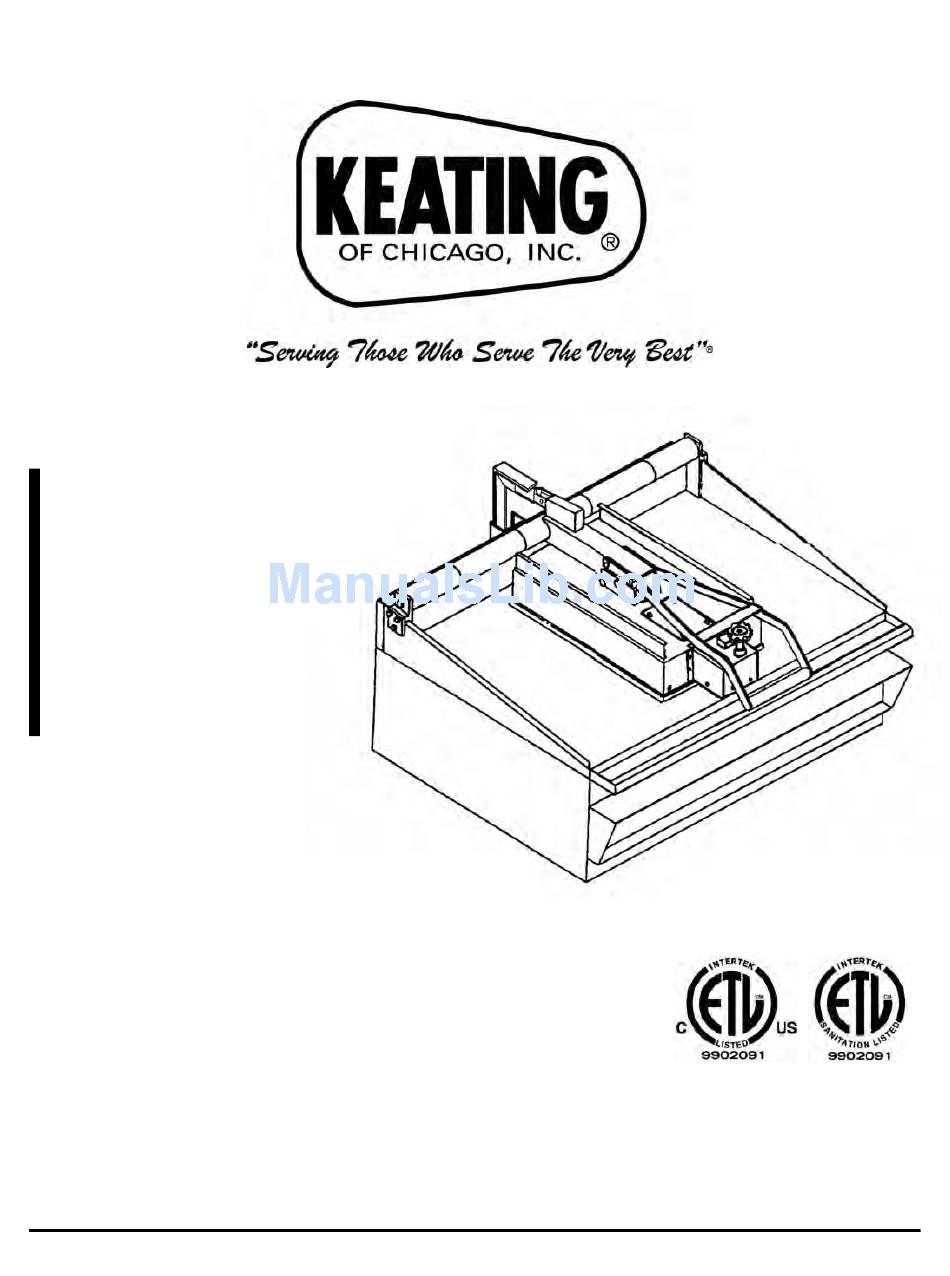

  • Page 1 SERVICE MANUAL TOP-SIDE COOKER manufactured years 1998 - 2004 Keating Of Chicago, Inc. 1-800-KEATING www.keatingofchicago.com KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION I INTRODUCTION General ........1 Standard Features .
  • Page 3 This manual must be kept in a prominent, easily reachable location near the griddle. Notice: Keating of Chicago, Inc. (manufacturer) reserves the right to change specifications at any time. FOR YOUR SAFETY...
  • Page 4: General

    (3mm to 38mm) STANDARD ACCESSORIES Proprietary USDA and UL listed polymer cooking sheets (1) NOTE: Keating of Chicago, Inc. (manufacturer) reserves the right to change specifications at any time. COOKING HEAD SPECIFICATIONS Each Top-Side cooking head is designed to be connected to a 208, 220 or 240 volt single phase line.
  • Page 5: Conditioning The Cooking Head

    ELECTRICAL CONNECTION Each Keating Top-Side Cooking head is equipped with a 9' (2.74m) neoprene covered, 12 gauge 4mm(2), three wire with ground electrical cord. No plug is provided. Each cooking head is rated 4000W, 18 amps, single phase at 220 Volts (4.37kW, 19 amps, single phase at 230 Volts) and is designed to be connected to its own 208-240V single phase electrical supply.
  • Page 6: Cleaning Procedures

    WARNING THE COOKING HEAD WILL BE HOT. USE PROPER CARE WHEN CLEANING THE COOKING SHEETS. End of day cleaning: Before the griddle is turned off for the day, the cooking sheets should be cleaned as described below. Wear heat resistant gloves for maximum safety during the entire cleaning procedure.
  • Page 7: Installing Acooking Sheet

    PREVENTIVE MAINTENANCE CHART TIME OPERATOR/OWNER FRAME Clean all cooking sheets. Daily Clean all MIRACLEAN®. cooking surfaces. Clean all surfaces of Weekly Top-Side Cooker. Verify thermostat settings Monthly* Review cooking procedures. Check Cooking Sheets (replace if necessary). Yearly* QUALIFIED SERVICE PERSONNEL ONLY Thoroughly check and test Top-Side Cooker.
  • Page 8: Section V Service Diagnosis

    5. Do not turn the support pin in either direction. 6. To reattach the cooking head to the ram lift arm, raise cooking head completely and replace cooking head support pin. Insert a new stainless steel cotter pin to secure support pin, holding support pin to keep it from spinning.
  • Page 9: Thermostat Replacement Instructions

    THERMOSTAT REPLACEMENT KIT (PART #057138) MOUNTING AND WIRING INSTRUCTIONS New Thermostat Mounting and Wiring Instructions 1. After removing the old thermostat, drill four larger holes for mounting new housing (See Figure A). After drilling holes, remove any metal filings from inside the unit. 2.
  • Page 10 Part # 056840 Figure C: Wiring Diagram...
  • Page 11: Top-Side Tm Cooking Head (Exploded View)

    VI EXPLODED VIEW & PARTS LIST ORDERING PARTS Parts may be ordered by part number by calling 1-800-KEATING or your local service company. You may also order online at Keating’s part store, www.keatingofchicago.com Refer to the Keating Top-Side™ Cooker Limited Warranty for complete service and ordering information. The model/serial plate for each cooking head is located on the the control panel assembly.
  • Page 12: Top-Side Tm Cooking Head Parts List

    TOP-SIDE COOKING HEAD FOR MANUFACTURED YEARS 4/99 - 2004 Figure 6-1 ITEM DESCRIPTION THERMOSTAT TEMPERATURE PROBE KIT COOKING HEAD (COMPLETE) STOP CLEVIS PIN, S/S SWIVEL BRACKET WIRE SLEEVE (INCL. IN ITEM 5) SWIVEL BRACKET SWIVEL BRACKET SUPPORT CLEVIS PIN, S/S COOKING SHEET MOUNTING CLIP COVER COOKING SHEET (SINGLE SHEET)
  • Page 13: Control Panel Assembly

    TOP-SIDE COOKER CONTROL PANEL ITEM DESCRIPTION THERMOSTAT THERMOSTAT KNOB THERMOSTAT DIAL PLATE HI-LIMIT CONTROL HI-LIMIT MOUNTING BRACKET CONTACTOR, 50A, 3-POLE ROCKER SWITCH, LIGHTED, ON/OFF INSTRUCTION PLATE ON/OFF SWITCH PLATE INDICATING LIGHT, ELEMENT ON, RED 250V INSTRUCTION PLATE ELEMENT ON LIGHT PLATE TERMINAL BLOCK 3 POLE COVER (without SERIAL PLATE) CORD, WITHOUT PLUG, 12/3 SJO...
  • Page 14: Wiring Diagrams

    VII WIRING DIAGRAM TOP-SIDE COOKER WIRING DIAGRAMS...
  • Page 16 Please state the nature of the call; it will ensure speaking with the appropriate person. Have your serial and model number available when ordering parts. KEATING OF CHICAGO, INC. 8901 West 50th Street, McCook, Illinois 60525-6001 Phone: (708) 246-3000 FAX: (708) 246-3100 Toll Free 1-800-KEATING (In U.S.
