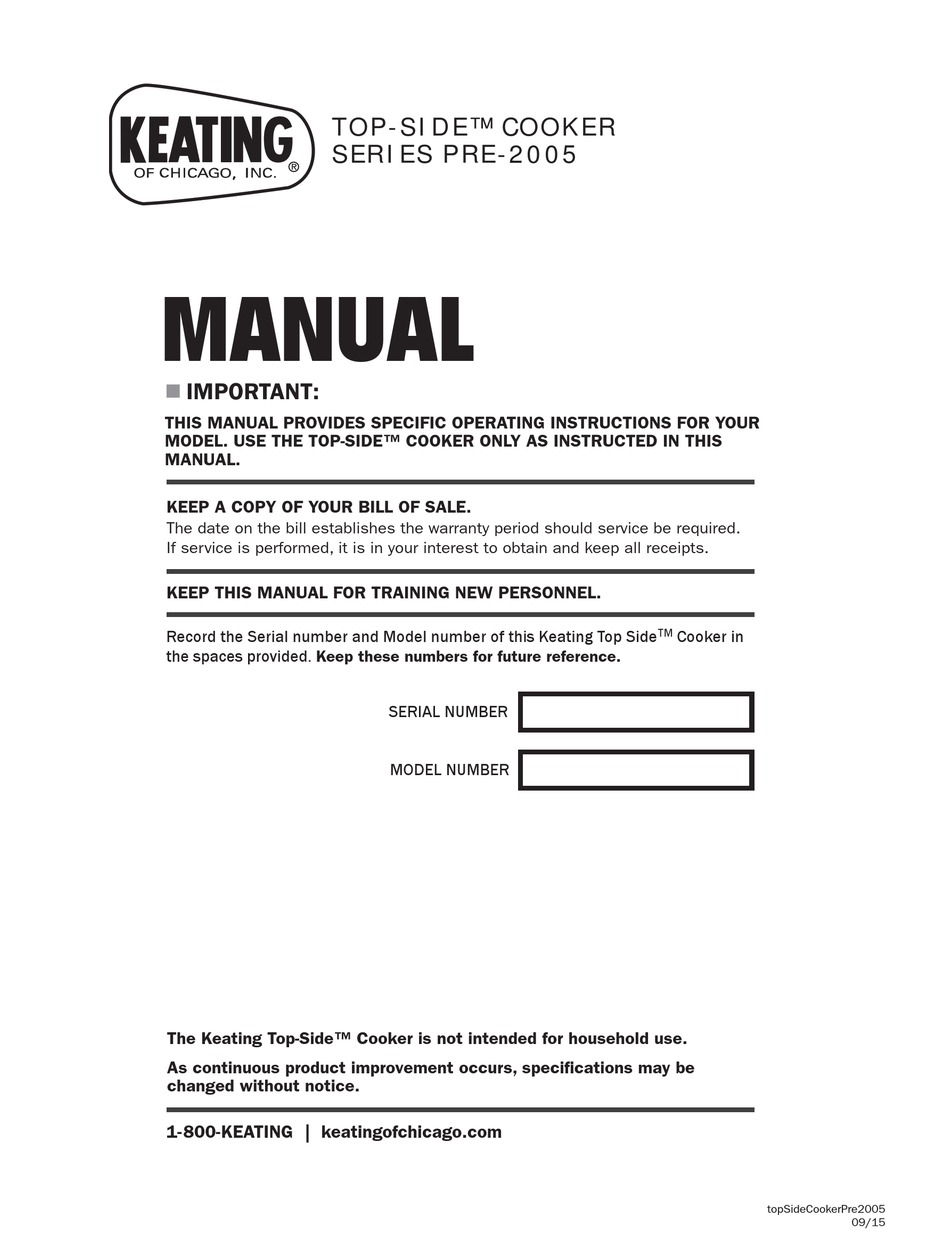

TOP-SIDE™ COOKER
SERIES PRE-2005
MANUAL
IMPORTANT:
THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR
MODEL. USE THE TOP-SIDE™ COOKER ONLY AS INSTRUCTED IN THIS
MANUAL.
KEEP A COPY OF YOUR BILL OF SALE.
The date on the bill establishes the warranty period should service be required.
If service is performed, it is in your interest to obtain and keep all receipts.
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL.
Record the Serial number and Model number of this Keating Top Side
the spaces provided. Keep these numbers for future reference.
The Keating Top-Side™ Cooker is not intended for household use.
As continuous product improvement occurs, specifi cations may be
changed without notice.
1-800-KEATING | keatingofchicago.com
SERIAL NUMBER
MODEL NUMBER
TM
Cooker in
topSideCookerPre2005
09/15
Advertisement
Table of Contents
Related Manuals for Keating Of Chicago TOP-SIDE PRE-2005 series
Summary of Contents for Keating Of Chicago TOP-SIDE PRE-2005 series
- Page 1 TOP-SIDE™ COOKER SERIES PRE-2005 MANUAL IMPORTANT: THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR MODEL. USE THE TOP-SIDE™ COOKER ONLY AS INSTRUCTED IN THIS MANUAL. KEEP A COPY OF YOUR BILL OF SALE. The date on the bill establishes the warranty period should service be required. If service is performed, it is in your interest to obtain and keep all receipts.
-
Page 2: For Your Safety
PURCHASER SHOULD POST IN A PROMINENT LOCATION. WARNING Burns Shock Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Improper installation can cause damage, injury or death. -
Page 3: Table Of Contents
12" (305mm) of plate width. Each Top-Side™ cooking NOTE: head will be positioned over a griddle thermostat to Keating of Chicago, Inc. (manufacturer) reserves the ensure peak effi ciency. right to change specifi cations at any time. • ETL and ETL Sanitation Listed. -
Page 4: Safety Precautions
the carrier since such damage is the carrier’s respon- SAFETY PRECAUTIONS sibility. By following these instructions carefully, we guarantee our full support of your claims to protect you against loss from concealed damage. THIS SYMBOL WARNS YOU THAT SERIOUS BURNS OR OTHER INJURIES MAY RESULT IF VISIBLE LOSS OR DAMAGE SAFETY INSTRUCTIONS ARE NOT FOLLOWED. -
Page 5: Operating
TOP-SIDE COOKER - SERIES PRE-2005 4. Lightly coat the Miraclean® surface with griddle oil. WIRE SIZE TABLE NOTE: Despite the food releasing properties, the Conductor Recommended Current (Amps up to) Wire Size (AWG) chrome surface is not a true “non-stick” surface. For best cooking results and product appearance, use griddle oil for products that require the surface to be conditioned. -
Page 6: Cooking Height Adjustment
COOKING HEIGHT ADJUSTMENT C. Cooking Head The Miraclean® surface is very durable and with Keating’s Top-Side™ Cooker has been designed to proper care, following the procedures below, will last allow you infi nite height adjustments from 1/8" to many years. 1-1/2"... -
Page 7: Top-Side Tm Cooker - Series Pre-2005
TOP-SIDE COOKER - SERIES PRE-2005 Damage done to the Miraclean® surface is irreparable and is not covered under Keating Warranty. INSTALLING A COOKING SHEET 1. Raise Top-Side™ Cooking head completely. SURFACE DAMAGE 2. Lay the 20" x 24" (508mm x 610mm) cooking sheet on the griddle plate with 20"... -
Page 8: Handling A Cooking Sheet
SERVICE DIAGNOSIS THE TOP-SIDE™ COOKING HEAD AND GRIDDLE A properly adjusted Keating Top-Side™ Cooker, with PLATE ARE HOT - USE PROPER CARE WHEN no load, will cycle “ON” approximately every 5-1/2 to CHANGING THE COOKING SHEETS. 6-1/2 minutes. Each cycle will last 40 seconds, ensur- ing that the temperature setting is held within a narrow LEVELING OF COOKING HEAD(S) range. -
Page 9: Troubleshooting Chart
TOP-SIDE COOKER - SERIES PRE-2005 TROUBLE SHOOTING The following diagnosis is only to be used as a guide to qualifi ed service personnel. Keating recommends that you use a qualifi ed & licensed service company. (Equipment still under warranty requires it.) Call 1-800-KEATING if you need assistance in locating a qualifi... -
Page 10: Thermostat Replacement Instructions
THERMOSTAT REPLACEMENT KIT PART #057138) MOUNTING AND WIRING INSTRUCTIONS New Thermostat Mounting and Wiring Instructions 1. After removing the old thermostat, drill four larger holes for mounting new housing (See Figure A). After drilling holes, remove any metal fi lings from inside the unit. - Page 11 TOP-SIDE COOKER - SERIES PRE-2005 THERMOSTAT REPLACEMENT KIT PART #057138) MOUNTING AND WIRING INSTRUCTIONS (cont.) Figure C Wiring Diagram 1-800-KEATING...
-
Page 12: Ordering Parts
ORDERING PARTS Parts may be ordered by calling 1-800-KEATING or your local Keating service company. We recommend using genuine Keating Replacement Parts - engineered and manufactured specifi cally to meet exact specifi cations and requirements for Keating equipment. Refer to the Keating Top-Side™ Cooker Limited Warranty for complete service and ordering information. The model/serial plate for each cooking head is located on the control panel assembly. -
Page 13: Cooking Head Parts List
TOP-SIDE COOKER - SERIES PRE-2005 TOP-SIDE™ COOKING HEAD (MANUFACTURED FROM 4/1999 - 2004) See Figure 6-1 ITEM DESCRIPTION THERMOSTAT TEMPERATURE PROBE KIT 016659 COOKING HEAD (COMPLETE) 1-800-KEATING STOP CLEVIS PIN, S/S 015164 SWIVEL BRACKET WIRE SLEEVE (INCL. IN ITEM 5) SWIVEL BRACKET 028181 SWIVEL BRACKET SUPPORT CLEVIS PIN, S/S... -
Page 14: Control Panel Assembly
TOP-SIDE™ COOKER CONTROL PANEL ITEM DESCRIPTION THERMOSTAT REPLACEMENT KIT for PRE 2005 MODELS 057138 THERMOSTAT KNOB No Longer Available THERMOSTAT DIAL PLATE No Longer Available HI-LIMIT CONTROL 010311 HI-LIMIT MOUNTING BRACKET 016654 CONTRACTOR, 50A, 3 POLE 011184 ROCKER SWITCH, LIGHTED, ON/OFF 038362 INSTRUCTION PLATE ON/OFF SWITCH PLATE 016672... -
Page 15: Wiring Diagram
TOP-SIDE COOKER - SERIES PRE-2005 WIRING DIAGRAM TOP-SIDE™ COOKER WIRING DIAGRAM 1-800-KEATING... -
Page 18: Service Information
CUSTOM PASTA FILTER SYSTEM TOP-SIDE COOKER HOTPLATE I HAVE READ THE INSTALLATION AND OPERATING INSTRUCTIONS. SIGNED: DATE: KEATING OF CHICAGO, INC. 1-800-KEATING 8901 West 50th Street PHONE: 708-246-3000 McCook, IL 60525-6001 FAX: 708-246-3100 Serving Those Who Serve the Very Best...
