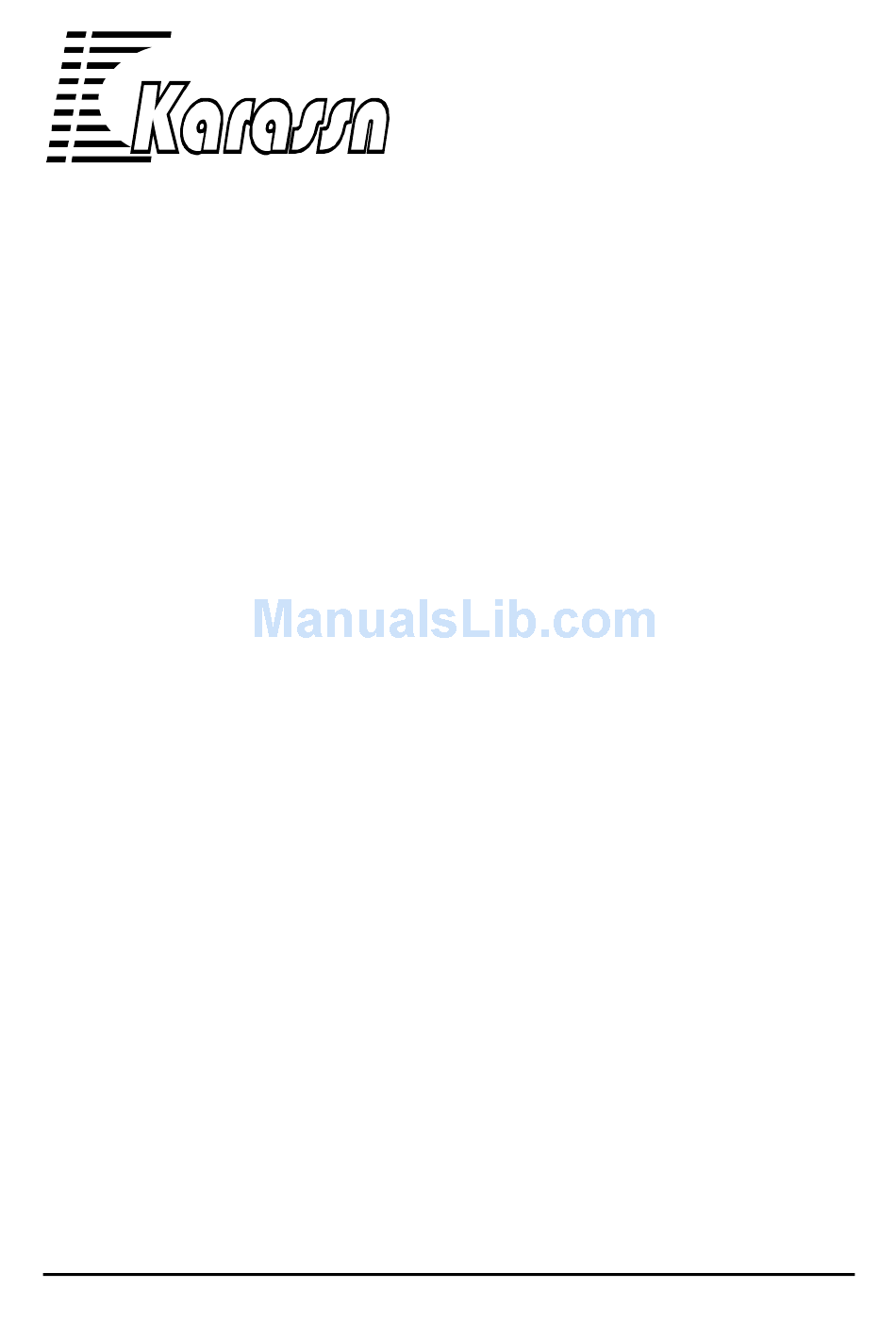

Page 1: User Manual
KS-200B Series Wireless Alarm System User Manual Karassn Security Electronics Co. Ltd... -
Page 2: Table Of Contents
We are honored that you select Karassn security products, thank you very much. To make full use of its performance and keep stability, please carefully read this "User's Manual" before operation. For any question, please don't hesitate to contact Karassn Client Service Department or Agents. -
Page 3: Introduction
I. Introduction KS-200B computer-controlled wireless alarm system is a type of long-distance wireless alarm system, which is composed of an alarm host and 1 to 100 detectors. All these constitute a complete set of region alarm service system which can be widely used for industrial and mining enterprises, schools, warehouse, villas, office buildings and other attended locations. -
Page 4: Mobile Phone
function and can switch between AC and DC. Wire Urgent key KS-200AT /KS-200ACT Wireless emitter KS-50A KS-200DCT Wireless infrared detector KS-200ECT KS-200FCT Wireless infrared detector Wire KS-200BW Active infrared dedector KS-200ATI Wireless door sensor Wireless emitter KS-50A Wireless infrared detector KS-200DCT KS-200ECT KS-200FCT... -
Page 5: Definition
KS-200ACT wireless infrared detector adopts double infrared inductor together with single chip processing technology as well as the automatic temperature compensation technology, which make it have the advantages of low error alarm ratio and extremely high anti-interference capability. KS-200ACT-C infrared detector is with built-in batteries for backup power. -
Page 6: Precautions Of Operation
4. Please don't disassemble the alarm host at will as not to cause accidents and damage the apparatus. 5. If a failure occurs during operation, please contact with Karassn client service department of Karassn agents with the warranty card carried. Remember not to disassemble and repair by yourself. -
Page 7: Name And Usage Of Main Parts
2. 1-100 independent wireless defense area can be defined and the defense of each defense area can be activated or deactivated independently. Common defense area and emergent defense area can be defined at will. 3. The alarm host has two sets of timing switch on/off time and also current on/off status indication. - Page 8 TIME ORIENTATION Front panel "Function" key. "Function" key, Press "Function" key to switch between function setup options. They are totally eight function options. For detailed function description, please refer to the related content of " Operations" chapter. " " key, is used to complete function setup together with "Function"...
- Page 9 Extension Line Rear panel Alarm output interface: A set of normal open and a set of normal close alarm output and a set of uncontrolled + 12V 300mA output. Normal open, normal close alarm output interface-Label on the rear panel The alarm host provides alarm output contact loaded 1A120VAC or 3A30VDC.
- Page 10 Infrared sensitivity selection jumper: If the jumper is inserted at "H" position, the effective detection distance is 8 to 12 meters. If the jumper is inserted at "L" position, the distance is about 4 to 8 meters. Backup Power input: the allowable input power voltage is 12-13.8V.
- Page 11 AC power input. DC power input: the input bearer has f l o a t i n g c h a r g e d e v i c e , w h i c h c a n b e connected with chargeable batteries or a storage battery when the backup battery is not selected.
-
Page 12: Interface Performance And System Connection
seconds. At the same time, the detector will sends out an on-site alarm for 30 seconds, and then it will automatically stop. The optional remote controller can be used to activate or deactivate defense state and set emergency alarm operations. VI. - Page 13 1. Basic requirement of system installation design (1) Suitable types and models of detectors should be adopted during installation design period according to the user requirement of defense areas. (2) The installation location, angle and height of a detector should be determined according to the effective zone of the detector.
-
Page 14: Operation Guide
machines and etc. Stand off the windows. There is no barrier within the defended area of a detector. The detector should be parallel with the wall surface. (2) Installation of alarm host The alarm host should be placed on a table near a window in so far as possible. - Page 15 2. Programming setup of alarm host After it is power on, the display screen of the alarm host shows "12:00 00". The second light is flashing and the last two bits display second. Press the "Function" key to enter into setup mode, in the mean while, the second light is continuously on and the last two bits are flashing, which is the function menu.
- Page 16 group is 12:00. Note: auto startup time means that the alarm host will automatically enter into security mode (defense state) and begin to receive alarm signals when the configured time arrives. (3) Set auto shutdown time of the first group Hour Minute Function 3...
- Page 17 group is 18:00 (5) Set auto shutdown time of the second group Hour Minute Function 4 press key to set press key to set shutdown time of the second group Enter into "Auto shutdown time of the second group" setup mode, press "...
- Page 18 key to select defense-activated state. "00" means that defense is deactivated in the defense area and "01" means that defense is activated in the defense area. It should be noted that, no matter the defense area is common defense area or emergent defense area, all the alarm signal won't be received if a defense area is deactivated by the alarm host.
- Page 19 KS-200BMI alarm host and KS-200BM alarm host are the same setup grogram. The telephone alarm function setup is used to alarm host connect the external telephone machine. More details please refer to the following: Note The telephone used to program should be DTMF (Double Tone Multi-Frequency) phone.
- Page 20 change the telephone machine. After press # # #, if there is a rapid sound "beep---beep---". Usually, it is a wrong between the telephone machine and line socket. And cause an open circuit alarm. Please connect again. No operation within 20 seconds in the setup state, the system will automatically exit.
- Page 21 number. Press 16 # C C C C C C # to set the 6th group of informed telephone number. Press 17 # C C C C C C # to set the 7th group of informed pager number. Press 18 # C C C C C C # to set the 8th group of informed pager number.
- Page 22 12#1234567**801# 13#13900000012# (4) Dele informed telephone number Press 11# # to dele the 1st group of informed telephone number. Press 12# # to dele the 2nd group of informed telephone number. Press 13# # to dele the 3rd group of informed telephone number. Press 14# # to dele the 4th group of informed telephone number.
-
Page 23: Main Technical Specification
If there is no operation within 20 seconds, the alarm host will hang up the line and continuously dial other informed telephone number. IX. Main Technical Specification 1. KS-200B series alarm host Radio receiving sensitivity: 0.2 V (12dB signal-to noise ratio) Working Voltage: AC 220V 15% 50Hz, DC 12V-13.8V... -
Page 24: Optional Parts List
X. Optional Parts List 1. Wired infrared detector, Wired infrared door sensor. 2. KS-200AT wireless infrared detector (adopts special infrared processing chip) 3. KS-200ACT wireless infrared detector (adopts single chip processing technology) 4. KS-200ATI wireless infrared detector (adopts single chip processing technology and has wireless forwarding function) 5. -
Page 25: Simple Failure Recovery
XI. Simple Failure Recovery Fault symptom Failure recovery Failure reason No cue tone and Is the power socket bad Check the plug and socket, clock display connection or does it check the fuse and when power on have no power supply? replace it Or, is the fuse burnt out? The backup batteries... - Page 26 Defense Area Table Zone No. Zone Location Zone No. Zone Location Zone No. Zone Location...
