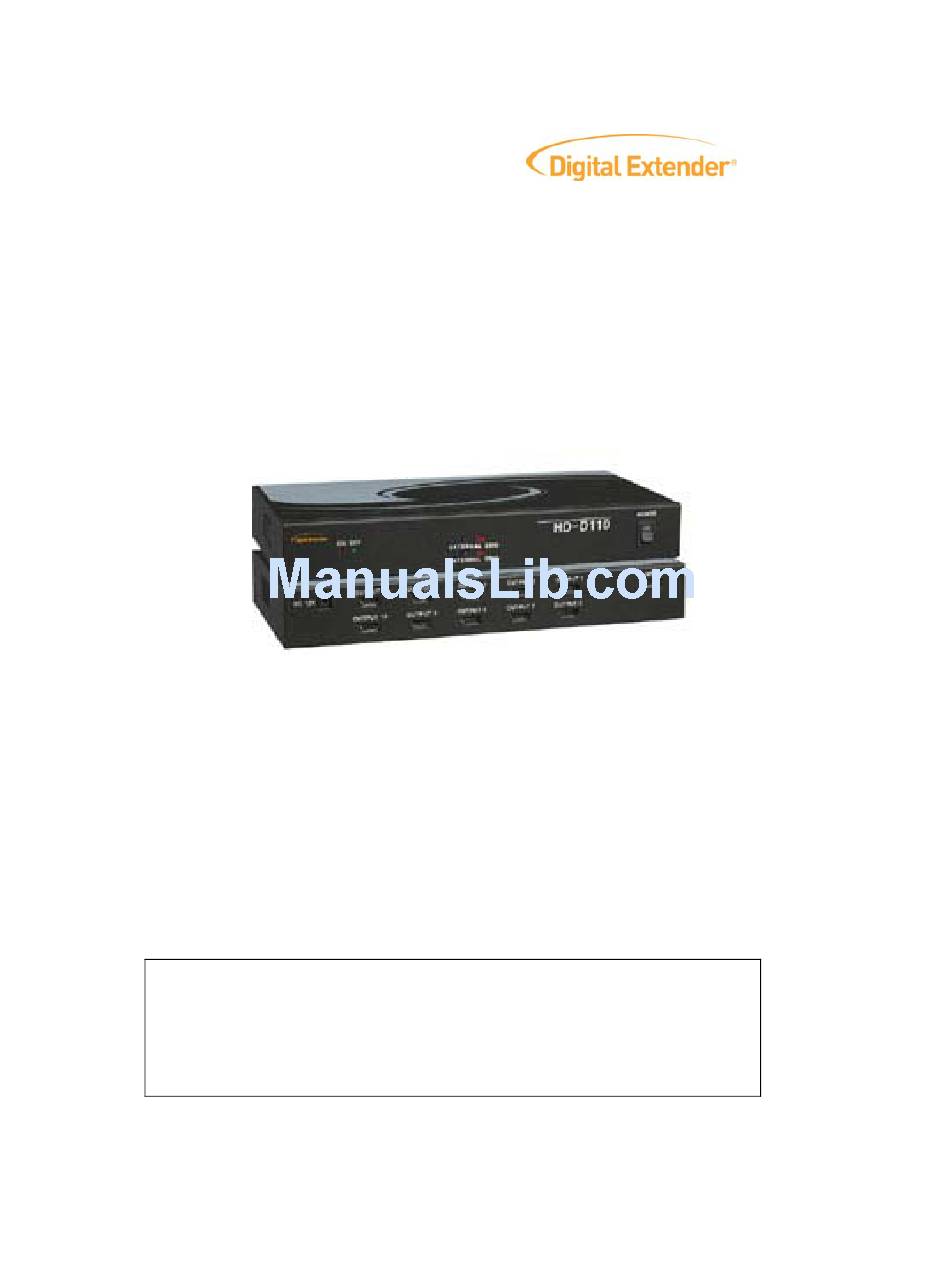

User's Manual
1x10 HDMI Distribution Amplifier
HD-D110
Cautions:
1. Digitalextender® logo is our own trademark of RTcomUSA., Inc.
2. Any of the products may be changed without any notice in order to improve the
function of the product.
3. The design and specification of the product may be changed without any prior
notice.
Total Digital Connectivity Solutions
1
Advertisement
Related Manuals for Digital Extender HD-D110
Summary of Contents for Digital Extender HD-D110
- Page 1 Total Digital Connectivity Solutions User’s Manual 1x10 HDMI Distribution Amplifier HD-D110 Cautions: 1. Digitalextender® logo is our own trademark of RTcomUSA., Inc. 2. Any of the products may be changed without any notice in order to improve the function of the product.
-
Page 2: Declaration Of Conformity
Unpacking Each Digitalextender HDMI Distributor package includes the following items; • HD-D110 HDMI Distribution Amplifier Unit x 1 • 12V Power Supply Adapter x 1 • AC Power Cord x 1 • User manual x 1 Declaration of Conformity According to Council Directive 73/23/EEC (February 19, 1973) on the Harmonization of the Laws of Member States relating to Electrical Equipment;... -
Page 3: Table Of Contents
Table of Contents 1 Description, General Specification ....................4 2 Main Features..........................5 3 Video Connection ........................... 6 4 Mechanical Specification ....................... 7 5 Technical Specification........................8 6 Warranty Information ........................9 7 Troubleshooting ..........................10... -
Page 4: Description, General Specification
1 Description, General Specification Digitalextender® HD-D110 HDMI Distribution Amplifiers, allow one digital video sources to be spilt into multiple digital displays. The built-in amplification function enables HDMI signal distribution without signal loss. ITEM DESCRIPTION Model Name HD-D110 Input Signal HDMI Single Link , 1port... -
Page 5: Main Features
50ft using high quality HDMI copper cables. Select External EDID Data HD-D110 Distributor has EEPROM for store user’s display EDID data and supports any of the VESA standard monitor with maximum resolutions, User can select factory pre-programmed EDID data or want to use external EDID data simply. -
Page 6: Video Connection
3 Video Connection 1. Connect your video source’s HDMI output port to the HD-D110’s HDMI input port using standard HDMI cables (not included). Make sure your entire HDMI source and the displays are turned off before connecting the cables. 2. Connect your HDMI display’s HDMI input port to HD-110’s HDMI output port. Make sure your HDMI display is turned off before connecting the cables. -
Page 7: Mechanical Specification
4 Mechanical Specification Dimensions HD-D110: 343(W) x 163(D) x 45(H) mm DC 12V: DC Power Input (+12 V) POWER: Power On / Off Switch ON: Power On / Off Indication LED INPUT: HDMI Input Signal OUTPUT 1 ~ 10: HDMI Output Signals... -
Page 8: Technical Specification
5 Technical Specification Frequency bandwidth: 1.65 Gbps (Single Link) Supporting Graphic Resolution: 640x480, 800x600, 1024x576 1280x720, 1920x1080 480i/p, 720i/p, 1080i/p External EDID: Up to WUXGA(1920x1200), HDTV 1080P Inputs: HDMI Female 1 port Output: HDMI Female 10 ports Power supply: DC 12V, 3A Adapter included. Connector Pin Assignment HDMI Input, Output Part No. -
Page 9: Warranty Information
6 Warranty Information 1 (One) Year Warranty RTcomUSA, Inc. warrants this Digitalextender® HD-D110 HDMI Distribution Amplifiers to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from RTcomUSA Inc.or its authorized resellers. -
Page 10: Troubleshooting
7 Troubleshooting Problem Solution Distribution Amplifier will not Make sure the 12V power is plugged in the operate back of the unit. Check to see if the power LED light is on. No picture(or signal) 1. In case your video source is HDCP enabled, Or Poor picture make sure your video display (HDTV) is HDCP compliant. - Page 11 RTcomUSA Locations RTcomUSA, Inc. 286 Houses Corner Road Sparta, NJ 07871 USA. Tel: 1-973-383-4878 Fax: 1-973-383-1160 For order support, please contact your Distributor or Reseller. For technical support, check with the Web site: www.digitalextender.com info@digitalextender.com...
