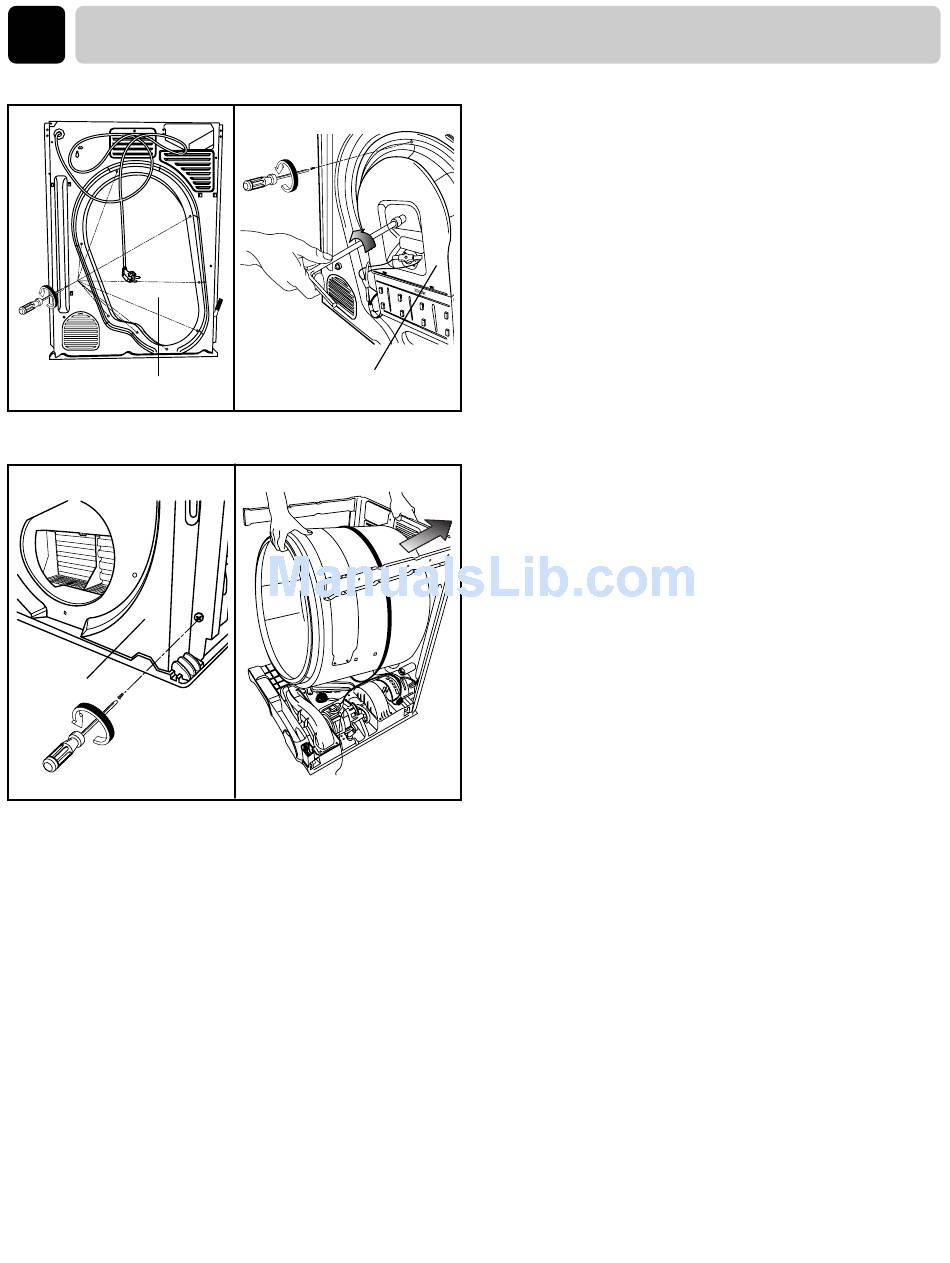

DIASSEMBLY INSTRUCTIONS
12
DUCT
COVER
REAR
AIR GUIDE
32
13-1. Disassemble the duct by releasing
the 7 screws.
13-2. Release the durum nut using tool.
13-3. Disassemble the air guide by
releasing the 1 screw.
14-1. Disassemble the COVER REAR by
releasing the 2 screws.
14-2. Disassemble the drum.
