DIASSEMBLY INSTRUCTIONS
12
3
2
CAPACITOR
PUMP
HOUSING
MOTOR
HOUSING
DISPENSER
31

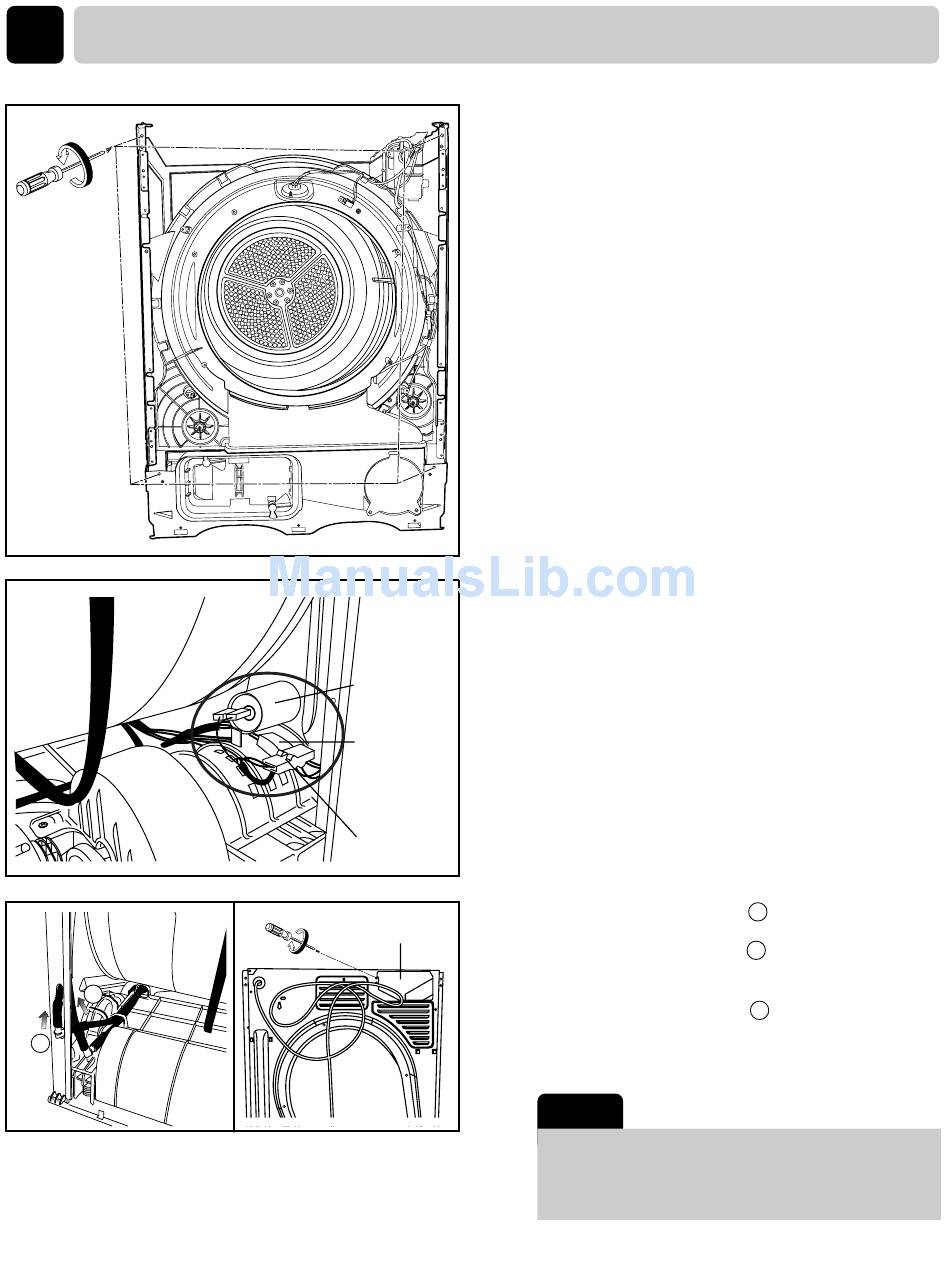

10. Disassembling the side frame by releasing
4 screws
11. Disassemble the housing of motor,
heater, pump and capacitor.
12-1. Disassemble the
12-2. Disassemble the
cover, rear.
12-3. Disassemble the
12-4. Releasing the dispenser by
unscrewing 1 screw.
Note
If the hose is assembled unsuitable
"empty water" error message will be
indicated on the LED or LCD display.
hose.
1
Holder from
2
hose.
3
