DIASSEMBLY INSTRUCTIONS
12
DRAWER
CABINET
PANEL FRAME

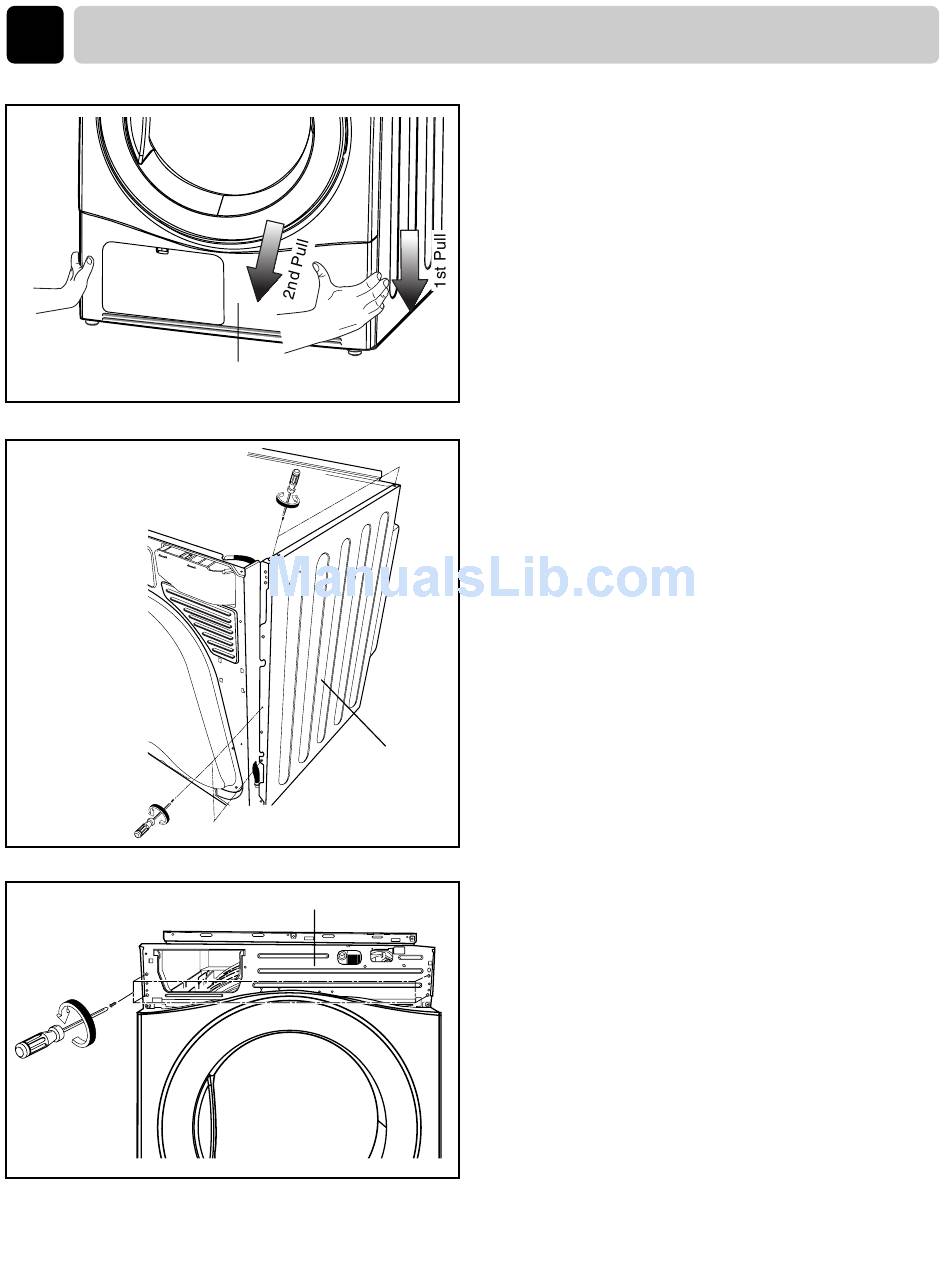

4. Disassemble the lower cover by pulling
to the front.
5. Disassemble cabinet by unscrewing 2 at
the top and 3 at the rear (Left and right
are the same).
6. Disassemble panel frame by unscrewing
4 at the front.
