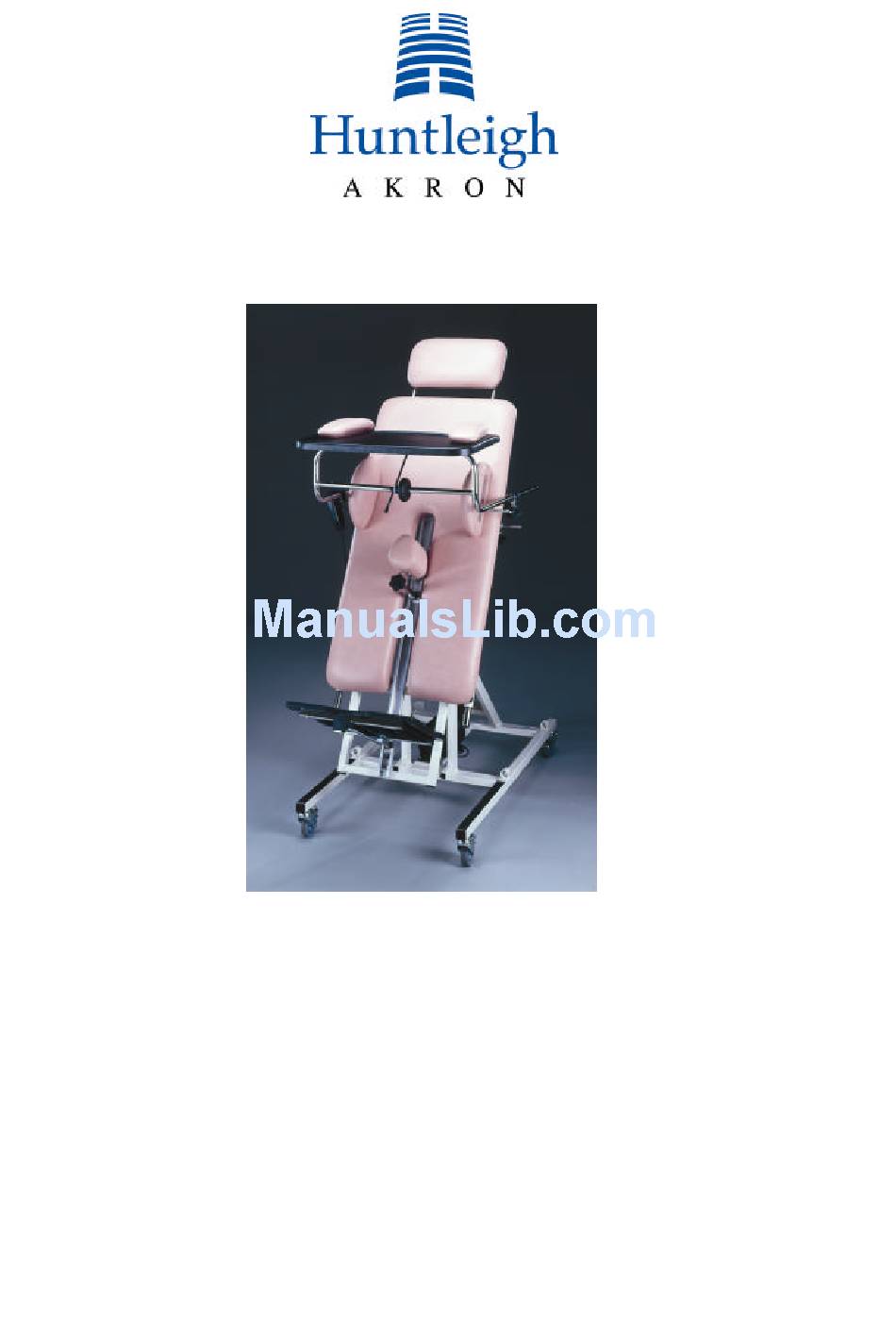

  • Page 1 ® AKRON CHILDS TILT TABLE Model 8601B USER MANUAL...

  • Page 3: Table Of Contents

    AKRON 8601B Contents Introduction Warnings, Cautions General Warnings Installation Operation Wheel Locking Tilting Control Head Section, Foot Board, Pommel Hand Grips, Pelvic Support Work Table Fixation Belts & Harnesses Cleaning and Decontamination Troubleshooting Maintenance Warranty and Service Revision Status Technical Specification "The...

  • Page 4: Introduction

    AKRON 8601B 1. Introduction Always keep this Operating Manual available for reference. Warnings & Cautions WARNINGS Warnings identify possible hazards in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions. CAUTIONS Cautions identify conditions or procedures which, if not correctly followed, could result in equipment failure or damage.

  • Page 5: Installation

    AKRON 8601B 2. Installation Battery Charging CAUTION Do NOT use table when batteries are being charged. To Charge Batteries Plug charger lead adaptor into handswitch as shown. Although batteries are charged prior to packing, charge for a minimum of 12 hours before use.

  • Page 6: Operation

    AKRON 8601B 3. Operation Wheel Locking WARNING Lock table wheels/castors prior to patient transfer or treatment. The retractable castors are not designed for transportation of patients. Disconnect and coil electrical cord away from moving parts prior to repositioning the table.

  • Page 7: Head Section, Foot Board, Pommel

    AKRON 8601B 3. Operation Head Section CAUTION Ensure Head Extension Frame is fully located in desired position before use. To adjust the length of the Head Extension :- Locate locking pin on underside of top frame. Pull the pin out.

  • Page 8: Hand Grips, Pelvic Support

    AKRON 8601B 3. Operation Hand Grips To fit Hand Grips :- Remove Work Table (if fitted). Slide hand grips into fixation brackets on both sides of table. Tighten locking knobs on fixation brackets to secure. Hand Grips To adjust height of Hand Grips :- Loosen locking knobs on sliding fixation brackets on both sides of table.

  • Page 9: Work Table

    AKRON 8601B 3. Operation Accessory Work Table WARNING The Accessory Work Table has a safe working load of 20 Kg. To fit the Work Table :- Insert Work Table Frame into sliding fixation brackets. Tighten locking knobs on fixation brackets to secure Work Table.

  • Page 10: Fixation Belts & Harnesses

    Always ensure that the straps and harnesses are in the correct position and that the patient is fully secure before operating the tilt facility. Only use Huntleigh Akron straps and harnesses. The Table is supplied with the following Fixation Harnesses and Belts (TT3) :-...

  • Page 11: Cleaning And Decontamination

    AKRON 8601B 4. Cleaning and Decontamination WARNING Do not use Alkalis or other organic solvents for routine cleaning. Replace torn or damaged vinyl immediately. Always cover vinyl with fresh paper or sheet between patients. If contamination is known or suspected always decontaminate couch before use.

  • Page 12: Troubleshooting

    Action Actuator will not work Power disconnected Ensure mains supply is connected Fuse blown Replace fuse in socket Hand/footswitch Check that the hand/foot switch is fully disconnected inserted into the actuator If the problem persists consult your local Akron Supplier.

  • Page 13: Maintenance

    AKRON 8601B 6. Maintenance Check table visually before use. Carry out routine servicing every six months or more frequently if in heavy use. Routine servicing or repair must only be performed by suitably qualified person. WARNING Before commencing any maintenance activity, disconnect the table from the electrical supply.

  • Page 14: Warranty And Service

    A Member of the Huntleigh Technology PLC Group of Companies © Huntleigh Technology PLC 2001. If for any reason your couch is being returned, please inform Huntleigh Akron prior to sending, and: Clean the product, as described in the cleaning section.

  • Page 15: Revision Status

    A Member of the Huntleigh Technology PLC Group of Companies © Huntleigh Technology PLC 2001. If for any reason your couch is being returned, please inform Huntleigh Akron prior to sending and: 1. Clean the product, as described in the cleaning section.

  • Page 16: Technical Specification

    AKRON 8601B 9. Technical Specification 8601B Width (cm) 53±1.5 Overall Length (cm) 171±3 Height Range (cm) 83±1.5 Max. Load Weight 50 Kg Tilting Control Electric Electrical Data 230v Voltage 220-240v Actuator Linak 32K-300-34-005 Power Supply CB-1A-60-24 Charger CD08-240 Input 240v ~ / 50/Hz / 14 Va Output 24v ~ / 220mA / 5.3 Va...
  • Page 17 AKRON 8601B...
  • Page 18 AKRON 8601B...
  • Page 20 Huntleigh Akron, 1 Farthing Road, Ipswich, Suffolk, IP1 5AP, England Tel: +44 (0) 1473 461042 Fax: +44 (0) 1473 462924 792-209-05...
